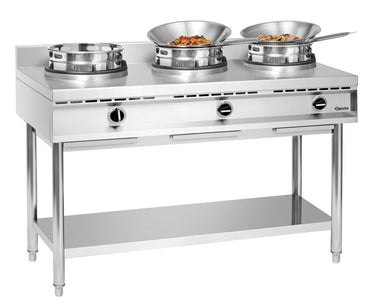

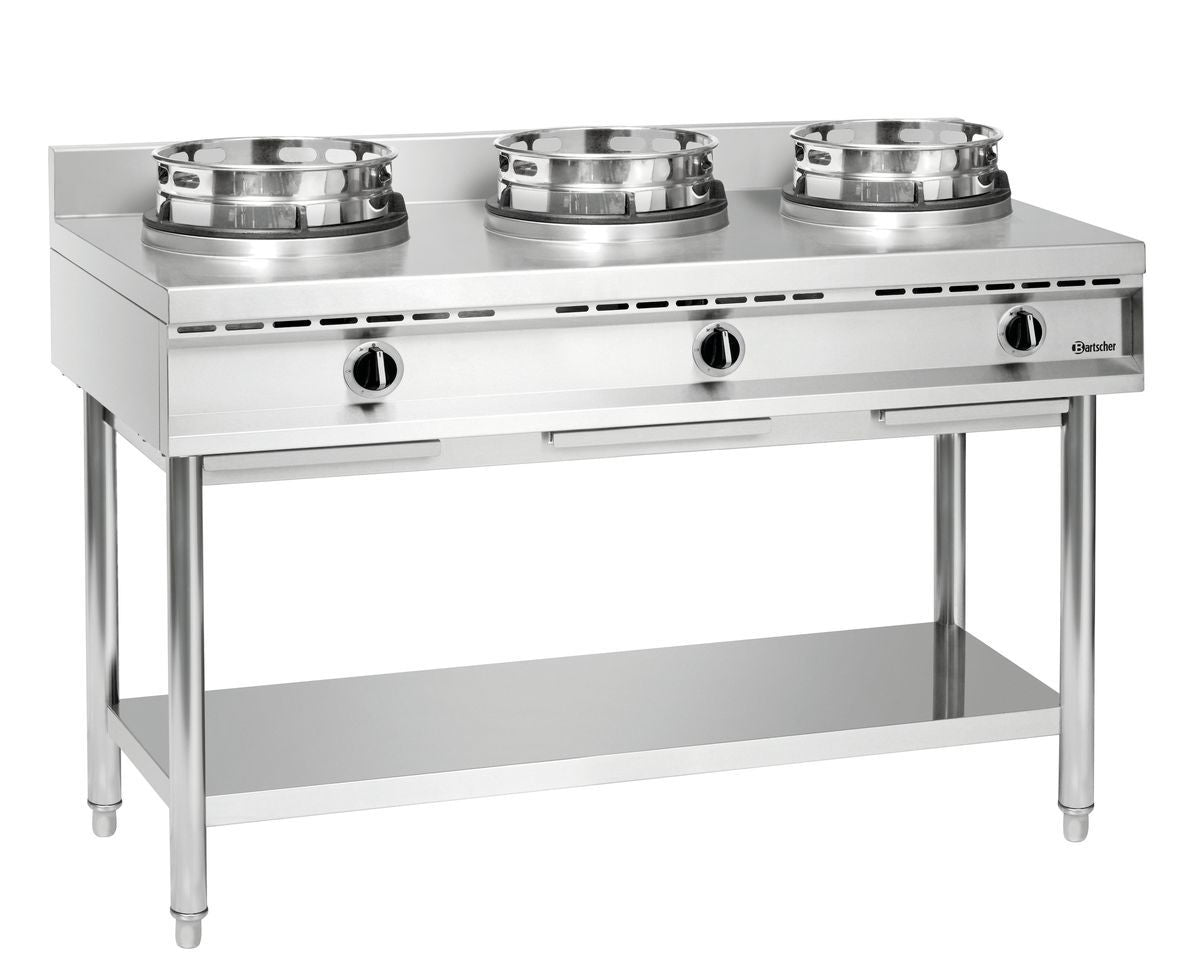

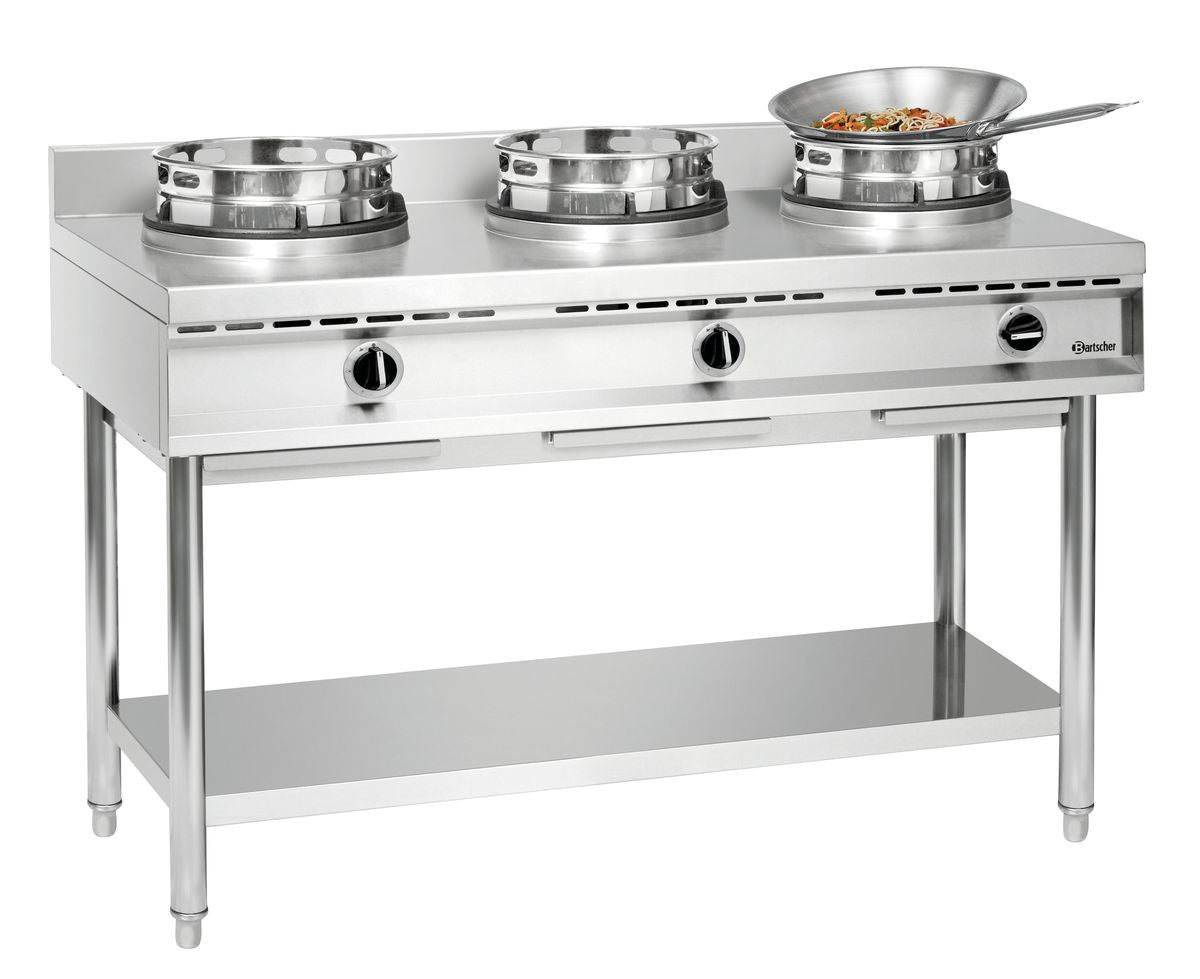

Three-burner gas wok hob with high-performance burners, 11.5 kW each, 34.5 kW total. Wok ring attachment Ø 290 mm, thermo-electrically protected, height-adjustable, burners removable without tools. Also suitable for pots from Ø 200 mm. For professional Asian kitchens with high throughput.

Product benefits

• Maximum power for the highest demands: Three high-performance burners, each with 11.5 kW, provide constant heat for professional wok cooking during peak hours.
• Flexible use thanks to variable cooking surfaces: Use the wok cooking zones either with a wok ring or flat – suitable for pots with a diameter of 200 mm or more.
• Tool-free cleaning in record time: The burners can be removed without tools – for efficient cleaning and minimal downtime.
• Safe working under full load: Thermoelectric ignition guard and Pilot flame ensure reliable operation even in hectic everyday kitchen use.
• Precise heat, precisely controlled: Each heating zone can be controlled separately for optimum control and adaptation to different cooking processes.
• Energy source of your choice: Preset for liquid gas – including nozzles for natural gas operation for maximum flexibility during Installation.

Technical data

• Width: 1500 mm
• Depth: 600 mm
• Height: 960 mm
• Net weight: 85 kg
• Gross weight: 122 kg
• Volume: 0.679 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Type of hobs: Wok ring top
• Height-adjustable feet: Yes
• Size hobs: Ø 290 mm
• Pilot flame: Yes
• Type: Upright unit
• Number of hobs: 3
• Height-adjustable to: 985 mm
• Gas type: Liquid gas (50 mbar) ,Natural gas nozzles H (20 mbar) are enclosed
• Properties: Burner can be removed without a tool ,Burner is thermo-electrically secured ,Heating zones can be controlled separately ,Hobs without wok ring top, for pots from Ø 200 mm
• Gas burner: High-performance burner
• Distribution of hobs: 3 x 11,5 kW
• Ignition type: Manual ignition
• Height-adjustable from: 960 mm
• Operating mode: Gas
• Material: CNS 18/10
• Grease collection tank: Yes
• Power: 34.5 kW

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 1053103
