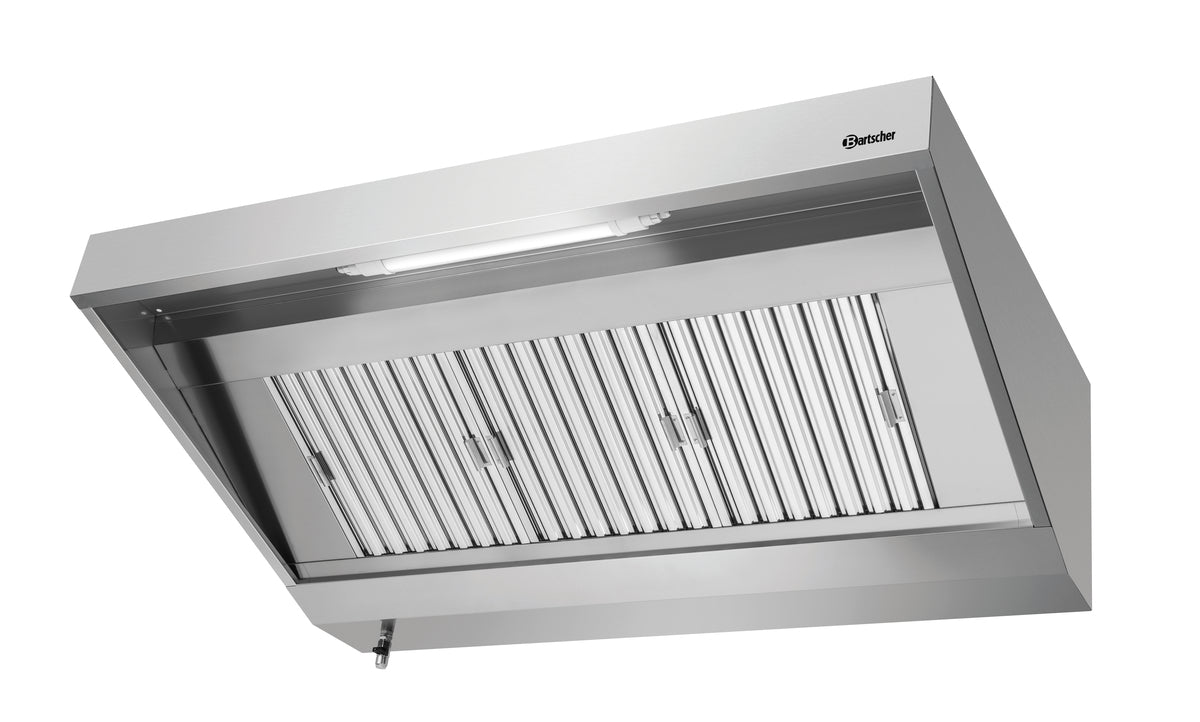

Wall-mounted hood, Series 900, 1600 mm, without motor – three CNS filters, Type A flame-retardant filter, 36 W lighting, IP44. For Series 900 kitchens with an external extractor system requiring a wide, illuminated hood without its own motor at 1600 mm.

Product benefits

• Reliable protection in professional kitchens: With protection class IP44, the wall hood 900, B1600 offers optimum protection against splashing water and foreign objects – ideal for demanding kitchen environments.

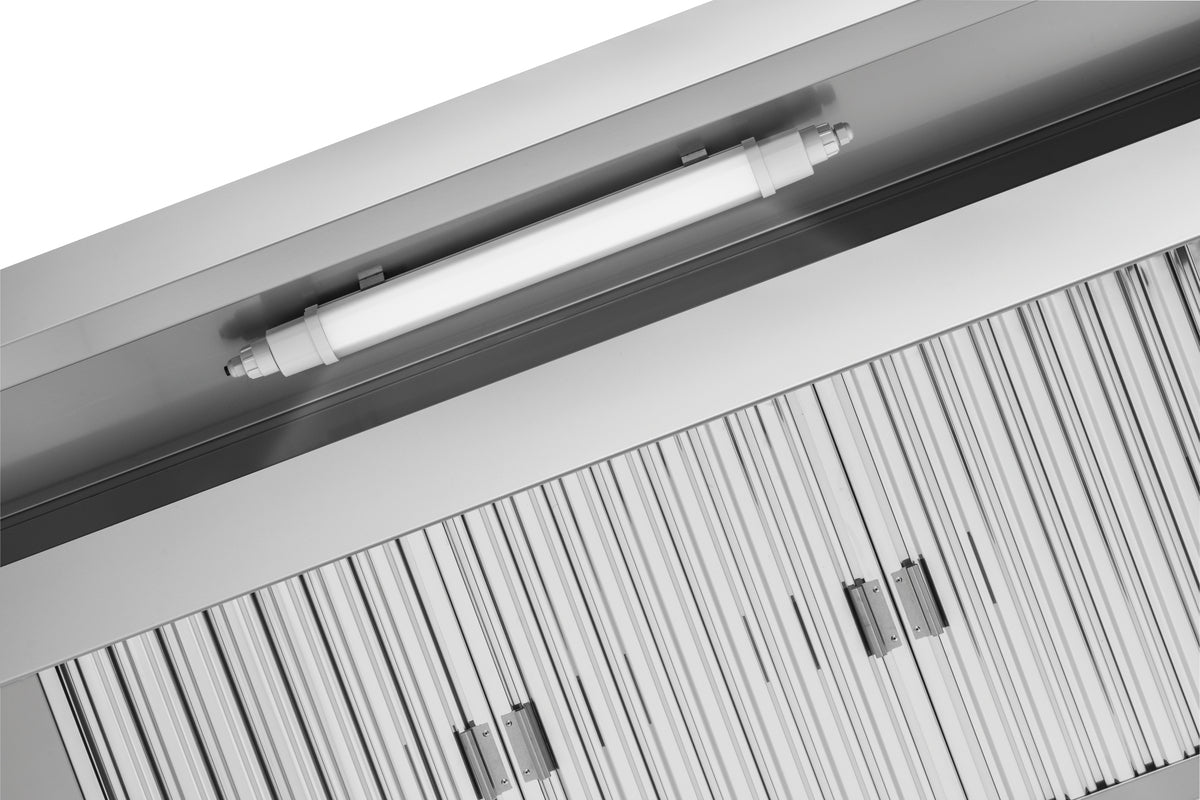

• Glare-free light for clear visibility: The integrated 36-watt lighting with grease protection cover ensures uniform illumination of the work surface without annoying glare.

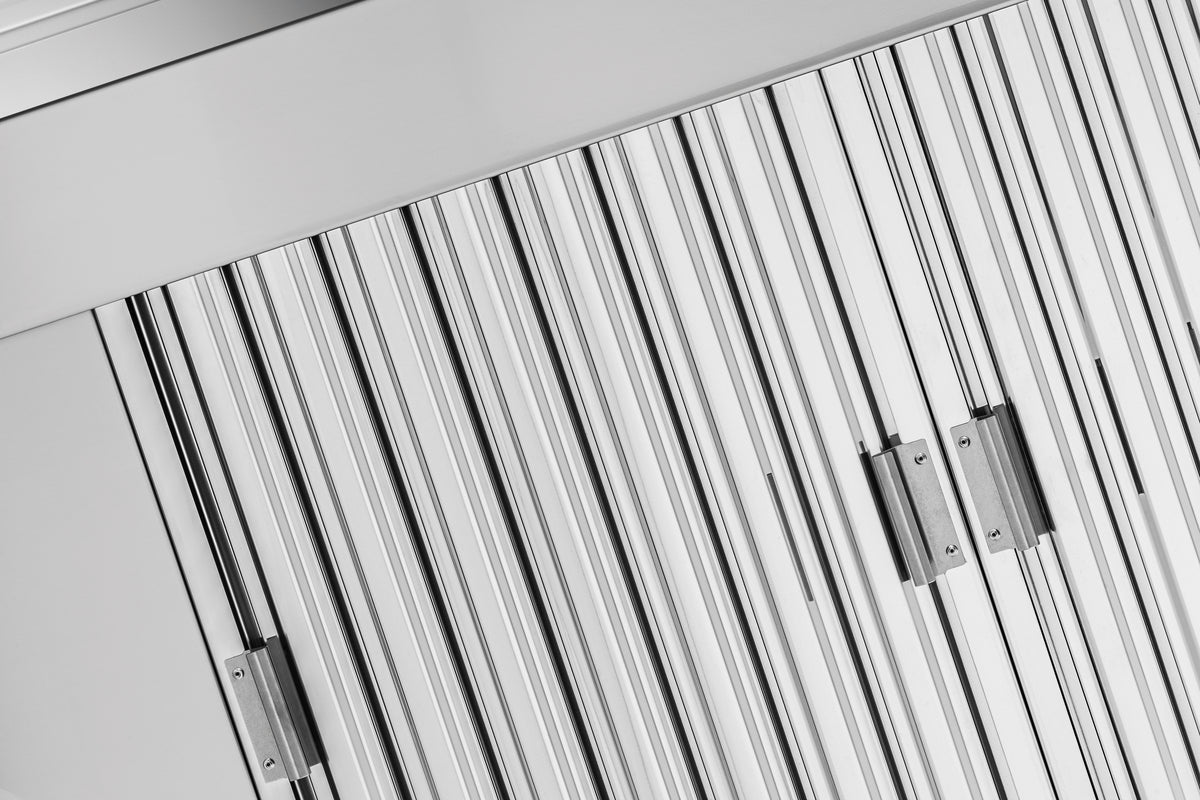

• Efficient grease separation thanks to a sophisticated filter system: Three high-quality type A flame protection filters and an additional grease collection channel in the filter holder reliably capture grease particles – for greater hygiene and safety.
• High-quality stainless steel for lasting robustness: The housing and filter made of CNS 18/10 guarantee easy cleaning, corrosion resistance and long-lasting quality – designed for daily professional use.
• Perfect fit for wall-mounted exhaust air solutions: The wall-mounted exhaust air version of the 900 Series combines space-saving design with efficient airflow – ideal for rationally planned kitchen layouts.
• Flexible series additions on request: In addition to the B1600, other sizes and matching ceiling hoods or the 1100 Series are available – for individually tailored kitchen ventilation systems.
• Low energy consumption at full power: With a power consumption of only 0.036 kW, the wall hood is particularly energy-efficient – an economic advantage for any Continuous operation.
• Safe without an integrated Motor: The absence of a built-in Motor allows flexible combination with external units – for powerful, demand-oriented exhaust air systems.

Technical data

• Width: 1600 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 35 kg
• Gross weight: 39 kg
• Volume: 0.972 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Protection class: IP44
• Lamps (number + watt): 1 x 36 W
• Power: 0.036 kW
• Lighting: yes
• Voltage: 230 V
• With motor: No
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 3
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 265160
