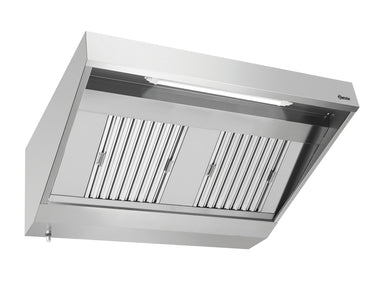

Wall-mounted hood Series 900, 1400 mm, without motor – two CNS filters with grease collection channel, Type A flame arrestor, 36 W lighting, IP44. For Series 900 kitchens with an external exhaust system and a requirement for a clean, illuminated hood with a width of 1400 mm.

Product benefits

• Uncompromising hygiene thanks to premium materials: Made from high-quality CNS 18/10 stainless steel, the wall hood guarantees maximum corrosion resistance and is specially designed for the highest hygiene requirements in the catering industry.

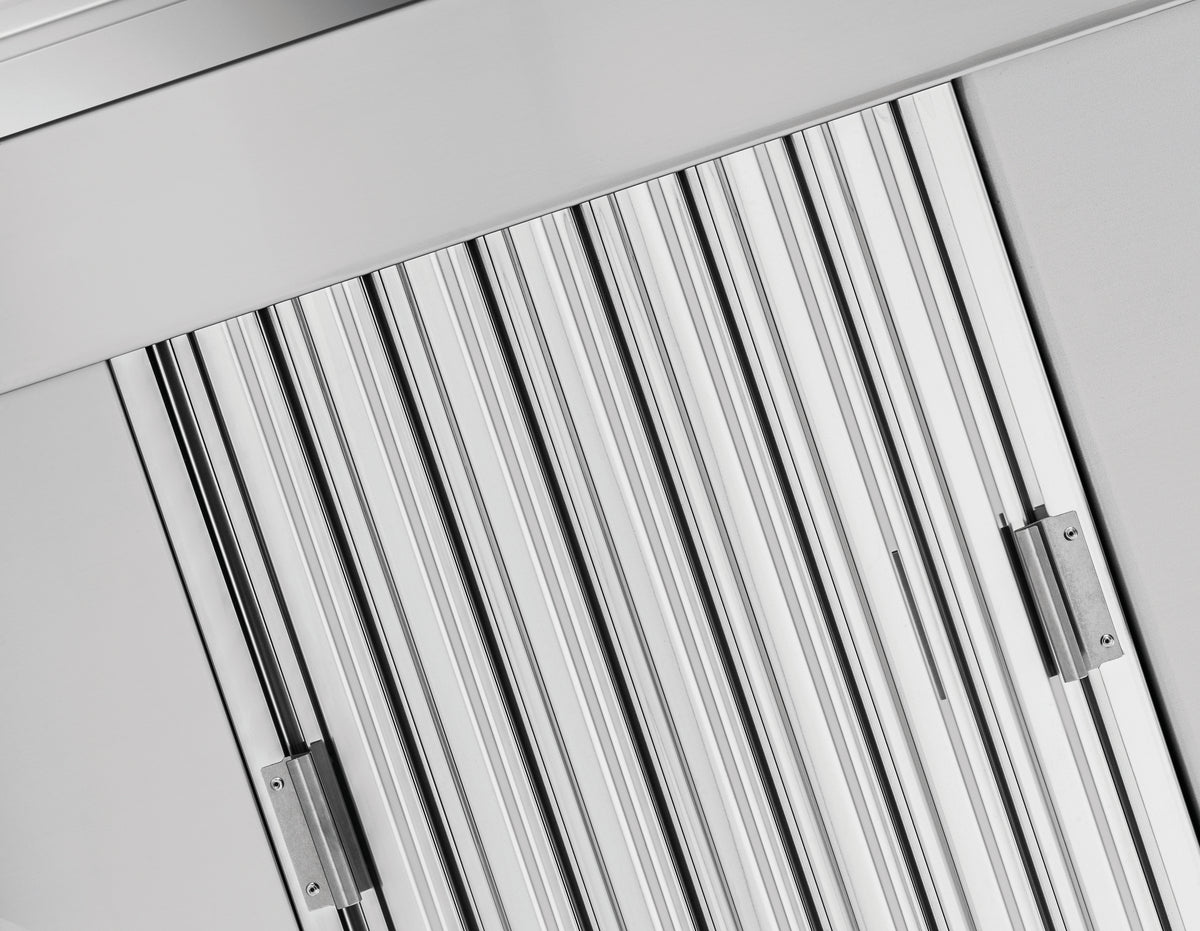

• Efficient grease trap system: Two integrated type A flame protection filters and an additional grease collection channel in the filter holder ensure reliable grease separation – ideal for professional Continuous operation.
• Glare-free light for safe working: The 36-watt luminaire with integrated grease protection cover ensures uniform, glare-free illumination of the work surface – visibly efficient even during intensive use.
• Robustly constructed for intensive everyday kitchen use: IP44-certified and made of durable stainless steel, the wall hood impresses in daily use with its industry-standard protection against dirt and splashing water.
• Easy to install, permanently reliable: Thanks to its stable wall mounting, the Hood fits securely and space-savingly into any working environment – a reliable replacement for classic ventilation systems without a Motor.
• Planning reliability thanks to versatile variants: Available on request in other sizes and as a ceiling or Series 1100 wall hood – for tailor-made exhaust air solutions in any kitchen architecture.
• Energy-saving at full power: With a power consumption of only 0.036 kW, the wall hood achieves optimum filter and lighting performance – energy-efficient and economical in operation.
• Reliable exhaust air extraction without motor integration: Ideal for central exhaust air systems: the motorless design allows flexible integration into existing ventilation concepts – quiet, low-maintenance and powerful.

Technical data

• Width: 1400 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 32 kg
• Gross weight: 36 kg
• Volume: 0.854 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Protection class: IP44
• Lamps (number + watt): 1 x 36 W
• Power: 0.036 kW
• Lighting: yes
• Voltage: 230 V
• With motor: No
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 265140
