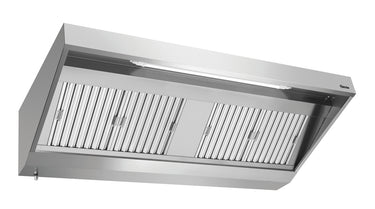

Product benefits

• Powerful exhaust air performance for demanding kitchens: With a maximum air flow rate of 1600 m³/h, the Wall Hood 900 with Motor reliably handles large volumes of grease and steam, even at high capacity.
• Robust and hygienic – professional-quality stainless steel: The filter and housing are made of high-quality CNS 18/10, which is particularly resistant, durable and easy to clean – ideal for daily use in commercial kitchens.

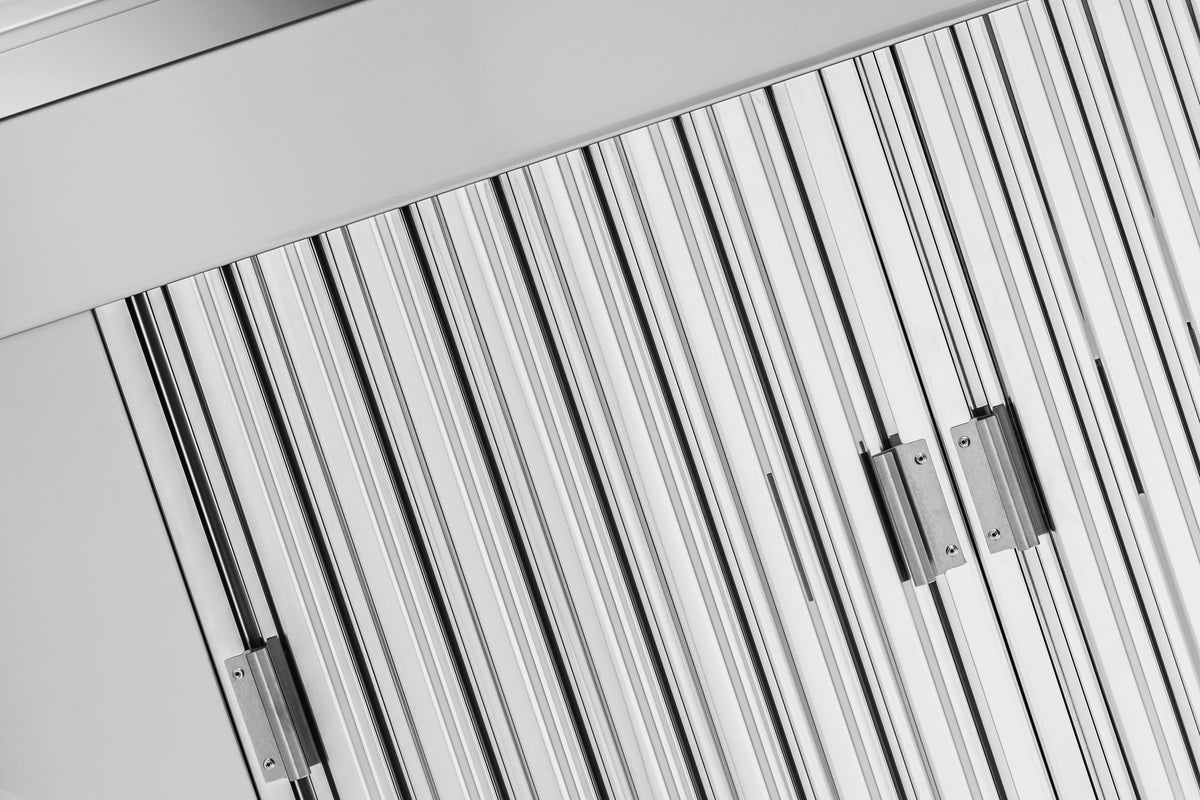

• Efficient grease trap with multiple protection: Four type A flame protection filters and an integrated grease collection channel in the filter holder ensure optimum protection and ease of maintenance in Continuous operation.
• Glare-free lighting for ergonomic working: The integrated 36-watt light with grease protection cover provides a clear view of the work area without glare – for greater safety and comfort when cooking.
• Flexible control unit thanks to external controller connection: The fan control via an external controller allows the exhaust air output to be adjusted as required – energy-efficient and application-oriented.
• Space-saving wall mounting with powerful performance: With its compact design and integrated 184-watt Motor, the wall hood is ideal for cramped kitchen spaces without compromising on performance.
• Reliable technology for continuous operation in professional catering: The IP44 protection class ensures reliable protection against splashing water – indispensable in humid, intensive kitchen environments.
• Expandable for individual kitchen concepts: In addition to the B2000, ceiling hood variants, Series 1100 and other sizes are available on request – for tailor-made solutions in the commercial sector.

Technical data

• Width: 2000 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 49 kg
• Gross weight: 54 kg
• Volume: 1.207 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 36 W
• Power: 0.22 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1600 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 4
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264200
