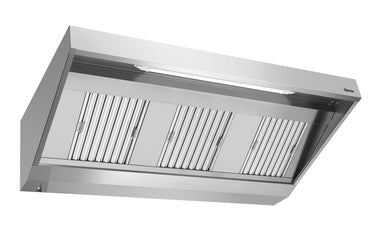

Wall-mounted hood, Series 900, 1800 mm, with 184 W Motor and up to 1,500 m³/h air flow rate. Three stainless steel filters, grease collection channel, Type A Flame protection filter, IP44. Commissioning via external controller. For large kitchen lines with high and continuous vapour emissions.

Product benefits

• High extraction performance – even during heavy kitchen use: With an air flow rate of up to 1500 m³/h, the wall hood ensures powerful extraction even during intensive use – ideal for commercial kitchens and busy times in the catering industry.
• Robust quality made from CNS 18/10 stainless steel: The hood body, including the filter, is made entirely of high-quality chrome-nickel steel, guaranteeing durability, hygiene and easy cleaning – particularly relevant in professional continuous use.
• IP44 safety standard – protection even in damp conditions: Thanks to protection class IP44, the Hood is ideally designed for use in damp kitchen environments – protected against splashing water and foreign objects from 1 mm in size.
• Glare-free lighting with additional grease protection: The integrated 18-watt light ensures optimum illumination of the work area – protected by a grease guard for long-lasting function and easy maintenance.

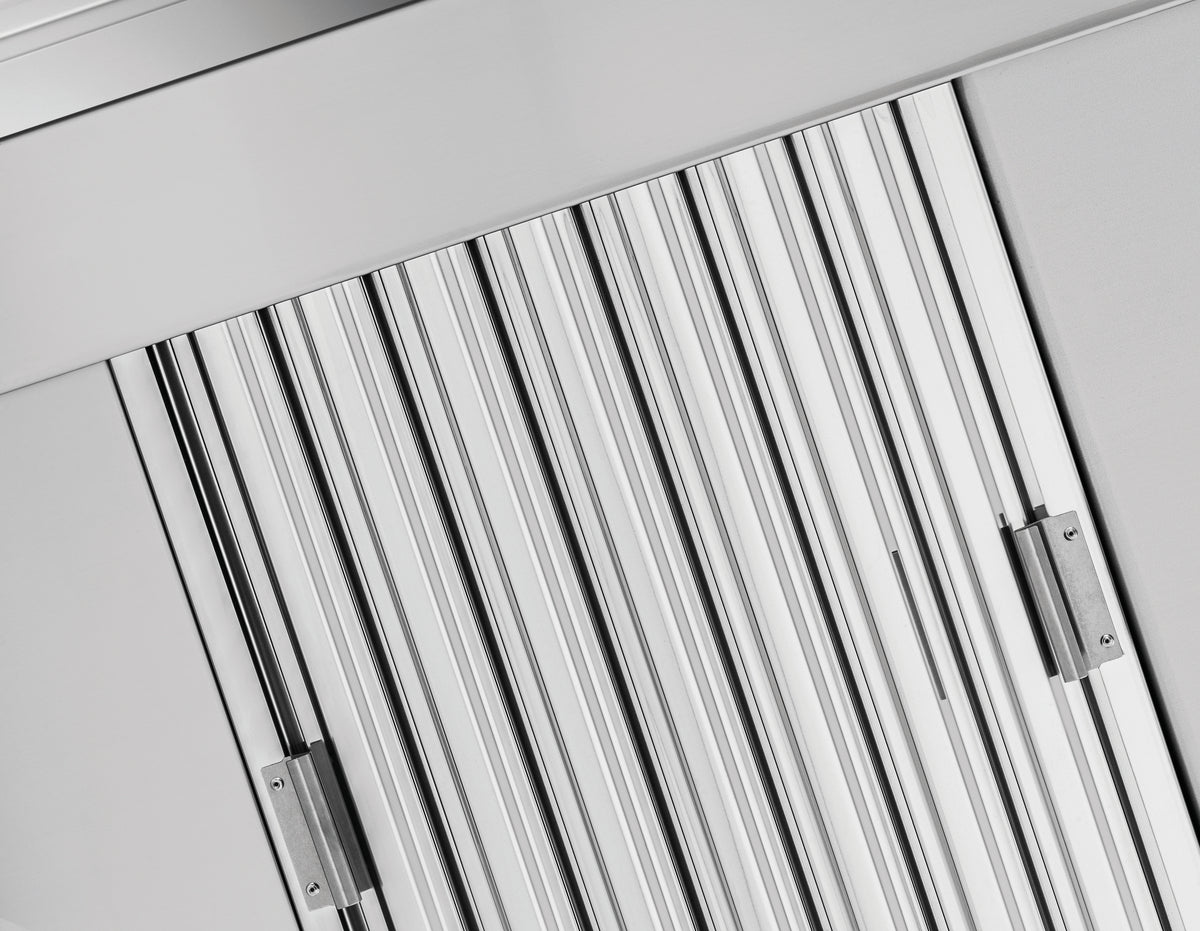

• Efficient flame protection with type A filters: Triple filter holders with additional grease collection channels offer maximum safety thanks to tested Flame protection filters – indispensable for professional kitchens with open cooking areas.
• Easy integration thanks to flexible model: With a predefined motor cut-out and externally controllable Fan, the wall hood fits seamlessly into existing ventilation concepts – and can also be expanded with series components on request.
• Adjustable performance for individual requirements: An external controller allows the fan power to be adjusted precisely – for energy-efficient operation depending on the time of day, occupancy or cooking intensity.
• Easy-to-install wall solution with compact design: Wall mounting saves space above the cooking line and allows for easy maintenance – a practical design feature for quick Installation and efficient use.

Technical data

• Width: 1800 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 45 kg
• Gross weight: 50 kg
• Volume: 1.09 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1500 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 3
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264180
