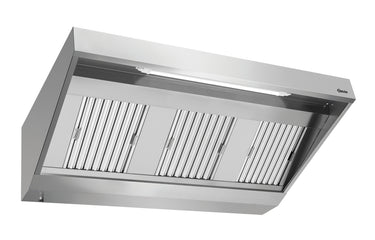

Wall-mounted hood, 900 series, 1700 mm, with 184 W motor, up to 1,400 m³/h. Three stainless steel filters, grease collection channel, type A flame arrestor, IP44. Commissioning with external controller. For 900 series kitchen lines requiring wide, motorised extraction capacity up to 1700 mm.

Product benefits

• Powerful exhaust air for demanding everyday kitchen use: With an air flow rate of up to 1,400 m³/h, the wall hood reliably handles steam, heat and odours – even during peak times in professional kitchens.
• Robust stainless steel design for long-lasting use: Made from high-quality CNS 18/10, the wall-mounted hood offers high corrosion resistance and hygiene – ideal for daily use in professional kitchens.

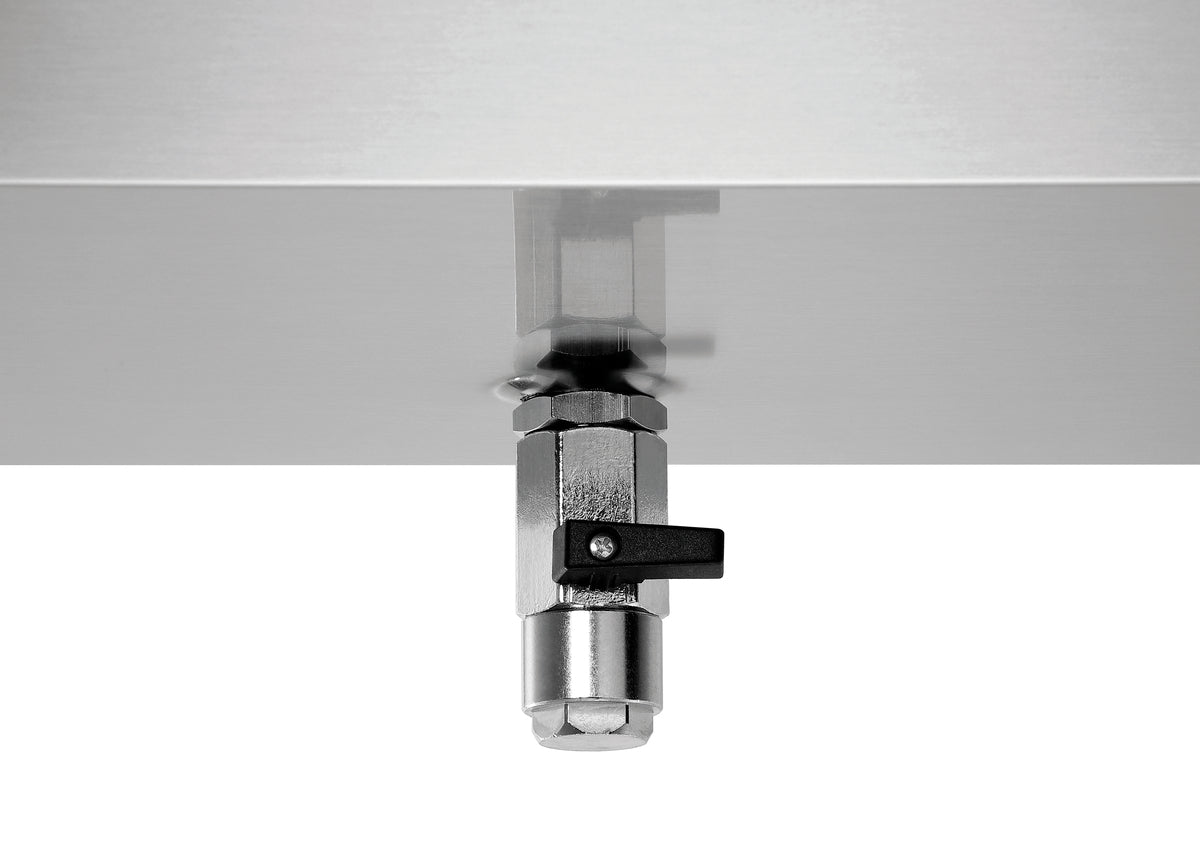

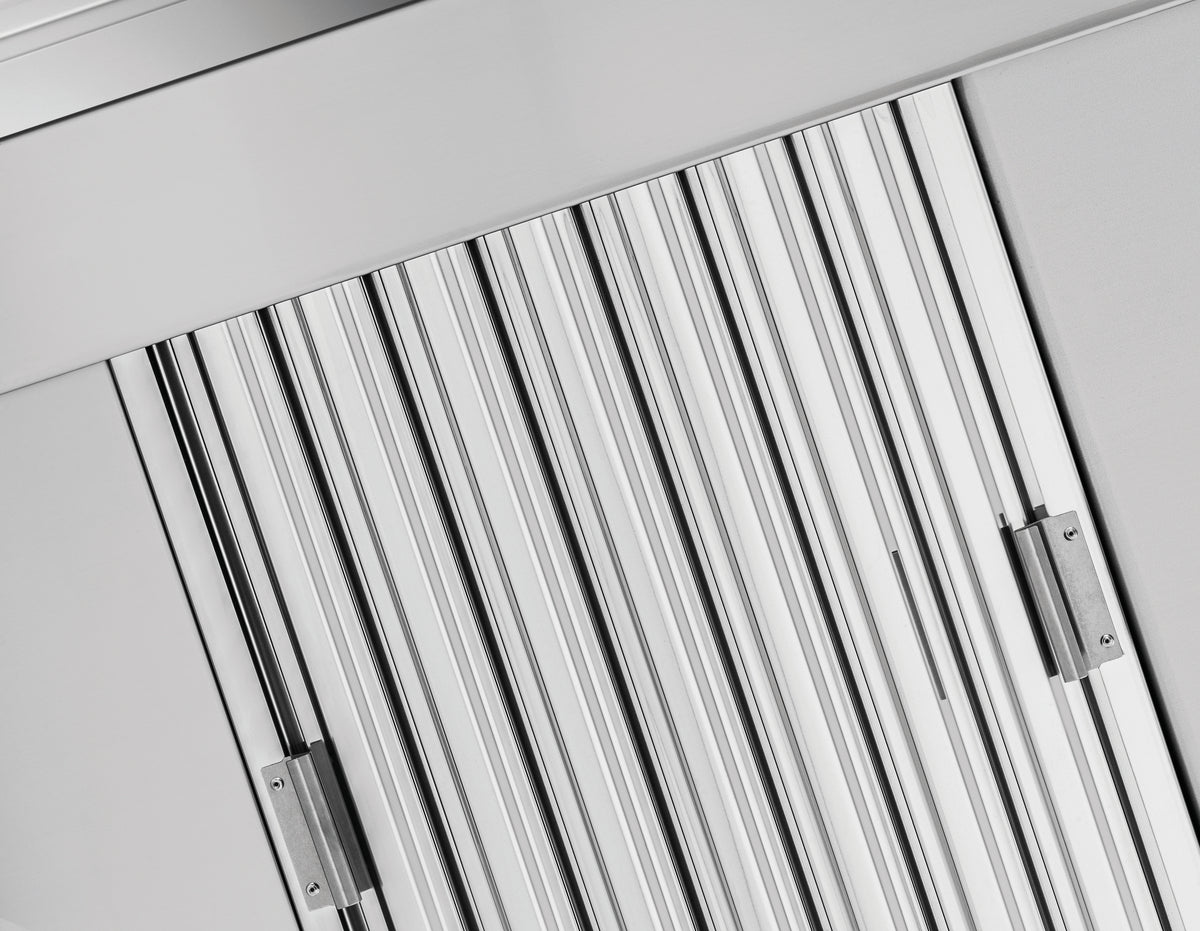

• Efficient grease separation for clean exhaust air: Three Type A CNS flame protection filters and an integrated grease collection channel ensure maximum filtration performance and minimise cleaning effort.
• Safe technology for professional operating environments: Thanks to Protection class IP44, the motor is protected against splash water and external influences – for reliable Continuous operation even under demanding conditions.
• Glare-free work lighting included: The integrated 18-watt light with grease protection cover ensures optimum illumination without annoying reflections – ideal for safe and precise working.
• Compact installation, flexible control: Space-saving wall mounting combined with external fan control allows individual adaptation to different kitchen situations and ventilation concepts.
• Energy-efficient operation: With a power consumption of only 0.202 kW and optimised air flow, the wall-mounted hood offers an economical solution for modern kitchen operations.
• Expandable system solution for professional ventilation: The B1700 is part of a modular range – it has combinability with ceiling hoods and series variants on request for tailor-made kitchen ventilation concepts.

Technical data

• Width: 1700 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 44 kg
• Gross weight: 49 kg
• Volume: 1.031 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1400 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 3
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264170
