Wall-mounted hood, Series 900, 1600 mm, with 184 W Motor, up to 1,400 m³/h. Three stainless steel filters, Type A flame protection filter, IP44, glare-free Lighting. Commissioning via external controller. For medium-sized kitchen lines in the catering and communal catering sectors.

Product benefits

• Powerful exhaust air performance for demanding kitchens: With an air flow rate of up to 1400 m³/h, the Wall Hood 900 reliably removes steam and grease-laden air – ideal for intensive catering operations.
• Integrated Motor saves space and installation effort: The powerful 184-watt Motor is already installed in the housing – this reduces installation effort and creates more planning freedom in cramped kitchens.

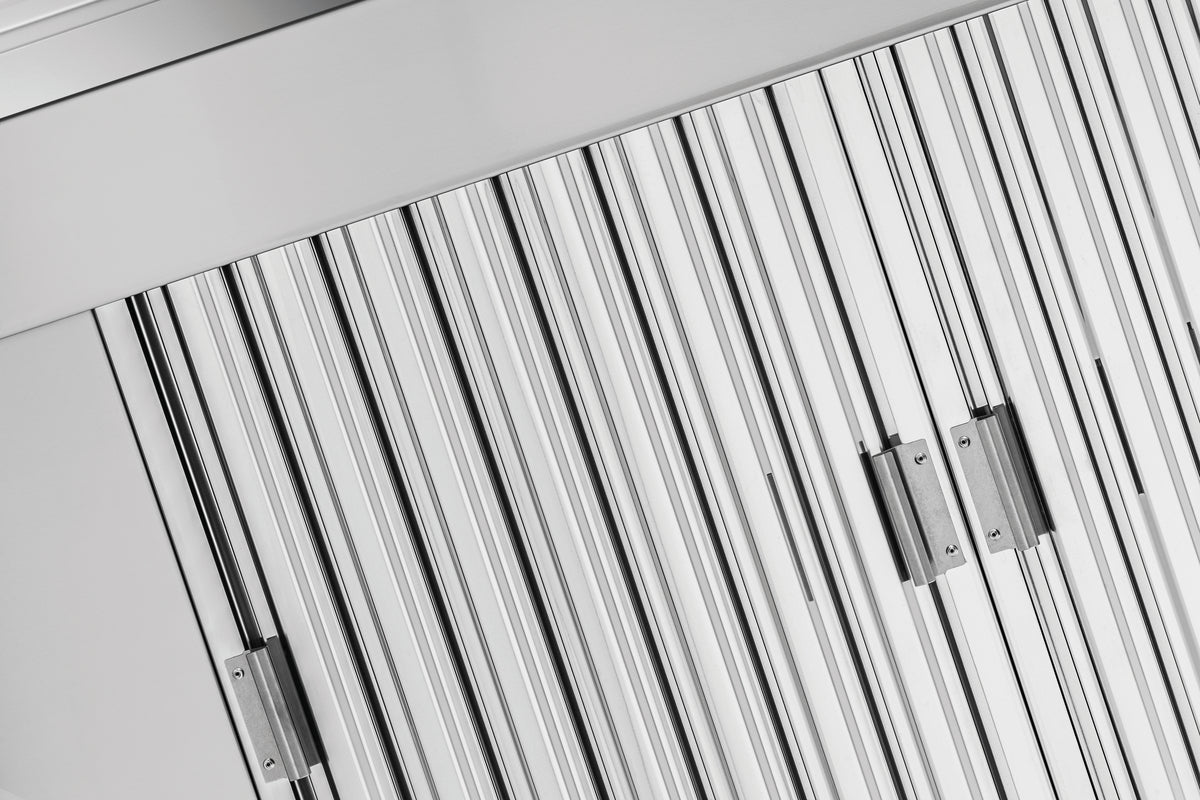

• Professional type A flame protection: With three type A CNS flame protection filters, the Hood meets increased safety requirements and provides reliable protection against the risk of grease fires.
• Glare-free work lighting with grease protection: The integrated 18-watt light ensures optimum visibility – protected by a grease guard for long-lasting light quality.
• Robust hygiene thanks to stainless steel filter with collection system: Filter holders and grease collection channels made of high-quality CNS 18/10 ensure long-lasting cleaning safety and minimise residues in the air flow.
• Flexible control unit via external regulator: The fan power can be precisely controlled – adapted to individual kitchen requirements and can be used in combination with modern control systems.
• Designed for professional wall mounting: The stable wall mounting offers a space-saving and functional solution in commercial kitchens and catering establishments in proven professional quality.
• Future-proof thanks to modular product series: Expandable with additional wall and ceiling hoods from the Series – for tailor-made solutions for changing kitchen structures.

Technical data

• Width: 1600 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 42 kg
• Gross weight: 47 kg
• Volume: 0.972 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1400 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 3
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264160
