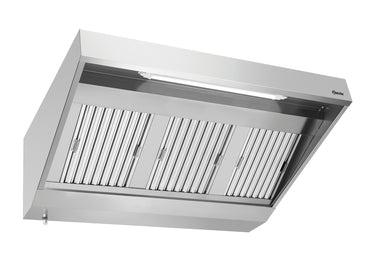

Wall-mounted hood, Series 900, 1500 mm, with 184 W motor, up to 1,400 m³/h. Two CNS filters, grease collection channel, Type A flame arrestor, IP44. Commissioning via external controller. For Series 900 kitchen lines requiring motorised extraction capacity at a width of 1500 mm.

Product benefits

• Powerful air exchange for demanding kitchens: With an air flow rate of up to 1400 m³/h, the Wall Hood 900 ensures efficient exhaust air – even during peak times in commercial kitchens and catering establishments.
• Energy efficiency meets professional performance: With a power consumption of only 0.202 kW, the integrated 184-watt Motor offers an impressive combination of energy savings and exhaust air performance.
• Robust, hygienic, durable – made entirely of CNS 18/10: Made entirely from corrosion-resistant chrome-nickel steel, the Hood meets the highest industry standards for hygiene, ease of care and service life.
• Greater safety thanks to integrated type A flame protection filter: Reliable fire protection combined with effective grease separation – ideal for open cooking areas and professional Continuous operation.
• Glare-free work lighting with integrated grease protection: The 18-watt light ensures optimum illumination of the cooking surface – protected by a removable cover with grease filter function.
• Practical design: grease collection channel under each filter: The additional collection channel under the two filter systems reduces cleaning effort and extends maintenance intervals – for smooth everyday kitchen operation.
• Flexible fan control unit via external regulator: External control allows the exhaust air output to be precisely adjusted to the current cooking activity – for efficient control unit operation and quieter operation.
• Professional solution with expansion options: Also available as a ceiling hood or Series 1100 on request – guaranteed optimal adaptability to individual kitchen layouts and performance requirements.

Technical data

• Width: 1500 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 41 kg
• Gross weight: 45 kg
• Volume: 0.913 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1400 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264150
