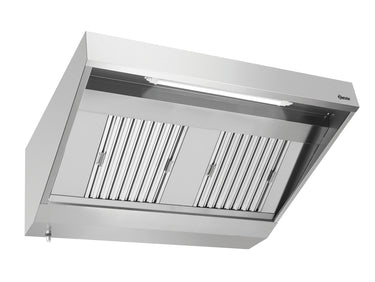

Wall-mounted hood, 900 series, 1400 mm, with 184 W motor, up to 1,400 m³/h. Two stainless steel filters, grease collection channel, Type A flame arrestor, IP44. Commissioning via external controller. For 900 series kitchen lines requiring motorised extraction capacity at a width of 1400 mm.

Product benefits

• Efficient ventilation at a professional level: With an air flow rate of 1400 m³/h, the Wall Hood 900 ensures reliable exhaust air performance in busy kitchens – even during intensive use.
• Robust quality for continuous use: Made from high-quality CNS 18/10, the Hood is particularly resistant to heat, grease and corrosion – for a permanently hygienic kitchen environment.
• Integrated Motor – clever space saving: Thanks to its integrated 184 W Motor and compact Cut-out (232 x 208 mm), the wall-mounted hood saves space and significantly reduces installation costs.

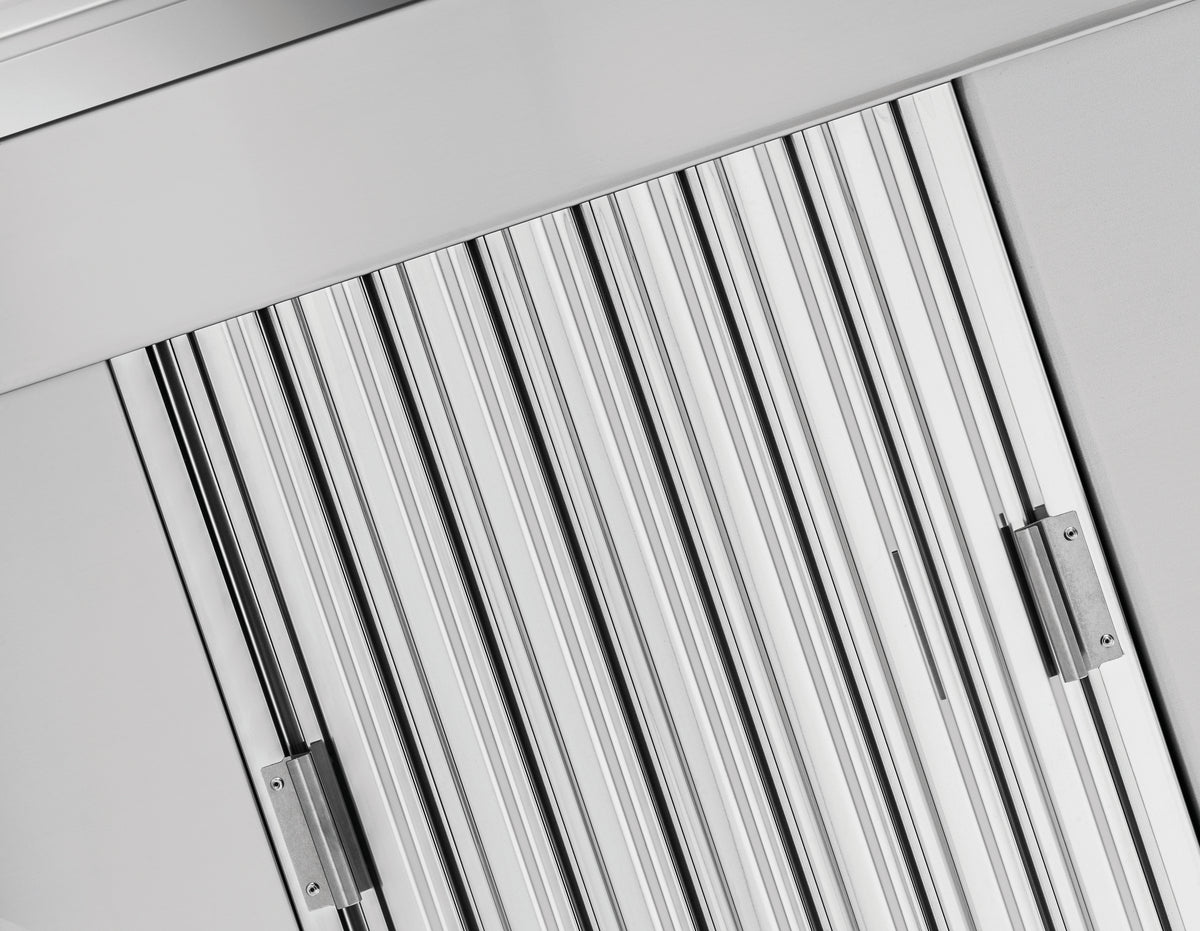

• Well thought-out for easy maintenance: Two easily removable Type A flame protection filters with separate grease collection channel simplify cleaning and maintenance in demanding kitchen environments.
• Lighting that works with you: The integrated 18 W glare-free light with grease protection cover ensures optimum visibility above the cooking area – reliably, day after day.
• Adjustable control unit for greater flexibility: The fan control via an external regulator allows adjustment to different cooking situations and room sizes as required.
• Safe even under demanding conditions: With protection class IP44, the wall-mounted hood is protected against splashing water and foreign objects – ideal for professional use in damp areas.
• Modular expansion for individual requirements: Compatible with other Hoods in the 1100 Series and ceiling variants – for seamless expansion in complex kitchen concepts.

Technical data

• Width: 1400 mm
• Depth: 900 mm
• Height: 450 mm
• Net weight: 39 kg
• Gross weight: 43 kg
• Volume: 0.854 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1400 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 264140
