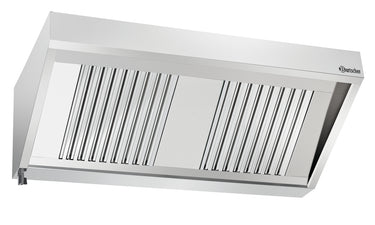

Wall-mounted hood, Series 700, 1400 mm, without motor – two CNS filters with grease collection channel, Type A flame arrestor, 36 W lighting, IP44. For kitchens with an external extractor system looking for a compact, illuminated 1400 mm hood without its own motor.

Product benefits

• Efficient grease trap for heavy-duty use: Two robust type A flame protection filters with an additional grease collection channel ensure reliable air purification in heavy-duty kitchens.

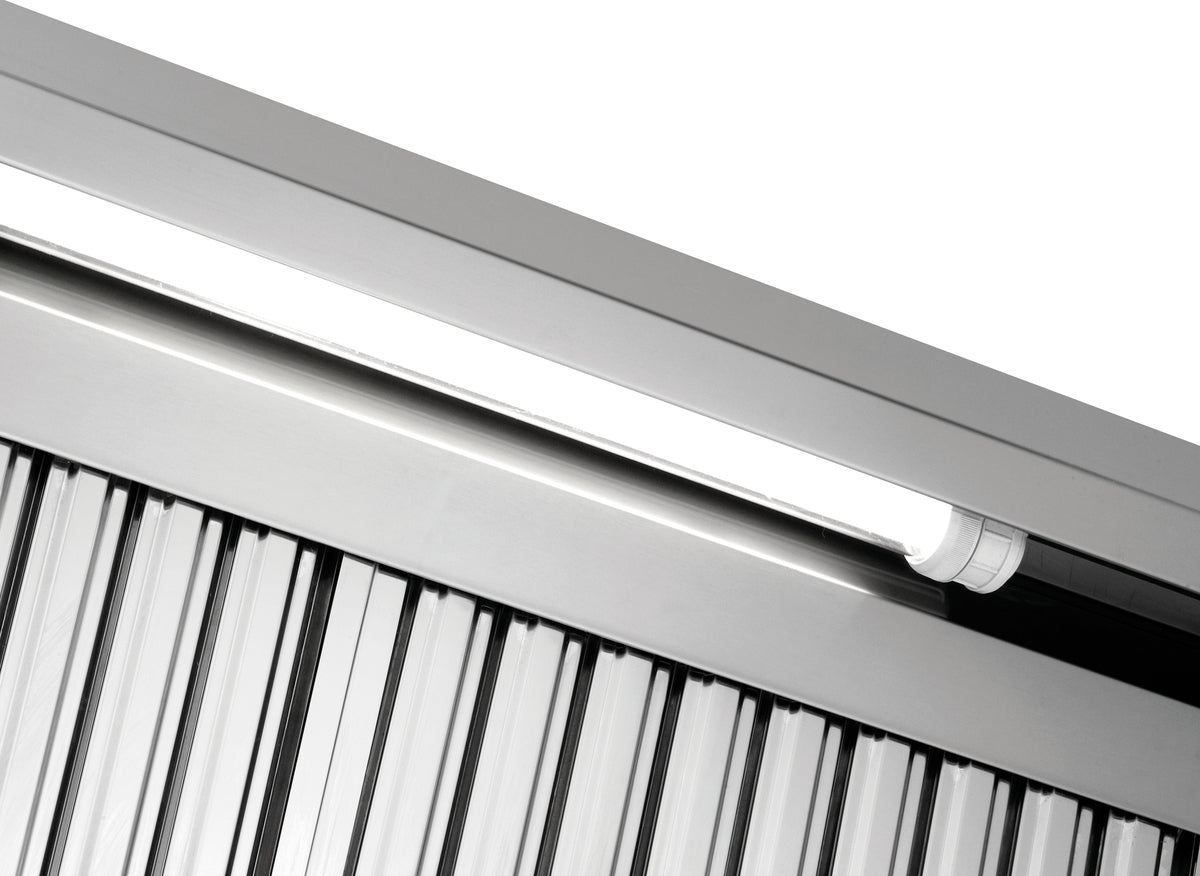

• Glare-free light for clear visibility: The integrated 36-watt lighting with grease protection cover illuminates the work area hygienically and is easy on the eyes – ideal for kitchen use.
• Easy to clean thanks to high-quality stainless steel: Made from durable CNS 18/10 – resistant to corrosion and easy to clean for the highest hygiene standards.
• A safe choice for professional kitchens: With protection class IP44, the wall hood is protected against splashing water and foreign objects – suitable for demanding everyday catering use.
• Flexible add-on options: Can be expanded with matching ceiling hoods and other sizes from the Series – ideal for tailor-made exhaust air solutions in commercial kitchens.
• Optimised for exhaust air operation without its own Motor: Can be perfectly integrated into central exhaust air systems – for a sophisticated ventilation solution with external motor control.

Technical data

• Width: 1400 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 31 kg
• Gross weight: 34 kg
• Volume: 0.674 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Protection class: IP44
• Lamps (number + watt): 1 x 36 W
• Power: 0.036 kW
• Lighting: yes
• Voltage: 230 V
• With motor: No
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 258140
