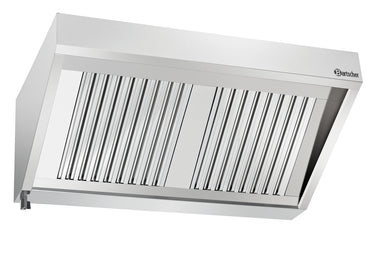

Wall-mounted hood Series 700, 1200 mm, without motor – two CNS filters with grease collection channel, Type A flame-retardant filter, 18 W lighting, IP44. For kitchens with an external extractor system looking for a compact, illuminated hood with a width of 1200 mm without its own motor.

Product benefits

• Robust stainless steel construction – for maximum durability: Housing and Flame protection filter made of high-quality CNS 18/10 guarantee stability and corrosion resistance in Continuous operation.
• Efficient exhaust air technology for high kitchen performance: The 700, B1200 wall-mounted hood is particularly powerful in exhaust air mode – without an integrated Motor for flexible installation solutions.
• Safe in everyday use thanks to Type A flame protection filters: The integrated type A filters provide reliable protection against the risk of grease fires – particularly important in busy professional kitchens.
• Sophisticated filter system with grease collection channel: Two CNS filters including an additional grease collection channel optimise hygiene and maintenance requirements in the long term.

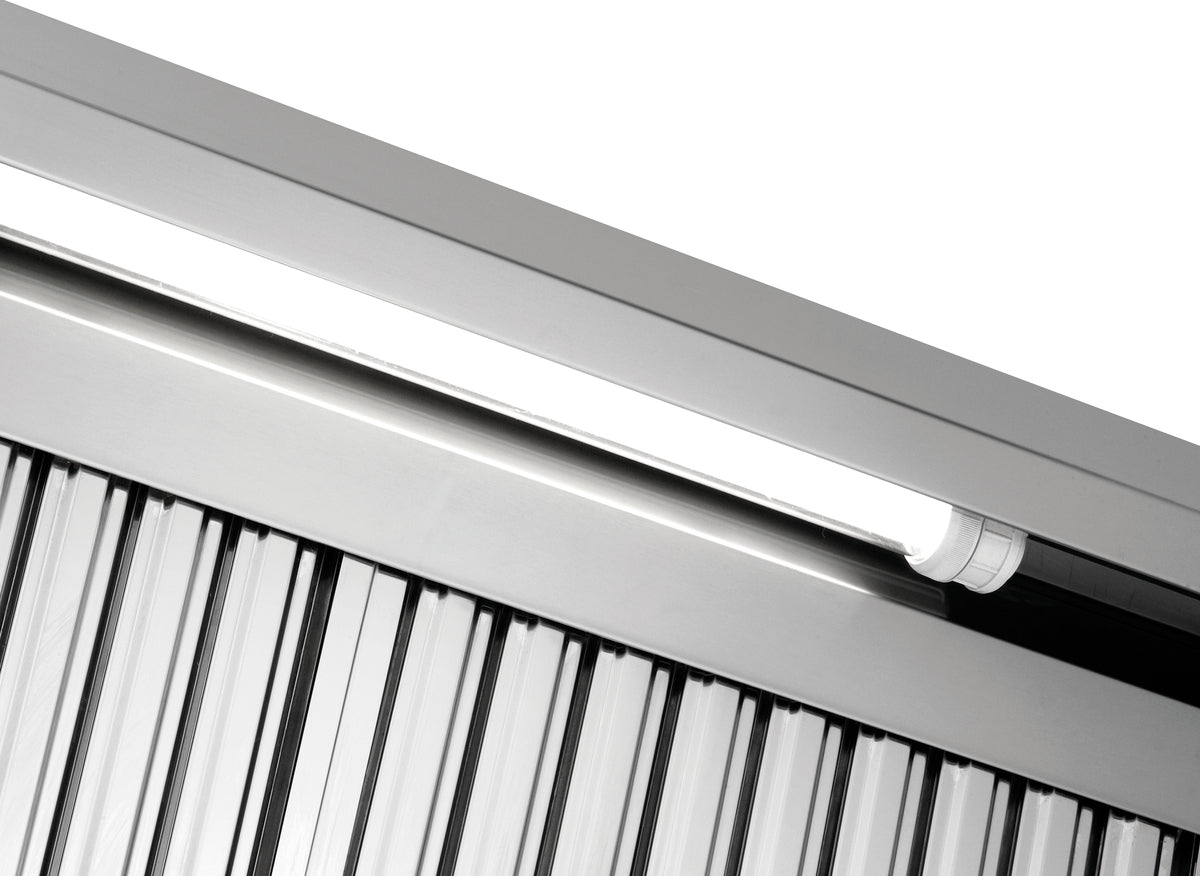

• Glare-free lighting with integrated grease protection cover: The 18-watt light ensures clear visibility in the workplace – protected from contamination by a grease-proof cover.
• Quick, secure wall mounting: The hood, specially designed for wall mounting, can be installed precisely and securely – ideal for existing kitchen layouts.
• Reliable in humid conditions – with Protection class IP44: The wall hood is protected against splashing water – ideal for use in demanding areas such as commercial kitchens and washing-up areas.
• Flexible planning thanks to a wide range of variants: Whether ceiling or other wall hoods – additional models and sizes are available on request, tailored to your kitchen system.

Technical data

• Width: 1200 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 27 kg
• Gross weight: 30 kg
• Volume: 0.581 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Protection class: IP44
• Lamps (number + watt): 1 x 18 W
• Power: 0.018 kW
• Lighting: yes
• Voltage: 230 V
• With motor: No
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 258120
