Wall-mounted hood Series 700, 2000 mm, with 184 W motor, up to 1,600 m³/h. Four stainless steel filters, grease collection channel, Type A flame arrestor, IP44. Commissioning with external controller. For wide commercial kitchen lines with continuous and heavy steam generation at 2000 mm.

Product benefits

• Powerful performance, efficient operation: With an air flow rate of up to 1600 m³/h and a 184-watt Motor, the Wall Hood 700 reliably ensures clean air – ideal for busy kitchen areas.
• Hygienic down to the last detail: Four high-quality CNS 18/10 Flame protection filters Type A with integrated grease collection channel facilitate cleaning and reduce maintenance requirements in the long term.
• Robust for continuous use: The fully manufactured housing made of durable CNS 18/10 stainless steel guarantees stability and corrosion resistance in demanding everyday kitchen use.
• Safe in heat and steam: With protection class IP44, the wall hood is protected against splashing water and foreign objects – for safe operation in high Humidity.

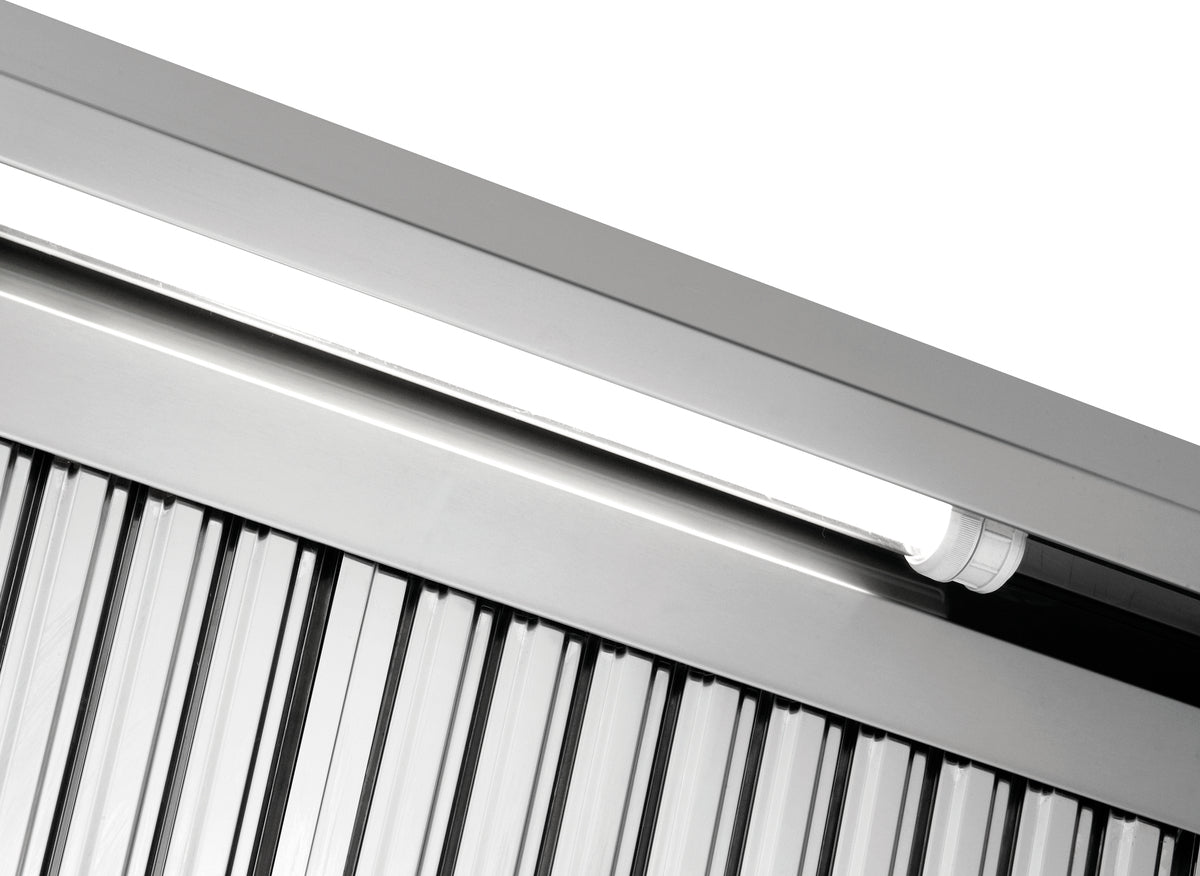

• Clear light for precise work: The integrated 36-watt light with grease protection cover provides optimum illumination of the work surface – even during long periods of use.
• Flexibly adjustable for use according to requirements: The fan power can be precisely adjusted using an external controller – ideal for a control unit that adjusts according to kitchen operation and ventilation requirements.
• Ready for a wide range of applications: In addition to the B2000 version, other sizes and series variants are available on request – for maximum planning freedom in professional kitchens.
• Space-saving and easy to install: As a wall-mounted extractor hood with integrated technology, the model can be installed quickly and adapts perfectly to existing kitchen layouts.

Technical data

• Width: 2000 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 47 kg
• Gross weight: 52 kg
• Volume: 0.953 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 36 W
• Power: 0.22 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1600 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 4
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 257200
