Wall-mounted hood, Series 700, 1800 mm, with built-in Motor (184 W), up to 1,500 m³/h air flow rate and integrated Type A Flame protection filter. Three stainless steel filters with grease collection channel, glare-free Lighting. Note: Commissioning only with external controller. For commercial kitchens with high levels of steam.

Product benefits

• High air output for demanding kitchens: With an air flow rate of up to 1,500 m³/h, the wall hood reliably removes steam, odours and grease particles even at peak operating levels – ideal for professional continuous use.
• Powerful Motor – efficient and durable: The integrated 184-watt Motor ensures consistently powerful exhaust air performance with low Energy consumption – perfectly tailored to everyday kitchen use.
• Safe and hygienic in continuous operation: Thanks to IP44 protection class, high-quality CNS 18/10 materials and type A flame protection filters, the Hood meets the highest fire safety and hygiene requirements.

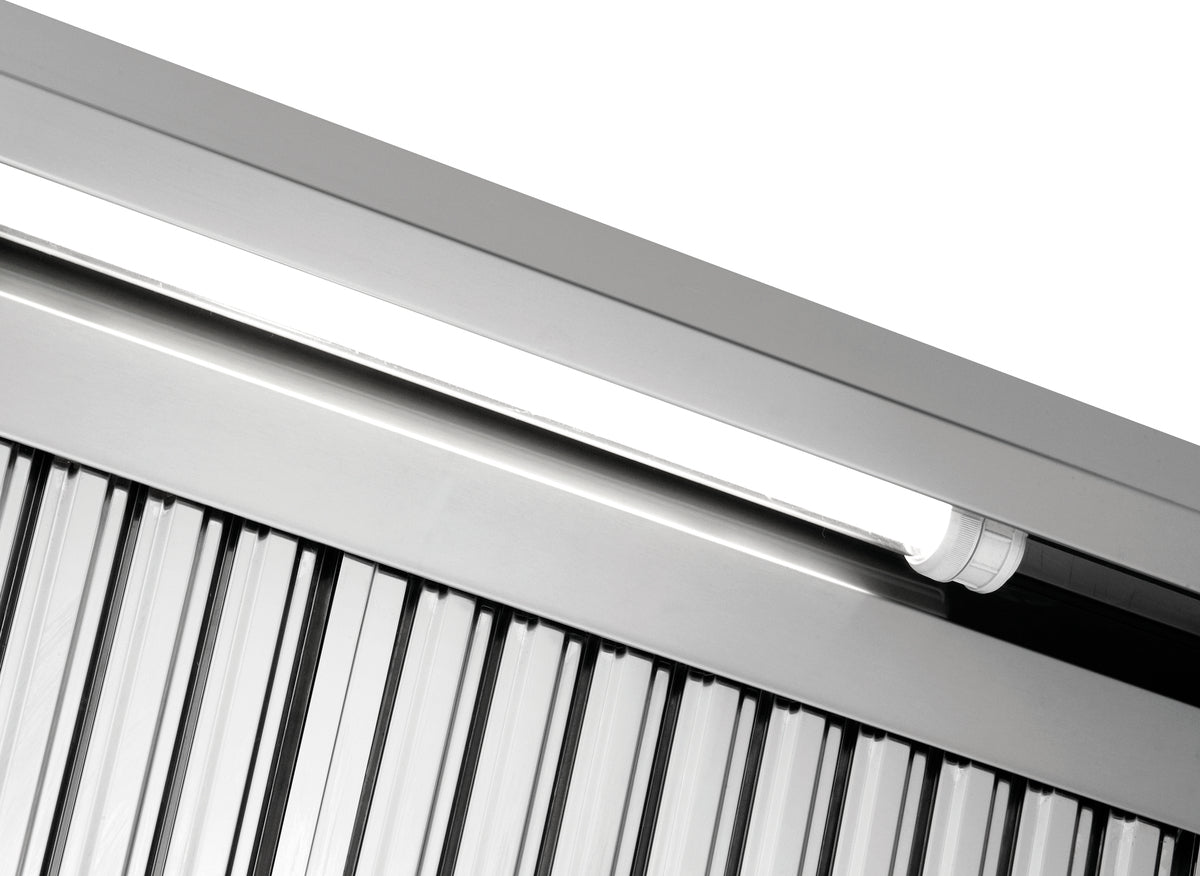

• Glare-free lighting for maximum visibility: With integrated 18-watt lighting and an additional grease protection cover, the Hood provides ideal illumination of the work area – without annoying reflections.
• Optimised filter technology for less cleaning effort: The three stainless steel filters with additional grease collection channel reduce deposits in the ventilation system – for longer maintenance intervals and greater operational reliability.
• Flexibly expandable for any kitchen configuration: Also available on request as a ceiling hood, in the 1100 wall hood series or in other sizes – for tailor-made ventilation solutions in commercial properties.
• External fan control for full control: Regulation via an external controller enables precise adjustment to different operating conditions – for greater efficiency and convenience in use.
• Robust professional quality with a well-thought-out design: Designed for easy wall mounting, the Hood impresses with its sturdy workmanship, well thought-out cable routing and solid power for continuous operation.

Technical data

• Width: 1800 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 43 kg
• Gross weight: 48 kg
• Volume: 0.86 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1500 m³/h
• Available on request: Ceiling hood ,Wall hood series 1100 ,Other sizes
• Number of filters: 3
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 257180
