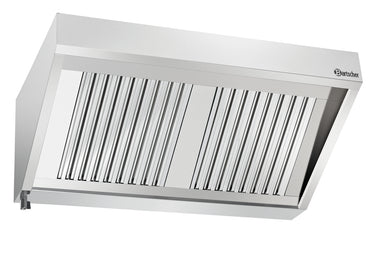

Wall-mounted hood Series 700, 1200 mm, with 184 W motor, up to 1,000 m³/h. Two CNS filters, grease collection duct, Type A flame arrestor, lighting, IP44. Commissioning with external controller. For compact kitchen layouts with continuous steam ingress in a limited width.

Product benefits

• Efficient air output for professional kitchens: With an exhaust air capacity of up to 1000 m³/h, the wall-mounted hood reliably removes vapours and grease – even when cooking intensively.
• Robust down to the last detail: Made from high-quality CNS 18/10 stainless steel, the hood is particularly resistant to heat, moisture and cleaning agents.
• More protection through intelligent filtration: Two type A flame protection filters with grease collection channels ensure hygiene and fire protection in accordance with the latest standards.

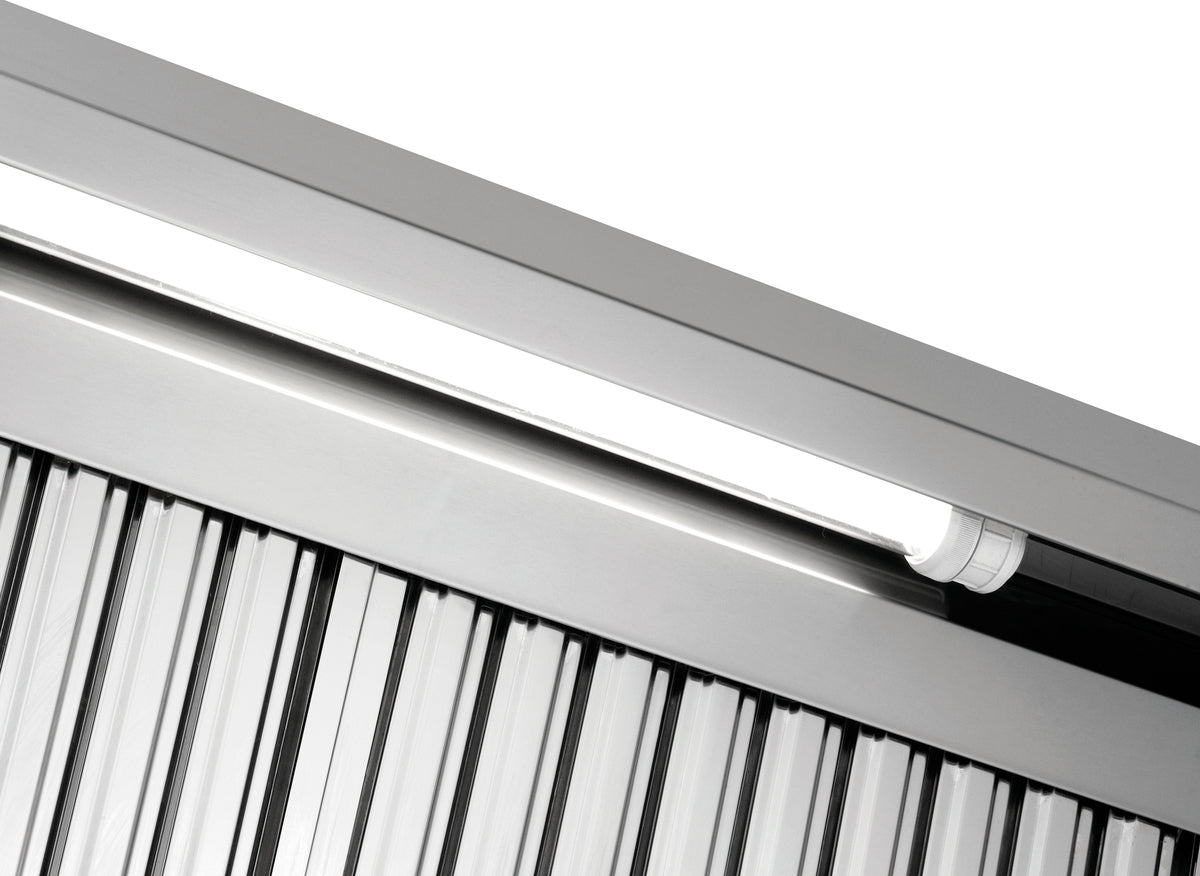

• Glare-free lighting for precise working: The integrated 18-watt light with grease protection cover ensures clear visibility at the workplace – without annoying reflections.
• Ready for a wide range of application areas: With Protection class IP44, the wall hood is also suitable for damp and thermally demanding kitchen environments.
• Compact power with integrated Motor: The built-in 184-watt Motor offers powerful performance with a small footprint – ideal for wall-mounted solutions in professional kitchens.
• Retrofittable and configurable: Whether alternative sizes, ceiling mounting or individual exhaust air solutions – the Series can be flexibly expanded on request.
• Clearly structured, easy to install: Thanks to its wall-mounted design and clearly defined power values, the Hood can be efficiently installed and commissioned.

Technical data

• Width: 1200 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 35 kg
• Gross weight: 39 kg
• Volume: 0.469 MTQ
• Guarantee: VG
• Customs tariff number: 84146000
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1000 m³/h
• Available on request: Ceiling hood ,Other sizes ,Wall hood series 1100
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Exploded view
• Wiring diagram

Manufacturer item number: 257120
