Product benefits

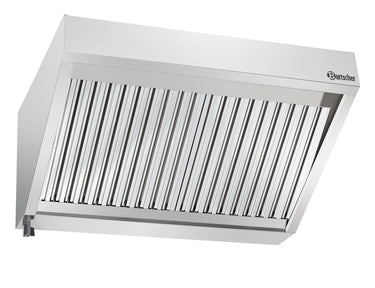

• Efficient air output for demanding kitchens: With an air flow rate of up to 1000 m³/h, the Wall Hood 700 ensures reliable exhaust air performance even when cooking intensively.
• Robust stainless steel housing for long-lasting use: Made from CNS 18/10, the Hood offers maximum corrosion resistance – ideal for long-term use in professional kitchens.
• Maximised grease capture with added safety: Two filters with an additional grease collection channel and type A Flame protection filter ensure effective cleaning and certified fire safety.

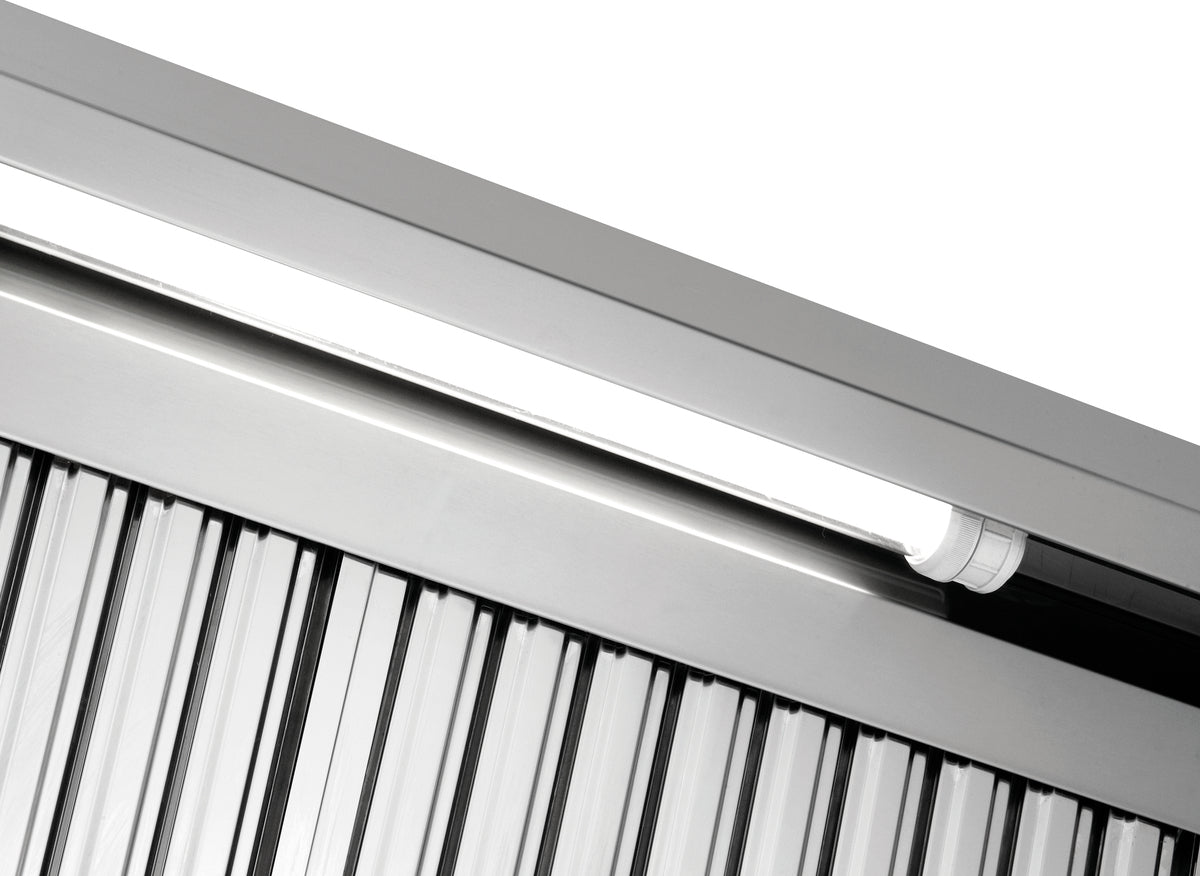

• Glare-free lighting for precise working: The integrated 18-watt light with grease protection cover ensures optimum visibility directly above the work area – without annoying reflections.
• Compact solution with powerful Motor: Despite its slim design, the integrated 184-watt Motor delivers powerful suction performance – saving space and delivering high performance at the same time.
• Flexible control thanks to external regulation: Connection to an external speed controller allows the fan performance to be precisely adjusted to changing kitchen conditions.
• Safe even in high humidity: With protection class IP44, the Hood is also suitable for more humid environments – including protection against splashing water and foreign objects.
• Well-designed mounting for quick Installation: Wall mounting with integrated motor cut-out (232 x 208 mm) saves installation time and facilitates on-site connection.

Technical data

• Width: 1000 mm
• Depth: 700 mm
• Height: 450 mm
• Net weight: 25 kg
• Gross weight: 37 kg
• Volume: 0.394 MTQ
• Guarantee: VG
• Customs tariff number: 84148080
• Motor output: 184 W
• Cut-out for the motor: 232 x 208 mm
• Protection class: IP44
• Fan regulation: Via an external controller
• Lamps (number + watt): 1 x 18 W
• Power: 0.202 kW
• Number of fan motors/exhaust air outputs: 1
• Lighting: yes
• Voltage: 230 V
• With motor: Yes
• Operating mode: Exhaust air
• Assembly type: Wall
• Frequency: 50-60 Hz
• Max. air throughput: 1000 m³/h
• Available on request: Ceiling hood ,Other sizes ,Wall hood series 1100
• Number of filters: 2
• Properties: Blare-free light installed with grease protection cover ,Filter carrier with additional grease collection channel
• Material filter: CNS 18/10
• Material: CNS 18/10
• Flame protection filter: Type A
• Important information: Can only be commissioned with an additional controller

Documents

• Datasheet
• Exploded view
• Wiring diagram

Manufacturer item number: 257100
