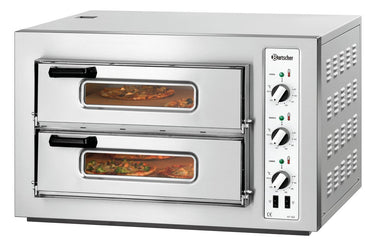

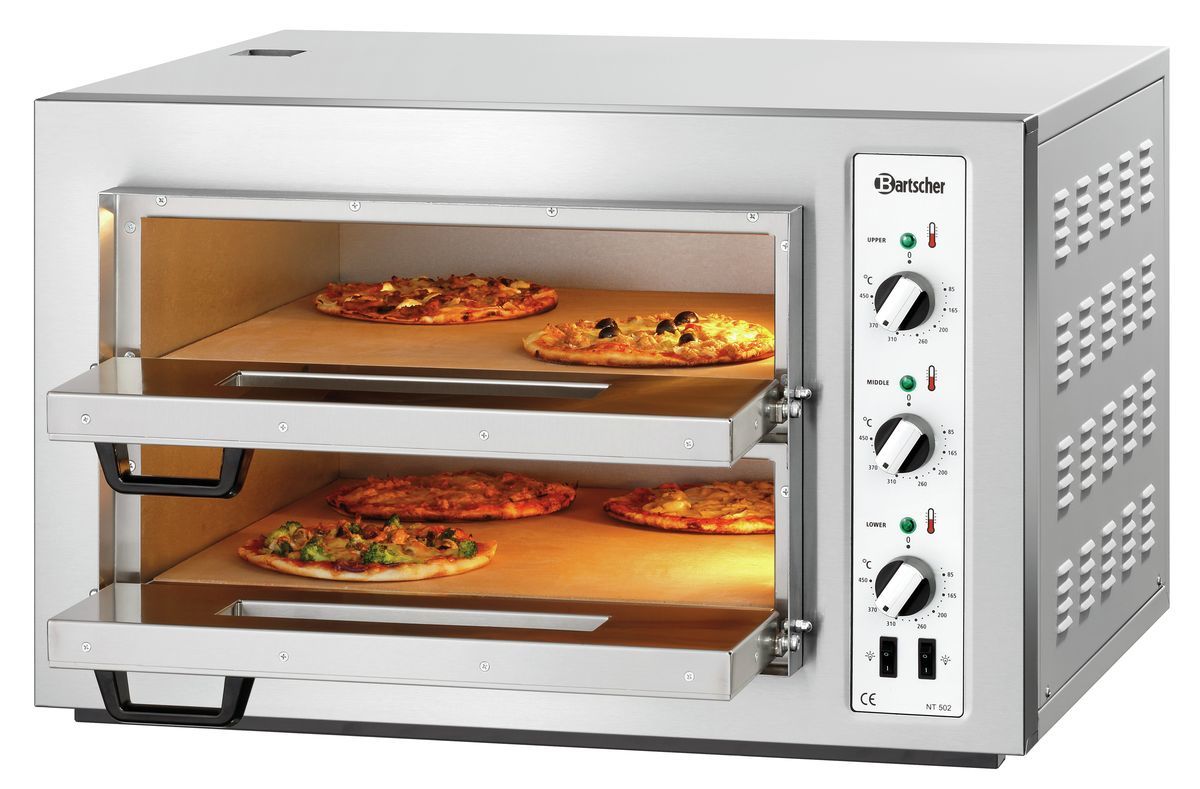

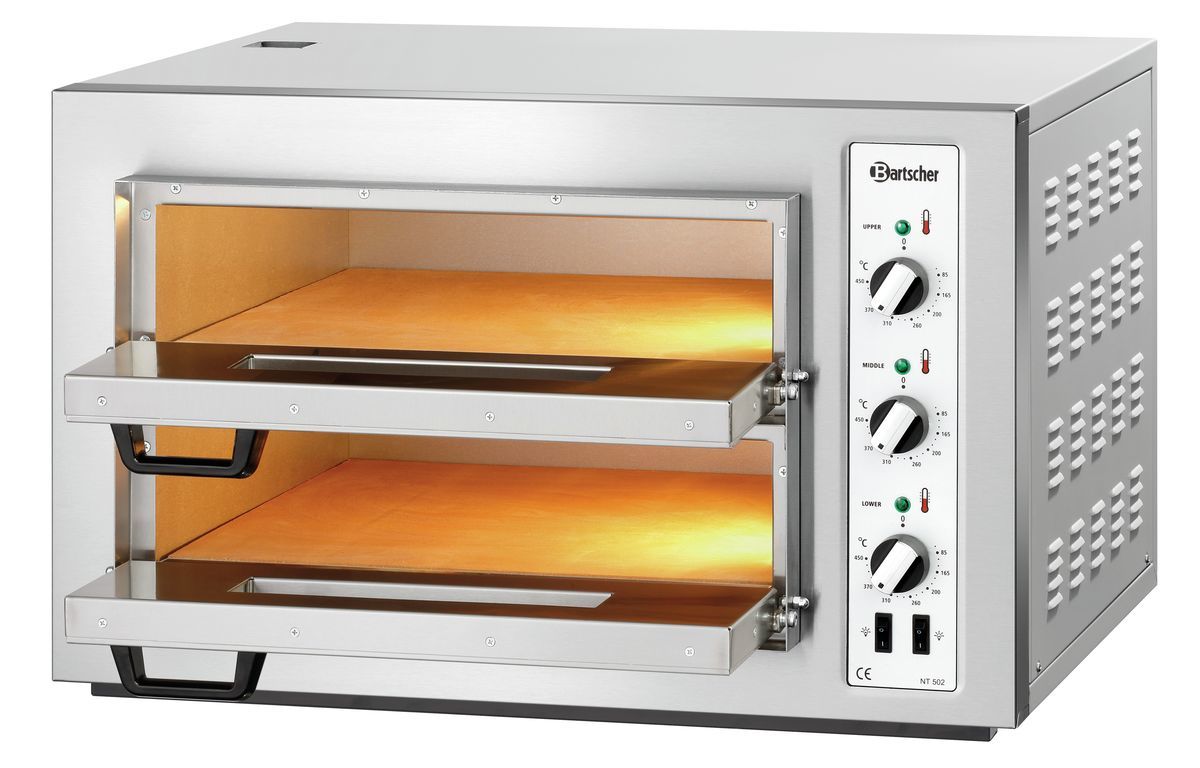

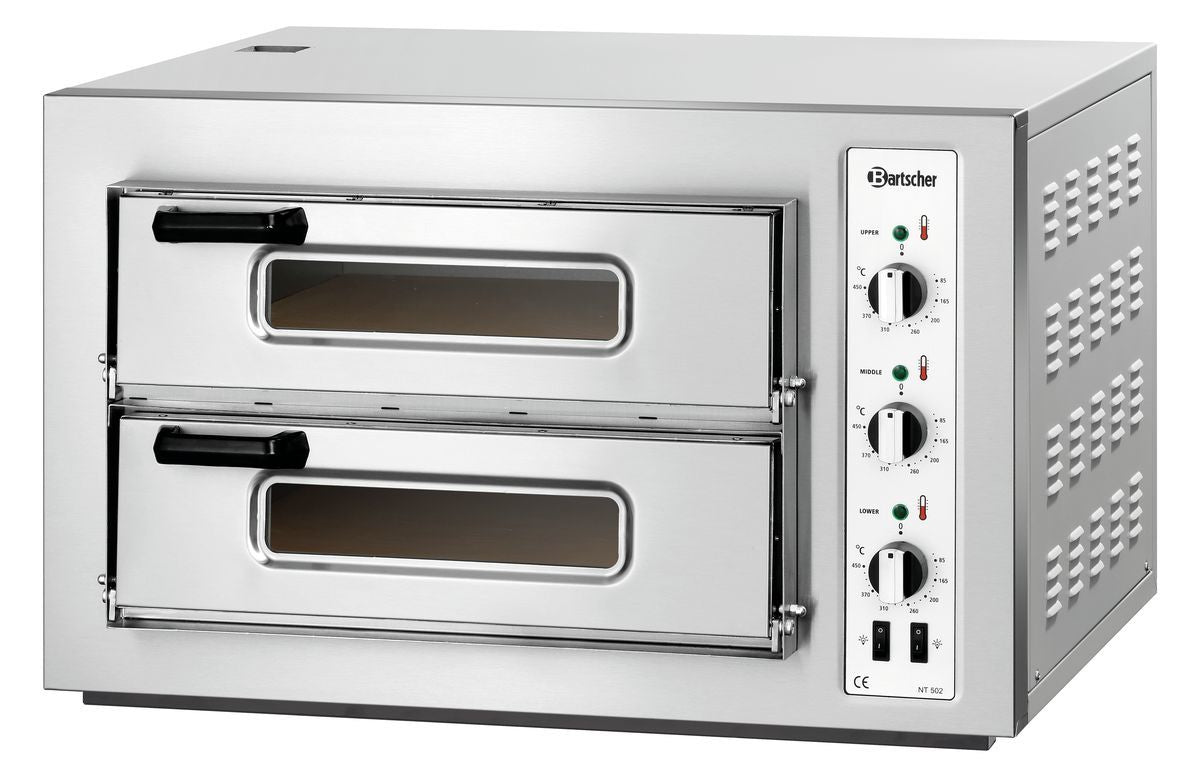

NT 502 double-chamber pizza oven with fireclay stone base, up to 450 °C, 6 kW. Holds 8 pizzas (Ø 25 cm) at once. Separate top/bottom heat, rock wool insulation. Compact double-decker for restaurants and bistros requiring high baking capacity for small pizzas with a small footprint.

Product benefits

• Double capacity for maximum efficiency: Two separate baking chambers allow up to 8 pizzas to be baked simultaneously – ideal for peak times in professional kitchens.
• Temperature power up to 450 °C: With a temperature range from 85°C to 450°C, the NT 502 can handle even crispy original pizza recipes at top speed.
• Fireclay stone for authentic pizza enjoyment: The fireclay baking chamber ensures even heat distribution and the typical stone oven taste – indispensable for genuine pizza quality.
• Visual inspection without heat loss: Thanks to large windows and Interior lighting, you can keep an eye on the cooking process at all times – without opening the baking chambers.

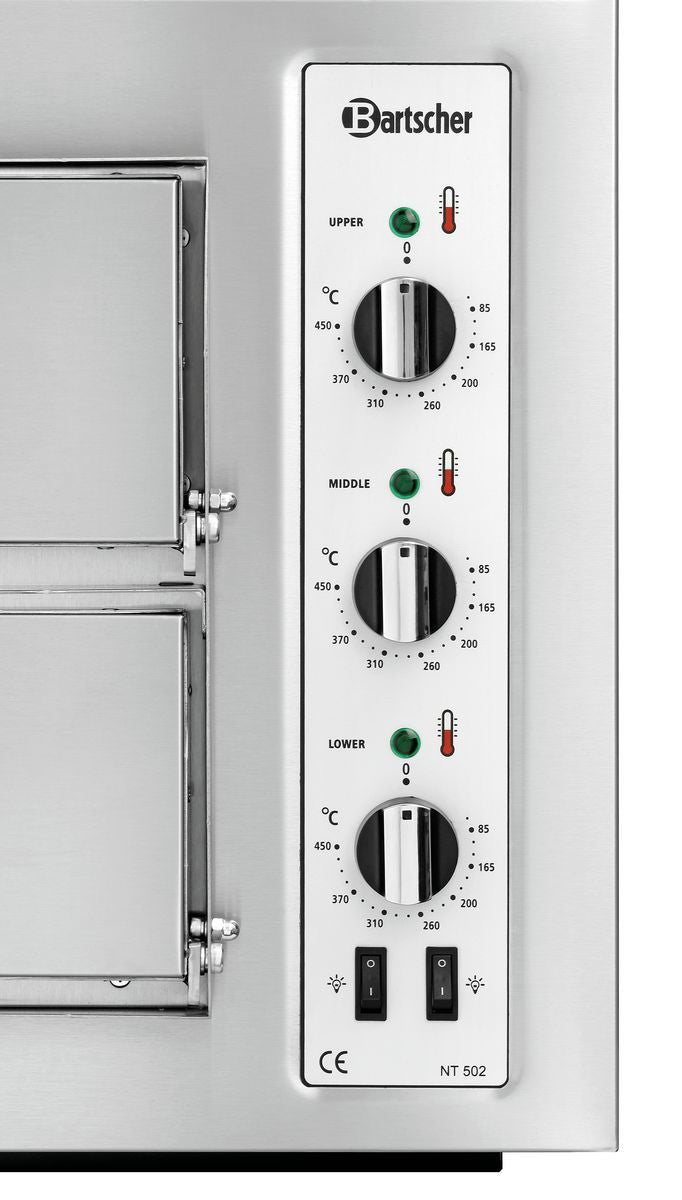

• Independent heat control for precise baking results: Upper / lower heat can be controlled separately – for precise baking according to the individual requirements of each topping and dough.
• Robust design – built for continuous operation: With a painted sheet steel housing and high-quality rock wool Insulation, the NT 502 is designed for intensive use in commercial kitchens and catering environments.
• Space-saving with high performance: With compact internal dimensions and 6 kW power consumption, the NT 502 offers an excellent balance between energy efficiency and production capacity.
• Optimised for 400 V connection: Ideal for professional kitchens: the 3-NAC connection with 400 V guarantees stable performance and reliable integration into existing power grids.

Technical data

• Width: 800 mm
• Depth: 750 mm
• Height: 510 mm
• Net weight: 63 kg
• Gross weight: 75.34 kg
• Volume: 0.448 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Window: Yes
• Voltage: 400 V
• Timer: No
• Power: 6 kW
• Width inside: 505 mm
• Depth inside: 530 mm
• Temperature range to: 450 °C
• Temperature display: No
• Frequency: 50 Hz
• Insulation: Inner insulation with stone wool
• Material baking chamber: Refractory clay baking stone
• Temperature range from: 85 °C
• Height inside: 110 mm
• Interior lighting: Yes
• Pizza oven series: NT
• Oven functions: Upper / lower heat
• Equipment connection: 3 NAC
• Material: Steel plate ,Painted
• Number of baking chambers: 2
• Pizza capacity: 8 pizzas Ø 25 cm (2 x 4 pizzas)
• Upper / lower heat can be controlled separately: Yes
• Colour: Silver

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 2002028
