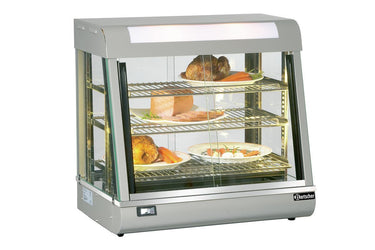

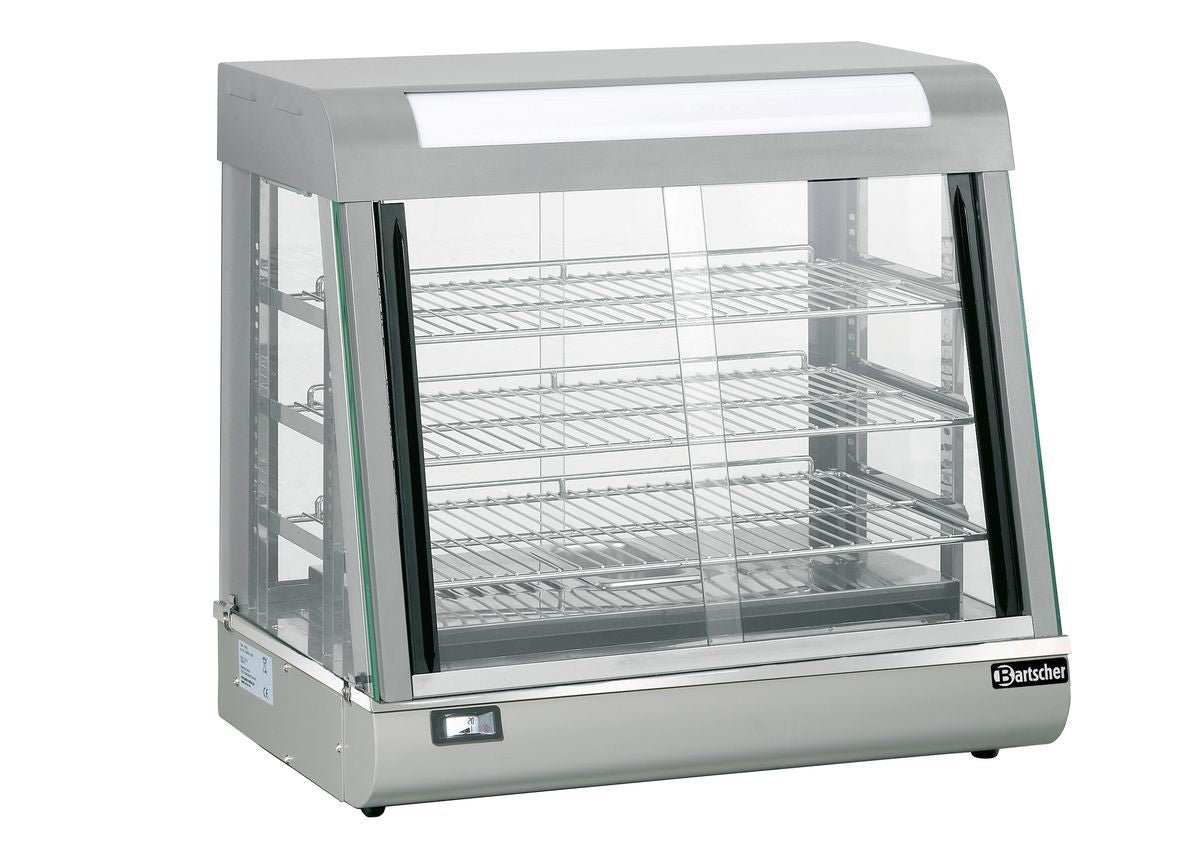

Hot display counter Deli I, 110 litres, dry-heated up to 90 °C, 1.84 kW – three shelves across a width of 580 mm, sliding doors on both sides, all-round glazing, LED lighting. Compact hot display solution for bakeries and bistros with limited space.

Product benefits

• Visible from all sides – optimally presented: The high-quality all-round glazing made of Safety glass ensures maximum product visibility from every angle and at the same time provides reliable protection against heat loss and contact.
• Flexible presentation on three levels: Thanks to height-adjustable, nickel-plated grates, the Deli I counter can be adapted to different product sizes and display concepts – for maximum presentation freedom.
• Reliable heat thanks to thermostat control: With thermostatic Temperature control between 30 °C and 90 °C, food remains at a constant, optimal serving temperature – controlled and energy-efficient.
• With water tray for fresh quality: The integrated air humidification via a water bowl minimises the drying out of sensitive food, ensuring freshness and an appealing appearance for hours.
• Access from both sides for smooth service: The practical sliding doors at the front and rear enable efficient handling – ideal for both self-service and operation by sales staff.
• Separately switchable interior lighting: Targeted lighting enhances the visual appeal of the food on offer and can be controlled independently of the heating function – for high-sales presentation moments at any time of day.
• Space for variety – 110 litre capacity: Spacious interior with three intermediate levels and a consistent width of 580 mm per shelf offers sufficient capacity for large assortments in catering or restaurant operations.
• Robust construction for maximum daily performance: Sturdy construction made of painted and chrome-plated steel, the Bartscher Deli I reliably meets the highest demands in Continuous operation – durable and easy to clean at the same time.

Technical data

• Width: 660 mm
• Depth: 470 mm
• Height: 640 mm
• Net weight: 35 kg
• Gross weight: 42.4 kg
• Volume: 0.358 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Safety glass: Yes
• Width intermediate shelf middle: 580 mm
• Type of intermediate shelves: Grille, nickel-plated
• Depth intermediate shelf top: 275 mm
• Interior lighting: Yes
• Type of door: Sliding door(s)
• Height-adjustable intermediate shelves: Yes
• Digital display: No
• Width intermediate shelf bottom: 580 mm
• Depth intermediate shelf bottom: 318 mm
• Depth intermediate shelf middle: 298 mm
• Temperature range from: 30 °C
• Width intermediate shelf top: 580 mm
• Frequency: 50 Hz
• Material: Steel ,Painted ,Chrome-plated
• Water bowl for air humidification: Yes
• Heating type: Dry heated
• Type of glass: All-round glass
• Position of the door: On both sides
• Content: 110 litre(s)
• Temperature control: Thermostatic
• Lighting: Can be switched separately
• Colour: Grey
• Temperature range to: 90 °C
• Control lamp: Heat up ,ON/OFF
• Power: 1.84 kW
• Control unit: Toggle
• Voltage: 230 V
• Front pane: Framed
• Number of intermediate shelves: 3

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 306053
