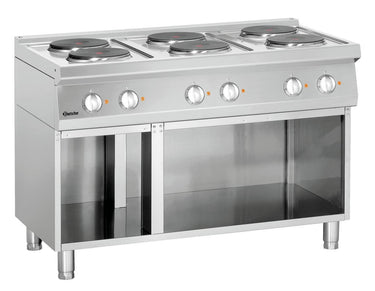

Series 700 electric freestanding cooker, 1200 mm wide, six cast iron hotplates Ø 220 mm, 15.6 kW, open base. Height-adjustable, CNS 18/10, 400 V. For commercial kitchens requiring six cooking stations in a wide line on the 700 series platform.

Product benefits

• 6 cooking zones for maximum utilisation: With six powerful 2.6 kW electric hotplates, efficient parallel cooking is possible at any time in commercial kitchens – ideal for high cycle rates in daily business.
• Robust construction in CNS 18/10 stainless steel: The high-quality chrome-nickel steel housing ensures long-lasting durability under the most demanding conditions – a safe investment for professionals.
• Open base – variable use: The unevenly divided open base construction offers flexible storage options for GN containers, accessories or trays – perfect for well-organised kitchen storage.
• Height-adjustable for ergonomic working: Stepless height adjustment from 850–900 mm adapts the cooker optimally to individual workflows and different kitchen concepts.
• Compact freestanding appliance – series-compatible: As part of the 700 series, the cooker can be harmoniously integrated into existing appliance combinations – ideal for modular kitchen systems with uniform grid dimensions.
• High-performance operation at 400 V: The three-phase connection with a total output of 15.6 kW guarantees short heat-up times and even energy distribution – even under continuous load in everyday kitchen use.
• Optionally available with square hotplates: On request, the model is available with square hotplates – an attractive option for precise working with square pans or GN Containers.
• Ø 220 mm cooking zones – suitable for commercial kitchen requirements: The generously sized hobs offer sufficient space for large pots and pans – ideal for use in canteens, hotels or catering.

Technical data

• Width: 1200 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 75 kg
• Gross weight: 86.8 kg
• Volume: 1.131 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Sub-counter unit type: Open ,Unevenly divided
• Height-adjustable from: 850 mm
• Available on request: With square hobs
• Frequency: 50 Hz
• Number of hobs: 6
• Height-adjustable to: 900 mm
• Material: CNS 18/10
• Power: 15.6 kW
• Type of hobs: Electro
• Height-adjustable feet: Yes
• Material hob: Cast iron
• Size hobs: Ø 220 mm
• Voltage: 400 V
• Type: Upright unit
• Equipment connection: 3 NAC
• Distribution of hobs: 6 x 2,6 kW
• Operating mode: Electro
• Series: 700

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 286106
