Series 650 - a range of cooking equipment for the professional kitchen. The series is defined by optimum energy use, powerful appliances, and ease of cleaning. The modular design means that the appliances are easy to combine and can be arranged flexibly. The appliance structure consists entirely of 18/10 stainless steel.

Product benefits

• Up to 86 kg of ice per day – reliable at maximum performance: The B 86 Plus produces consistent quantities of high-quality full cone ice cubes and meets all the requirements of a professional kitchen, even when there is a high volume of guests.
• Efficient ice cube production with minimal consumption: With only 9.1 litres of water per hour and modern spray technology, the ice maker is particularly resource-efficient – ideal for long-term economical use.
• Compact and can be fitted below the counter – perfect integration: With a height of 910 mm and a well-thought-out design, the device can be easily installed under worktops – for maximum space savings in kitchenettes and bar areas.
• Robust and hygienic – materials for everyday professional use: Stainless steel and galvanised steel ensure durability and easy cleaning, while the integrated cleaning function facilitates hygiene processes.
• Full cones with Format – 20 g of ice cream per piece: The standardised cone shape with adjustable size ensures perfect cooling in drinks and food presentations – stable, clear and slow melting.
• Direct control – intuitive operation with status display: The electronic control unit with ON/OFF switch and control lamp makes it easy to monitor operation – for full control in hectic everyday life.
• Natural refrigerant for environmentally friendly operation: With R290 as its refrigerant, the B 86 Plus meets modern environmental standards and actively contributes to reducing climate-damaging emissions.
• 42 kg capacity – always enough ice to hand: The integrated storage container with large volume ensures sufficient reserves – even when demand is high, service remains smooth.

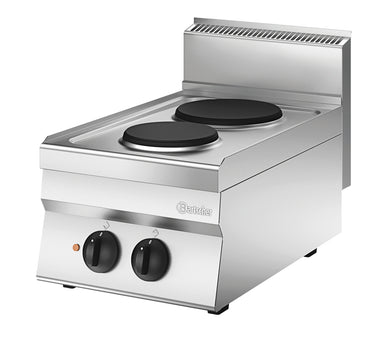

Technical data

• Width: 400 mm
• Depth: 650 mm
• Height: 295 mm
• Net weight: 17.399999999999999 kg
• Gross weight: 23.45 kg
• Volume: 0.161 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Type of hobs: Electro
• Height-adjustable feet: No
• Material hob: Cast iron
• Size hobs: 1 x Ø 220 mm, 1 x Ø 180 mm
• Frequency: 50/60 Hz
• Voltage: 400 V
• Type: Table-top unit
• Number of hobs: 2
• Equipment connection: 3 NAC
• Distribution of hobs: 1 x 2.6 kW, 1 x 1.5 kW
• Operating mode: Electro
• Material: CNS 18/10
• Series: 650
• Power: 4.1 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 115005
