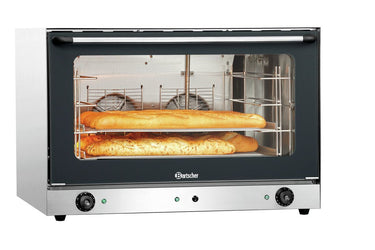

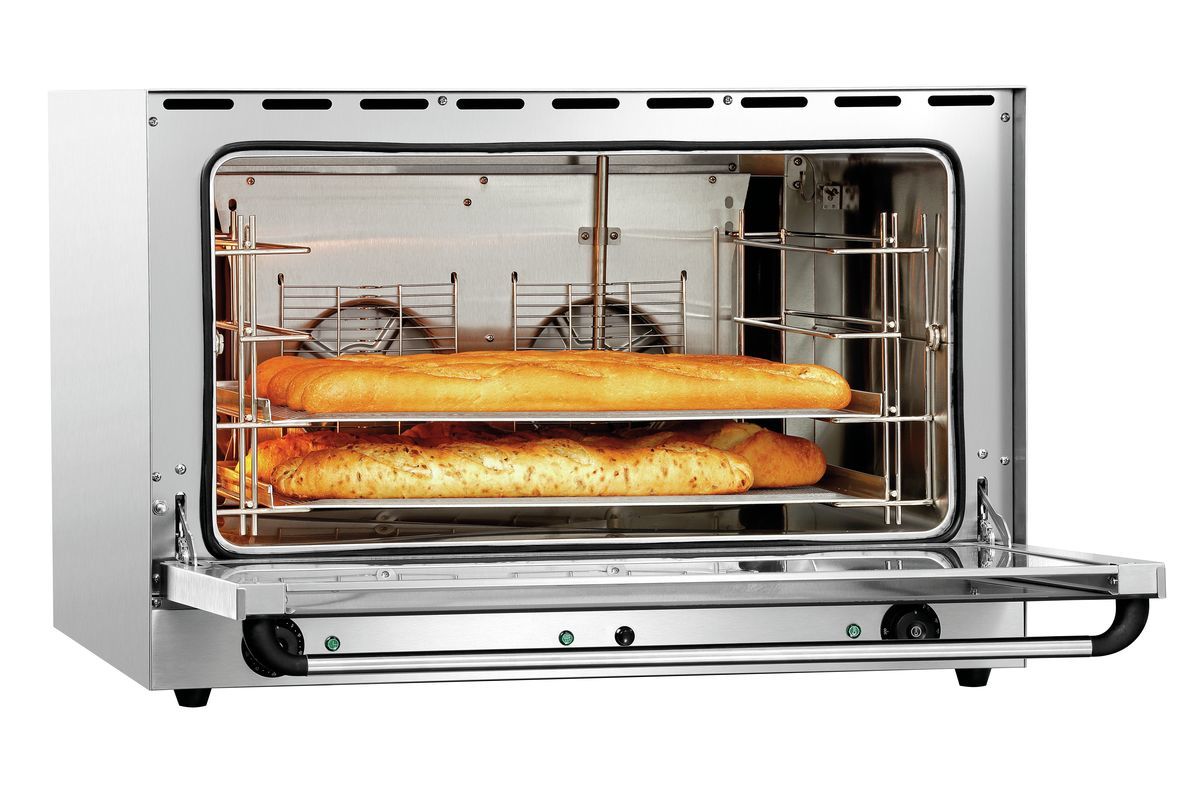

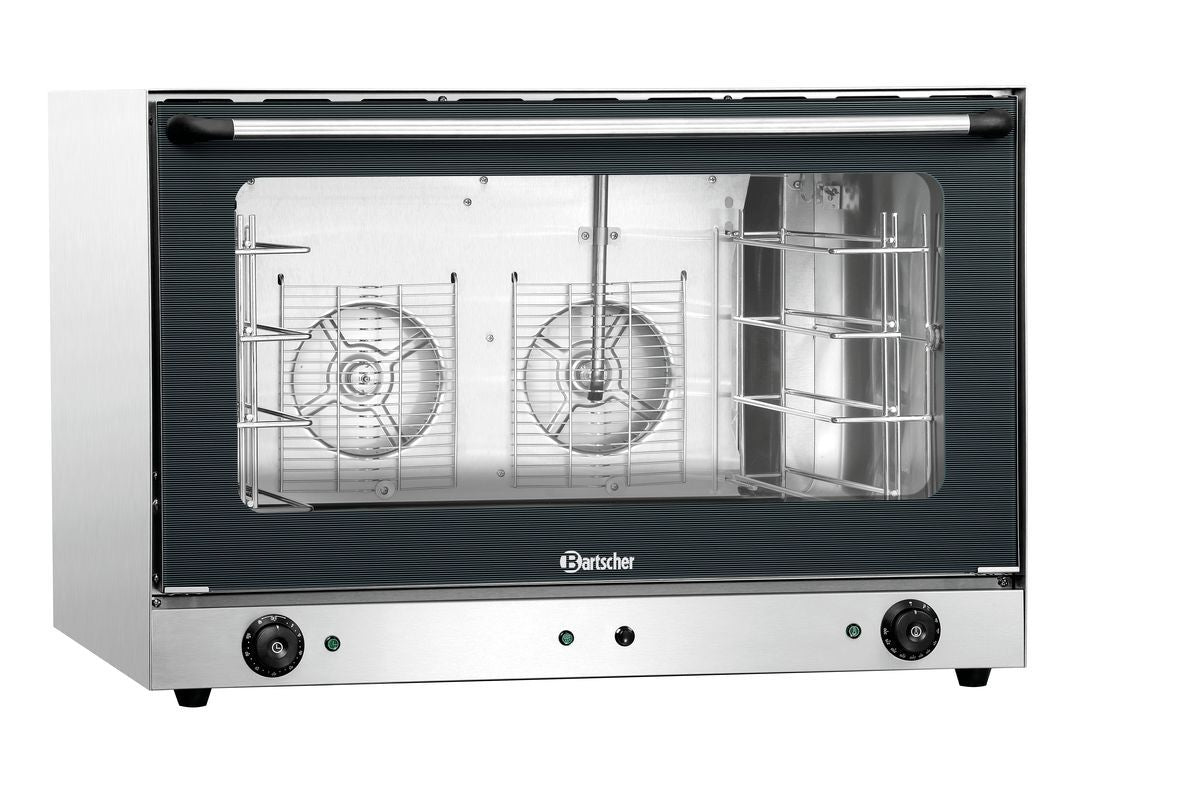

The AT series: Cooking intelligence for grilling, roasting and baking. Full steam up to 300 ° – the AT series offers high-performance hot air oven versatility.

Product benefits

• Full steam ahead for maximum flavour: The integrated steaming ensures optimum moisture distribution – ideal for juicy roasts, crispy bread and precise cooking.
• Efficiency meets professional Format: With 4 drawers in GN format 600 × 400 mm, the AT400 offers maximum capacity in a small space – perfect for use in commercial kitchens.
• Quick to reach temperature – ready when you are: With a heat-up time of just 12 minutes to 150 °C, you save valuable preparation time in daily kitchen operations.

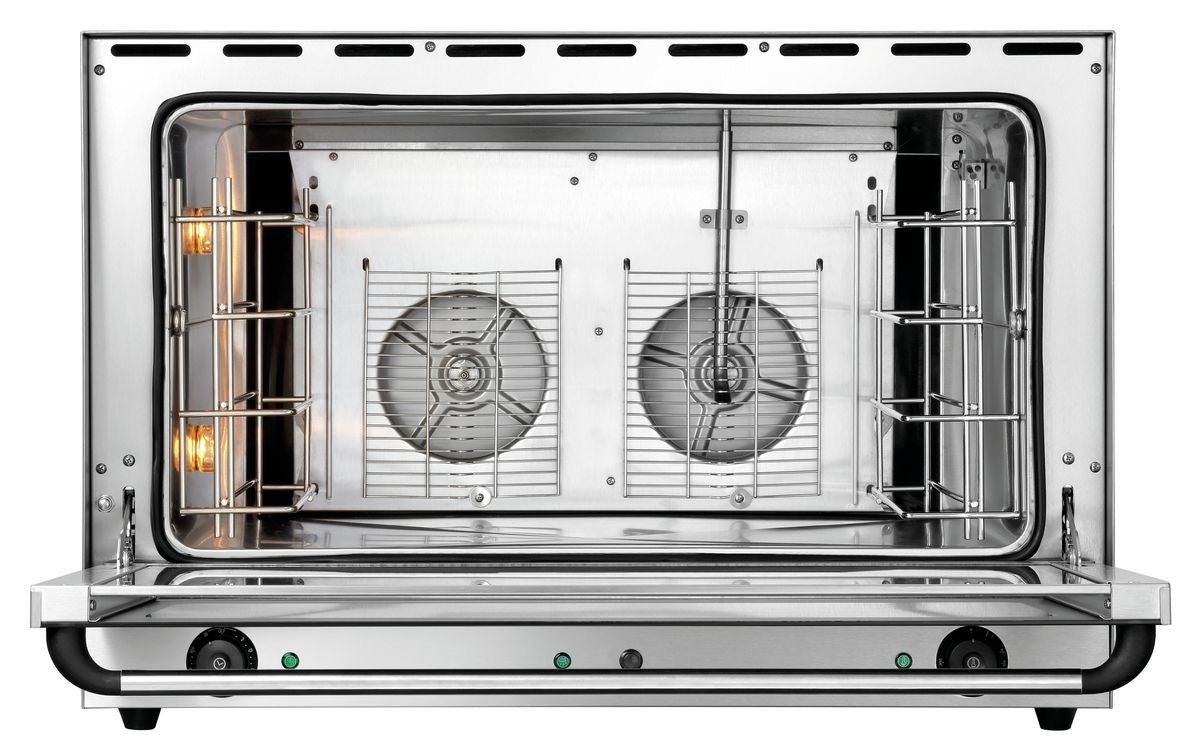

• Consistent performance with every program: Thanks to two reversible fan wheels, the heat is distributed reliably and evenly – for consistent cooking results on all levels.
• Robust, hygienic, durable: Made entirely of stainless steel and with a rounded baking chamber for easy cleaning – designed to meet the highest demands in professional kitchens.

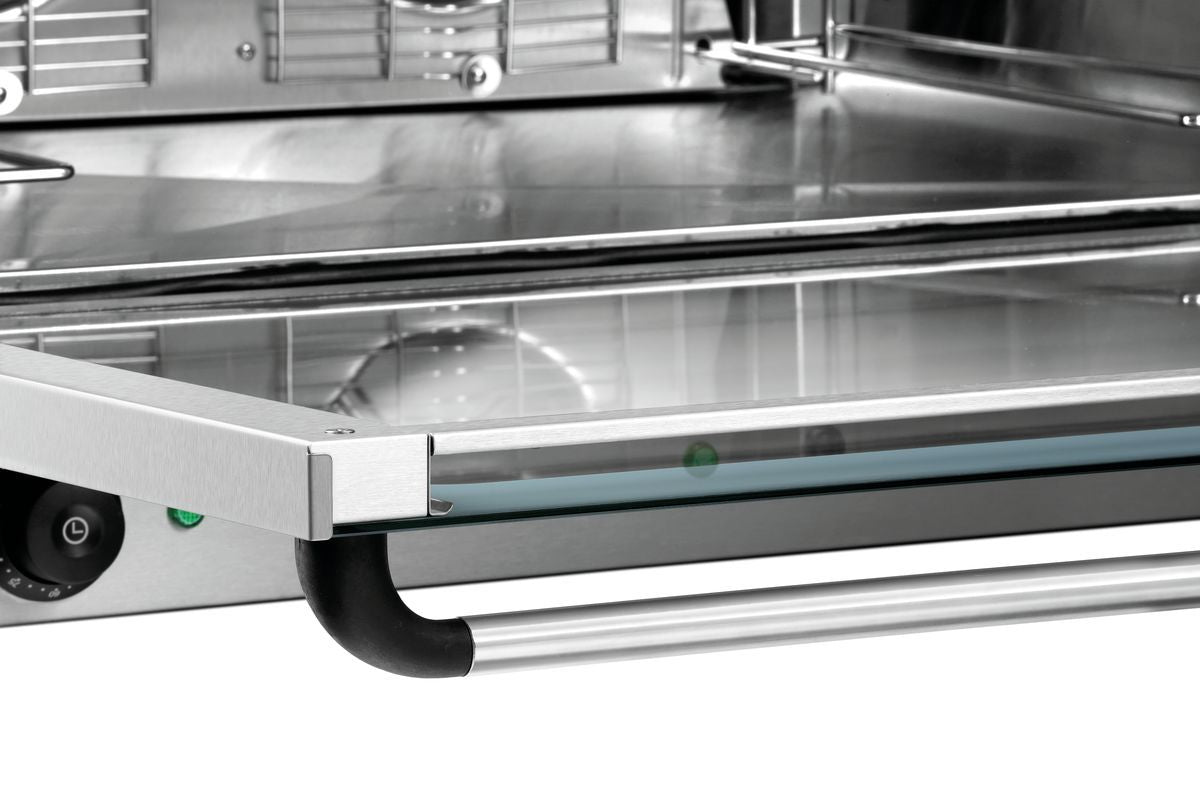

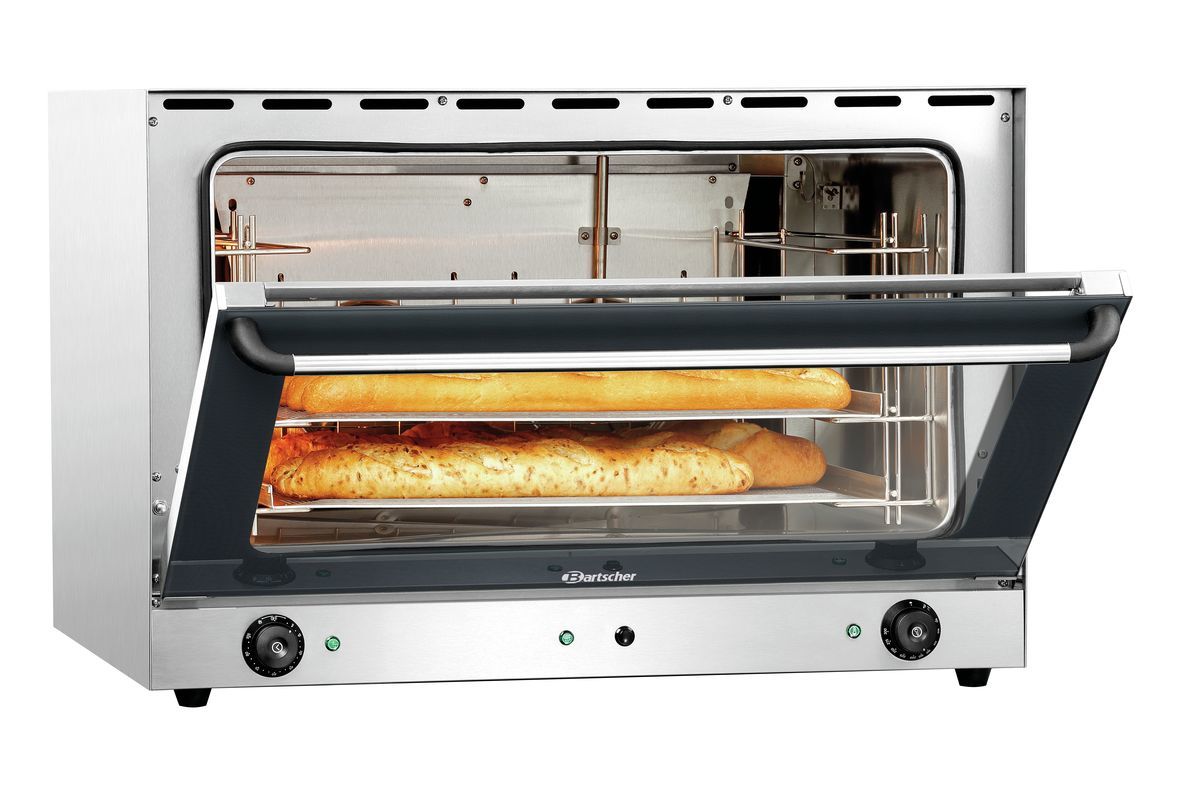

• View inside – even with steam: The double-glazed door and Interior lighting guarantee a clear view of the cooking process without losing heat.

Technical data

• Width: 835 mm
• Depth: 765 mm
• Height: 570 mm
• Net weight: 65 kg
• Gross weight: 66 kg
• Volume: 0.54 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Colour: Silver grey
• Fan speed: 1 level
• Number of cooking programs: 1
• Temperature control: Stepless
• Control lamp: Steaming ,ON/OFF ,Heat up
• Series: AT
• Water connection: 3/4"
• ON/OFF switch: No
• Thermostat: Yes
• Number of fans: 2
• Control unit: Toggle

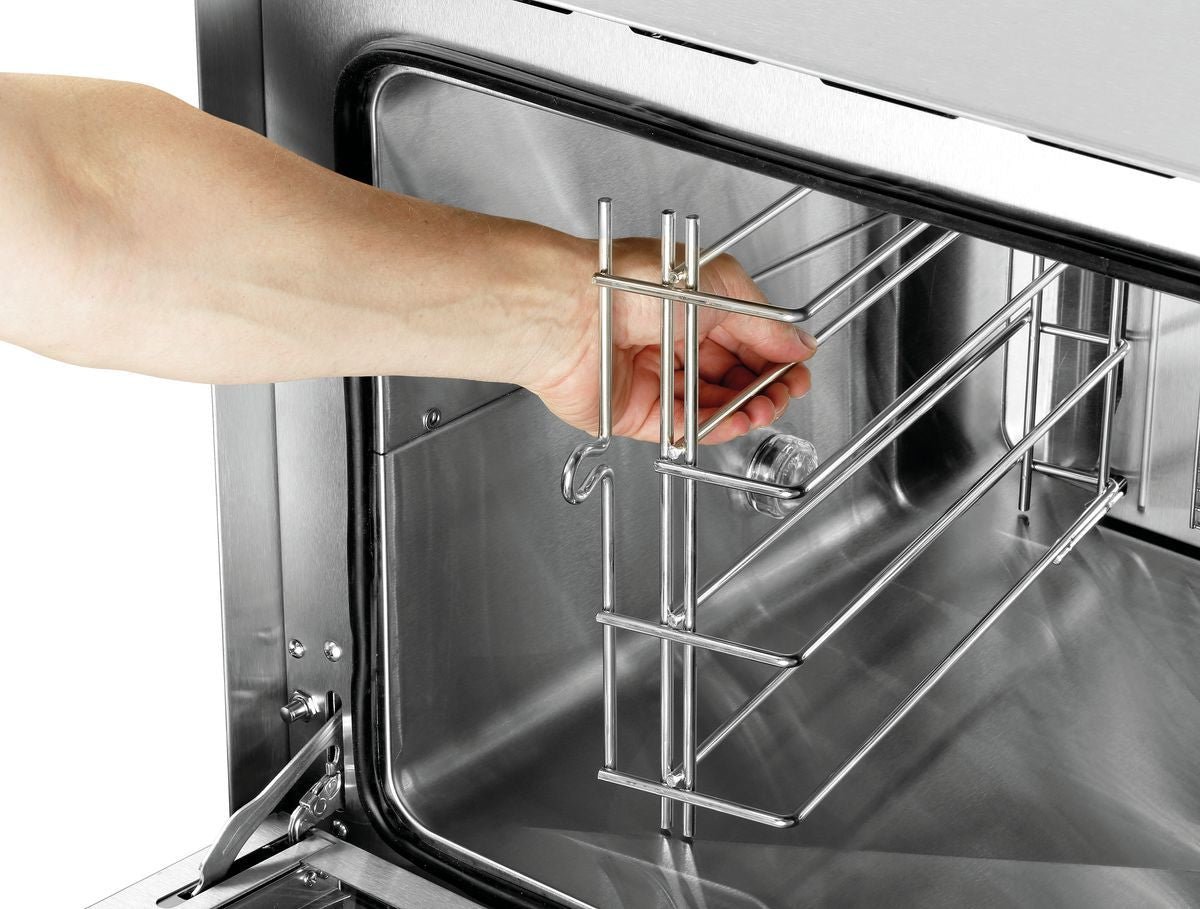

• Properties: Double-winged door pane ,Rounded baking chamber ,Bearing rails can be detached
• Height inside: 360 mm
• Heat-up time: approx. 12 minutes (150 °C)
• Number of cooking phases: 1
• Power: 6.4 kW
• Material: Stainless steel
• Format drawers: 600 x 400 mm
• Voltage: 400 V
• Timer: Yes
• Time setting to: 180 minute(s)
• Including: 2 perforated trays ,2 trays
• Width inside: 700 mm
• Protection class: IPX3
• Number of drawers: 4
• Interior lighting: Yes
• Type of drawers: Crosswise
• Temperature range from: 50 °C
• Equipment connection: 3 NAC
• Temperature range to: 300 °C
• Distance between trays: 80 mm
• Functions: Circulating air ,Steaming ,Reversing motor direction (fan wheels)
• Frequency: 50 Hz
• Depth inside: 460 mm
• Material cooking chamber: Stainless steel
• Time setting from: 0 minute(s)

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 105780
