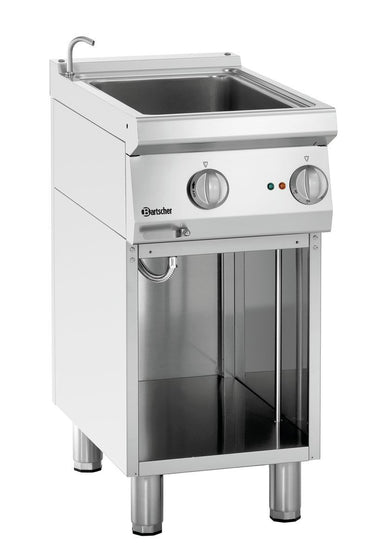

Bain-marie Series 700, 400 mm wide, 1 kW, basin size 1/1 GN, open base. Keeps food warm up to 90 °C, GN containers sold separately. For restaurants and canteens looking to integrate a compact 1/1 GN warming basin into their kitchen line on the 700 series platform.

Product benefits

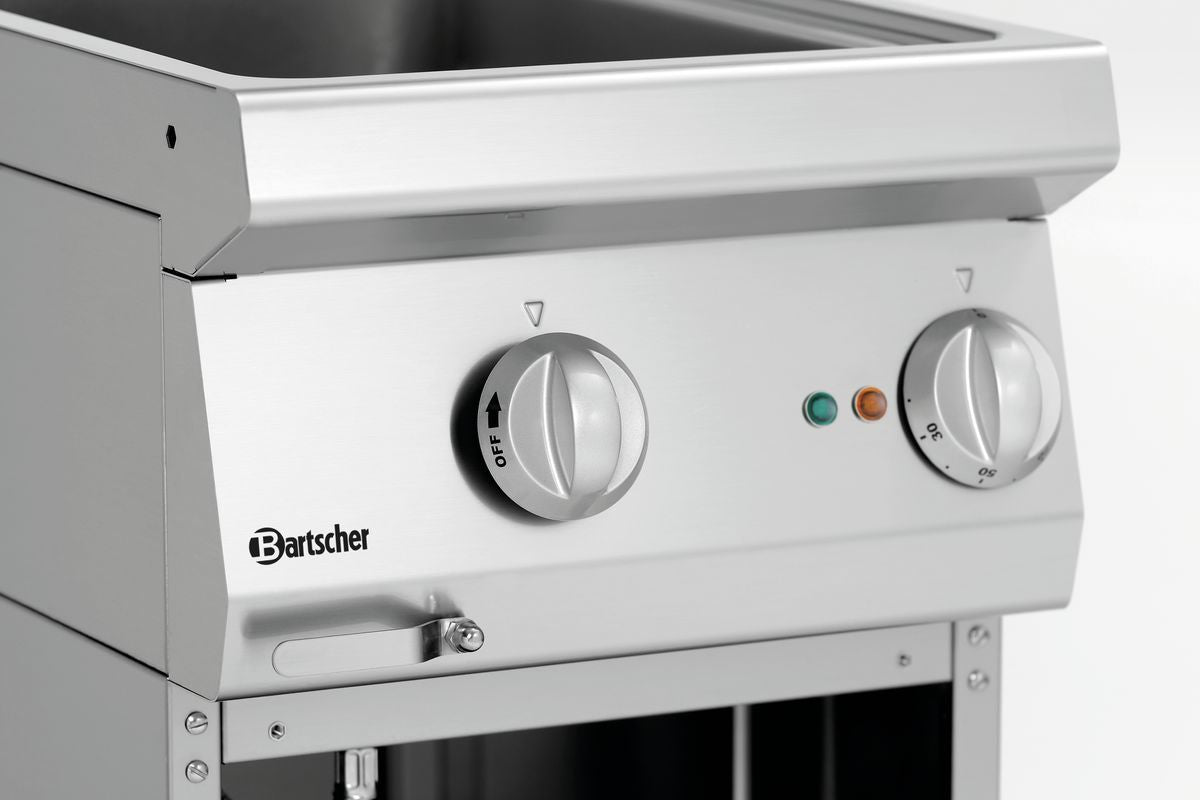

• Precise heat retention with full control: Thanks to an adjustable temperature range from 30 to 90 °C, food can be served and stored at exactly the right temperature – for consistently high quality in everyday catering.
• Robust construction for continuous use: Made from easy-care CNS 18/10, the Bain Marie is ideal for heavy-duty use in commercial kitchens – durable, hygienic and resistant.
• Efficient heat utilisation with low energy consumption: With a power of only 1 kW, food is heated efficiently – ideal for economical Continuous operation and professional use.
• Flexible integration into any kitchen: The open base and height-adjustable feet (850–900 mm) allow individual adaptation to any working environment – for well-thought-out ergonomics and optimal workflows.

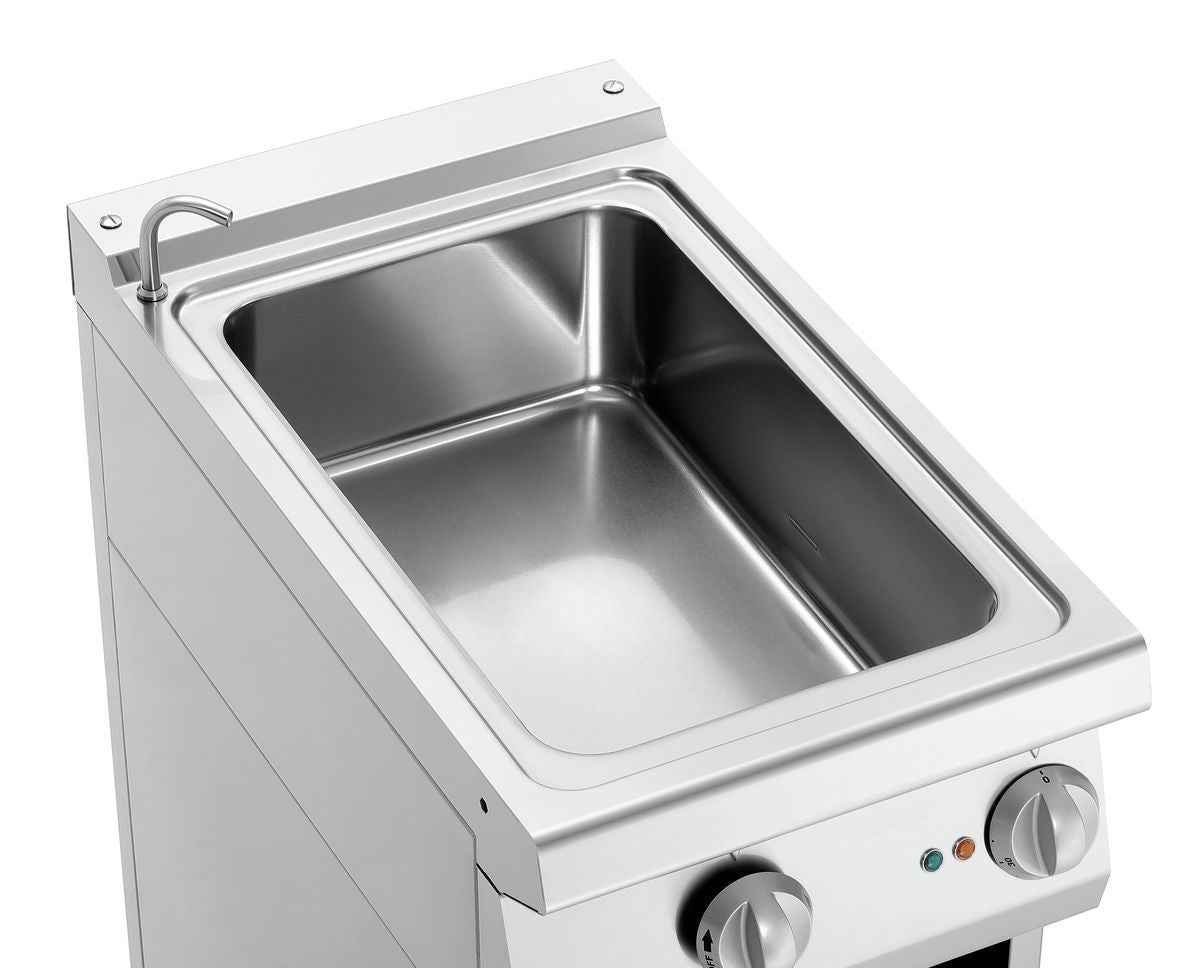

• GN-optimised tray size for maximum compatibility: With space for 1 x 1/1 GN container up to 150 mm deep, the appliance meets common requirements in production and serving kitchens – maximum compatibility for professional use.

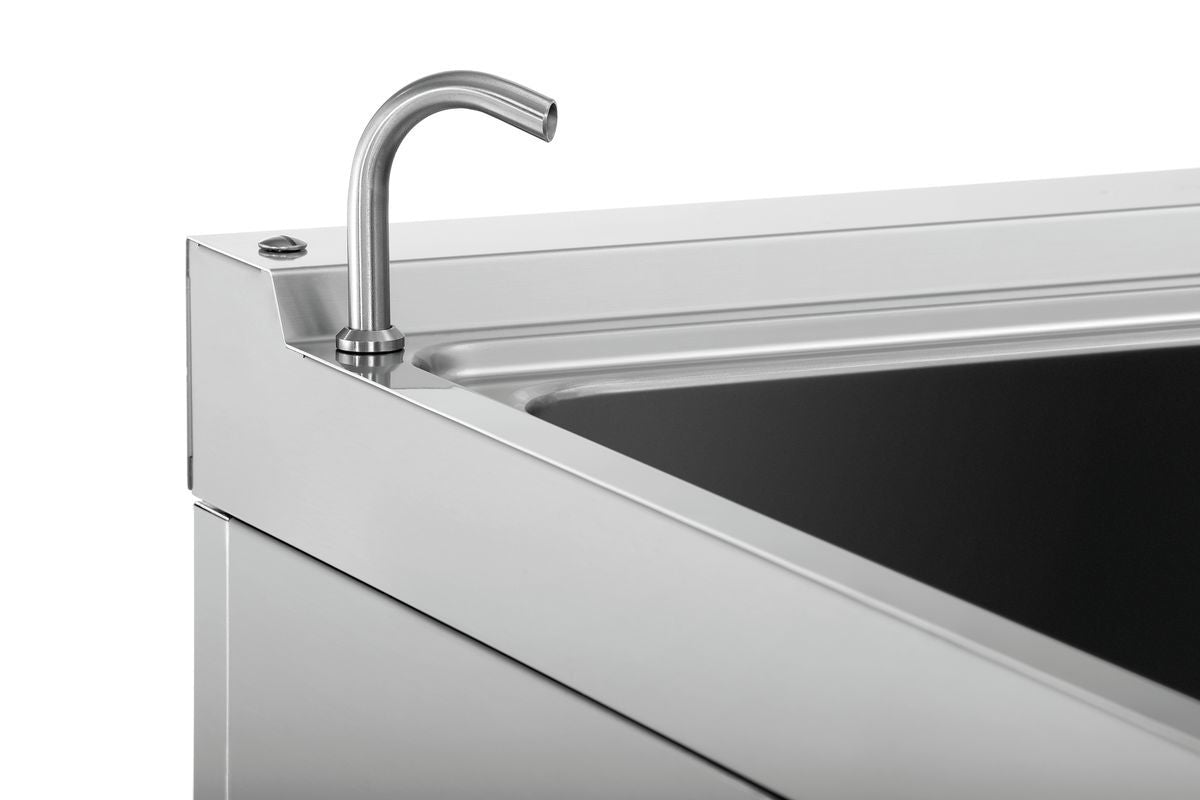

• Safe and convenient filling – with inlet and outlet tap: The integrated water inlet and outlet tap facilitates handling, cleaning and daily use – for hygienic working without wasting time.
• Part of the modular 700 Series: Seamless integration into kitchen units thanks to a proven series concept that guarantees planning reliability and visual uniformity.
• Electric operation for clean, uncomplicated use: The electric operation makes the device independent of gas connections – ideal for flexible kitchen concepts and modern operating requirements.

Technical data

• Width: 400 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 33 kg
• Gross weight: 39 kg
• Volume: 0.442 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Frequency: 50 Hz
• Not included in delivery: GN containers
• Power: 1 kW
• Operating mode: Electro
• Number of tanks: 1
• Voltage: 230 V
• Depth GN container max.: 150 mm
• Material: CNS 18/10
• Temperature range from: 30 °C
• Height-adjustable feet: Yes
• Sub-counter unit type: Open
• Temperature range to: 90 °C
• Series: 700
• Water supply tap: Yes
• Height-adjustable from: 850 mm
• Basin size, GN format: 1 x 1/1 GN
• Type: Upright unit
• Water drain tap: Yes
• Height-adjustable to: 900 mm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 286301
