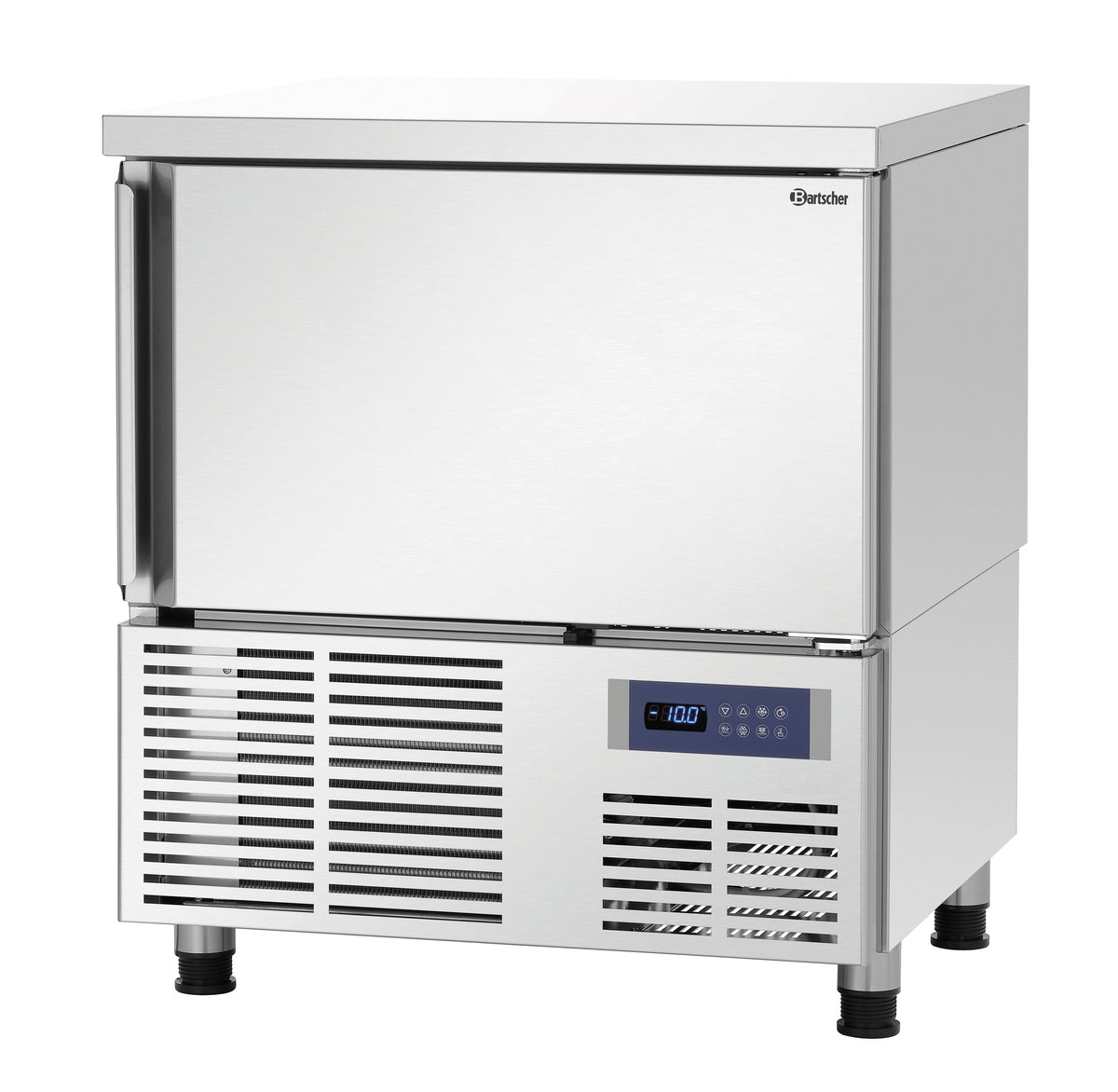

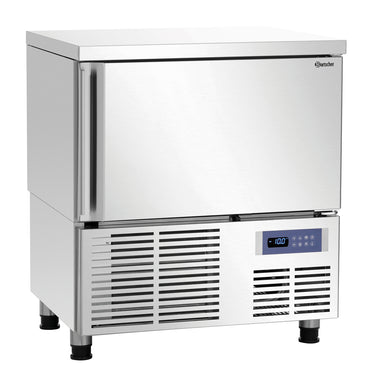

The blast chiller with space for up to 5x 1/1 GN or 600 × 400 mm racks brings fresh food quickly and gently to the optimum storage temperature. Ideal for demanding kitchens where time, hygiene and product safety go hand in hand.

Product benefits

• Maximum freshness in the shortest possible time: The AL5 brings 25 kg of food from 70 °C to 10 °C in just 108 minutes - for maximum quality, flavour and safety with every portion.

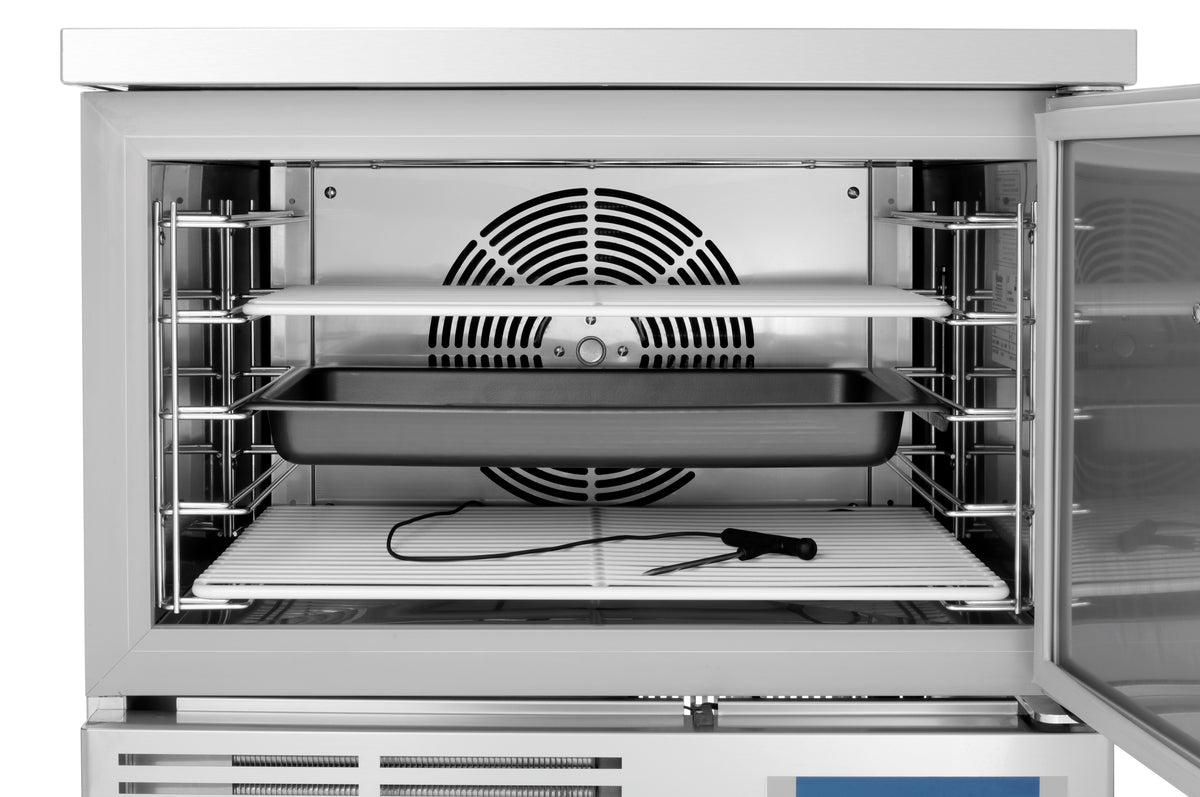

• Compact performance with 5 slide-in units: Five cross drawers for GN 1/1 or 600 × 400 mm grids offer flexible use in the smallest of spaces - ideal for changing production quantities.
• Hygienically designed, robustly built: The CNS 18/10 housing and the easily accessible water drip tray make cleaning easier and ensure hygienic operation in the long term.
• Sustainable with natural refrigerant: R290 with a GWP of only 3 ensures environmentally friendly Cooling output and fulfils the highest energy efficiency requirements.

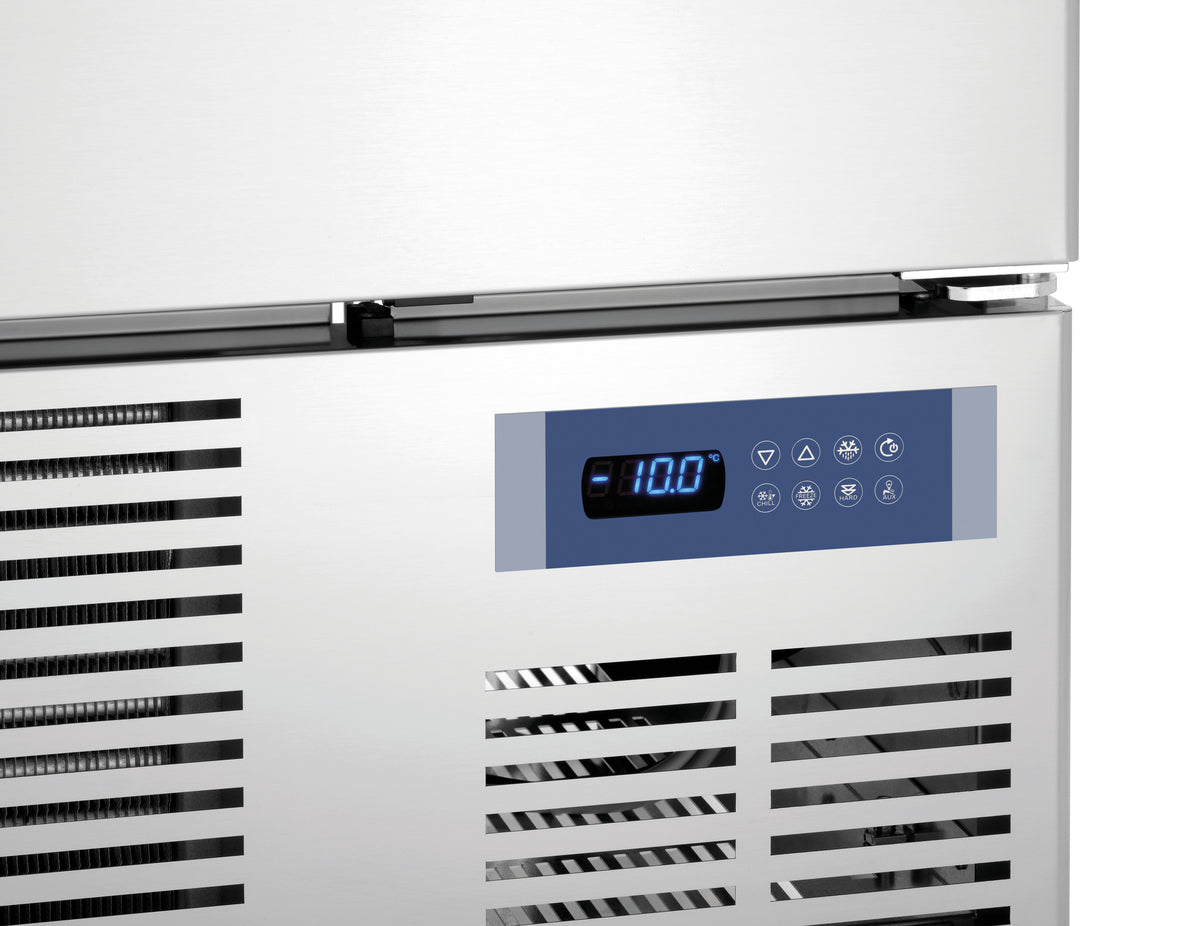

• Practical control unit with precision: The electronic control and Core temperature sensor guarantee precise cooling processes and consistently reproducible results.
• Plug & play for professional kitchens: Ready to plug in, 230 V Connection and convection cooling - the AL5 is ready for immediate use and fits seamlessly into existing processes in real professional kitchens.

Technical data

• Width: 750 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 96.2 kg
• Gross weight: 107.95 kg
• Volume: 0.576 MTQ
• Guarantee: VG
• Customs tariff number: 84185090
• Type of drawers: Crosswise
• Shock frost output: 70 °C to -18 °C (10 kg in 240 min.)
• Climate class: 4
• Cooling: Circulating air
• GWP: 3
• Load-bearing capacity per drawer max.: 20 kg
• Number of drawers: 5
• Control unit: Electronic
• Fast cooling cycle: 70 °C to 10 °C (25 kg in 108 min.)
• Including: 1 core temperature sensor ,1 grid 1/1 GN ,1 grid (600 x 400 mm) ,1 water collection tray
• Format drawers: 1/1 GN ,600 x 400 mm
• Energy consumption: Rapid cooling: 0.064 kWH/kg ,Shock freezing: 0.279 kWH/kg
• Power: 1.2 kW
• Frequency: 50 Hz
• Distance between trays: 65 mm
• Material: CNS 18/10
• Coolant: R290 / 0,140 kg
• Voltage: 230 V
• Equipment connection: Pluggable

Documents

• Datasheet

Manufacturer item number: 700616
