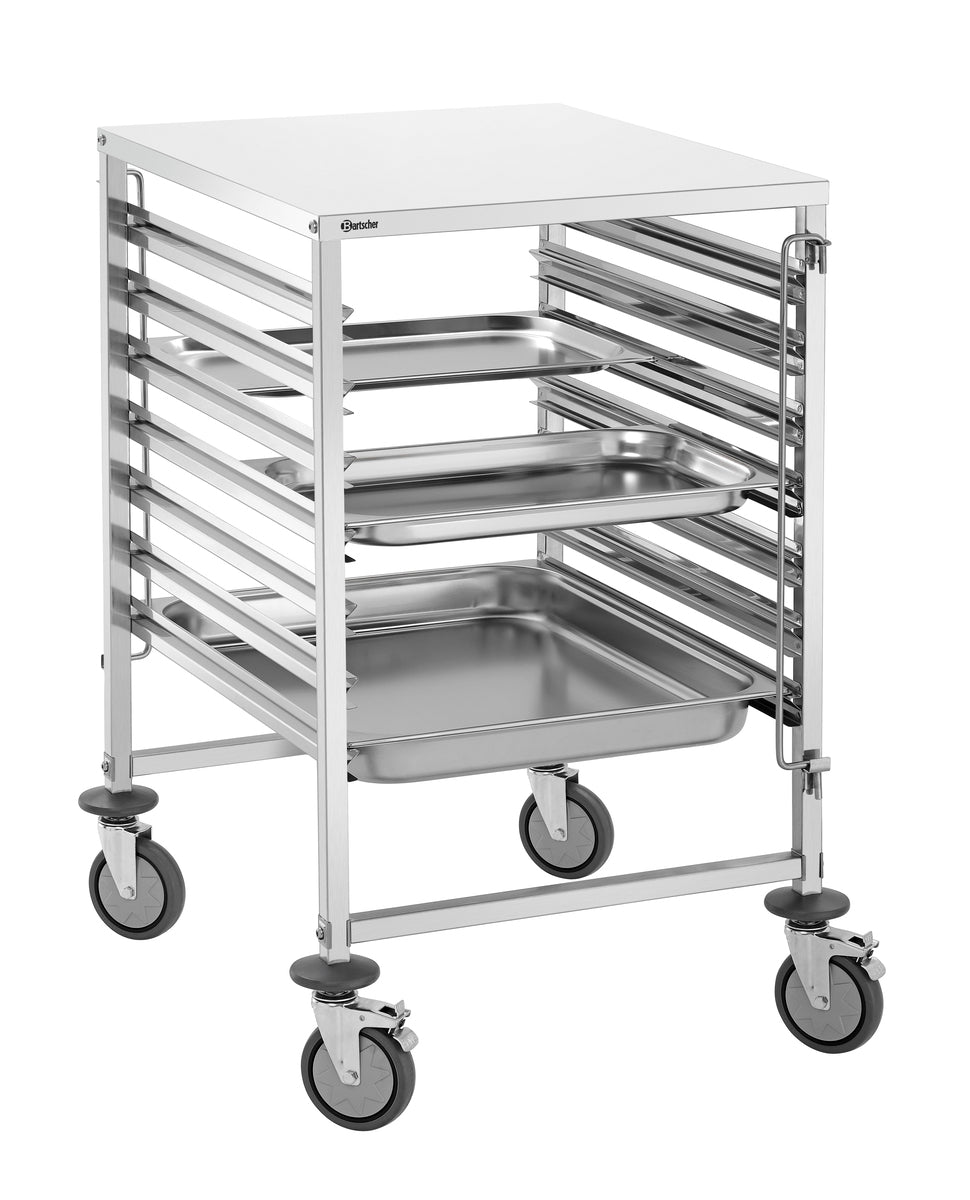

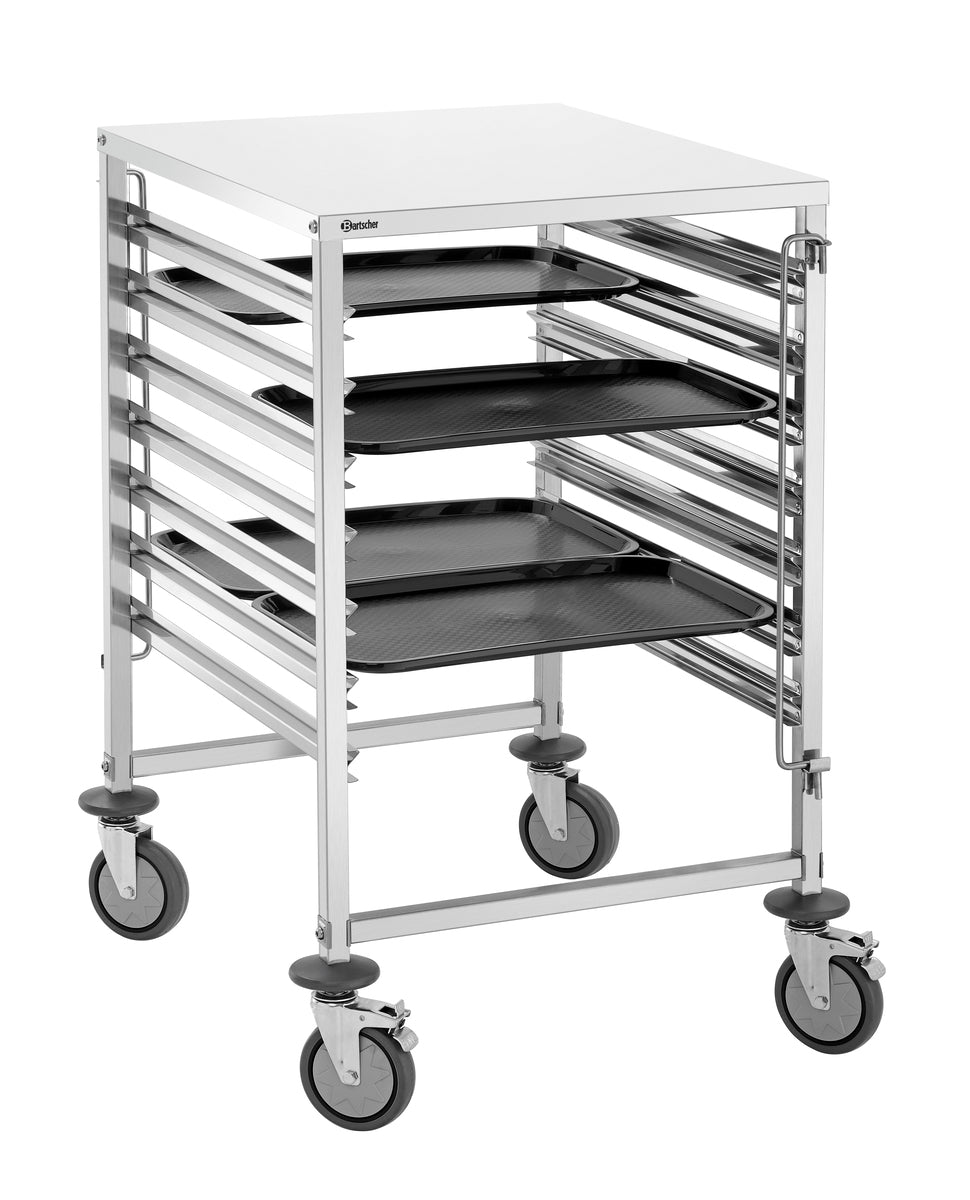

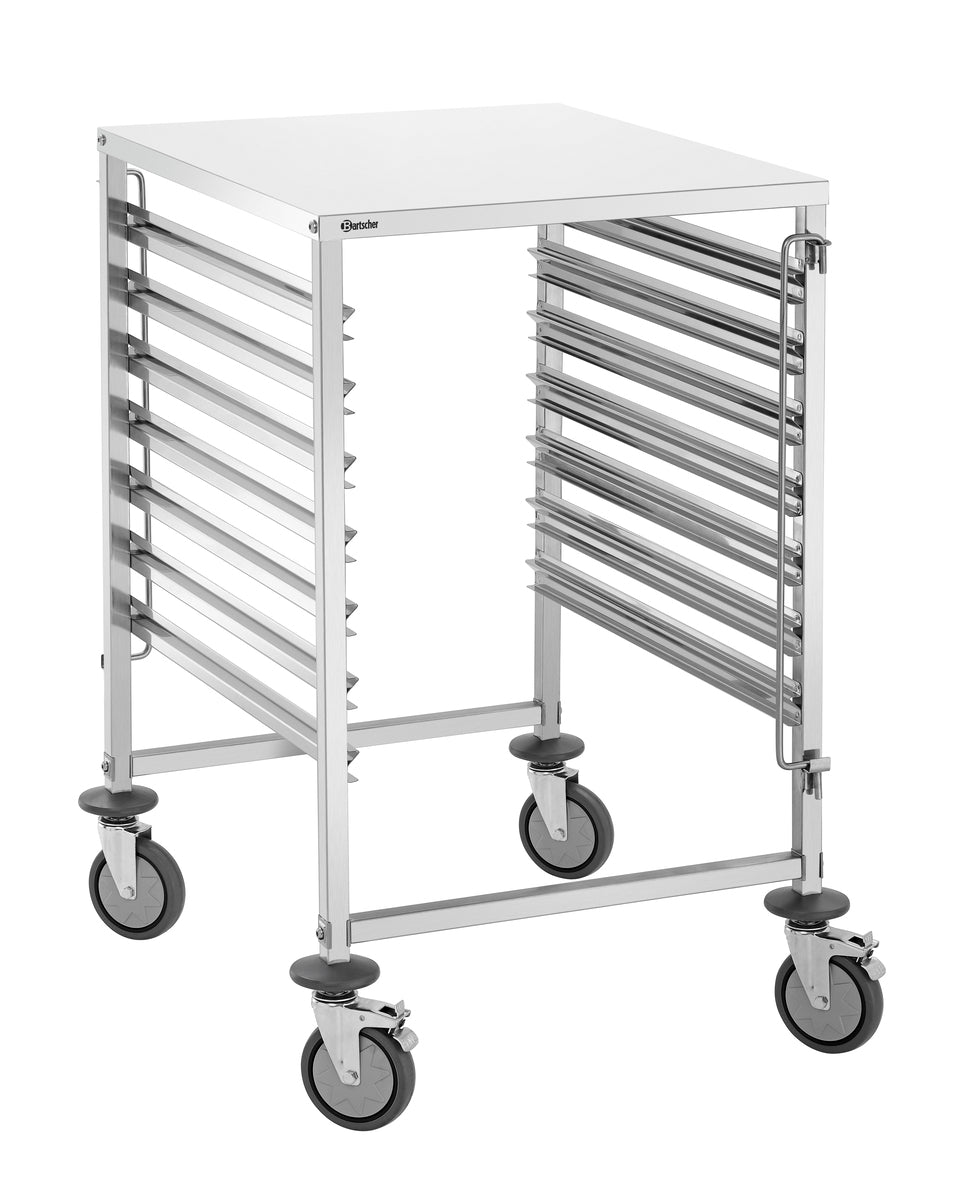

Versatile and functional: the shelf trolley with 7 drawers in 2/1 GN format and additional storage space creates order in everyday working life. The container lock on both sides reliably prevents the container from slipping and ensures safe transport.

Product benefits

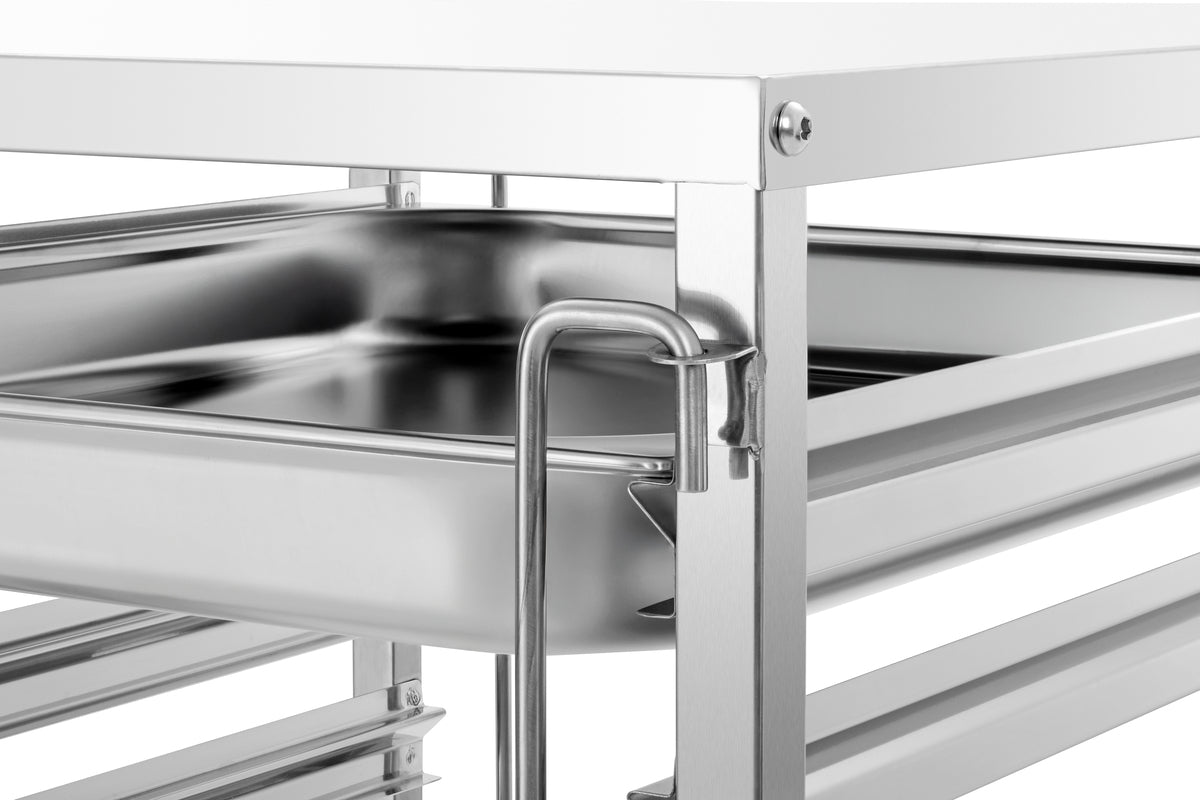

• Safe transport on all routes: Container retainers on both sides reliably hold GN containers or trays in position - even with quick changes of direction and uneven surfaces.
• Stability that impresses in everyday life: The robust stainless steel frame with 26 x 26 mm square tube ensures high dimensional stability and long-lasting load-bearing capacity - even with maximum loads of up to 90 kg.
• More space thanks to integrated footprint: The additional Worktop surface with 18 kg load capacity extends the storage space for accessories or prepared GN containers and creates more efficient work processes.
• Flexible use in the daily routine: Can be loaded from both sides, making them perfect for clearing, transport or temporary storage tasks in canteen kitchens, catering or gastronomic operations.

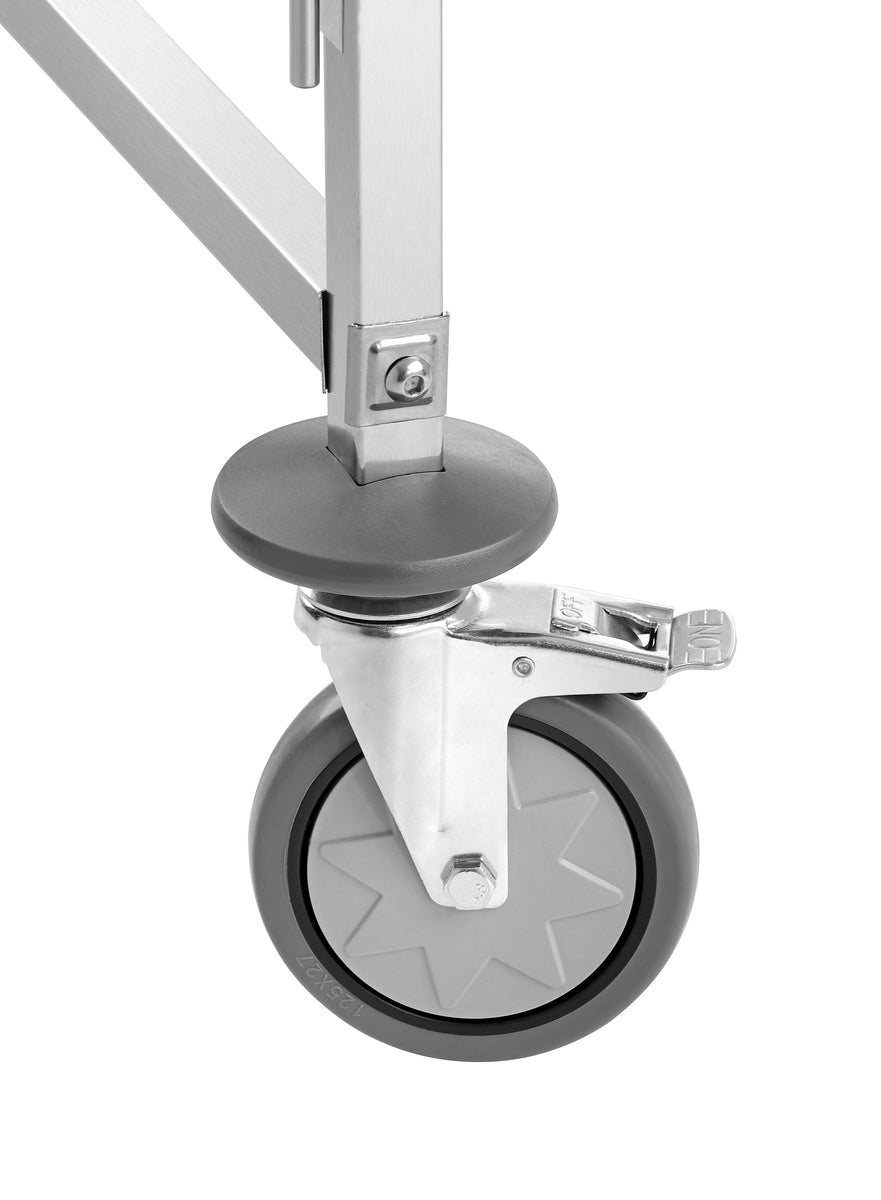

• Mobility meets control: Four 125 mm Diameter Swivel casters - two of which are lockable - guarantee easy manoeuvring and a secure stand exactly where it is needed.
• Easy to install, ready for immediate use: The shelf trolley is supplied as a kit and can be assembled intuitively - without requiring a lot of time or special tools.

Technical data

• Width: 795 mm
• Depth: 655 mm
• Height: 1000 mm
• Net weight: 14.7 kg
• Gross weight: 16.28 kg
• Volume: 0.071 MTQ
• Guarantee: VG
• Customs tariff number: 94032080
• Properties: One container lock each on the front and rear side. ,Frame made of square tube 26 x 26 mm
• Load-bearing capacity per drawer max.: 12 kg
• Width surface: 590 mm
• Depth container max.: 65 mm
• Load-bearing capacity worktop surface max.: 18 kg
• With handle(s): No
• Distance between trays: 80 mm
• Depth surface: 670 mm
• Delivery state: Building kit (simple assembly)
• Not included in delivery: GN containers ,Sheets ,Grilles
• Model: GN slots
• Worktop surface: yes
• Application area: Clearing
• Diameter casters: 125 mm
• Swivel casters: 4 swivel casters, 2 with brake
• Total load-bearing capacity, max.: 90 kg
• Material: Stainless steel
• Designed for: 2/1 GN ,1/1 GN
• Can be loaded from both sides: Yes
• Number of drawers: 7
• Wheel buffer: 4 units, plastic

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 300193
