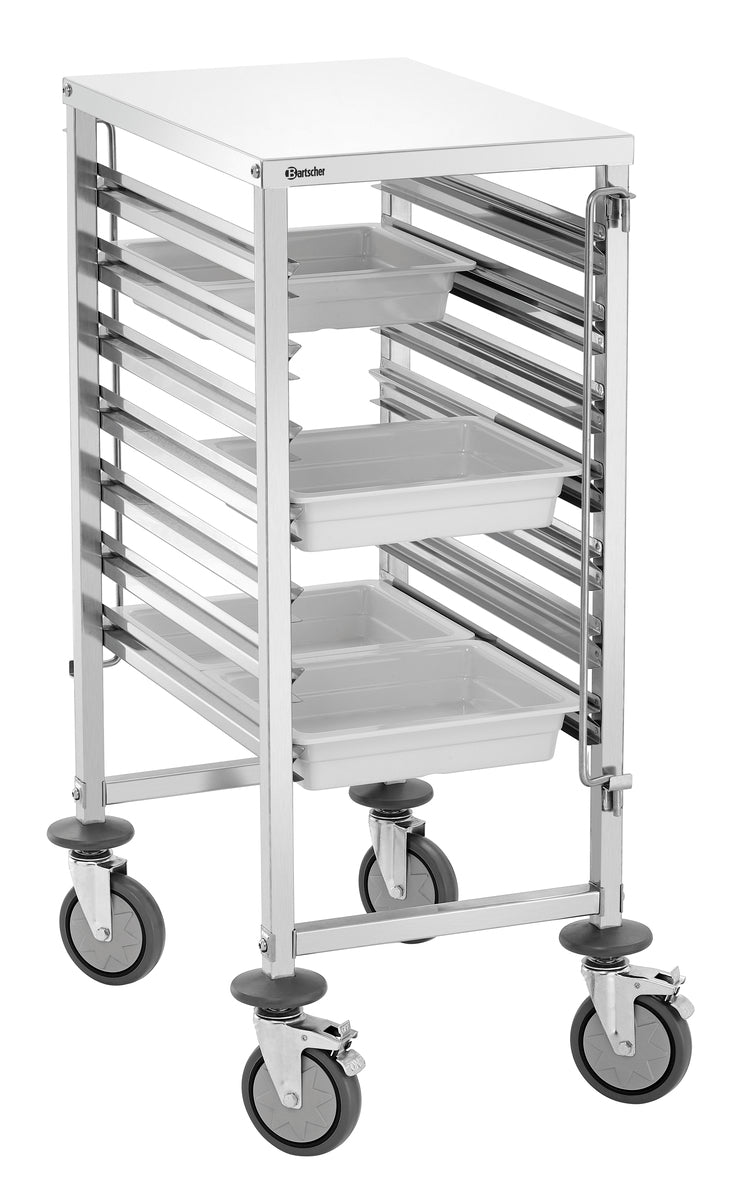

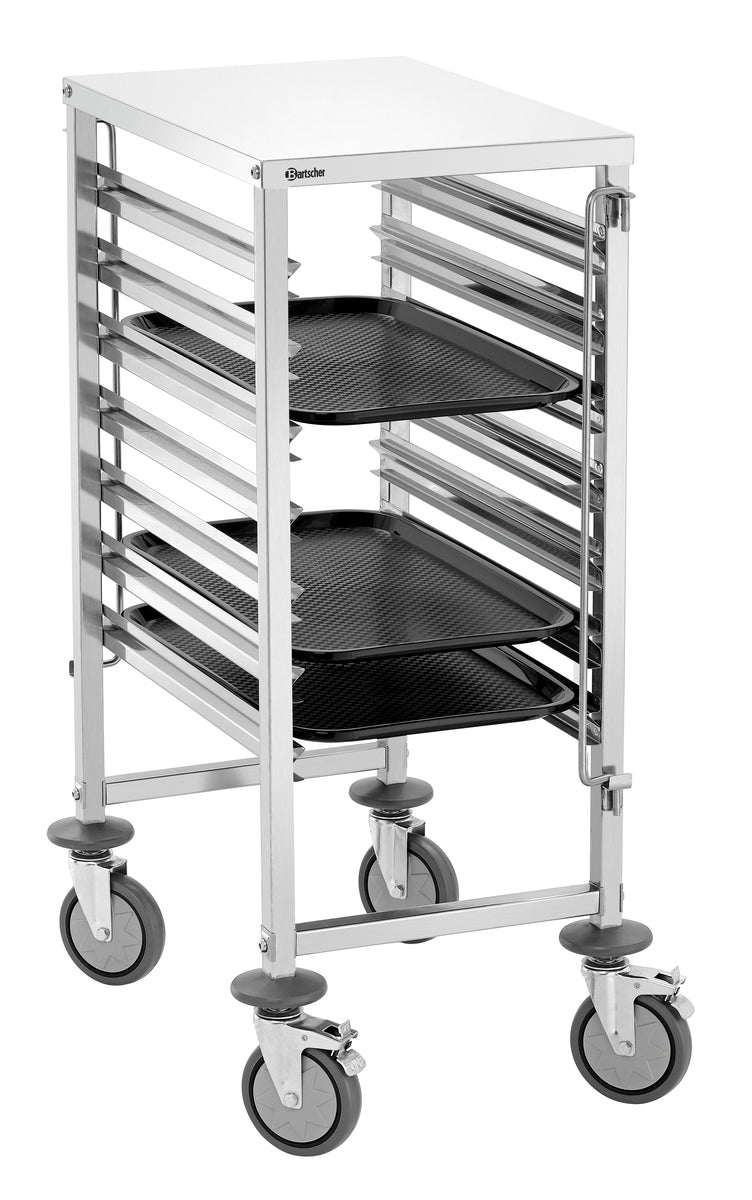

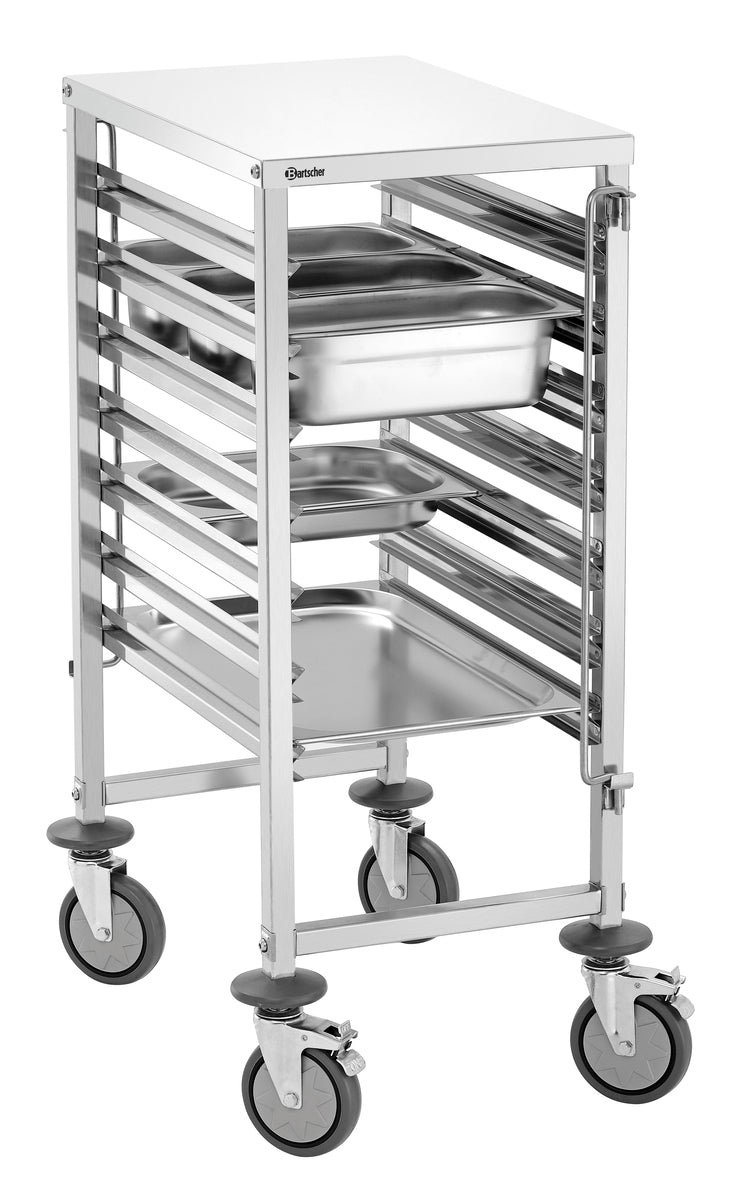

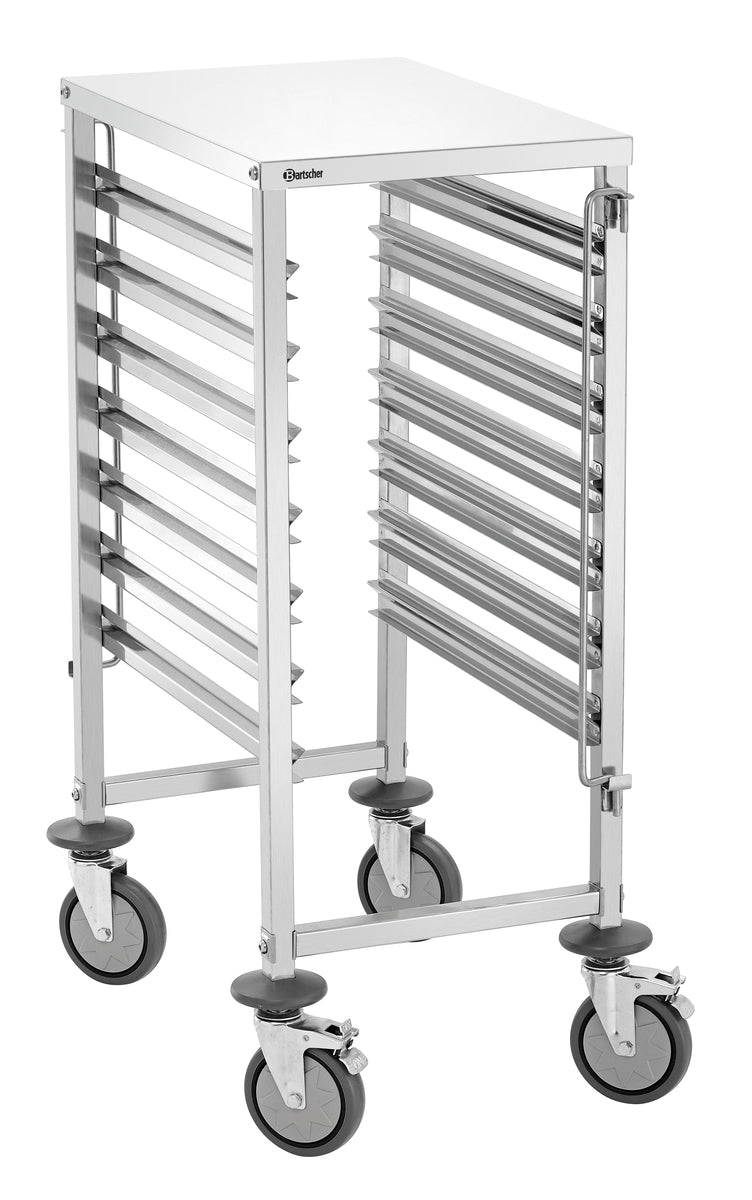

Structured working made easy - the shelf trolley with 7 1/1 GN format drawers and additional storage space offers plenty of room for organisation. The container lock on both sides reliably prevents the containers from slipping and ensures a secure hold during transport.

Product benefits

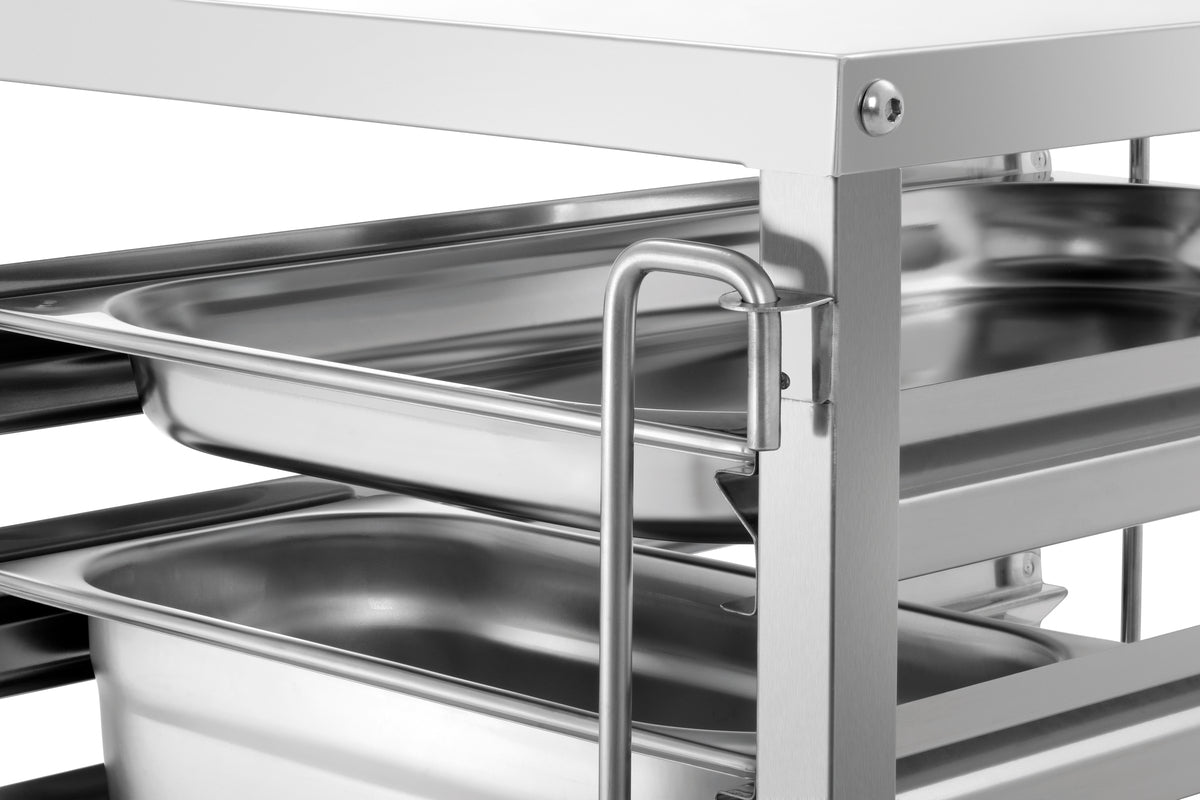

• Double fuse for maximum hold: A container guard at the front and rear reliably protects GN containers from slipping - even when moving and fully loaded.

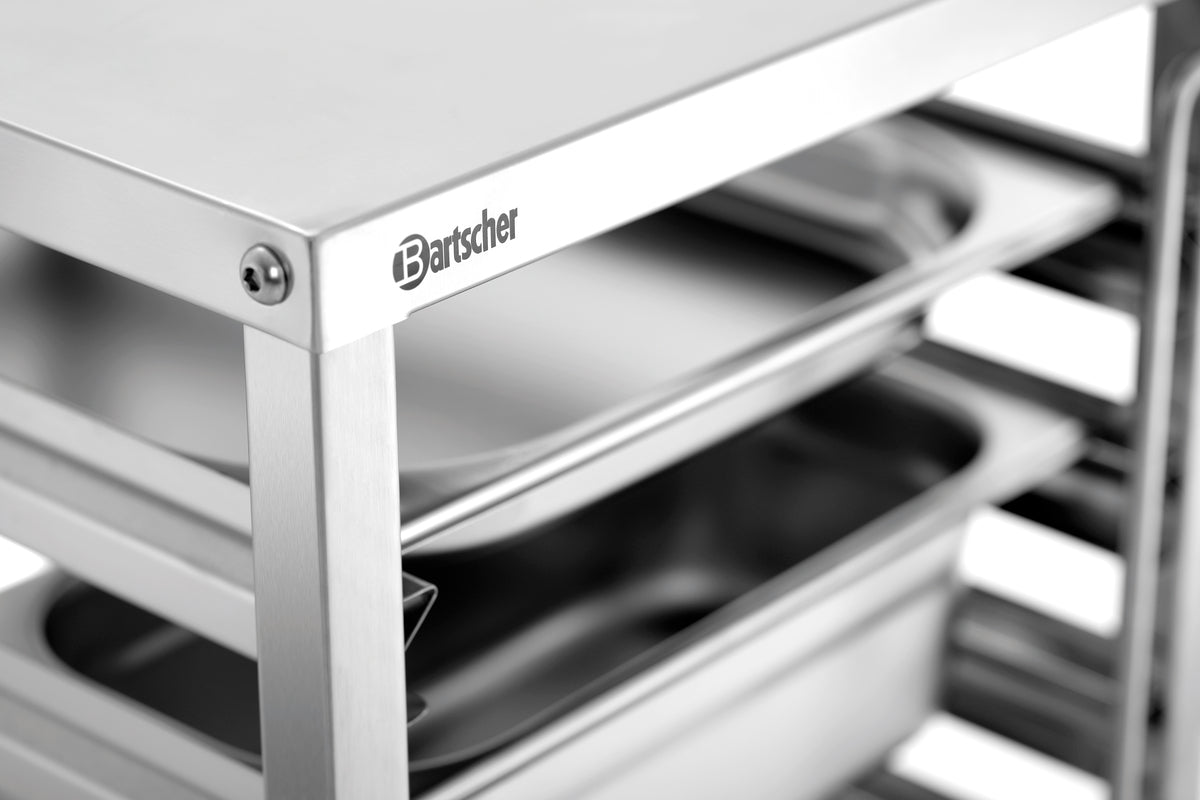

• Robustly built for continuous use: The sturdy stainless steel frame made of 25 x 25 mm square tubing offers high load-bearing capacity and durability - ideal for everyday professional kitchen use.
• Organised work on seven levels: Seven 1/1 GN inserts with 80 mm spacing ensure a clear structure and efficient clearing and transport processes.

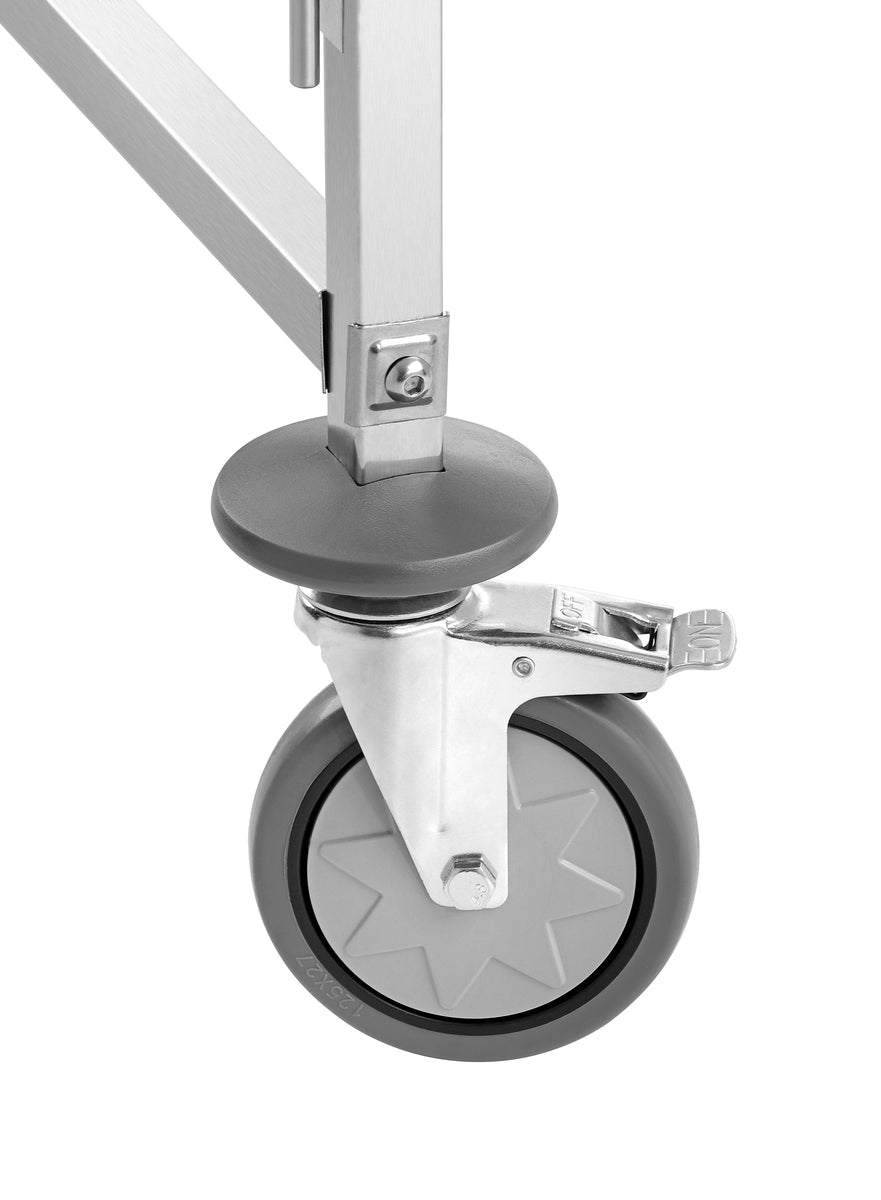

• Mobility with controlled stability: Four 125 mm Diameter Swivel casters, two of which are lockable, enable easy manoeuvring and secure standing when required.
• Practical additional space for more flexibility: The integrated shelf (390 x 555 mm) offers additional space for accessories or transport goods - loadable up to 5 kg.
• Simple installation, ready for immediate use: The shelf trolley is supplied as a kit and can be assembled in just a few simple steps - perfect when efficiency also counts during assembly.
• Can be used universally in the GN system: Compatible with 1/1, 1/2, 1/3 and 2/3 GN containers - maximum flexibility for different applications in the kitchen and catering.
• Protection during transport included: Four Plastic Wheel buffers protect walls and furniture - for smooth and safe operation in confined working environments.

Technical data

• Width: 450 mm
• Depth: 670 mm
• Height: 1000 mm
• Net weight: 12.1 kg
• Gross weight: 13.5 kg
• Volume: 0.058 MTQ
• Guarantee: VG
• Customs tariff number: 94032080
• Properties: One container lock each on the front and rear side. ,Frame in square tubing 25 x 25 mm
• Load-bearing capacity per drawer max.: 8 kg
• Width surface: 390 mm
• Depth container max.: 65 mm
• Load-bearing capacity worktop surface max.: 5 kg
• With handle(s): No
• Distance between trays: 80 mm
• Depth surface: 555 mm
• Delivery state: Building kit (simple assembly)
• Not included in delivery: GN containers ,Sheets ,Grilles
• Model: GN slots
• Worktop surface: yes
• Application area: Clearing
• Diameter casters: 125 mm
• Swivel casters: 4 swivel casters, 2 with brake
• Total load-bearing capacity, max.: 60 kg
• Material: Stainless steel
• Designed for: 1/1 GN ,1/2 GN ,1/3 GN ,2/3 GN
• Can be loaded from both sides: Yes
• Number of drawers: 7
• Wheel buffer: 4 units, plastic

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 300192
