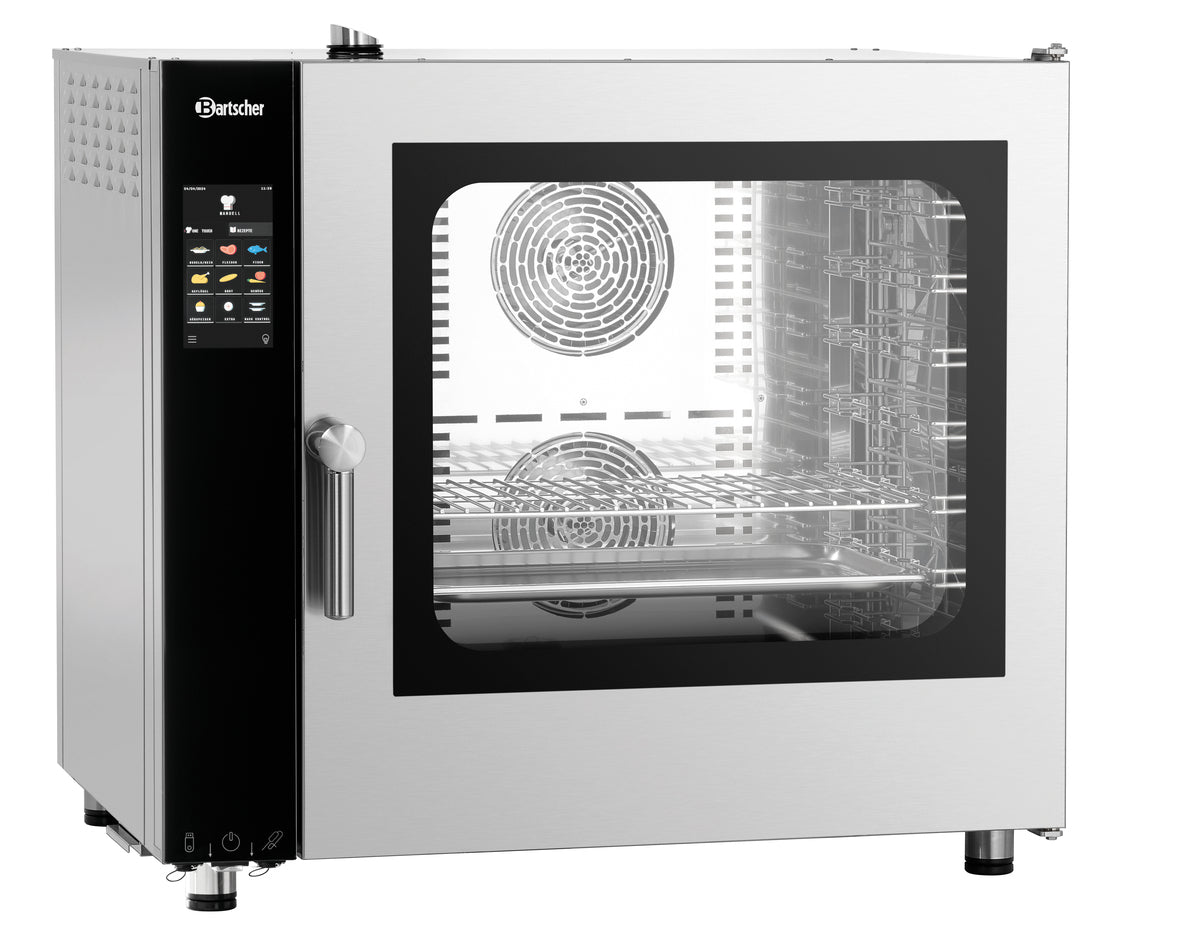

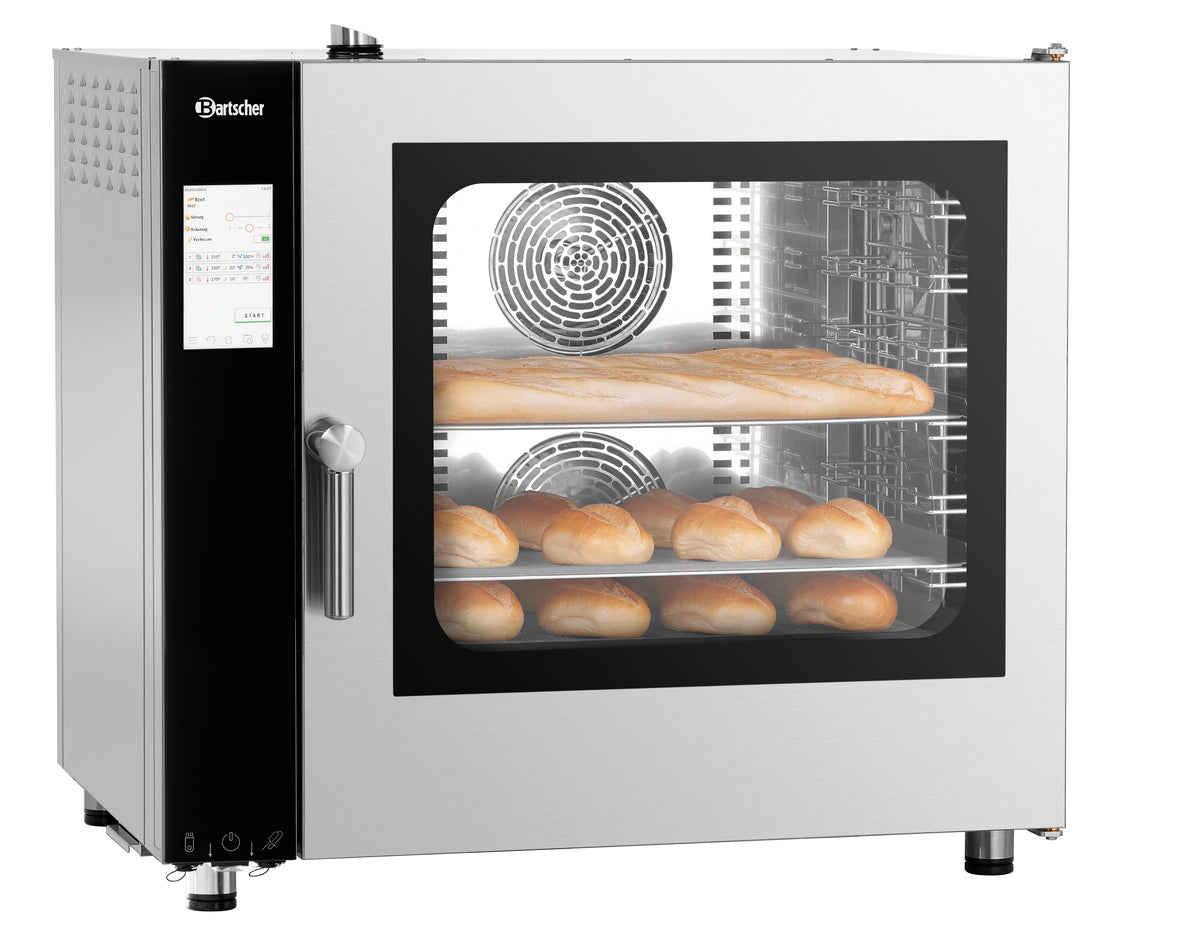

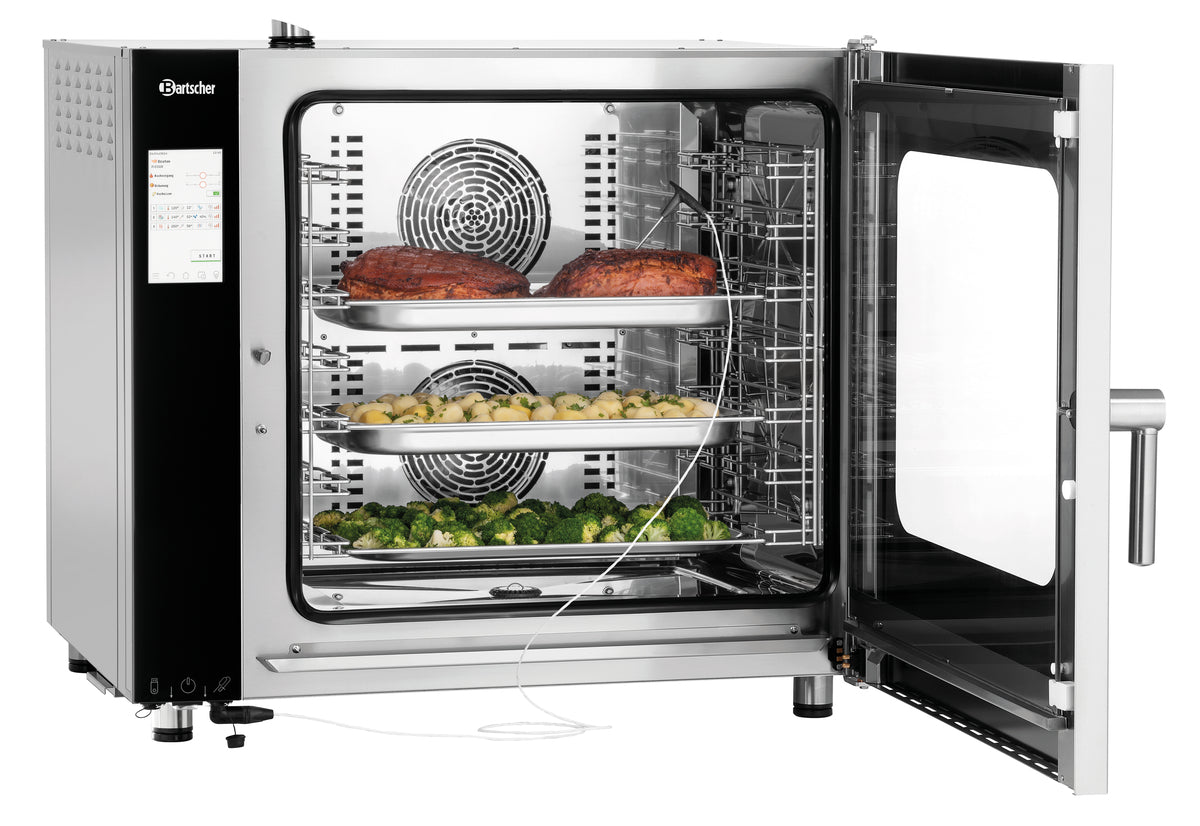

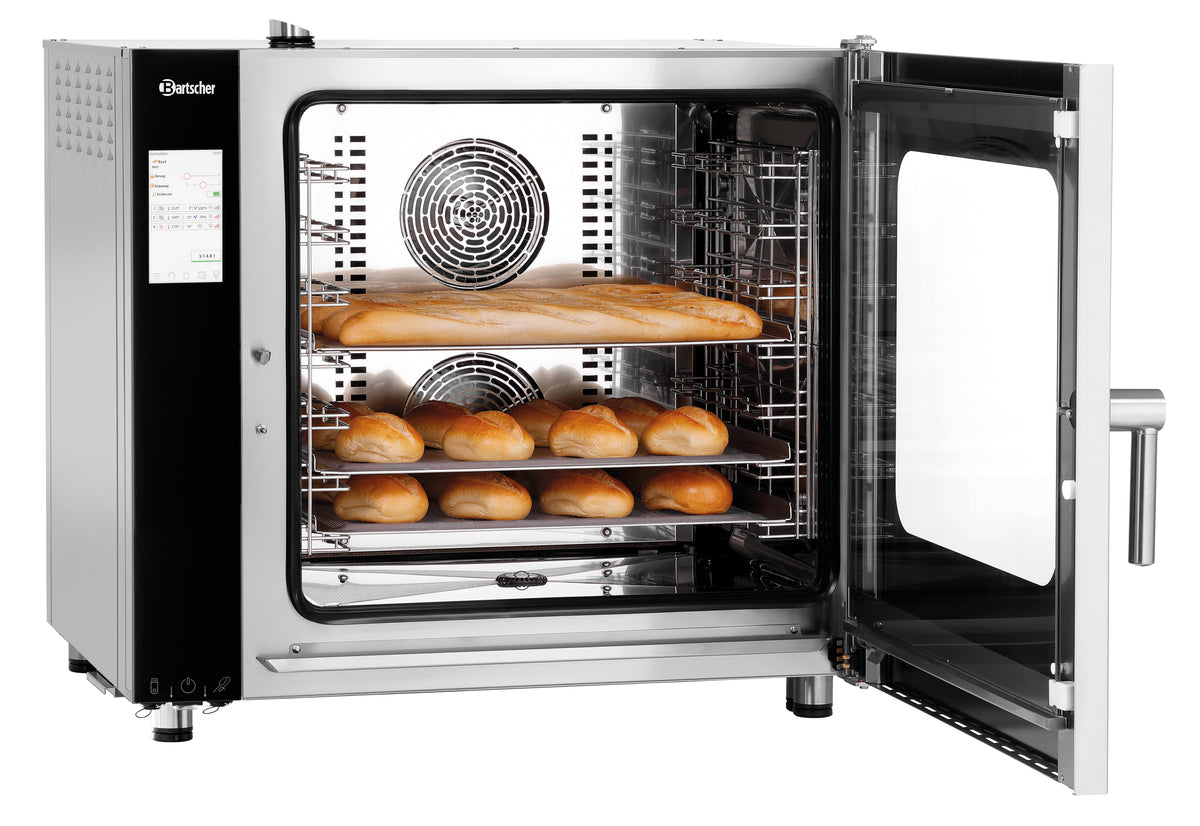

More efficiency and time savings with the combi-steamer Silversteam2 P 7 x 1/1 GN thanks to even more power. Thanks to the high performance and rack control function, full cooking chambers are no problem at all. The reduced cooking times, faster heating up and easy handling speak for themselves.

Product benefits

• Full grilling power in a compact Format: With 3 powerful burners and 10 kW power, the TB1000PF offers professional Grill output in a small space – ideal for outdoor kitchens with limited space.
• Ready to use immediately – no tools required: Quick assembly and integrated piezo ignition ensure a smooth start – perfect for stress-free catering and outdoor business.
• Flexible gas adjustment for any environment: Nozzles for 30, 37 and 50 mbar included in the set enable operation with different cylinder pressure regulators – simply adjust instead of converting.
• Robust materials for continuous use: Enamelled steel pan and stainless steel housing guarantee durability and easy cleaning – even with intensive, professional use.
• Efficient gas consumption for economical use: With gas consumption of just 728 g per hour, the tabletop roaster impresses with its excellent energy efficiency – particularly relevant for continuous use in the event business.
• Precise heat distribution with three-zone control: Three individually controllable burners enable precise roasting at different temperatures – ideal for grilling a wide variety of foods at the same time.
• Pan design with ideal size for large portions: With a grilling surface of 705 × 540 mm and a depth of 43 mm, the TB1000PF offers sufficient space for high utilisation – perfect for peak times.
• Safe outdoor grilling – robust and ready for use: Designed for outdoor use with liquid gas, the tabletop roaster withstands changing conditions in mobile use – whether at a street food stand or festival catering.

Technical data

• Width: 905 mm
• Depth: 840 mm
• Height: 860 mm
• Net weight: 108 kg
• Gross weight: 125 kg
• Volume: 0.82 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Temperature range to: 300 °C
• Number of drawers: 7
• Temperature control: In 1 °C steps

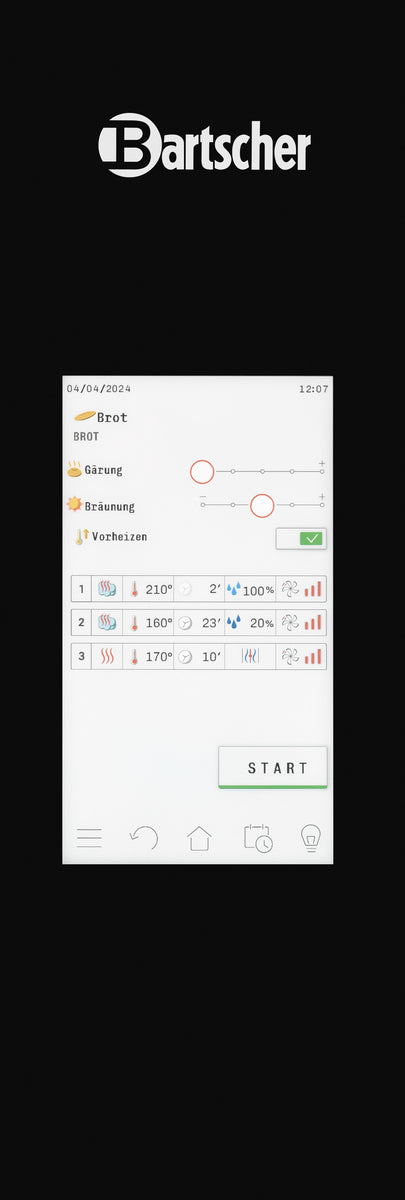

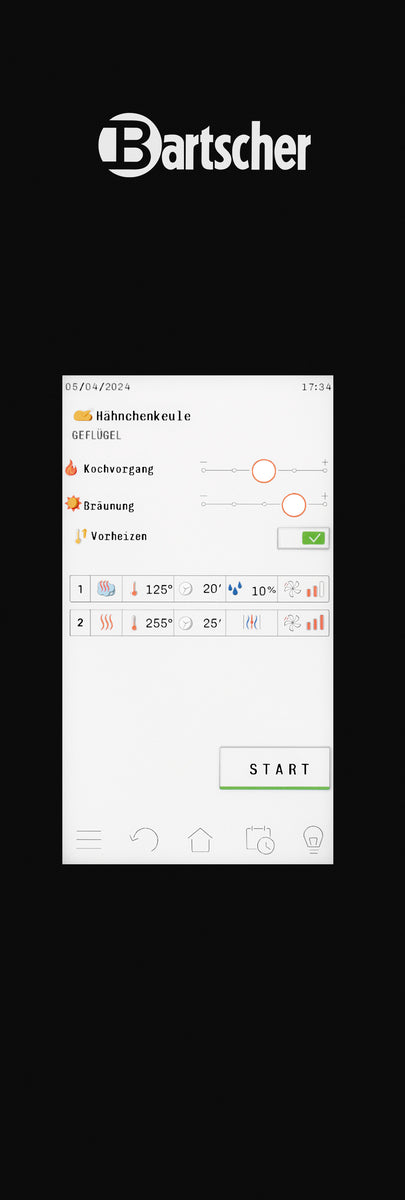

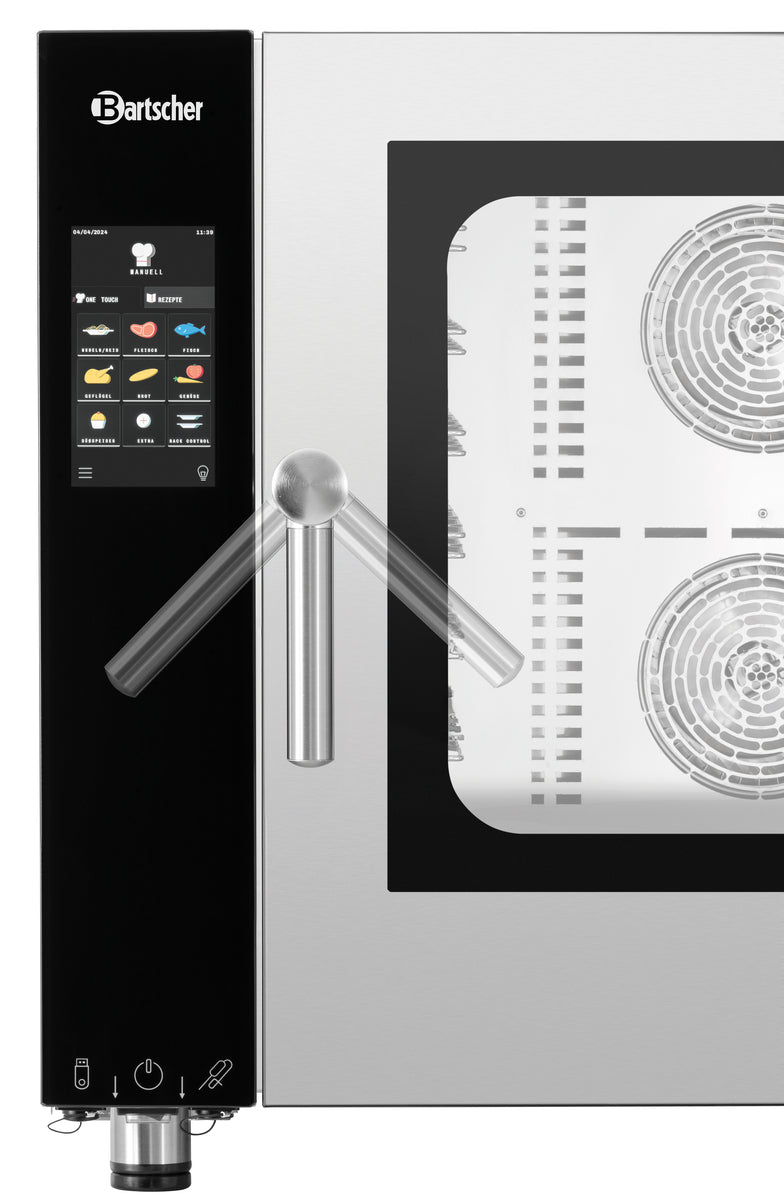

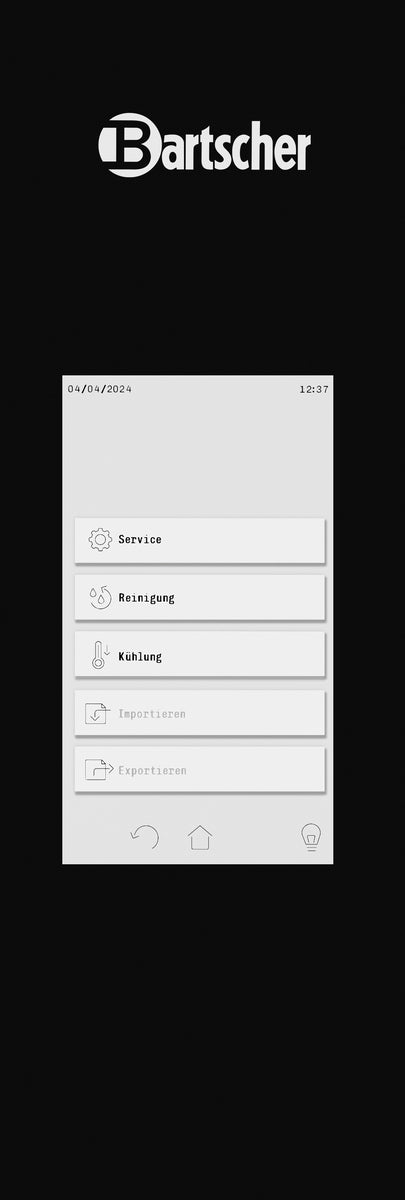

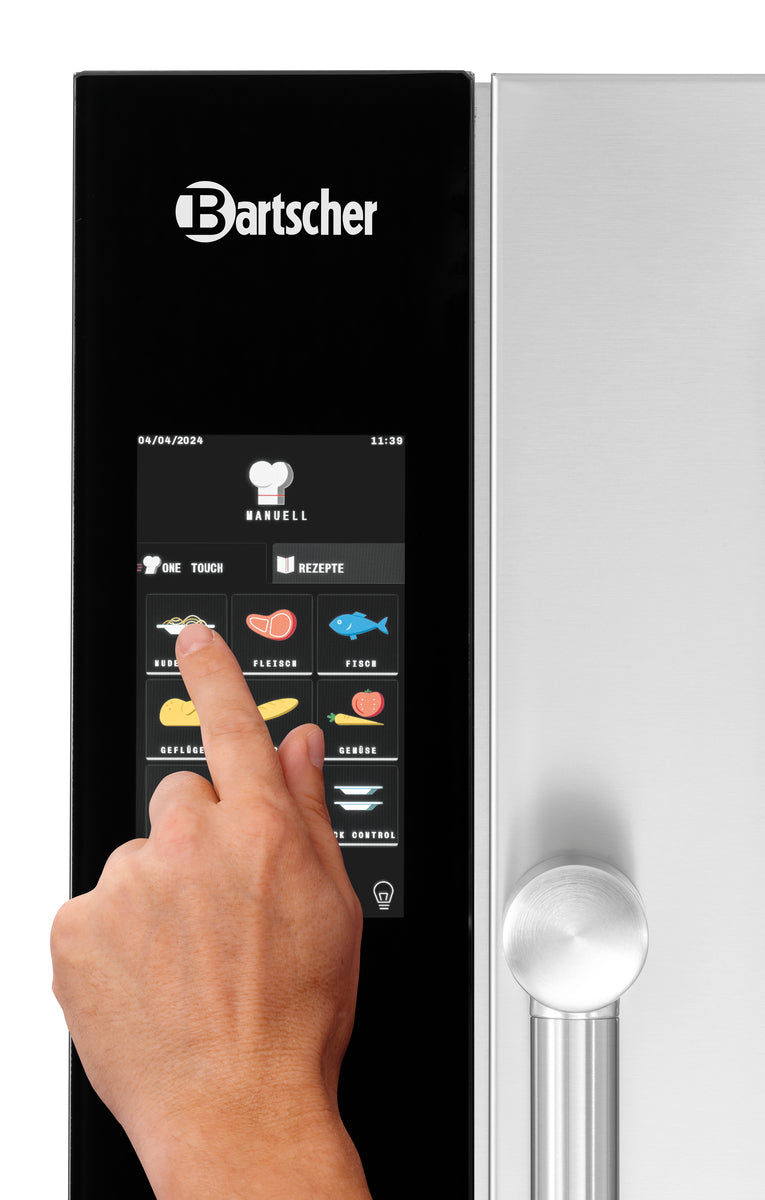

• Control unit: Touch
• Vapour extractor: Yes
• Series: Silversteam2

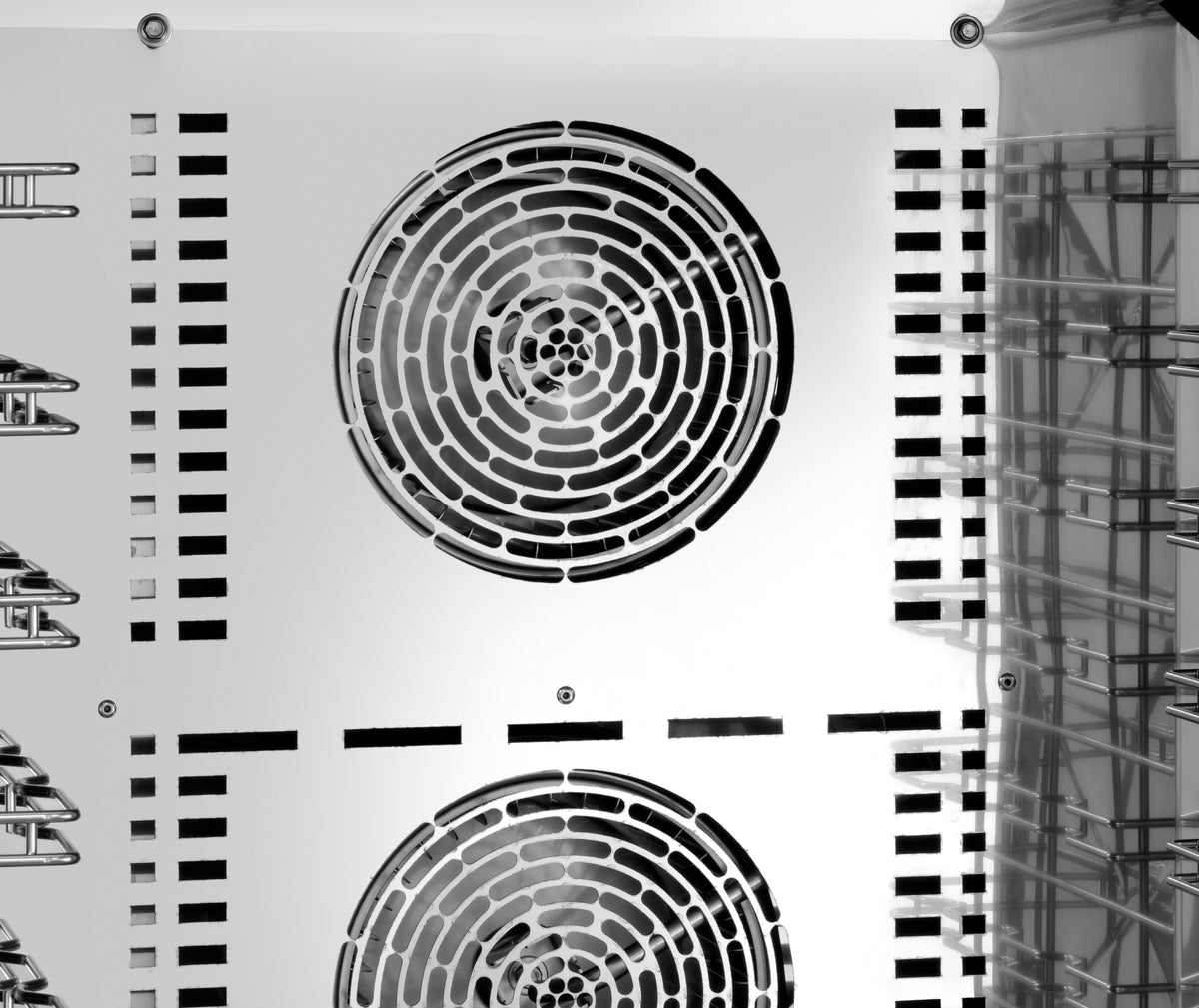

• Number of fans: 2
• LED display: Steaming ,Delta-T cooking ,Cooking phases ,Core temperature ,Fan speed ,Program ,Temperature ,Time
• Functions: Steam production by means of direct injection ,Steam ,Delta-T cooking ,Combi-steaming ,Low temperature cooking ,Reversing motor direction (fan wheels) ,Circulating air ,Cooldown during cooking phase ,Manual steaming
• Equipment connection: 3 NAC
• Temperature range from: 50 °C
• Format drawers: 1/1 GN ,600 x 400 mm
• Material: CNS 18/10
• Water connection: 3/4"

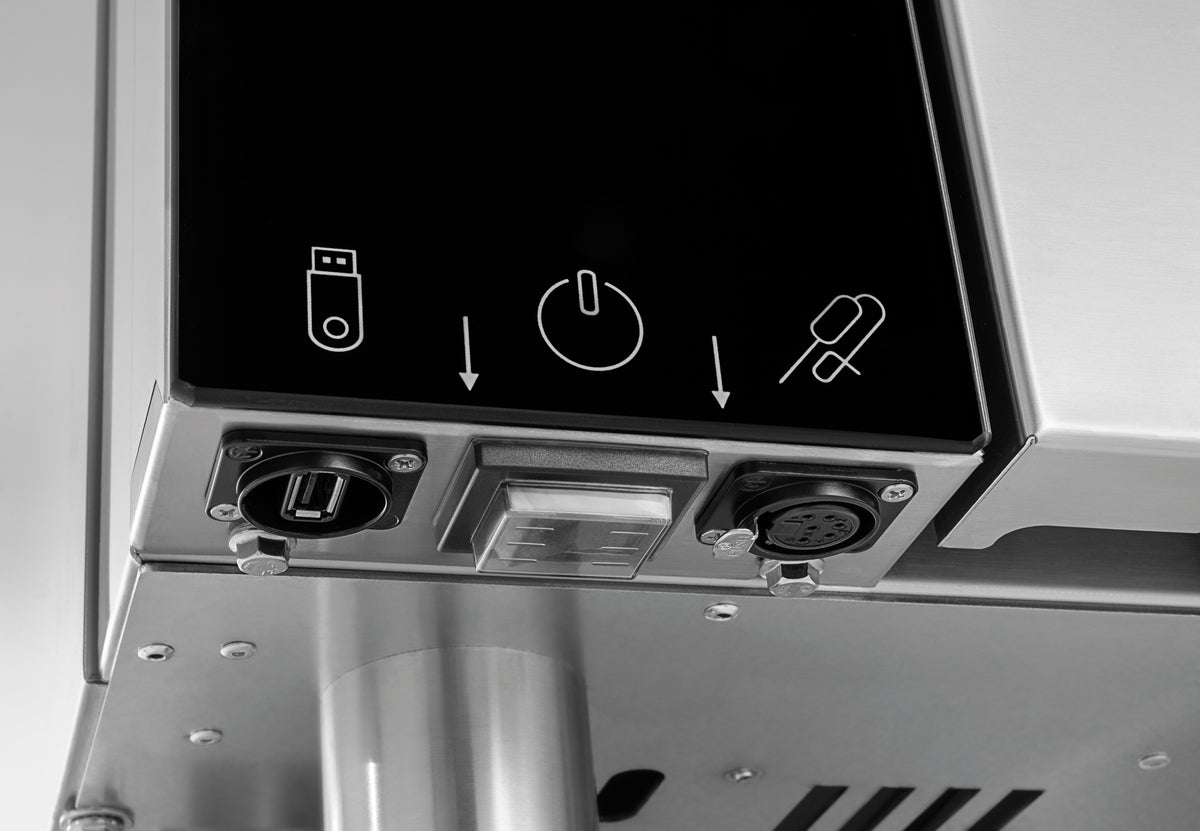

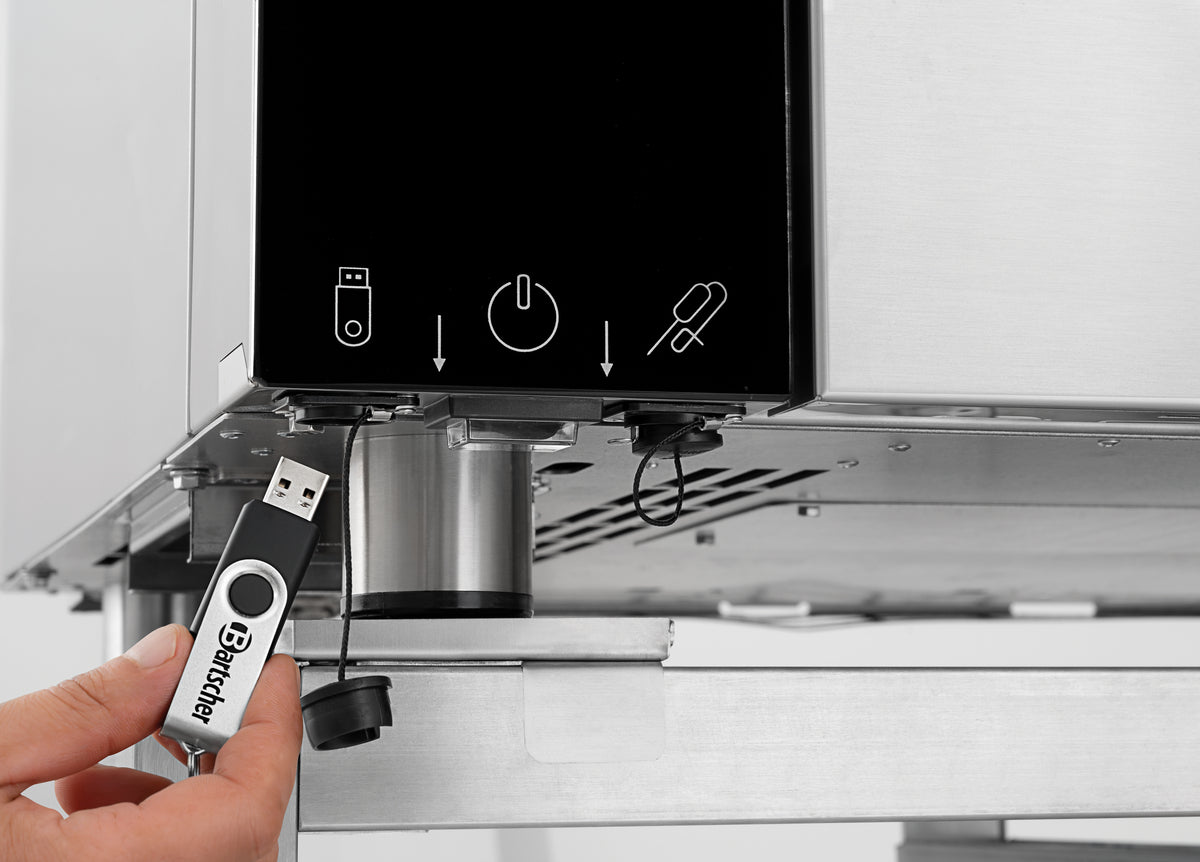

• USB connection: Front, bottom
• Time setting to: 5999 minute(s)
• Material cooking chamber: CNS 18/10
• Number of cooking programs: 300 pre-installed programs ,300 configurable programs
• Interior lighting: Yes

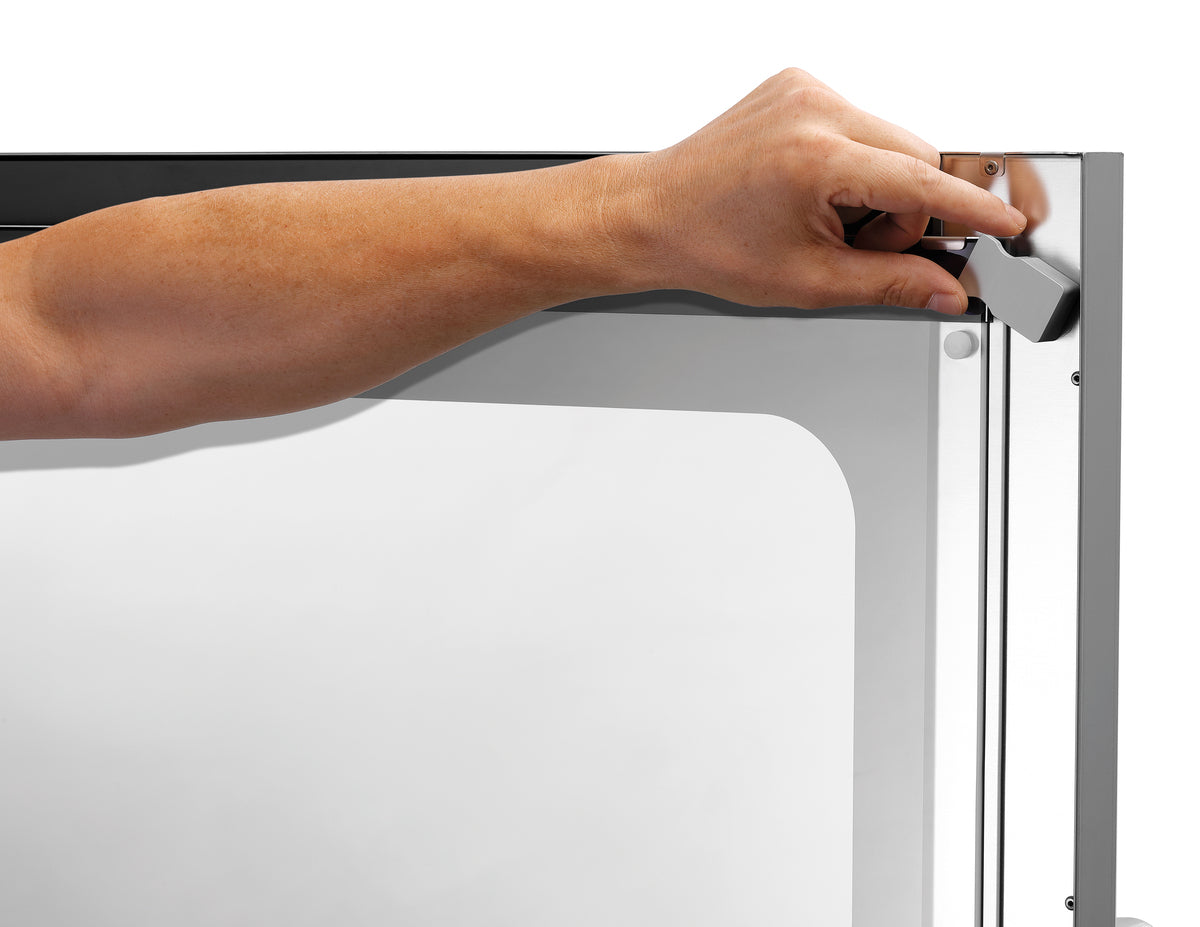

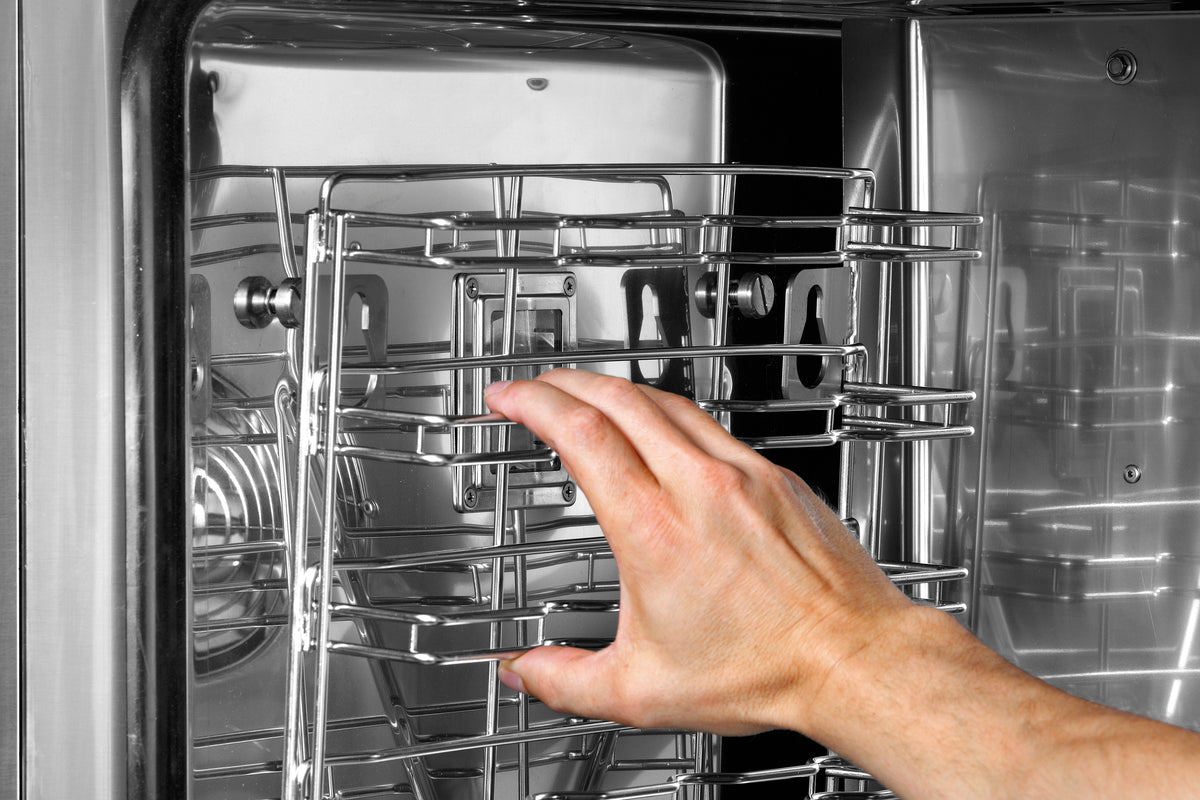

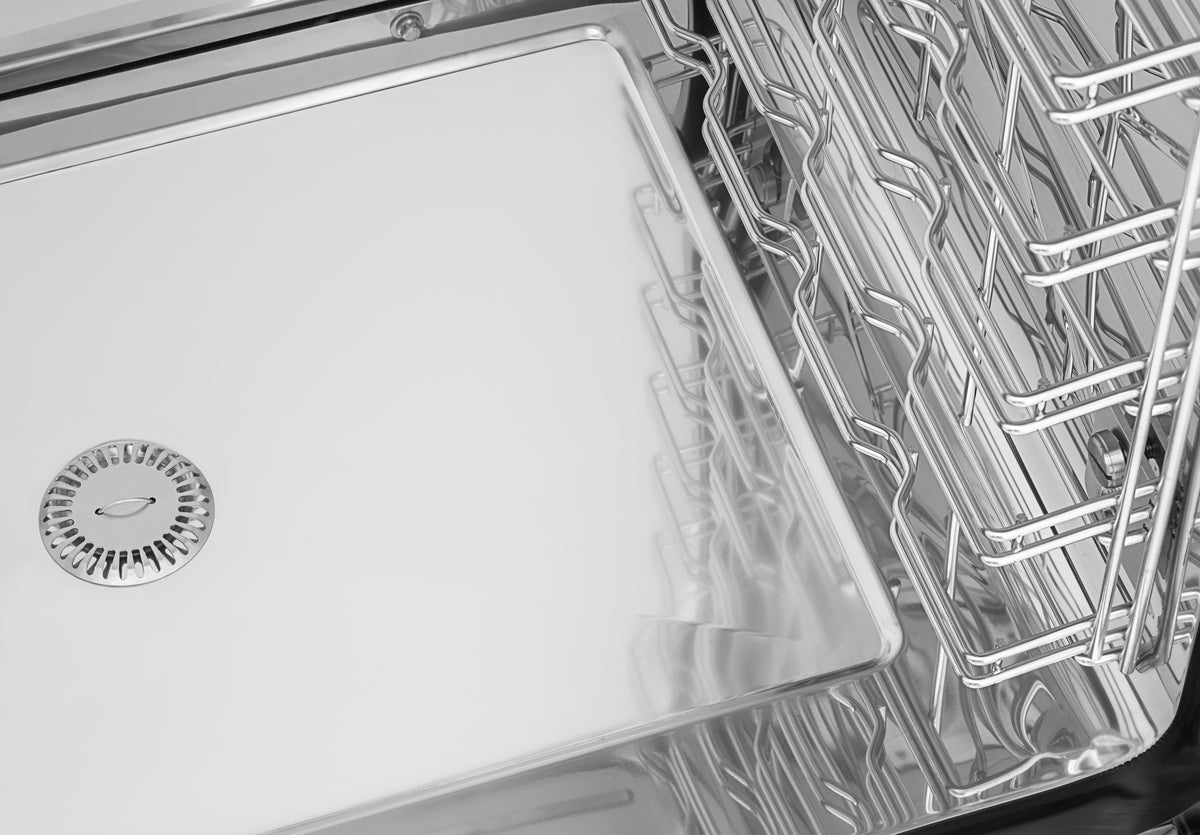

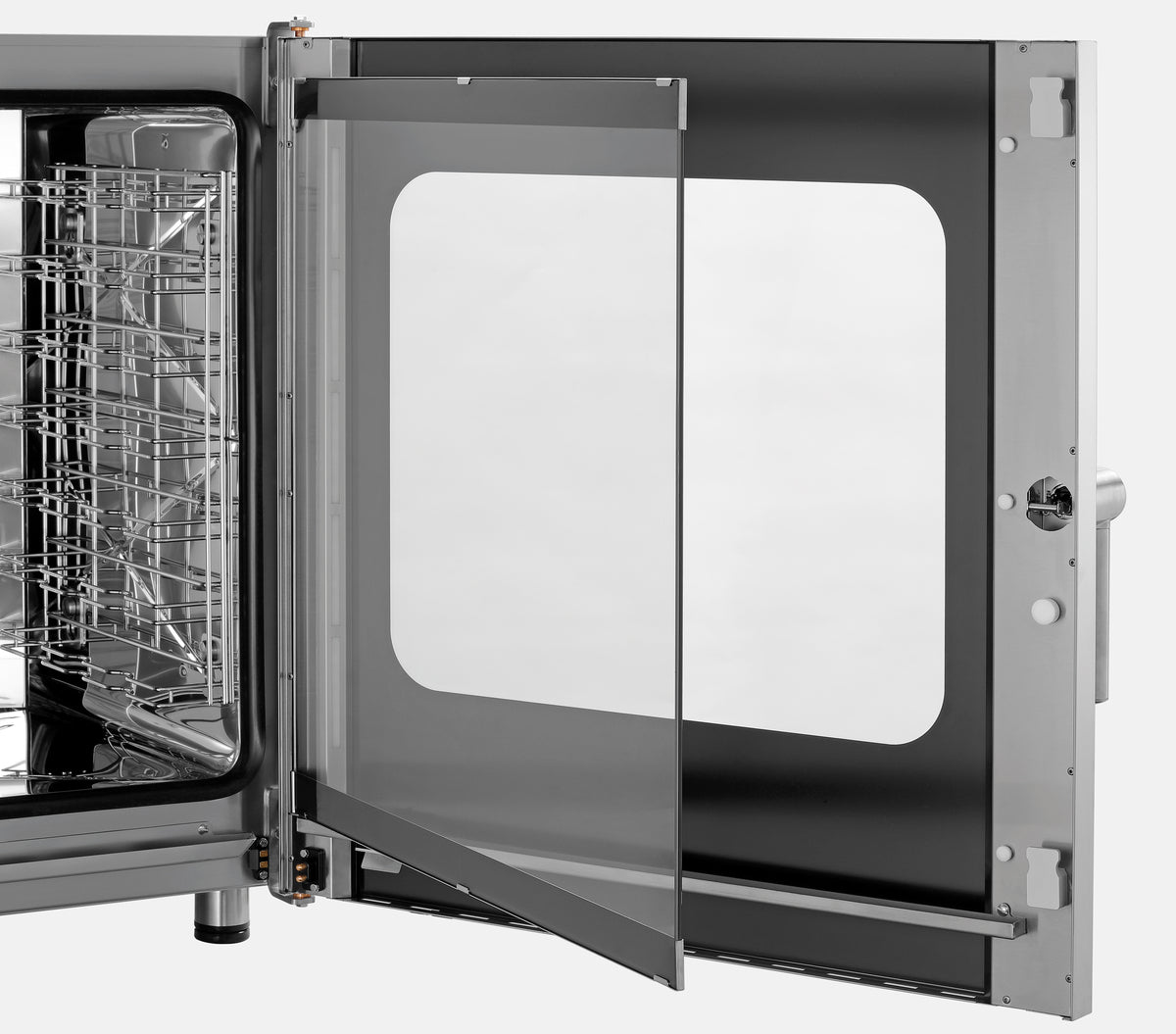

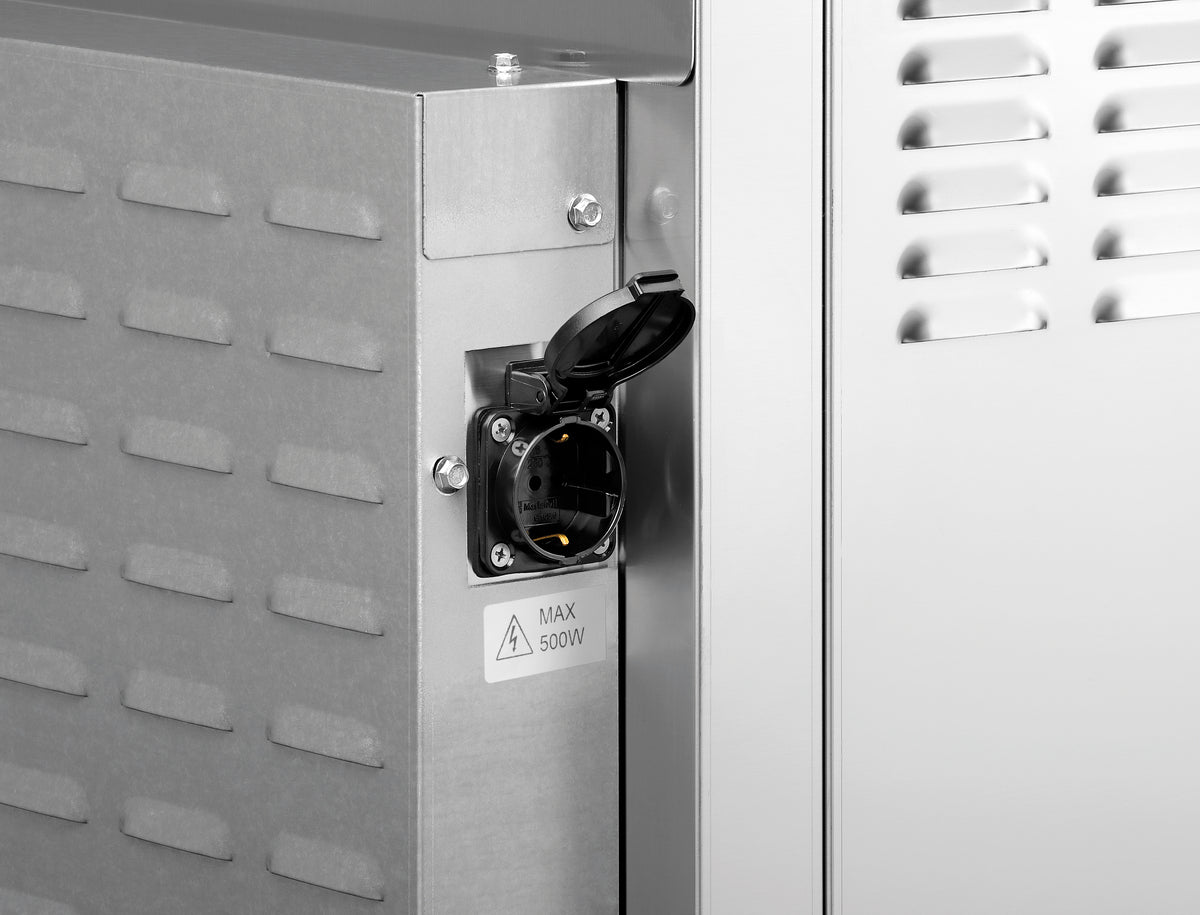

• Properties: Rounded cooking chamber ,Bearing rails can be detached ,Double-winged door pane ,LED lighting in door ,Socket (500 W) for connection of an extractor hood ,Faster heating and reheating times ,Up to 23 % reduction in cooking times ,Ideal for cooking spaces used to full capacity
• With cleaning system: No
• Time setting from: 0 minute(s)
• Core temperature sensor connection: Front, bottom
• Including: 1 grid 1/1 GN ,1 tray 1/1 GN ,1 water supply hose
• Power: 12.6 kW
• Frequency: 50 Hz
• Distance between trays: 74 mm
• Continuous operation: Yes
• Rack control: Yes
• Number of cooking phases: 9
• Voltage: 400 V

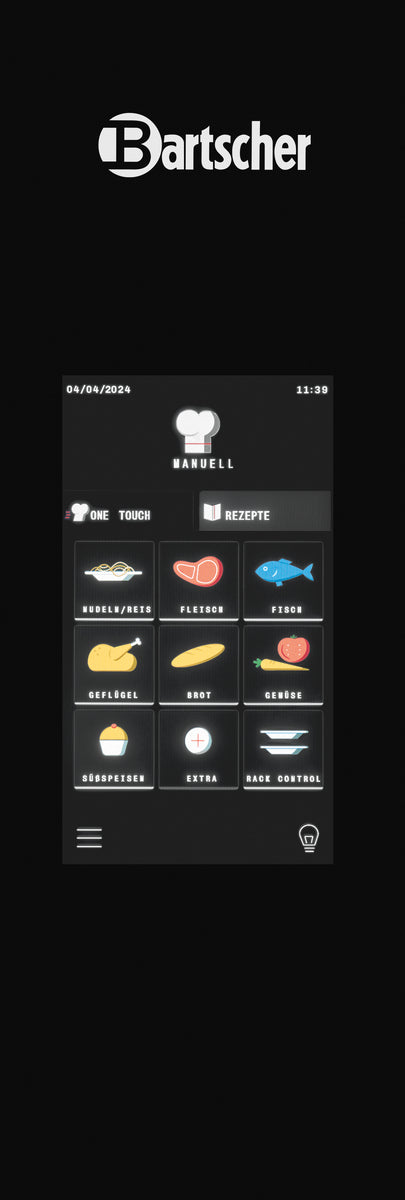

• Cooking mode: Manual ,One-touch recipe selection ,Recipe tuner
• Fan speed: 3 levels
• Type of drawers: Crosswise
• Operating mode: Electro
• Important information: From a water hardness of 5° dH upwards, we urgently recommend fitting a suitable water softener and a water pressure of maximum 3 bar

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 117792
