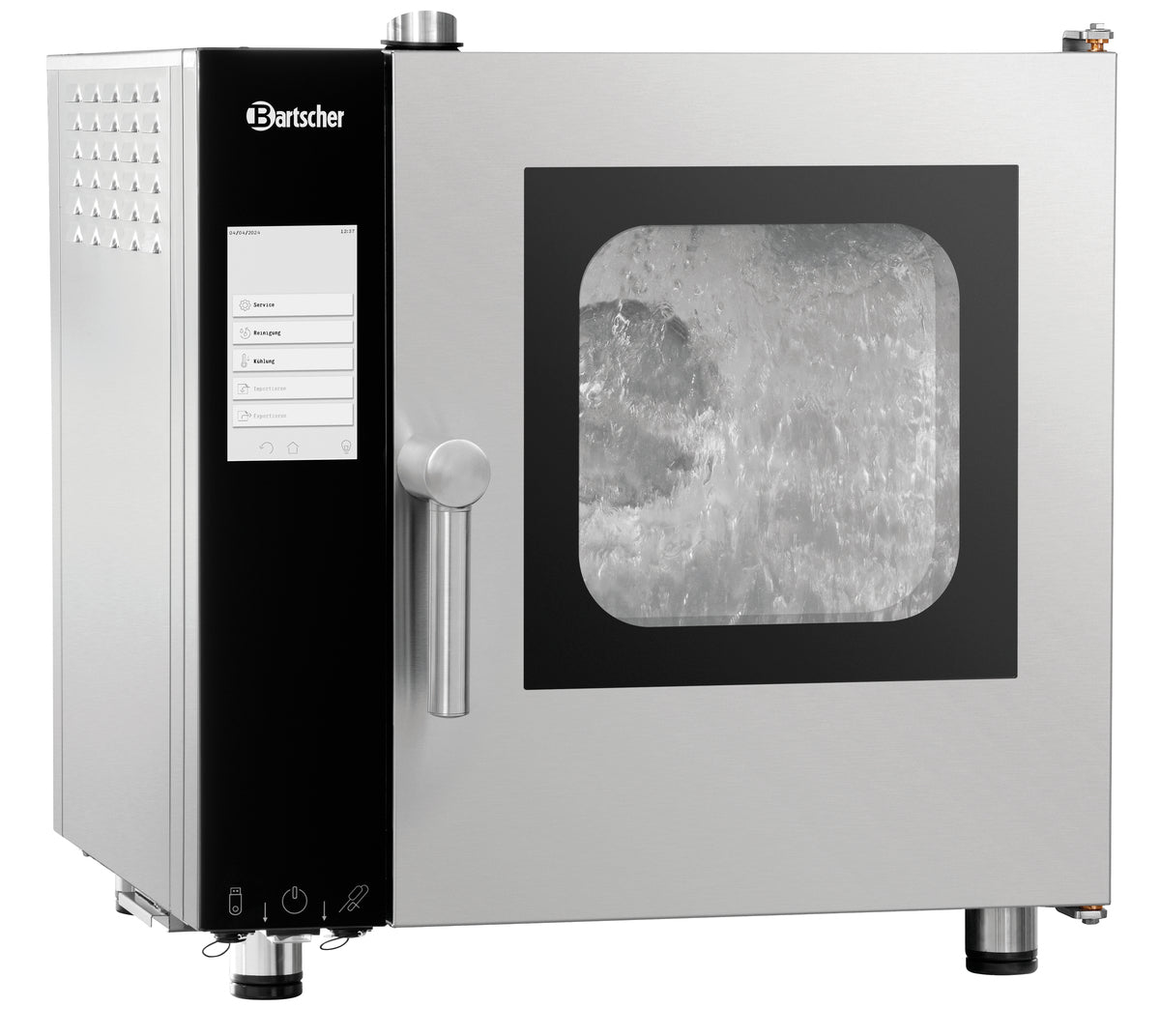

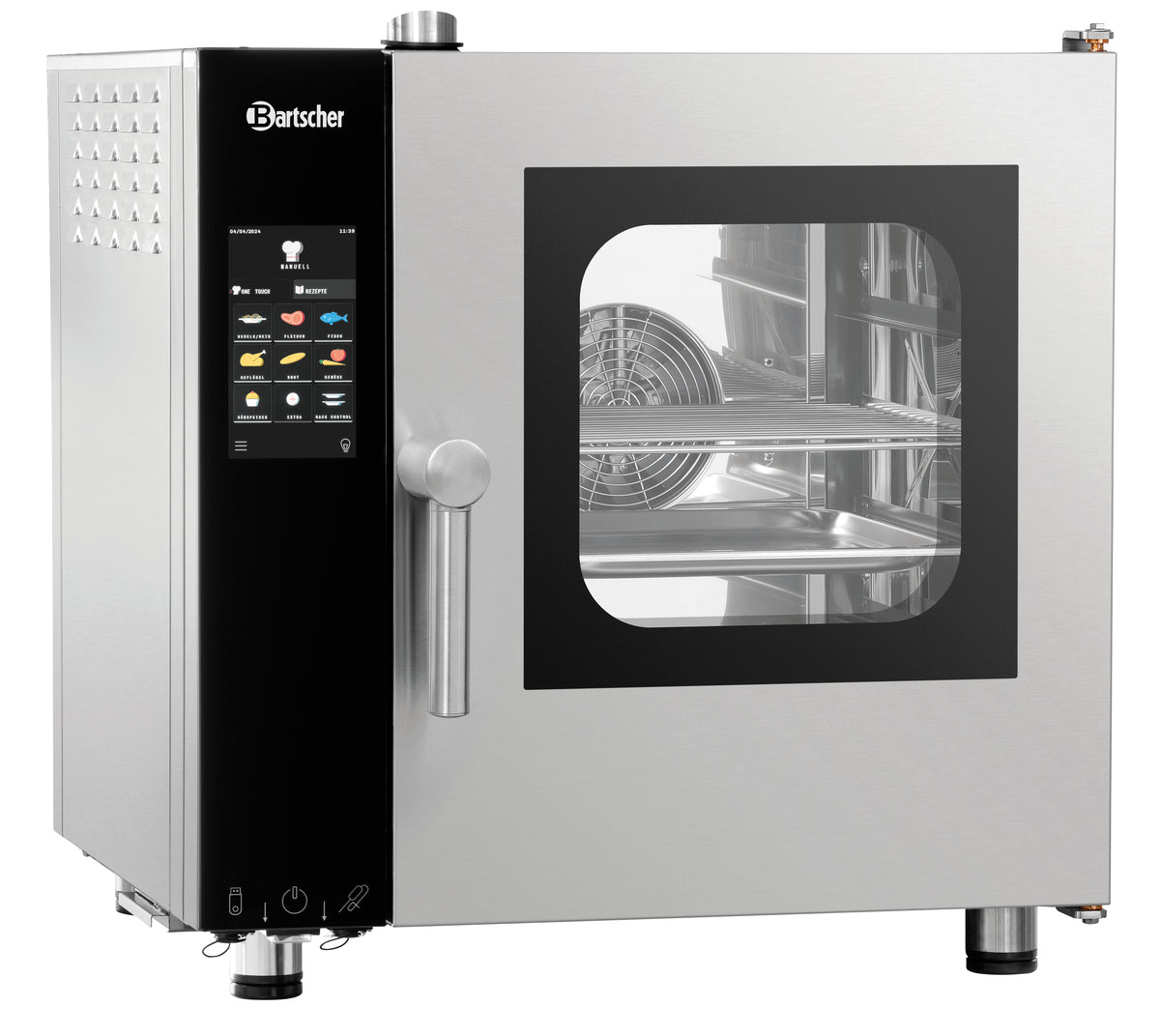

More efficiency and time savings with the combi-steamer Silversteam2 P 5 x 2/3 GN thanks to even more power. Thanks to the high performance and rack control function, full cooking chambers are no problem at all. Reduced cooking times, faster heating up and the cleaning system speak for themselves.

Product benefits

• Maximum energy efficiency at full power: With precise 5 kW induction, the IW 50 delivers pinpoint heat without energy loss – ideal for fast-paced professional kitchens.
• Precise control unit at the touch of a button: The modern touch panel with 10 power levels allows each cooking stage to be set with pinpoint accuracy – for consistent quality even at high throughput.
• Safe cooking in any environment: Pot recognition, Overheating protection and child safety locks ensure maximum operational safety, even in hectic everyday kitchen environments.
• Compact, mobile, ready for immediate use: The IW 50, which cannot be installed, can be set up flexibly and is ideal for changing locations – whether in the catering station or on the event floor.
• Stainless steel meets glass – for hygienic working: The glass hob and stainless steel housing enable quick, residue-free cleaning – particularly important when using a wok frequently.
• Ready for immediate use with high-voltage connection: Thanks to its 400 V connection with 3 NAC, the IW 50 is designed to meet professional requirements and integrates seamlessly into existing kitchen technology.
• Digital control for precise timing: The integrated digital display provides information about the power level and operating status at all times – for seamless process control in the professional kitchen.
• Designed for high cooking volumes: With a 280 mm induction zone, the IW 50 offers enough space for large woks – perfect for preparing several portions at the same time.

Technical data

• Width: 640 mm
• Depth: 775 mm
• Height: 680 mm
• Net weight: 61.2 kg
• Gross weight: 72.8 kg
• Volume: 0.475 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Temperature range to: 300 °C
• Number of drawers: 5
• Temperature control: In 1 °C steps

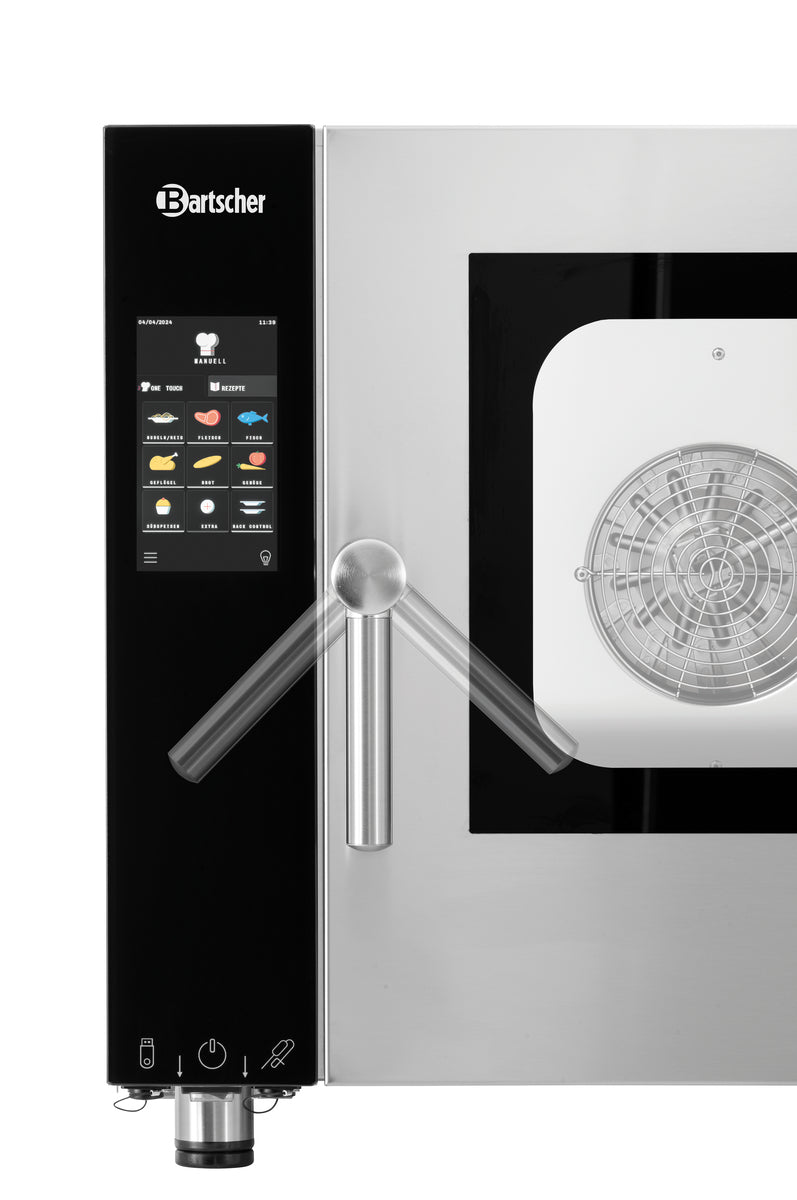

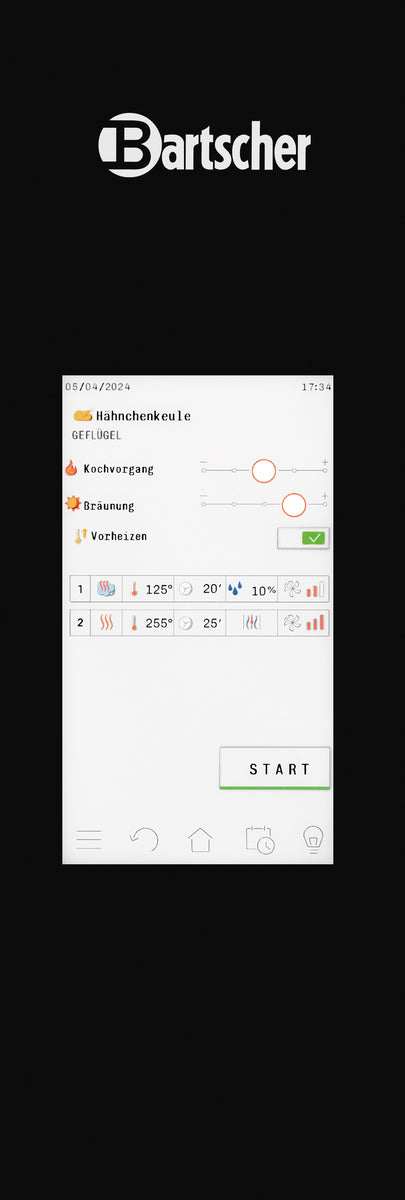

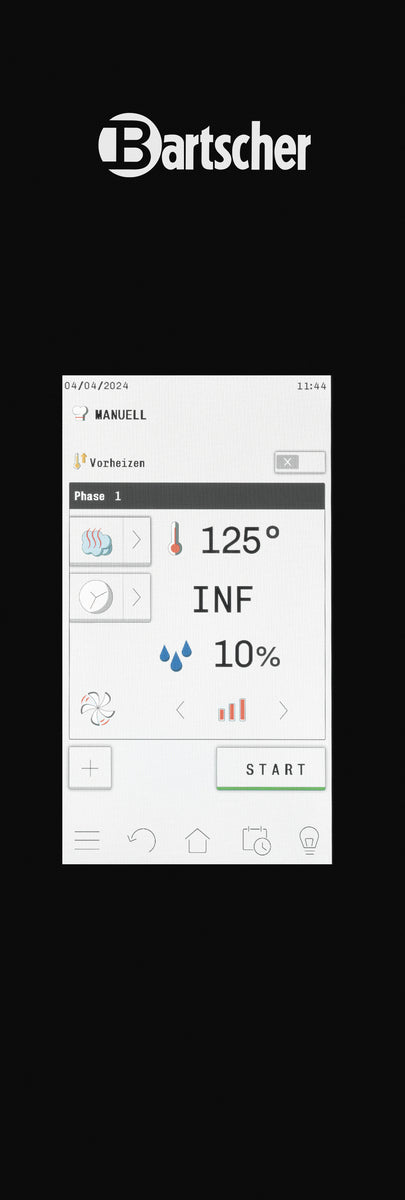

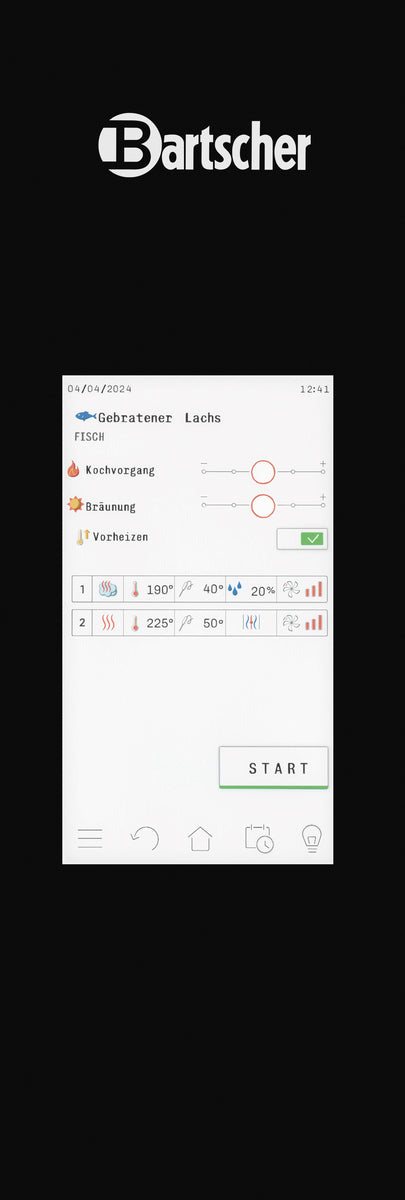

• Control unit: Touch
• Vapour extractor: Yes
• Series: Silversteam2

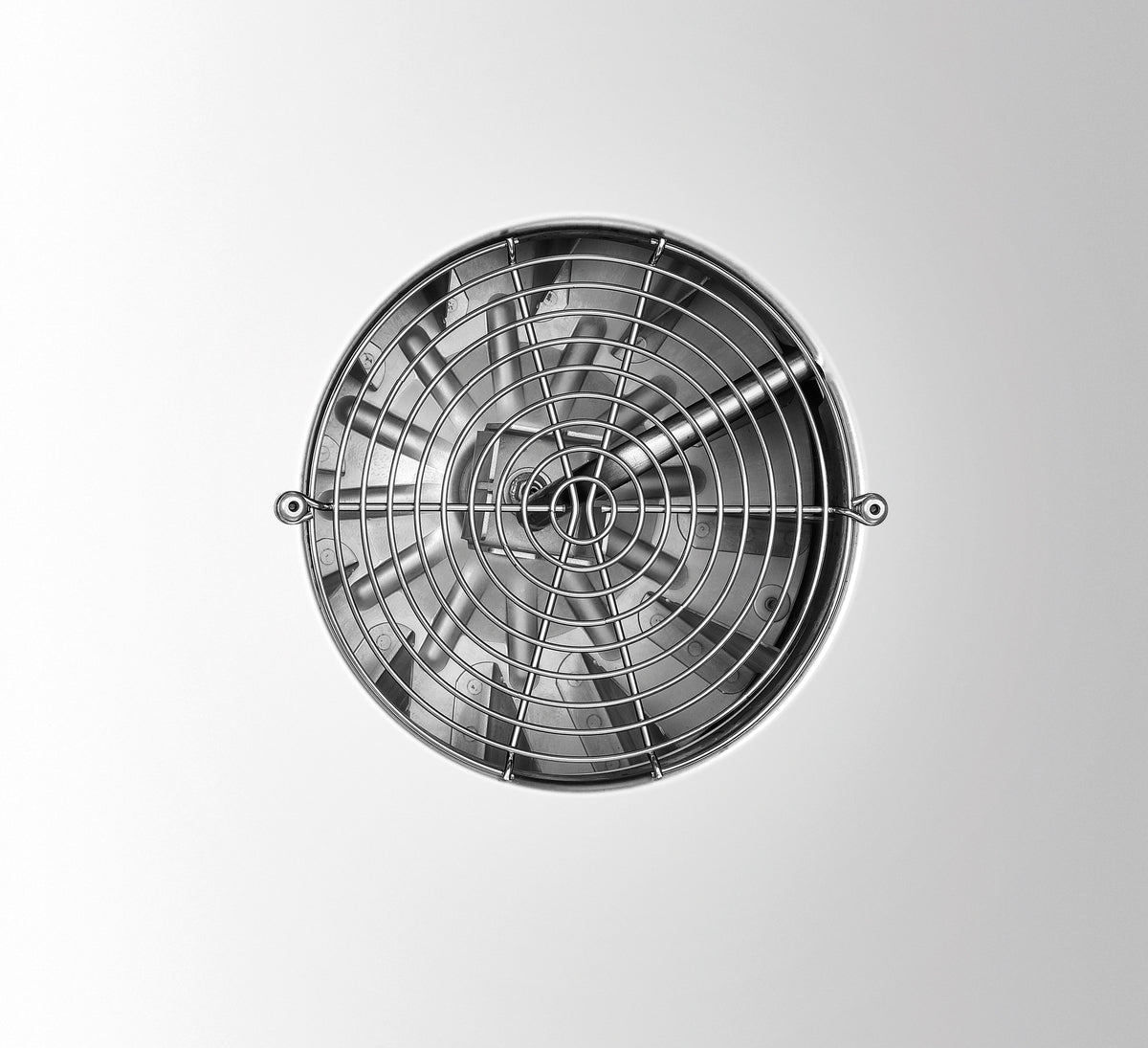

• Number of fans: 1
• LED display: Steaming ,Delta-T cooking ,Cooking phases ,Core temperature ,Fan speed ,Program ,Temperature ,Time
• Functions: Automatic 3-level cleaning system with drying program ,Steam production by means of direct injection ,Steam ,Delta-T cooking ,Combi-steaming ,Low temperature cooking ,Reversing motor direction (fan wheels) ,Circulating air ,Cooldown during cooking phase ,Manual steaming
• Equipment connection: 3 NAC
• Temperature range from: 50 °C
• Format drawers: 2/3 GN
• Material: CNS 18/10
• Water connection: 3/4"

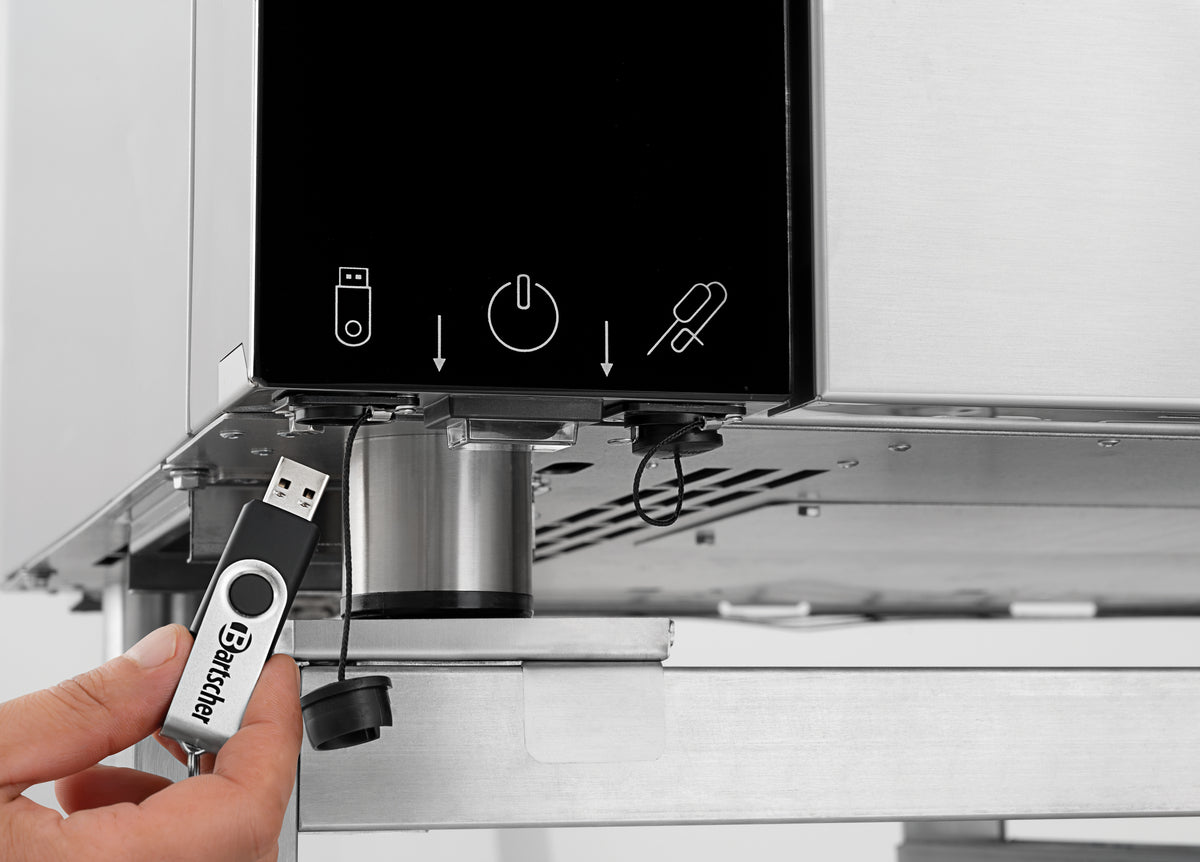

• USB connection: Front, bottom
• Time setting to: 5999 minute(s)
• Material cooking chamber: CNS 18/10
• Number of cooking programs: 300 pre-installed programs ,300 configurable programs
• Interior lighting: Yes

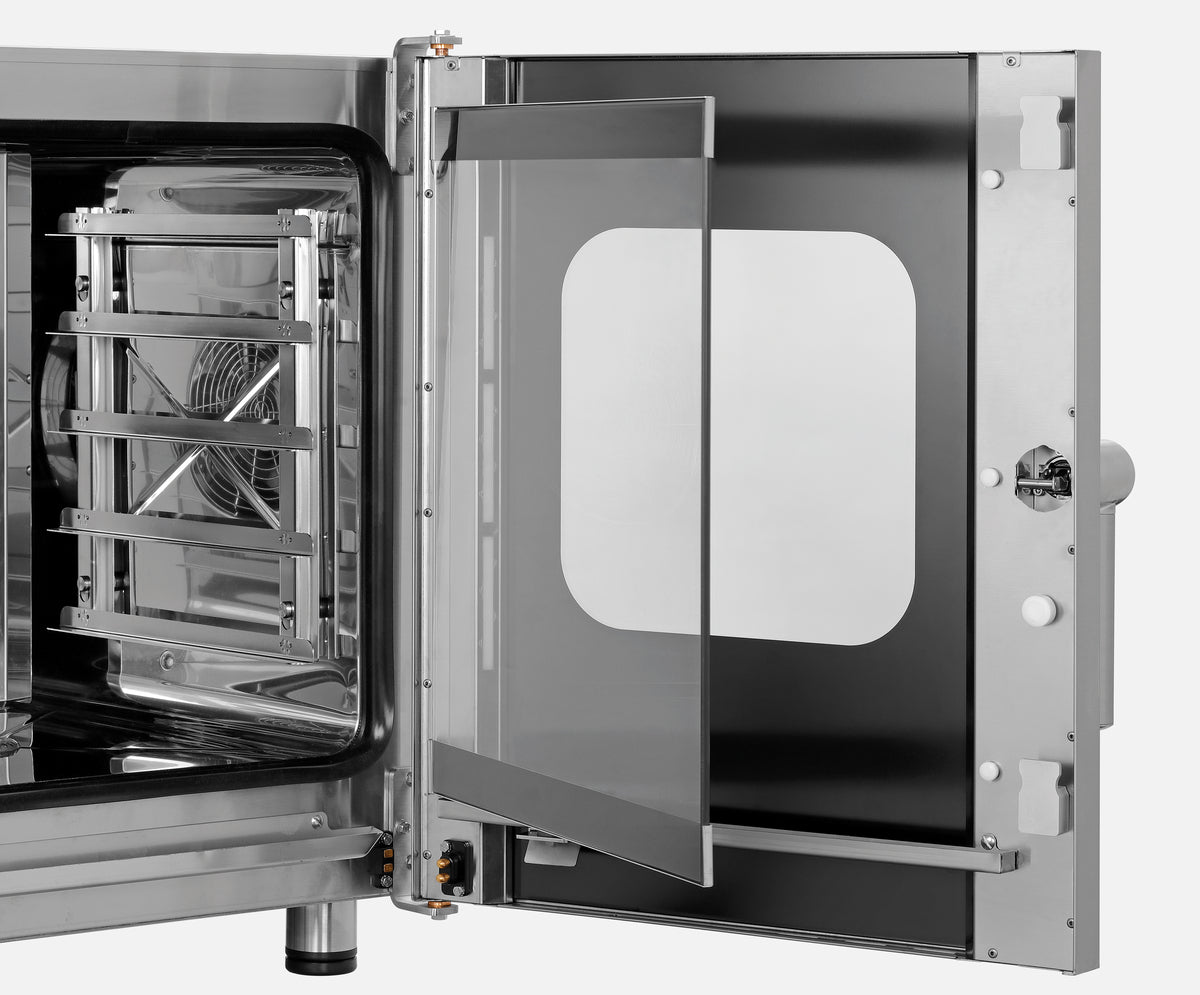

• Properties: Rounded cooking chamber ,Bearing rails can be detached ,Double-winged door pane ,LED lighting in door ,Faster heating and reheating times ,Up to 30 % reduction in cooking times ,Ideal for cooking spaces used to full capacity
• With cleaning system: Yes
• Time setting from: 0 minute(s)
• Core temperature sensor connection: Front, bottom
• Including: 1 grid 2/3 GN ,1 tray 2/3 GN ,1 water supply hose ,1 supply hose for cleaning agents
• Power: 4.8 kW
• Frequency: 50 Hz
• Distance between trays: 74 mm
• Continuous operation: Yes
• Rack control: Yes
• Number of cooking phases: 9
• Voltage: 400 V

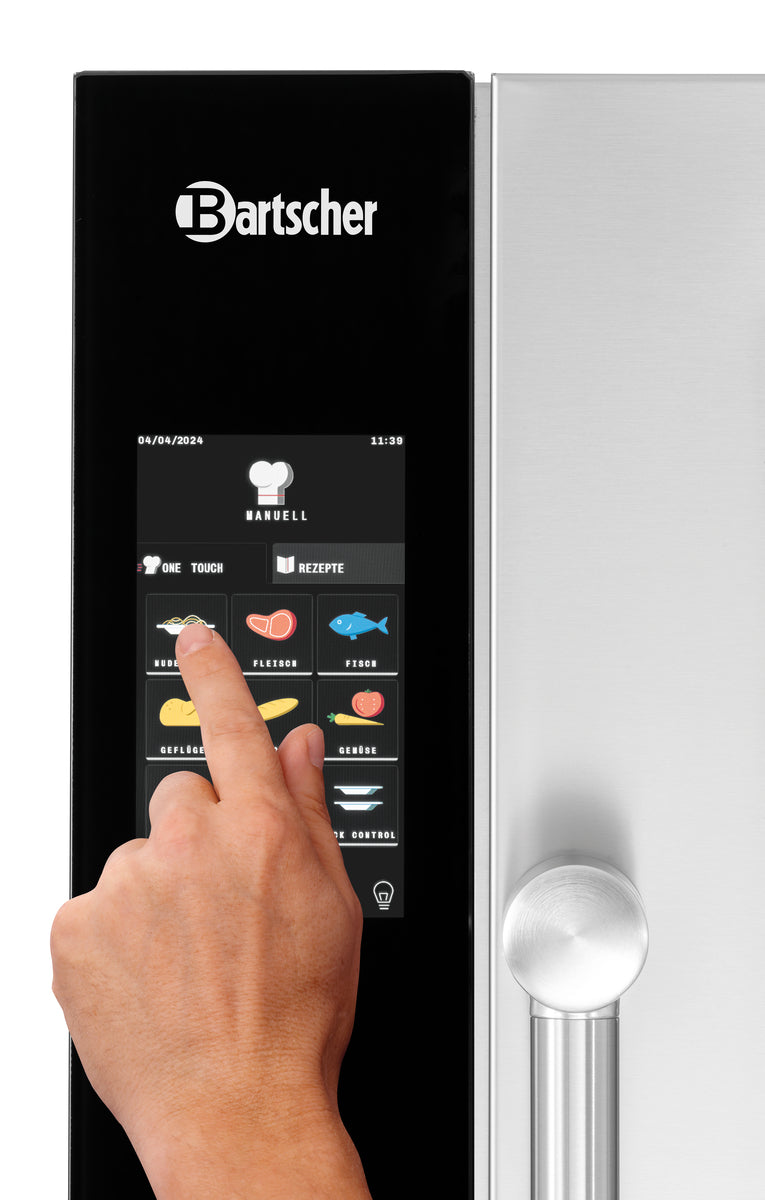

• Cooking mode: Manual ,One-touch recipe selection ,Recipe tuner
• Fan speed: 3 levels
• Type of drawers: Crosswise
• Operating mode: Electro
• Important information: From a water hardness of 5° dH upwards, we urgently recommend fitting a suitable water softener and a water pressure of maximum 3 bar

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 117182
