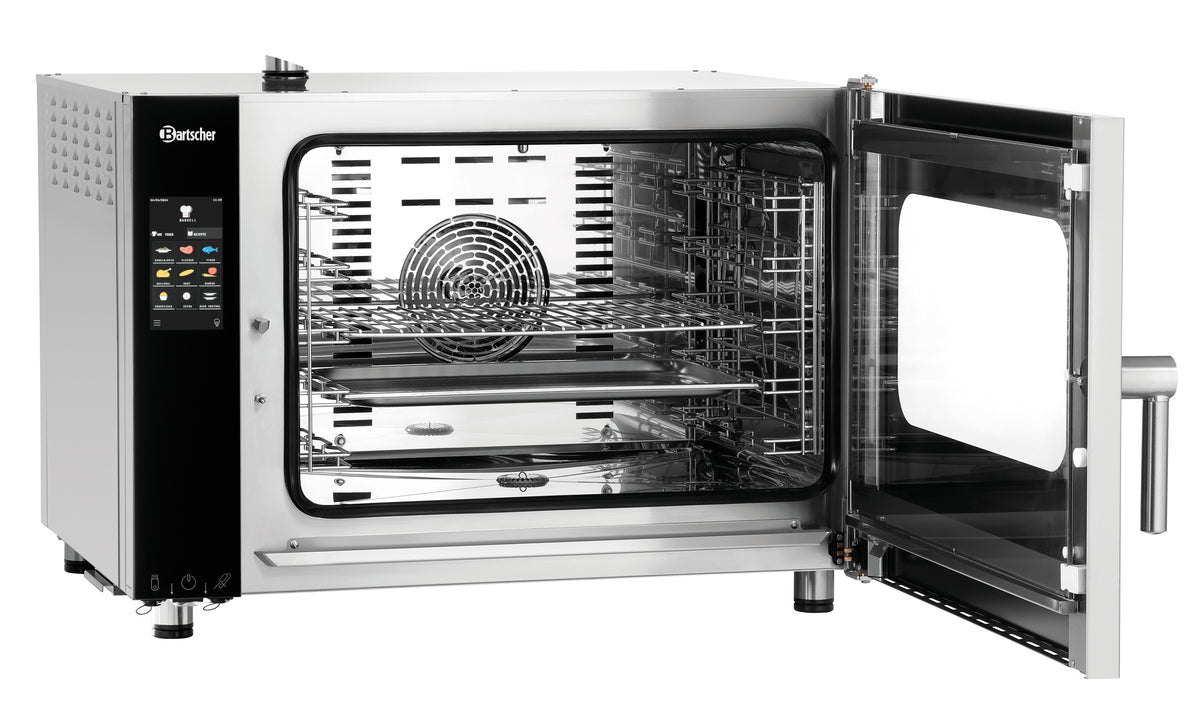

More efficiency and time savings with the combi-steamer Silversteam2 P 5 x 1/1 GN thanks to even more power. Thanks to the high performance and rack control function, full cooking chambers are no problem at all. The reduced cooking times, faster heating up and easy handling speak for themselves.

Product benefits

• Full grill output in a compact space: With 10 kW of Heating output and three separately adjustable burners, the TB1000R delivers precise heat distribution with minimal space requirements – ideal for mobile professional use outdoors.
• One device – full flexibility with gas connection: Thanks to the included nozzle sets for 30, 37 and 50 mbar, the TB1000R can be immediately adapted to different gas pressure systems – for maximum compatibility on site.
• Safety meets convenience: piezo ignition as standard: The integrated piezo ignition enables fast, safe ignition without an open flame – for stress-free working even when there are lots of guests.
• High-quality stainless steel for uncompromising hygiene: Both the housing and the grill grate are comprised of easy-care stainless steel – robust, durable and ideal for the high demands of commercial catering use.
• Ready to use in seconds – no tools required: The TB1000R is designed as a tabletop appliance and is ready to use immediately without permanent installation – ideal for flexible catering scenarios or temporary outdoor grill stations.
• Efficient gas consumption – economical grilling: With a consumption of only 728 g/h and high performance, the TB1000R brings energy efficiency to where performance counts and resources are conserved.

Technical data

• Width: 905 mm
• Depth: 825 mm
• Height: 675 mm
• Net weight: 88.4 kg
• Gross weight: 105.4 kg
• Volume: 0.658 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Temperature range to: 300 °C
• Number of drawers: 5
• Temperature control: In 1 °C steps

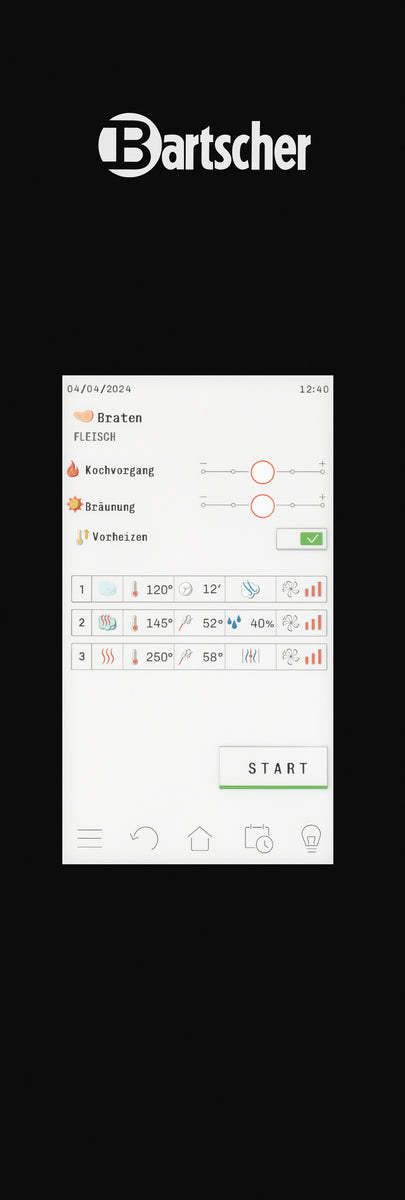

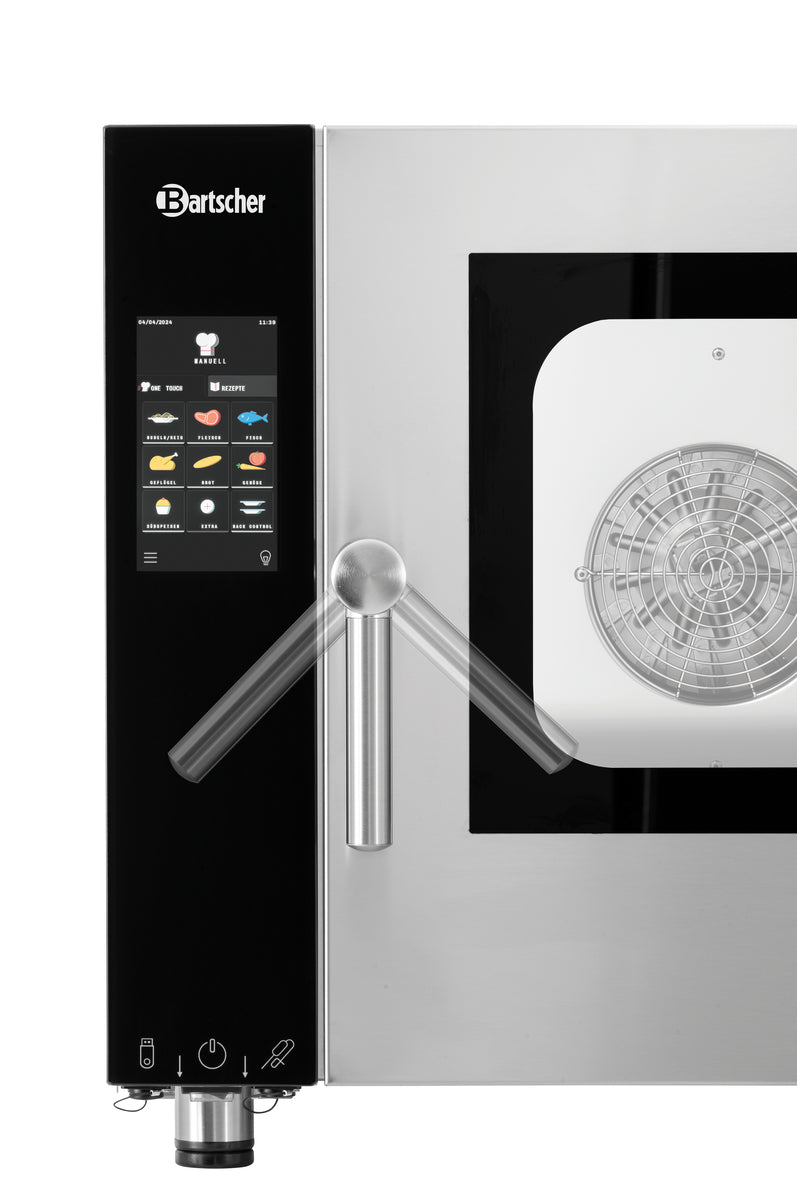

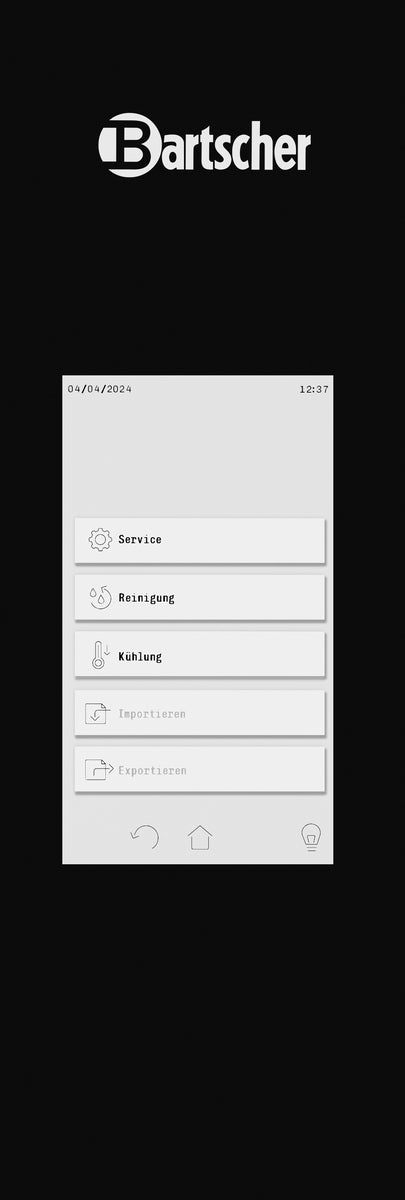

• Control unit: Touch
• Vapour extractor: Yes
• Series: Silversteam2

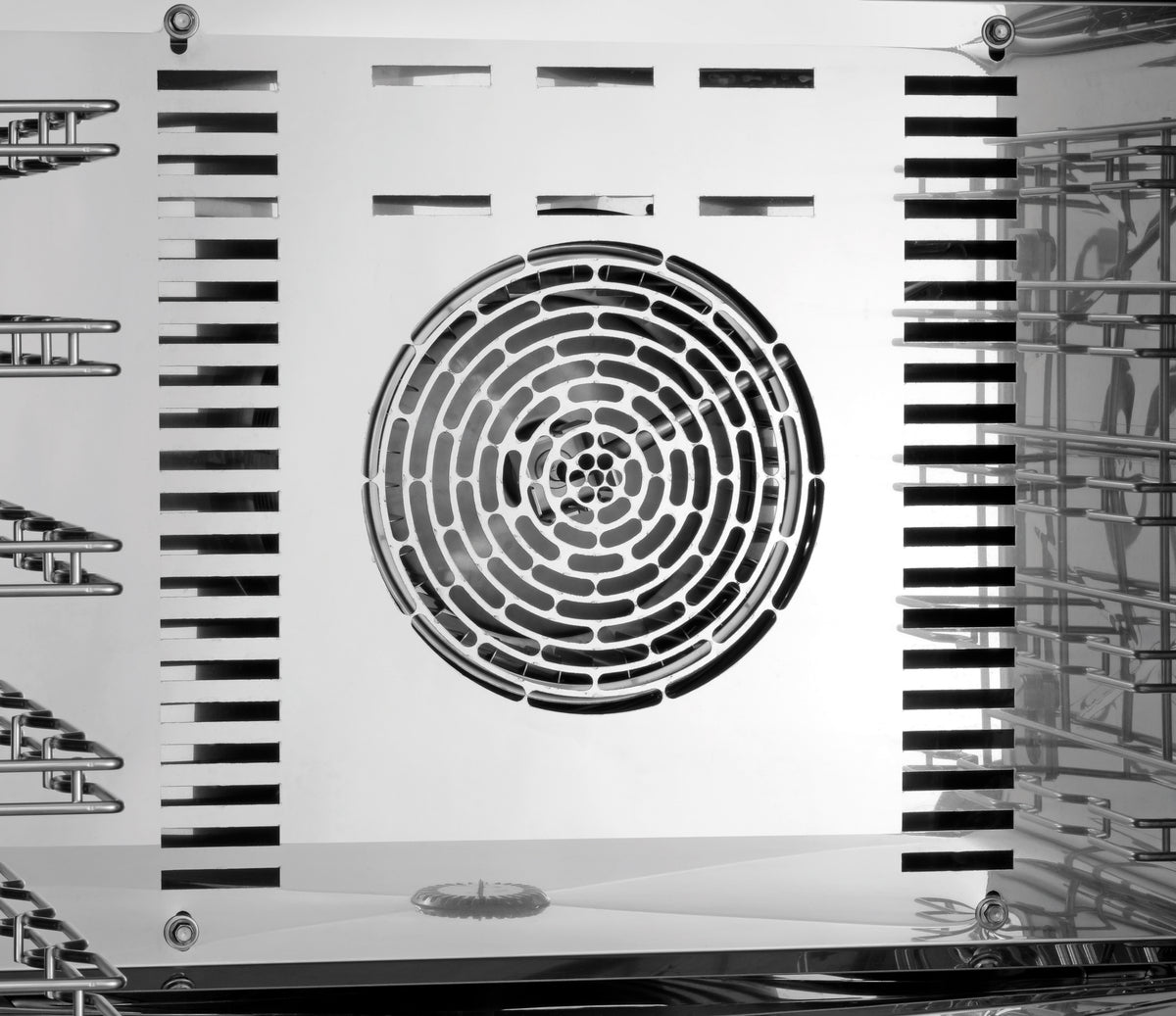

• Number of fans: 1
• LED display: Steaming ,Delta-T cooking ,Cooking phases ,Core temperature ,Fan speed ,Program ,Temperature ,Time
• Functions: Steam production by means of direct injection ,Steam ,Delta-T cooking ,Combi-steaming ,Low temperature cooking ,Reversing motor direction (fan wheels) ,Circulating air ,Cooldown during cooking phase ,Manual steaming
• Equipment connection: 3 NAC
• Temperature range from: 50 °C
• Format drawers: 1/1 GN ,600 x 400 mm
• Material: CNS 18/10
• Water connection: 3/4"

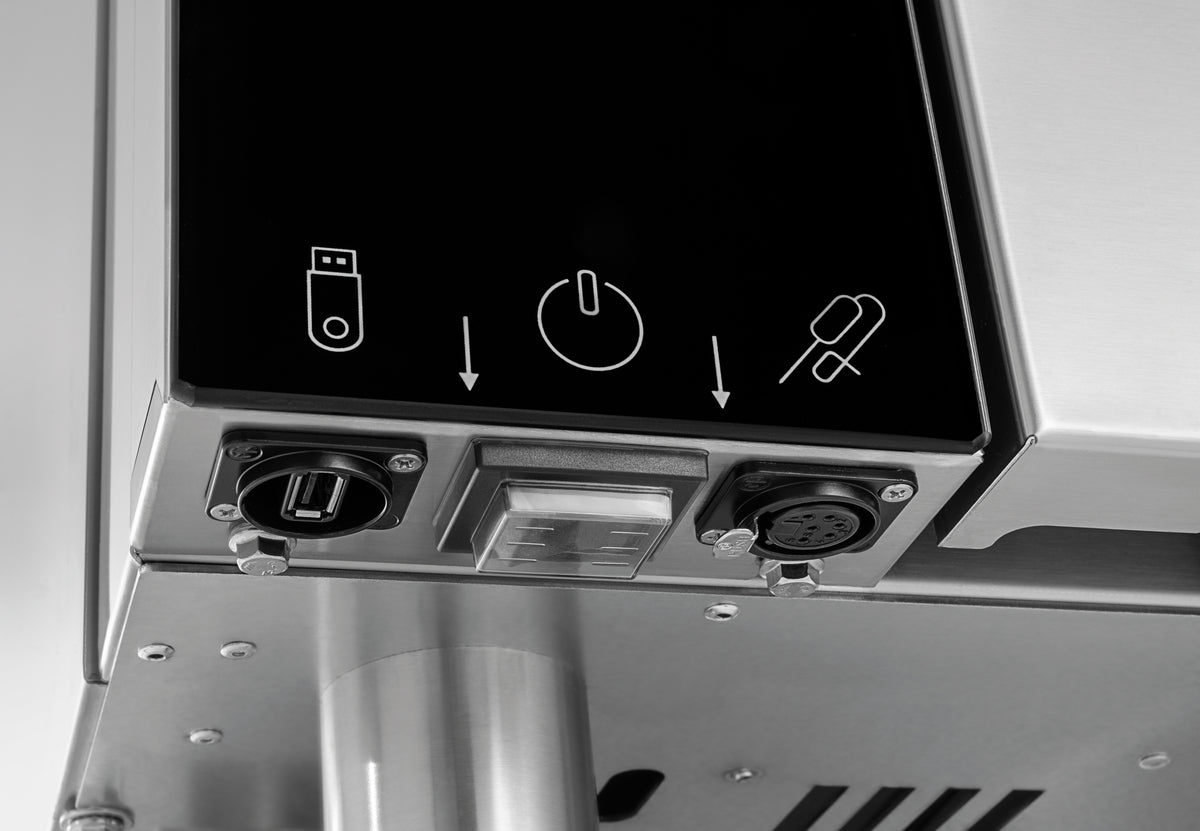

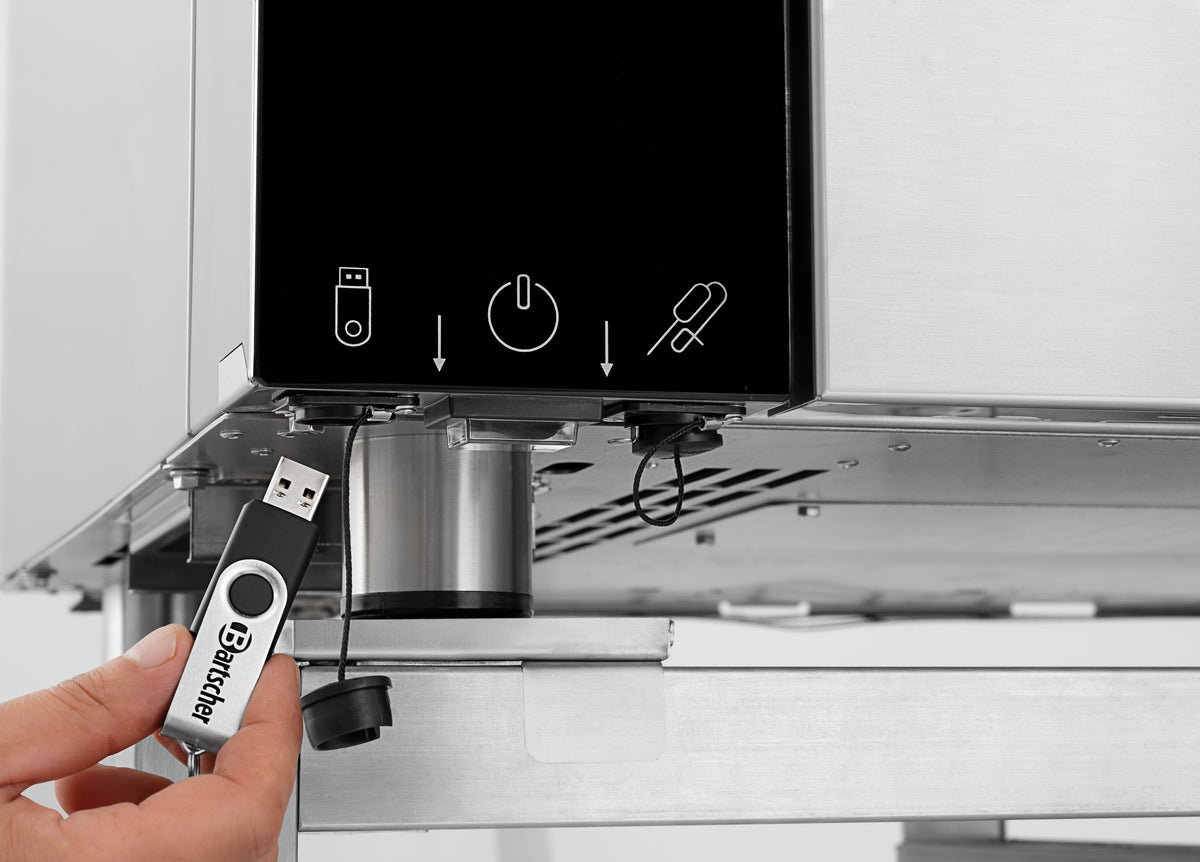

• USB connection: Front, bottom
• Time setting to: 5999 minute(s)
• Material cooking chamber: CNS 18/10
• Number of cooking programs: 300 pre-installed programs ,300 configurable programs
• Interior lighting: Yes

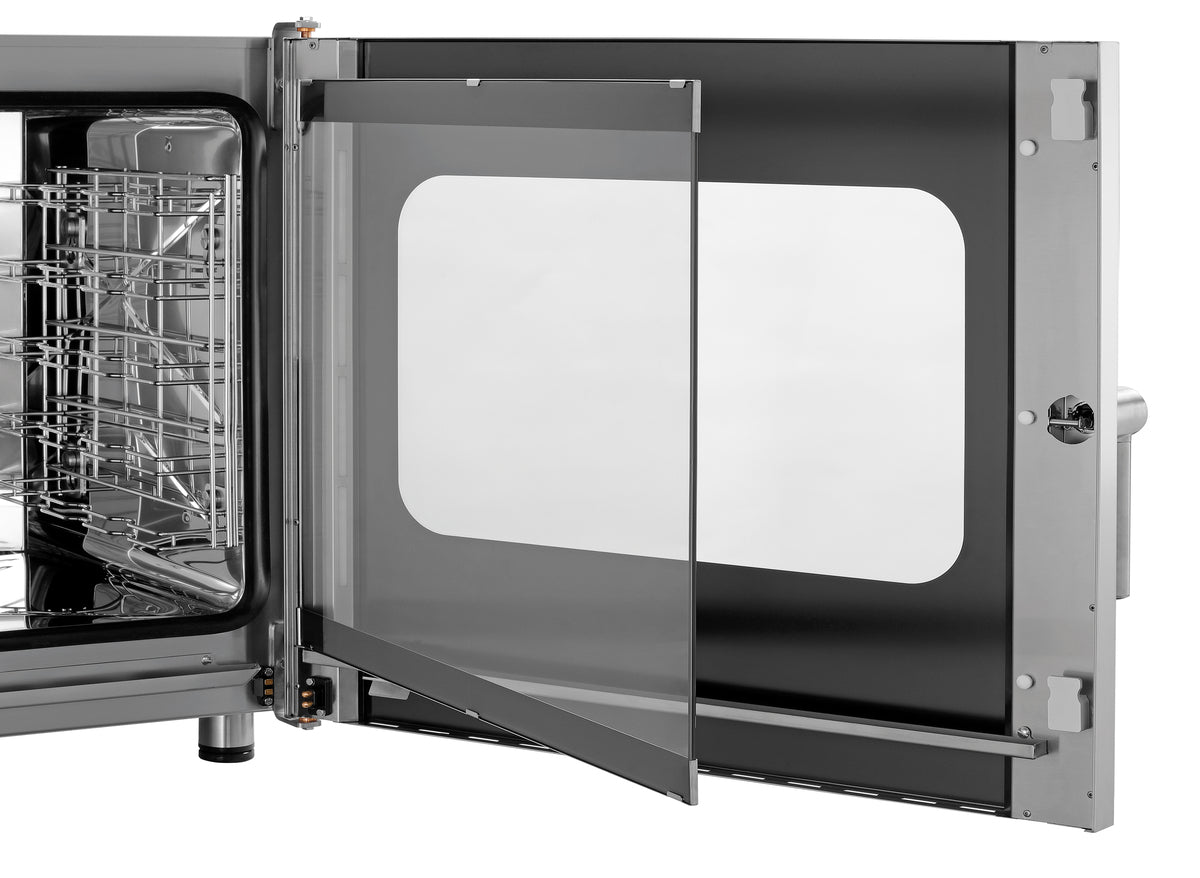

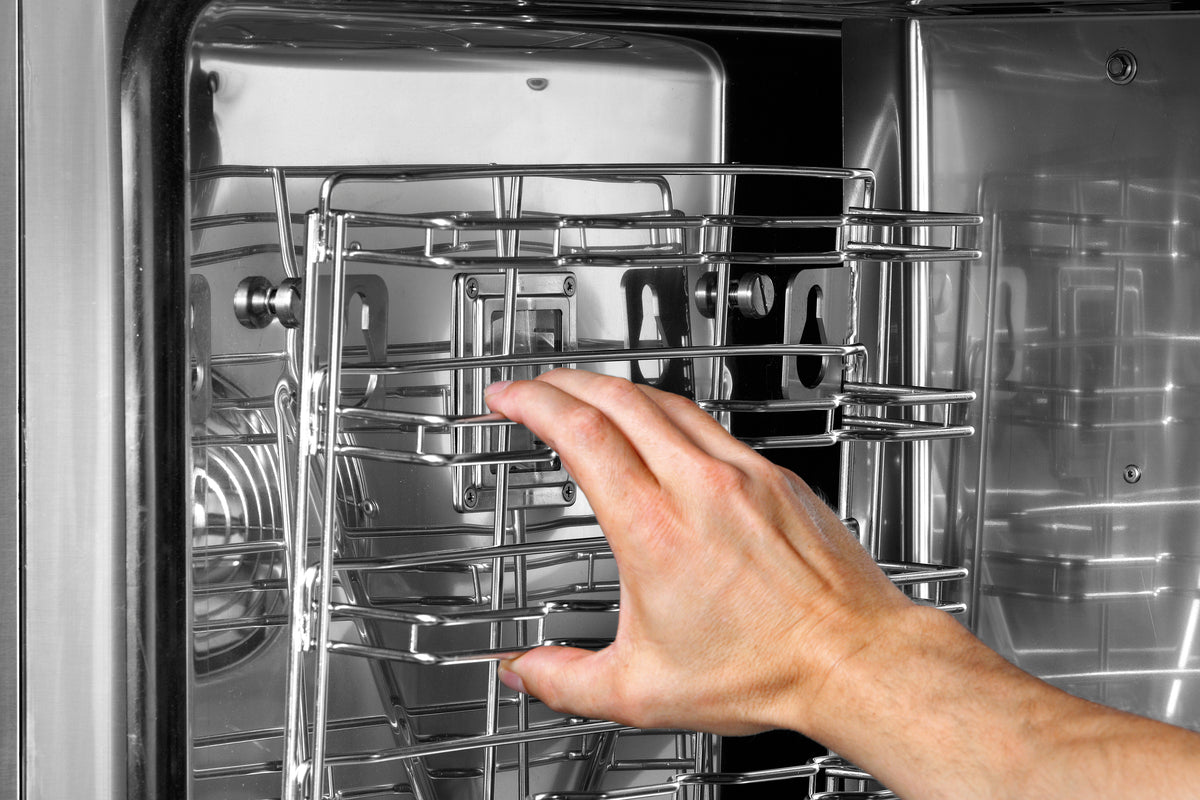

• Properties: Rounded cooking chamber ,Bearing rails can be detached ,Double-winged door pane ,LED lighting in door ,Socket (500 W) for connection of an extractor hood ,Faster heating and reheating times ,Up to 16 % reduction in cooking times ,Ideal for cooking spaces used to full capacity
• With cleaning system: No
• Time setting from: 0 minute(s)
• Core temperature sensor connection: Front, bottom
• Including: 1 grid 1/1 GN ,1 tray 1/1 GN ,1 water supply hose
• Power: 7.7 kW
• Frequency: 50 Hz
• Distance between trays: 74 mm
• Continuous operation: Yes
• Rack control: Yes
• Number of cooking phases: 9
• Voltage: 400 V
• Cooking mode: Manual ,One-touch recipe selection ,Recipe tuner
• Fan speed: 3 levels
• Type of drawers: Crosswise
• Operating mode: Electro
• Important information: From a water hardness of 5° dH upwards, we urgently recommend fitting a suitable water softener and a water pressure of maximum 3 bar

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 117791
