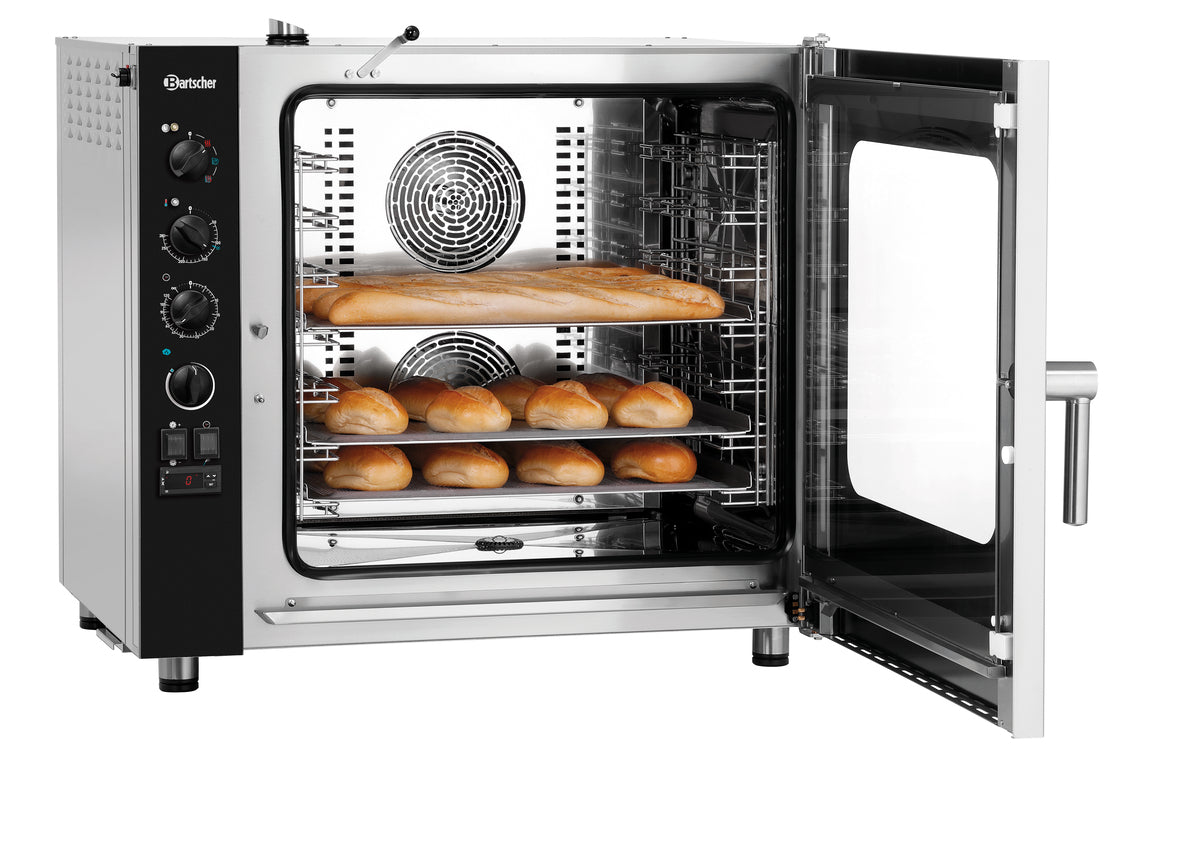

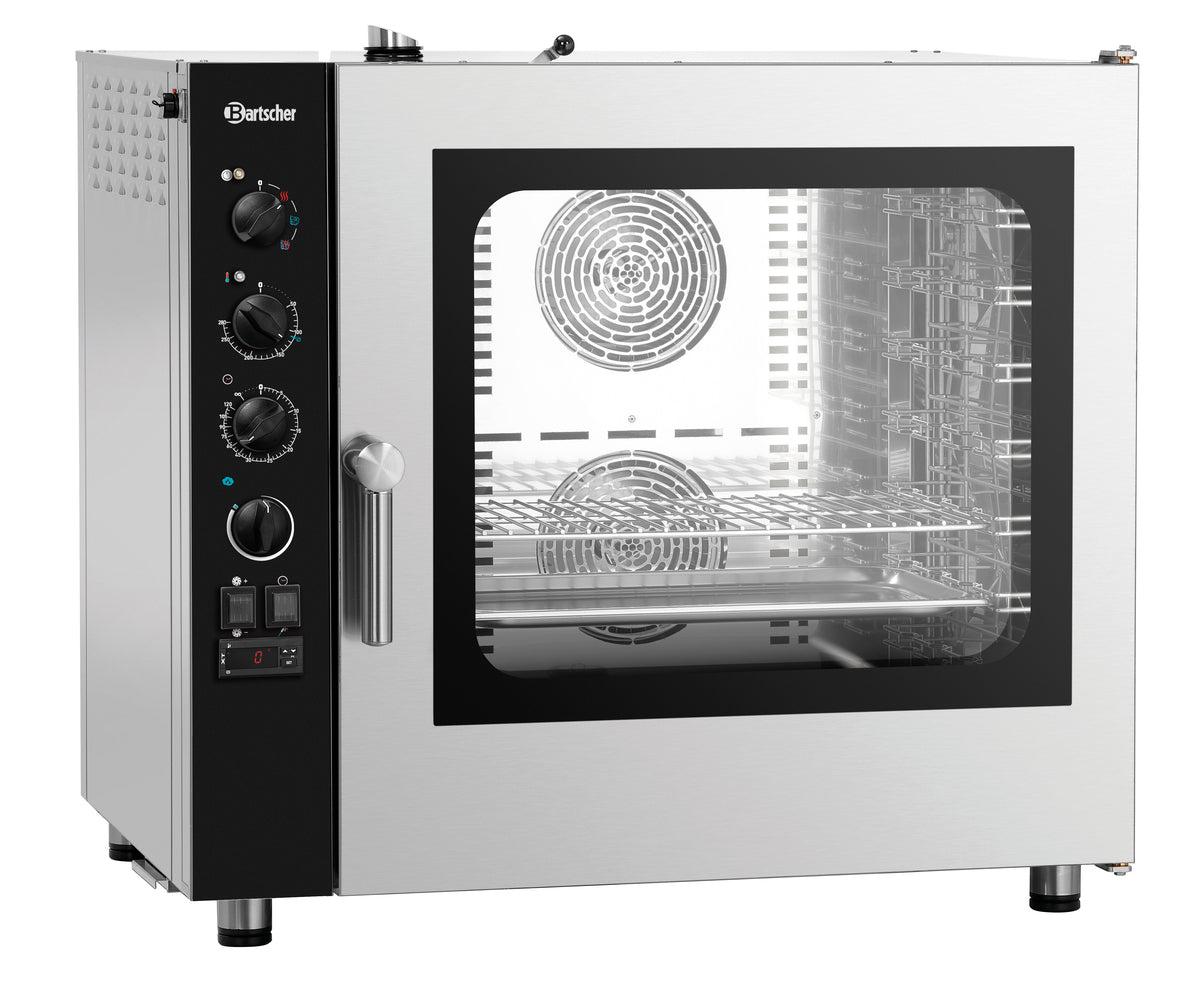

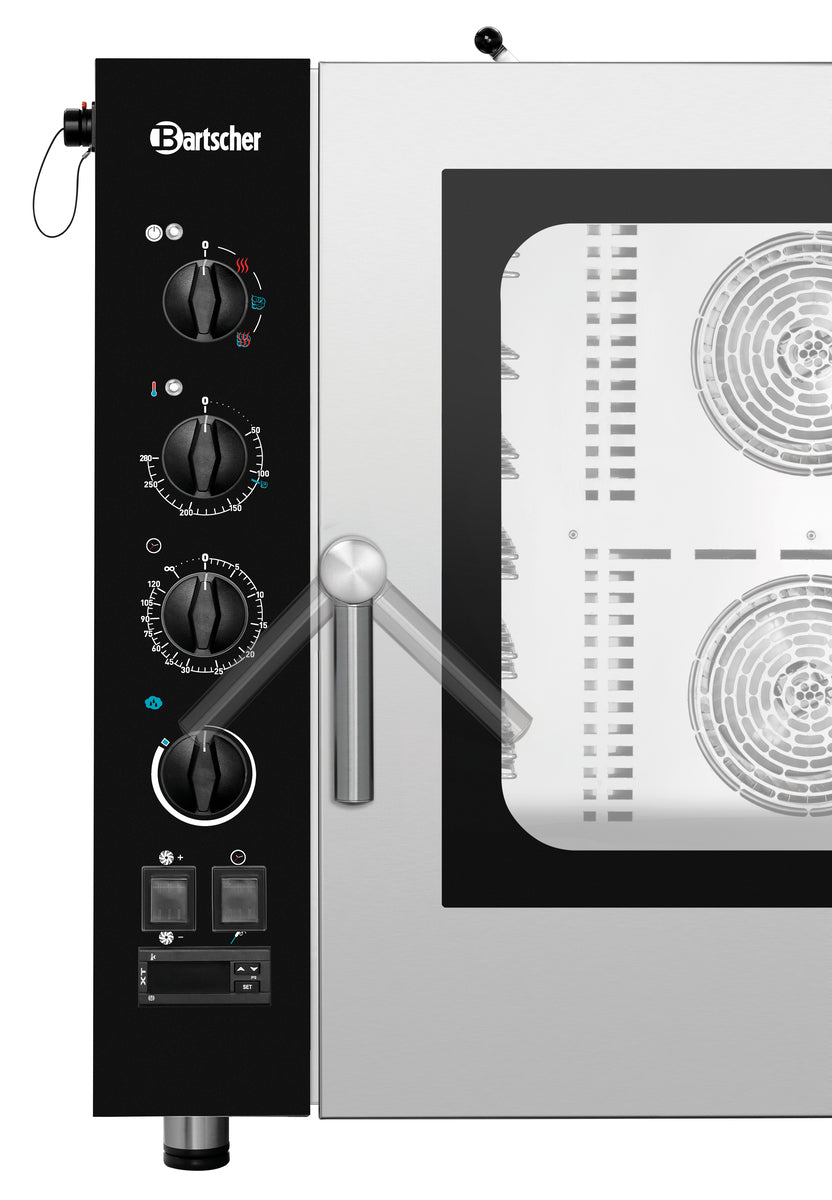

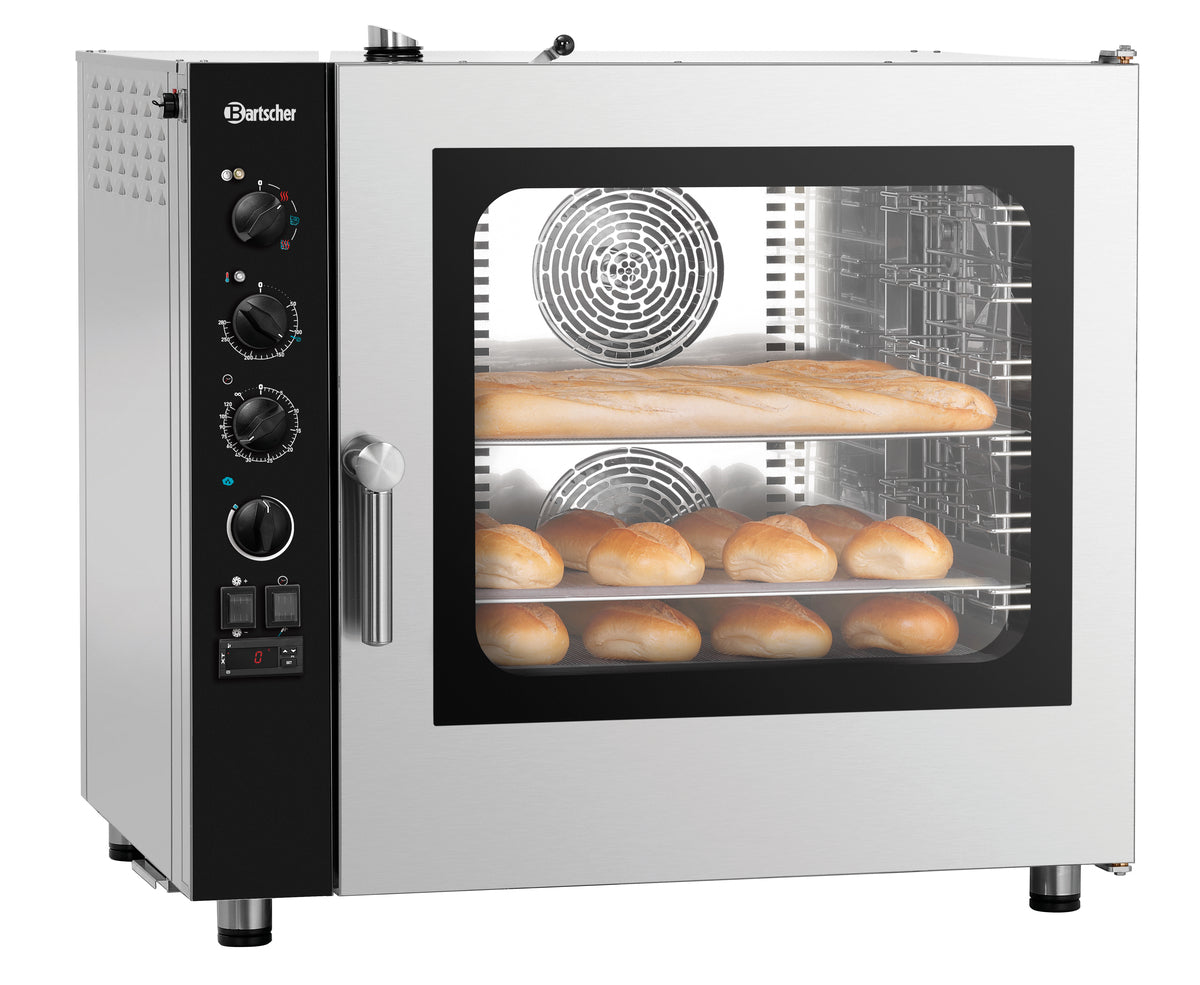

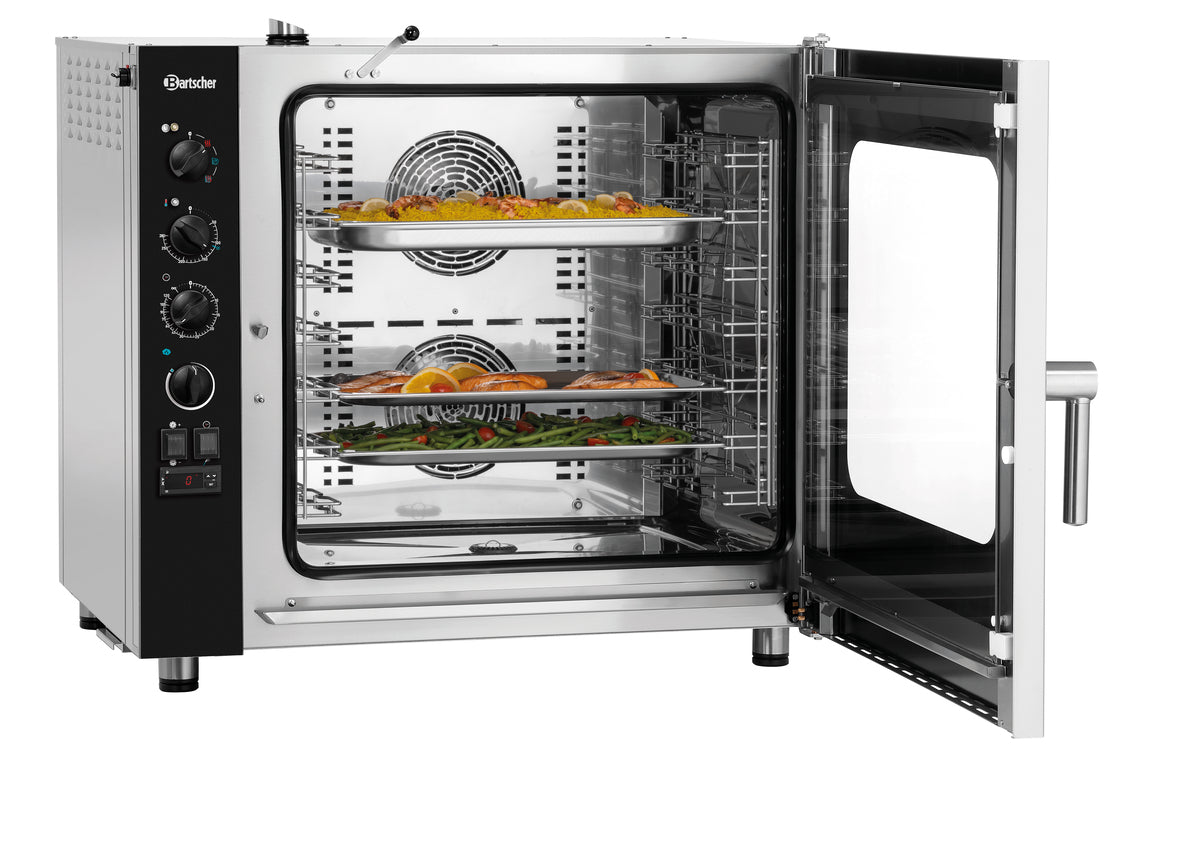

The ideal partner for every kitchen: A Bartscher Silversteam2 combi-steamer with seven 1/1 GN inserts. For convection cooking, steaming, combi-steaming and low-temperature cooking, the manual controls enable the easy, demand-based regulation of all cooking processes – with or without a core temperature sensor as desired.

Product benefits

• Central power connection – maximum efficiency: Connects up to 4 IW3 warming plates via a single power plug, significantly reducing installation costs in the kitchen.
• One cable for all IW3 models: Compatible with IW3, IW3-EBBF and IW3-SW – ideal for mixed device configurations without the need for additional cables.
• Optimal cable length for flexible setups: At 1.55 m, the Cable offers sufficient leeway for individual arrangements in confined spaces.
• Save space – connect devices efficiently: Fewer power plugs mean more free slots and tidiness in confined spaces, such as on buffets or in commercial kitchens.
• Robust model for continuous use: Made from durable Plastic – developed for professional use in demanding everyday kitchen environments.
• Plug in, connect, get started: Easy handling for faster setup – reduces set-up times and enables smooth start-up even during peak periods.
• Securely connected power: The IEC connector ensures a stable, standard-compliant connection – reliable and ready for use at every event.
• Ideal for modular warming stations: Perfectly matched to modular warming systems – supports efficient energy distribution without cable clutter.

Technical data

• Width: 905 mm
• Depth: 840 mm
• Height: 860 mm
• Net weight: 106 kg
• Gross weight: 123 kg
• Volume: 0.799 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Temperature range to: 280 °C
• Number of drawers: 7
• Temperature control: Stepless

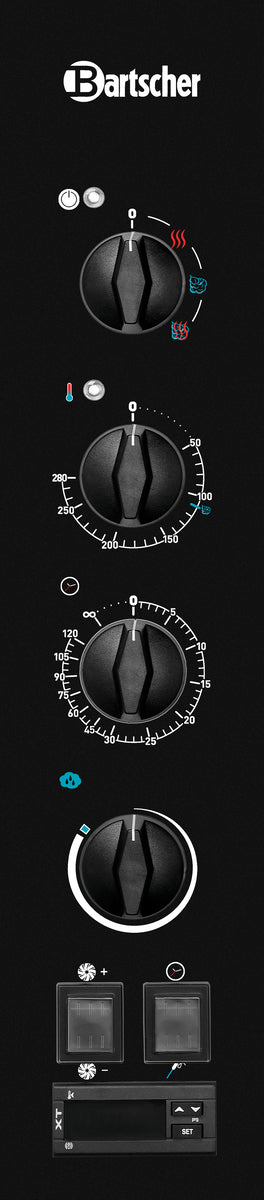

• Control unit: Toggle

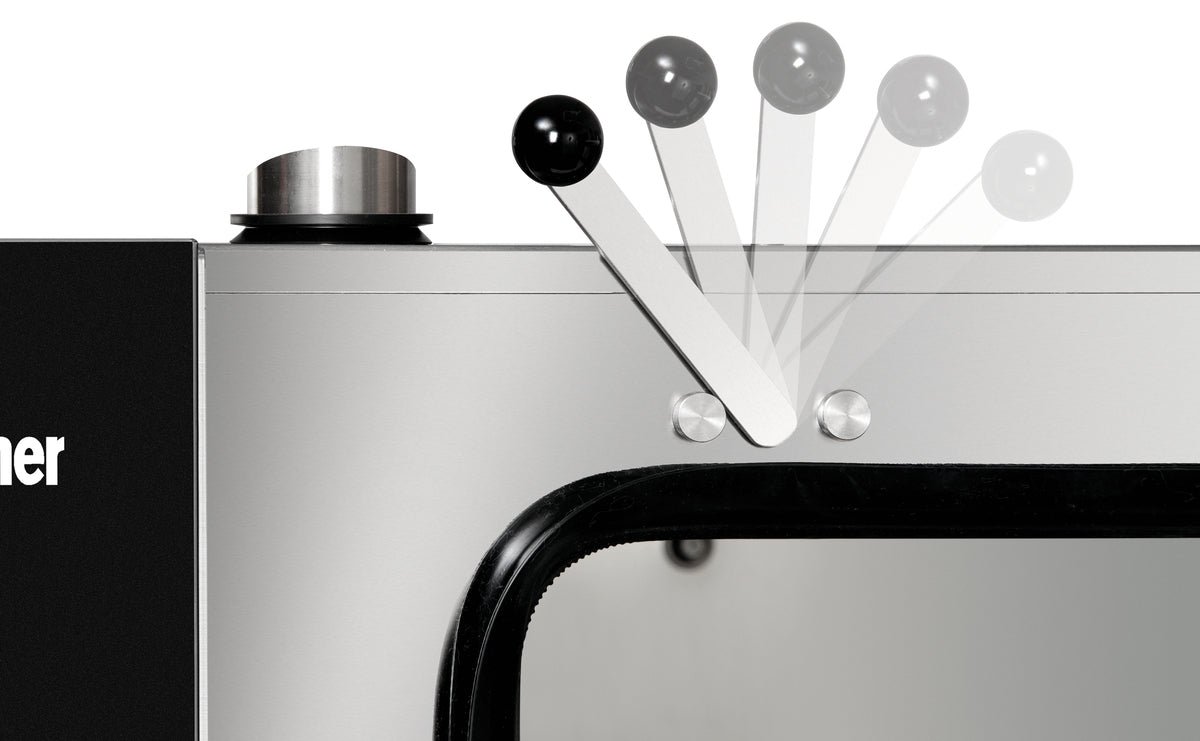

• Vapour extractor: Yes
• Series: Silversteam2
• Number of fans: 2
• LED display: Steaming ,Core temperature ,Temperature ,Time
• Functions: Steam production by means of direct injection ,Steam ,Combi-steaming ,Low temperature cooking ,Reversing motor direction (fan wheels) ,Circulating air
• Equipment connection: 3 NAC
• Temperature range from: 50 °C
• Format drawers: 1/1 GN ,600 x 400 mm
• Material: CNS 18/10
• Water connection: 3/4"
• Time setting to: 120 minute(s)
• Material cooking chamber: CNS 18/10
• Number of cooking programs: 1
• Interior lighting: Yes

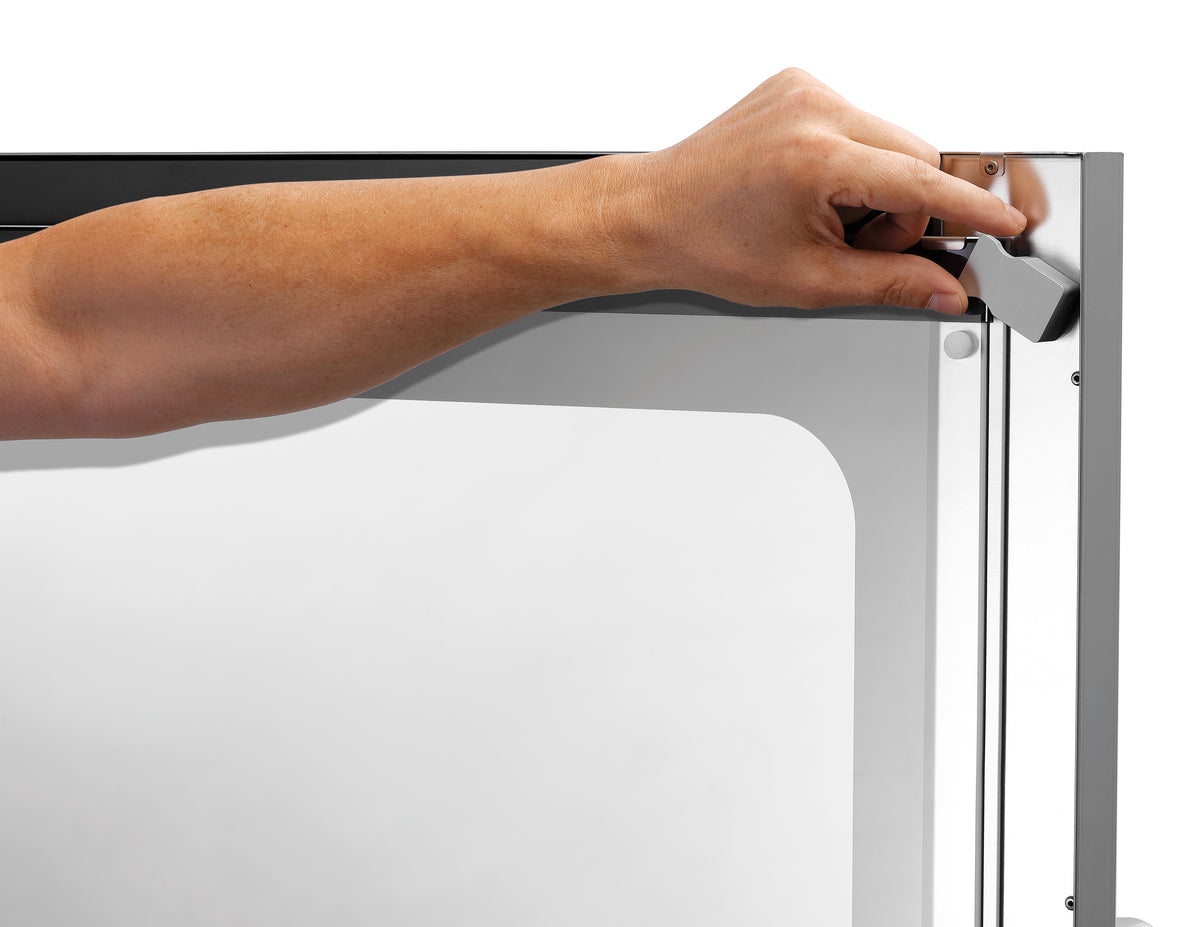

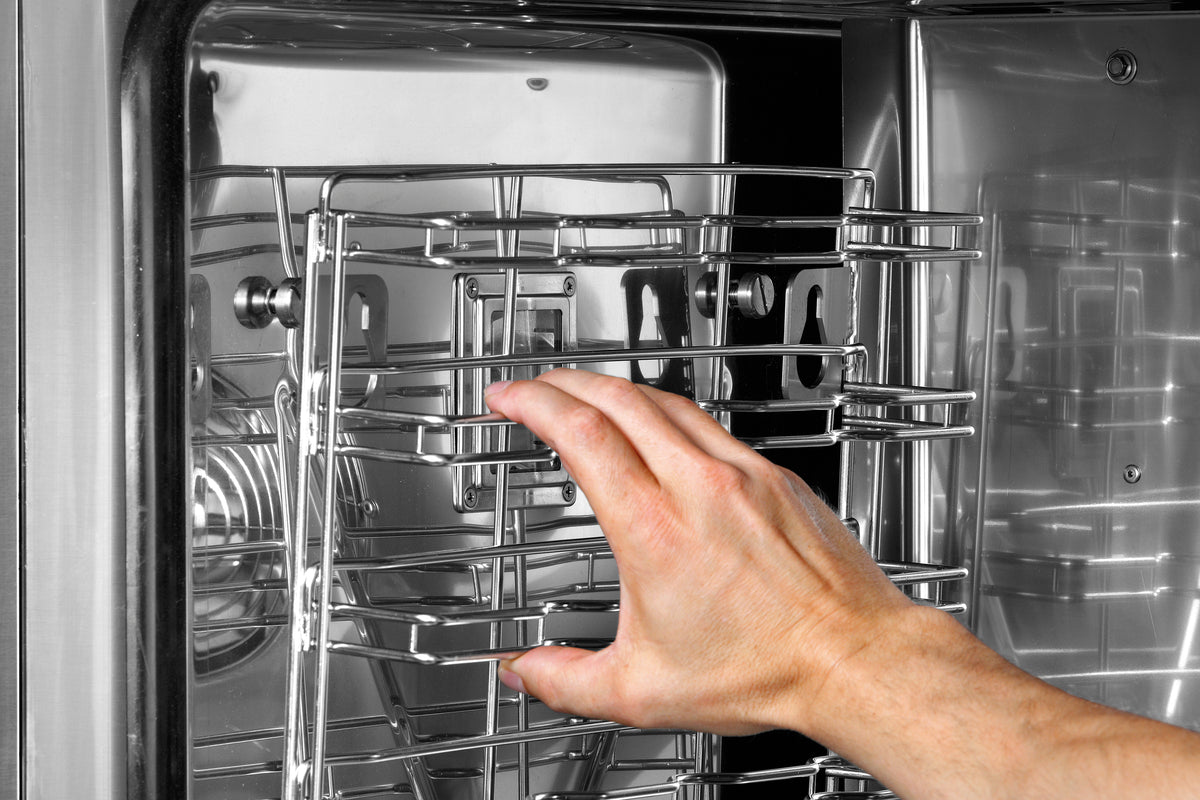

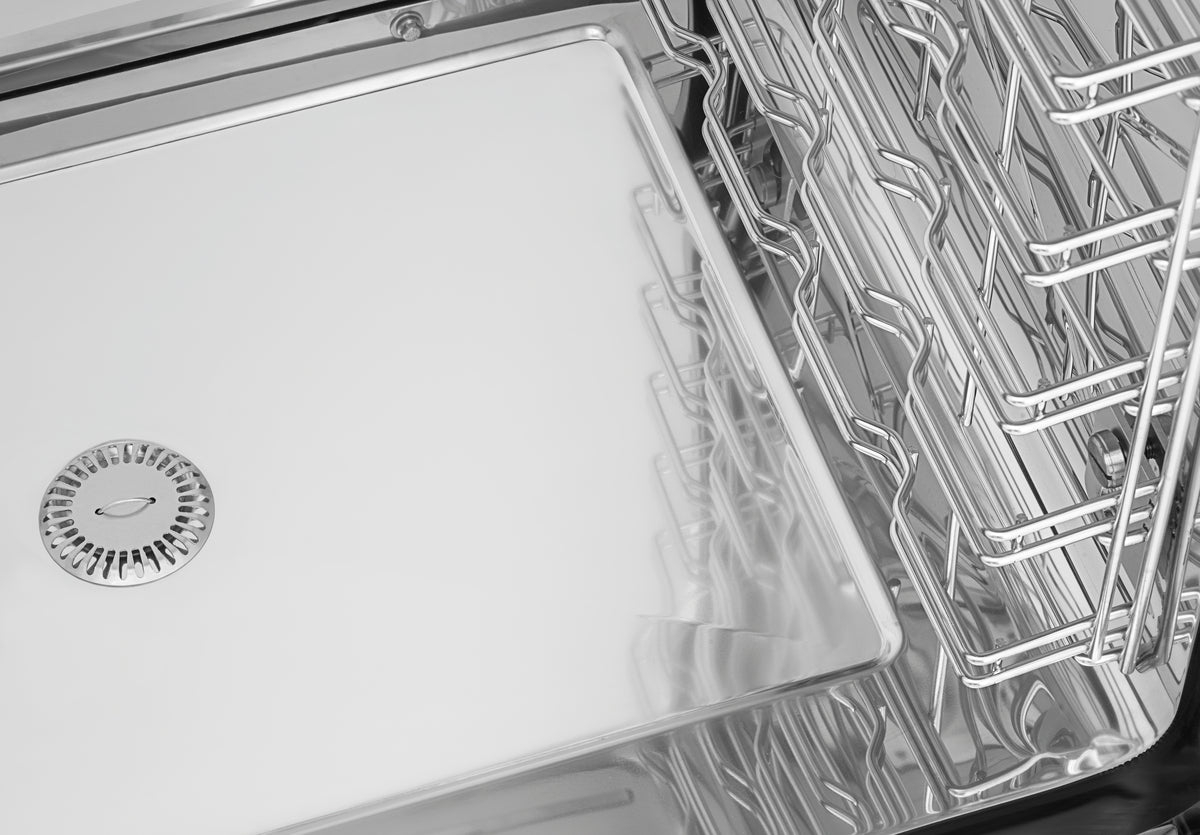

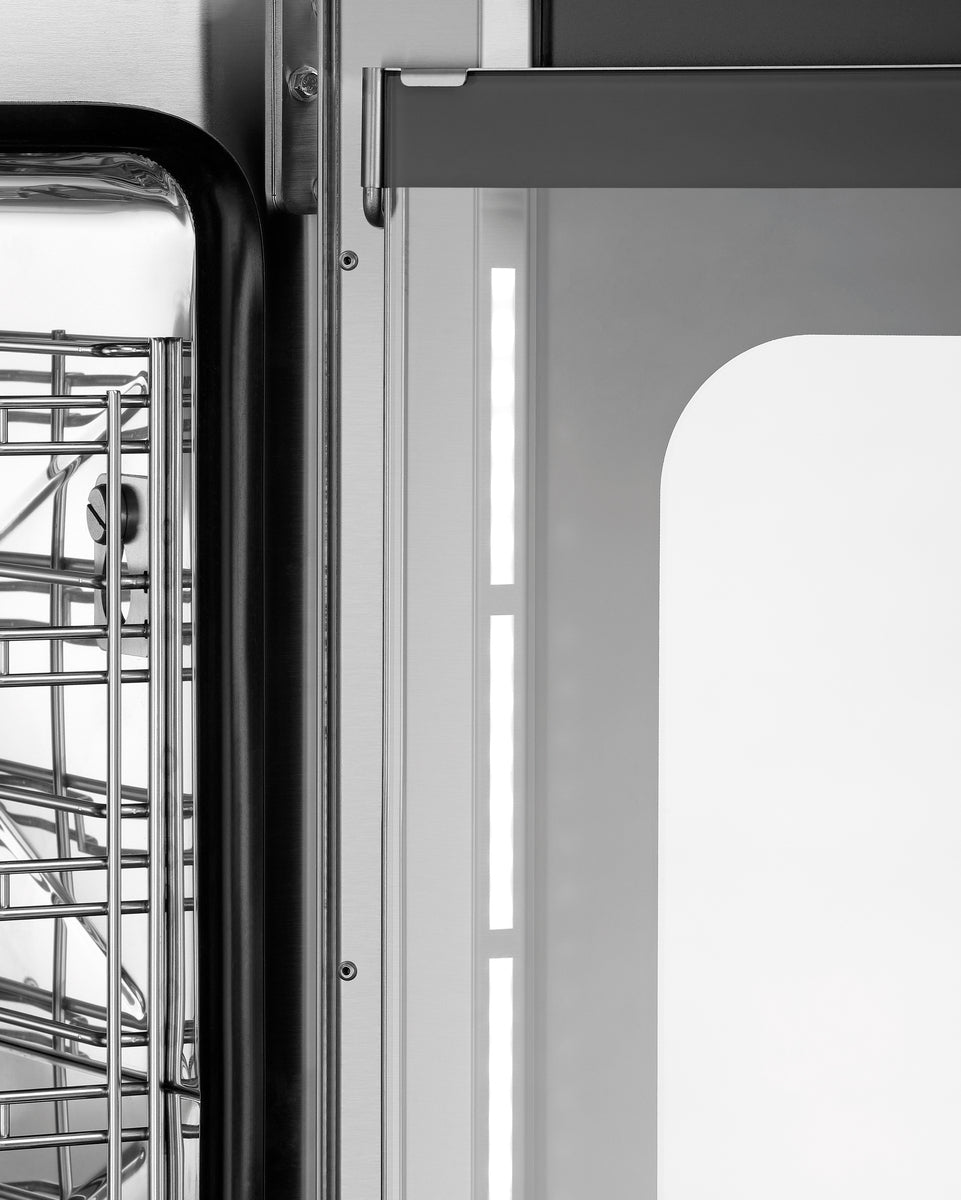

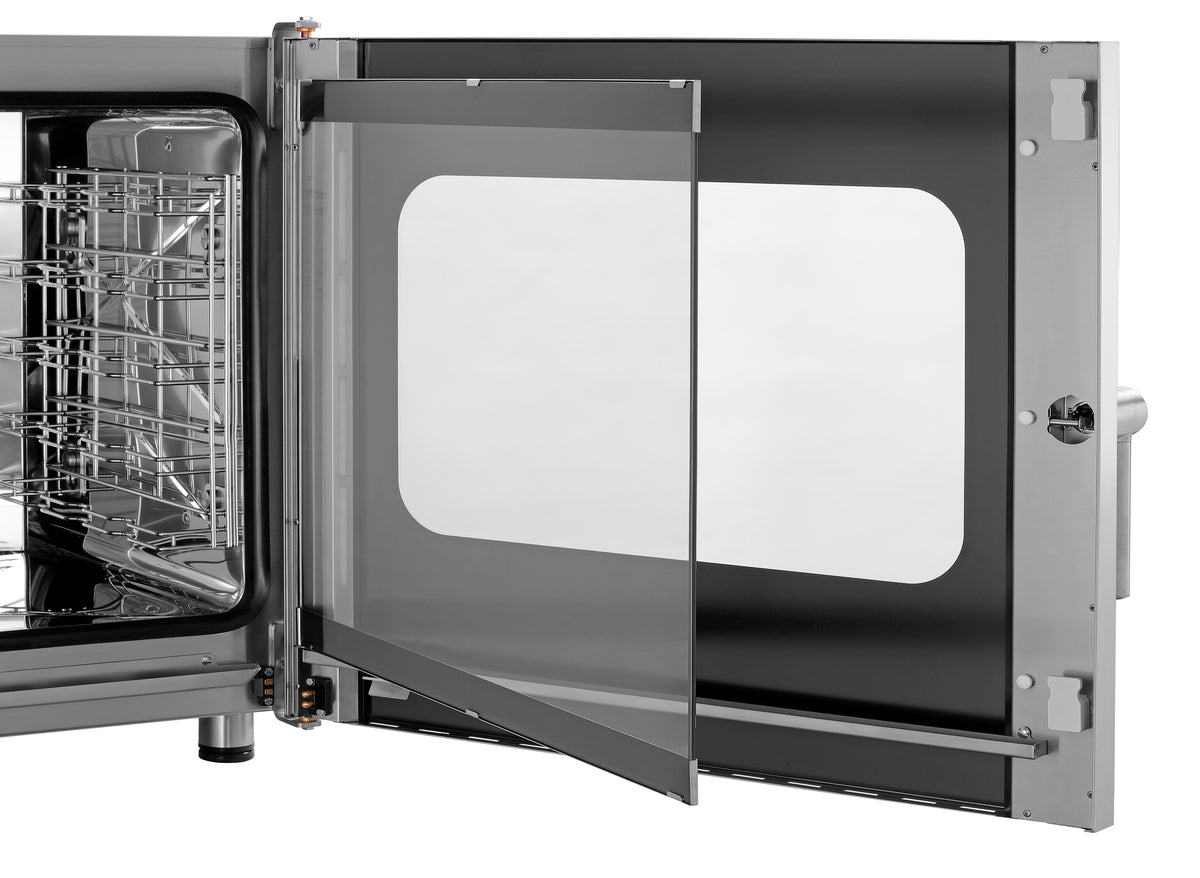

• Properties: Rounded cooking chamber ,Bearing rails can be detached ,Double-winged door pane ,LED lighting in door ,Socket (500 W) for connection of an extractor hood
• With cleaning system: No
• Time setting from: 0 minute(s)

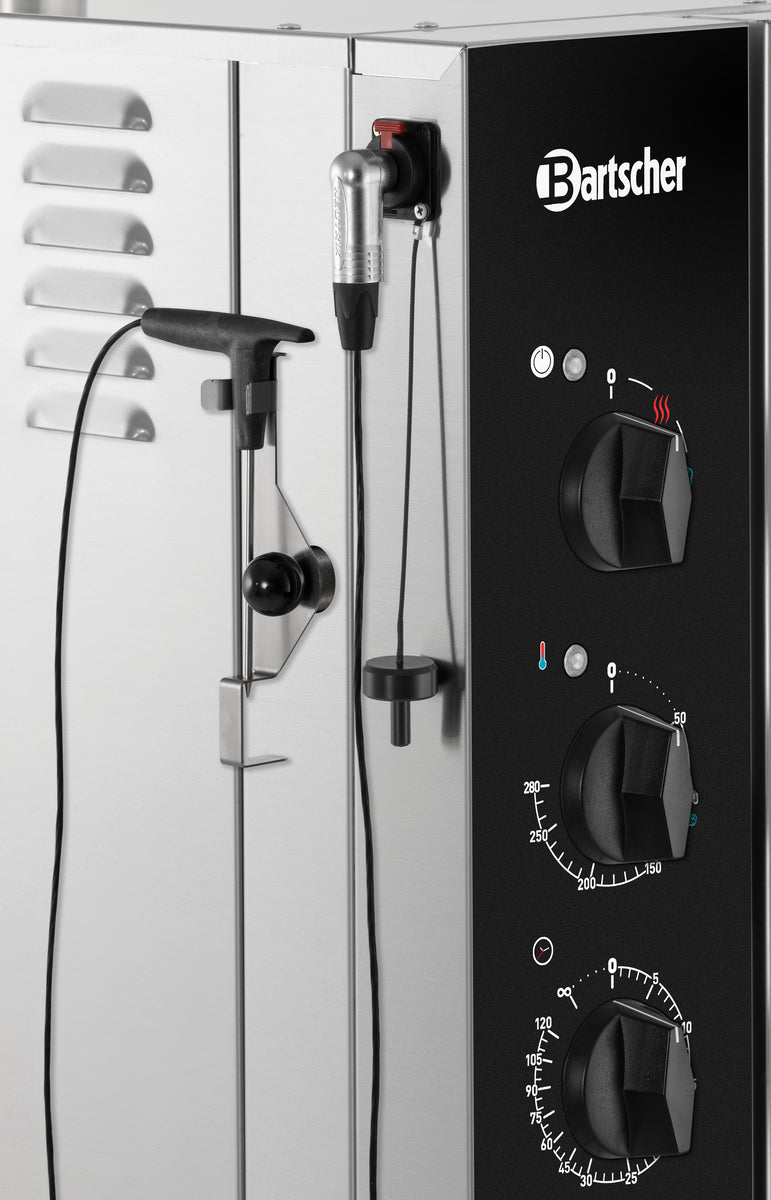

• Core temperature sensor connection: Side
• Including: 1 grid 1/1 GN ,1 tray 1/1 GN ,1 water supply hose
• Power: 9.6 kW
• Frequency: 50 Hz
• Distance between trays: 74 mm
• Continuous operation: Yes
• Control lamp: ON/OFF ,Temperature
• Rack control: No
• Number of cooking phases: 1
• Voltage: 400 V
• Fan speed: 2 levels
• Type of drawers: Crosswise
• Operating mode: Electro
• Important information: From a water hardness of 5° dH upwards, we urgently recommend fitting a suitable water softener and a water pressure of maximum 3 bar

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 116828
