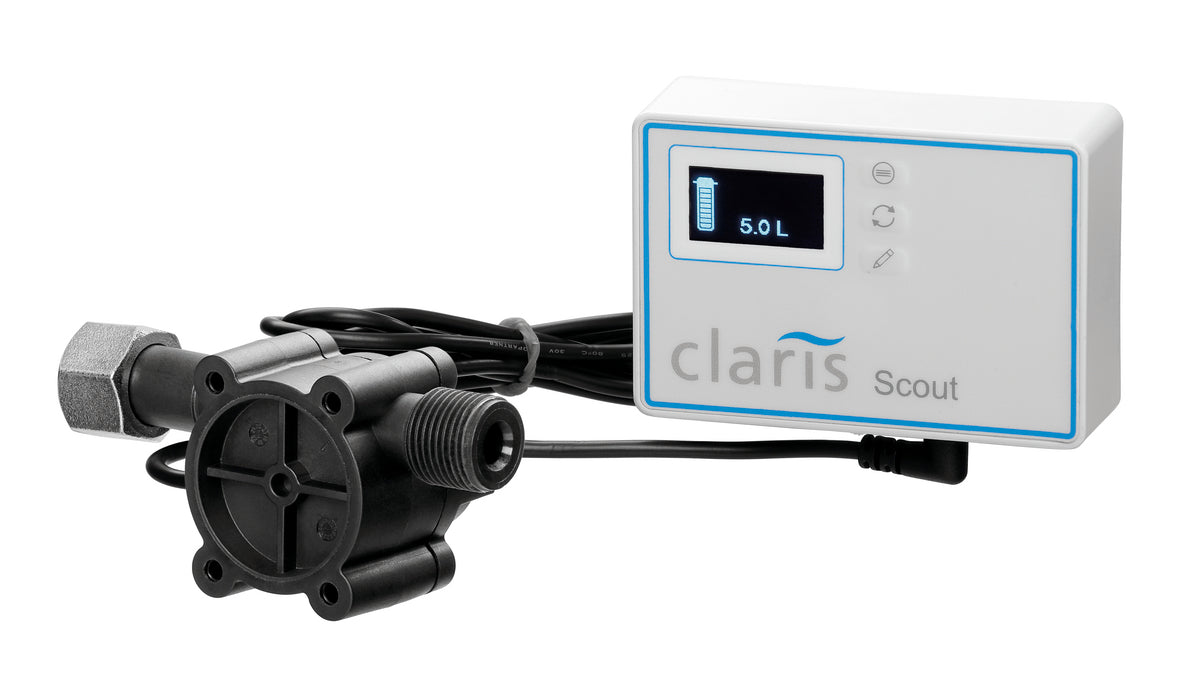

This water meter is ideal for use with the water filter system K1500L. By measuring the amount of water already filtered, it can reliably notify the user that a filter change is required.

Product benefits

• Precise filter change indicator for maximum water quality: The W1-8B reliably measures the amount of filtered water and signals the optimal time for a filter change – for consistently high water quality and safe operation of the system.
• Perfect system integration with the K1500L: Specially designed for the K1500L filter system, the water meter ensures loss-free compatibility – no readjustment, no retrofitting, just connect and start.

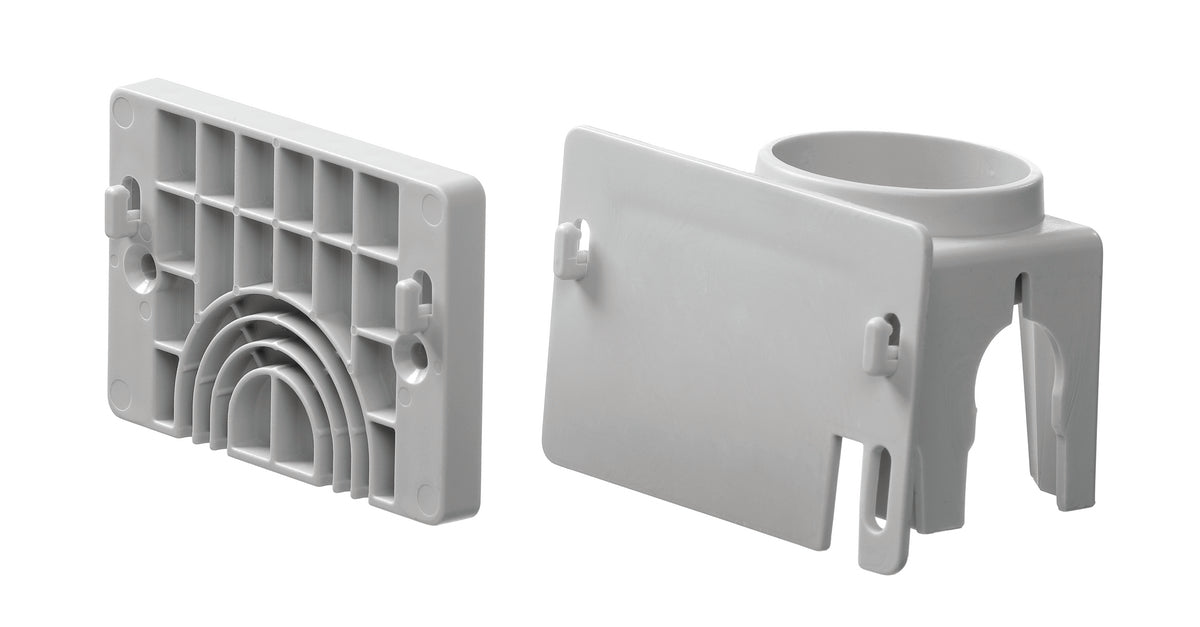

• Flexible placement thanks to modular mounting system: Whether directly on the filter or on the wall – two supplied brackets enable simple, ergonomic positioning of the control panel according to your requirements.
• Reliable operation without an external power source: Powered by two AA batteries, the W1-8B works independently of the mains power supply – for maximum flexibility in professional kitchens or bar areas.
• Robust design for continuous use in the catering industry: The W1-8B is designed for water pressure ranges from 1 to 8 bar and temperatures up to 30 °C – ideal for reliable use in busy kitchen environments.
• Wide flow range for a wide variety of applications: With an output capacity of 15 to 500 litres per hour, the water meter is suitable for small dispensing systems as well as large-volume systems.

Technical data

• Width: 80 mm
• Depth: 42 mm
• Height: 54 mm
• Net weight: 0.24 kg
• Gross weight: 4.3 kg
• Volume: 0.004 MTQ
• Guarantee: VG
• Customs tariff number: 84212100
• Operated via: Batteries ( 2 x AA )
• Output capacity: 15 - 500 l/h
• Colour: Grey ,Black
• Including: 2 AA batteries ,Holder on filter for control unit ,Wall holder for control panel
• Water pressure: 1 - 8 bar
• Material: Plastic
• Water intake temperature from: 4 °C
• Water connection: 3/8"
• Designed for: Water filter system K1500L
• Water intake temperature to: 30 °C

Documents

• Datasheet
• Operating instructions

Manufacturer item number: 109898
