BartscherSKU: 264170
Wall-mounted hood 900 w.motor, W1700
€1.849,00
/
Tax included.
Shipping calculated at checkout.
€1.386,75
€1.849,00-25%Save €462,2525% off Bartscher
Net price
€1.165,33
plus 19 % VAT
Free shipping over €1,200

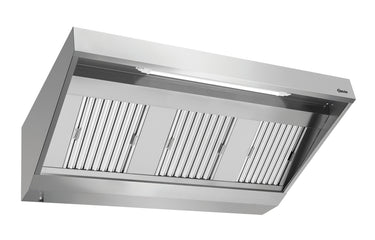

Wall-mounted hood 900 w.motor, W1700
€1.849,00
/
Wall-mounted hood 900 w.motor, W1700
€1.849,00
/
products.product.pickup_availability.unavailable
Free shipping over €1,200Below that we state the cost before you order.
Purchase on invoiceFor businesses, after a check.
Manufacturer warrantyOn every appliance, with spare parts.
Answer the same working dayMonday to Friday.
Payment methods
Wall-mounted hood, 900 series, 1700 mm, with 184 W motor, up to 1,400 m³/h. Three stainless steel filters, grease collection channel, type A flame arrestor, IP44. Commissioning with external controller. For 900 series kitchen lines requiring wide, motorised extraction capacity up to 1700 mm.
Highlights
- Powerful exhaust air for demanding everyday kitchen use With an air flow rate of up to 1,400 m³/h, the wall hood reliably handles steam, heat and odours – even during peak times in professional kitchens.
- Robust stainless steel design for long-lasting use Made from high-quality CNS 18/10, the wall-mounted hood offers high corrosion resistance and hygiene – ideal for daily use in professional kitchens.
- Efficient grease separation for clean exhaust air Three Type A CNS flame protection filters and an integrated grease collection channel ensure maximum filtration performance and minimise cleaning effort.
- Safe technology for professional operating environments Thanks to Protection class IP44, the motor is protected against splash water and external influences – for reliable Continuous operation even under demanding conditions.
- Glare-free work lighting included The integrated 18-watt light with grease protection cover ensures optimum illumination without annoying reflections – ideal for safe and precise working.
- Compact installation, flexible control Space-saving wall mounting combined with external fan control allows individual adaptation to different kitchen situations and ventilation concepts.
- Energy-efficient operation With a power consumption of only 0.202 kW and optimised air flow, the wall-mounted hood offers an economical solution for modern kitchen operations.
- Expandable system solution for professional ventilation The B1700 is part of a modular range – it has combinability with ceiling hoods and series variants on request for tailor-made kitchen ventilation concepts.
Technical specifications
- Motor output: 184 W
- Cut-out for the motor: 232 x 208 mm
- Protection class: IP44
- Fan regulation: Via an external controller
- Lamps (number + watt): 1 x 18 W
- Power: 0.202 kW
- Number of fan motors/exhaust air outputs: 1
- Lighting: yes
- Voltage: 230 V
- With motor: Yes
- Operating mode: Exhaust air
- Assembly type: Wall
- Frequency: 50-60 Hz
- Max. air throughput: 1400 m³/h
- Available on request: Ceiling hood, Wall hood series 1100, Other sizes
- Number of filters: 3
- Properties: Blare-free light installed with grease protection cover, Filter carrier with additional grease collection channel
- Material filter: CNS 18/10
- Material: CNS 18/10
- Flame protection filter: Type A
Product facts
- Article number: 264170
- EAN: 4015613601083
- Supplier: Bartscher
- Category: Wall hoods
- Dimensions (W × D × H): 1700 × 900 × 450 mm
- Weight: 44 kg
