BartscherSKU: 257170
Wall-mounted hood 700 w.motor, W1700
€1.809,00
/
Tax included.
Shipping calculated at checkout.
€1.356,75
€1.809,00-25%Save €452,2525% off Bartscher
Net price
€1.140,12
plus 19 % VAT
Free shipping over €1,200
Wall-mounted hood 700 w.motor, W1700
€1.809,00
/
Wall-mounted hood 700 w.motor, W1700
€1.809,00
/
products.product.pickup_availability.unavailable
Free shipping over €1,200Below that we state the cost before you order.
Purchase on invoiceFor businesses, after a check.
Manufacturer warrantyOn every appliance, with spare parts.
Answer the same working dayMonday to Friday.
Payment methods

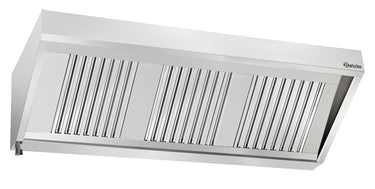

Wall-mounted hood Series 700, 1700 mm, with 184 W motor, up to 1,400 m³/h. Three stainless steel filters, grease collection channel, type A flame arrestor, IP44. Commissioning via external controller. For kitchen lines requiring a high-performance motorised hood between 1500 and 1800 mm.
Highlights
- Powerful performance for demanding kitchens With an air flow rate of up to 1400 m³/h, the Wall Hood 700 reliably ensures clean air – even during intensive cooking.
- Robust stainless steel quality Made from CNS 18/10, the Hood offers maximum corrosion resistance and hygienic safety for professional continuous use.
- Glare-free light with integrated protection The integrated 18-watt lighting with grease protection cover ensures optimal working conditions – both functional and practical.
- Multi-stage protection against grease and flames Three type A flame protection filters with an additional grease collection channel reduce fire risks and minimise cleaning effort.
- Ready to connect with integrated Motor The built-in motor (184 W) simplifies Installation and saves space – ideal for quick installation in new and existing kitchens.
- Flexible control unit as required Fan control via an external regulator enables ventilation according to requirements and supports energy-efficient kitchen management.
- Safe even in high humidity With protection class IP44, the hood is resistant to splashing water and foreign objects – an important safety advantage in heavily used areas.
- Expandable system solution Additional sizes and matching ceiling and series hoods allow individual adaptation to any kitchen architecture.
Technical specifications
- Motor output: 184 W
- Cut-out for the motor: 232 x 208 mm
- Protection class: IP44
- Fan regulation: Via an external controller
- Lamps (number + watt): 1 x 18 W
- Power: 0.202 kW
- Number of fan motors/exhaust air outputs: 1
- Lighting: yes
- Voltage: 230 V
- With motor: Yes
- Operating mode: Exhaust air
- Assembly type: Wall
- Frequency: 50-60 Hz
- Max. air throughput: 1400 m³/h
- Available on request: Ceiling hood, Wall hood series 1100, Other sizes
- Number of filters: 3
- Properties: Blare-free light installed with grease protection cover, Filter carrier with additional grease collection channel
- Material filter: CNS 18/10
- Material: CNS 18/10
- Flame protection filter: Type A
Product facts
- Article number: 257170
- EAN: 4015613600956
- Supplier: Bartscher
- Category: Wall hoods
- Dimensions (W × D × H): 1700 × 700 × 450 mm
- Weight: 42 kg
