BartscherSKU: 257160

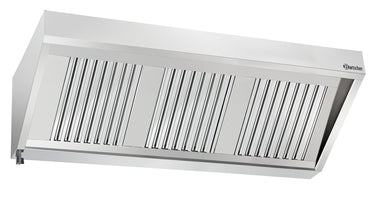

Wall-mounted hood 700 w.motor, W1600
€1.739,00
/
Tax included.
Shipping calculated at checkout.
€1.304,25
€1.739,00-25%Save €434,7525% off Bartscher
Net price
€1.096,00
plus 19 % VAT
Free shipping over €1,200
Wall-mounted hood 700 w.motor, W1600
€1.739,00
/
Wall-mounted hood 700 w.motor, W1600
€1.739,00
/
products.product.pickup_availability.unavailable
Free shipping over €1,200Below that we state the cost before you order.
Purchase on invoiceFor businesses, after a check.
Manufacturer warrantyOn every appliance, with spare parts.
Answer the same working dayMonday to Friday.
Payment methods
Wall-mounted hood, 700 series, 1600 mm, with 184 W motor, up to 1,400 m³/h. Three CNS filters, grease collection channel, type A flame arrestor, IP44. Commissioning with external controller. For medium to large kitchen lines with continuous vapour extraction across a 1600 mm width.
Highlights
- Powerful exhaust air performance for demanding kitchens With an air flow rate of up to 1400 m³/h, the Wall Hood 700 B1600 ensures reliable ventilation even during intensive use – ideal for commercial kitchens and catering establishments.
- Integrated Motor saves time and effort The factory-features 184 W Motor enables straightforward installation without additional drive planning.
- Hygienic design with practical details CNS 18/10, three high-quality type A flame protection filters and an additional grease collection channel in the filter holder support permanently clean kitchen conditions.
- Glare-free lighting for greater workplace comfort The integrated 18 W light with grease protection cover creates optimum visibility in the cooking area – without annoying reflections.
- Reliable protection – even in humid environments With protection class IP44, the wall-mounted hood is ideally designed for use in warm, humid kitchen environments and ensures reliable ventilation.
- Flexible control unit as required The exhaust air flow rate can be adjusted via an external control unit – for precise control and energy efficiency in daily operation.
- Robust materials for long-lasting use The housing and filter are made of high-quality CNS 18/10, which reliably resists aggressive vapours, high humidity and mechanical stress.
- System-compatible and versatile expandability As part of the modular hood series, the B1600 model offers seamless integration options with other sizes and variants – also available as a ceiling solution on request.
Technical specifications
- Motor output: 184 W
- Cut-out for the motor: 232 x 208 mm
- Protection class: IP44
- Fan regulation: Via an external controller
- Lamps (number + watt): 1 x 18 W
- Power: 0.202 kW
- Number of fan motors/exhaust air outputs: 1
- Lighting: yes
- Voltage: 230 V
- With motor: Yes
- Operating mode: Exhaust air
- Assembly type: Wall
- Frequency: 50-60 Hz
- Max. air throughput: 1400 m³/h
- Available on request: Ceiling hood, Wall hood series 1100, Other sizes
- Number of filters: 3
- Properties: Blare-free light installed with grease protection cover, Filter carrier with additional grease collection channel
- Material filter: CNS 18/10
- Material: CNS 18/10
- Flame protection filter: Type A
Product facts
- Article number: 257160
- EAN: 4015613600949
- Supplier: Bartscher
- Category: Wall hoods
- Dimensions (W × D × H): 1600 × 700 × 450 mm
- Weight: 41 kg
