BartscherSKU: 257130

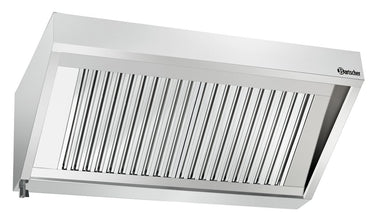

Wall-mounted hood 700 w. motor, W1300
€1.629,00
/
excl. VAT
Shipping calculated at checkout.
€1.221,75
€1.629,00-25%Save €407,2525% off Bartscher
Price incl. VAT
€1.453,88
incl. 19 % VAT
Free shipping over €1,200
Wall-mounted hood 700 w. motor, W1300
€1.629,00
/
Wall-mounted hood 700 w. motor, W1300
€1.629,00
/
products.product.pickup_availability.unavailable
Free shipping over €1,200Below that we state the cost before you order.
Purchase on invoiceFor businesses, after a check.
Manufacturer warrantyOn every appliance, with spare parts.
Answer the same working dayMonday to Friday.
Payment methods
Technische Daten
| Maße (B × T × H) | |
|---|---|
| Gewicht | |
| Artikelnummer |
Wall-mounted hood, 700 series, 1300 mm, with 184 W motor, up to 1,200 m³/h. Two CNS filters, grease collection channel, Type A flame arrestor, IP44. Commissioning with external controller. For kitchen lines with a width of 1300 mm requiring motorised extraction capacity with external control.
Highlights
- High air output for professional kitchens With an exhaust air flow rate of up to 1,200 m³/h, the Wall-mounted Hood 700 ensures efficient air purification even during intensive use in restaurants and commercial kitchens.
- Integrated Motor – ready for use ex works The pre-assembled 184-watt Motor offers a solution that is ready for immediate use, saving installation time and guaranteeing reliable exhaust air performance.
- Robust hygiene – catering-grade stainless steel The use of CNS 18/10 and two type A flame protection filters with features provide a durable, easy-to-clean solution for the highest hygiene standards.
- Safe working thanks to IP44 protection class The wall hood is IP44-rated for splash protection – ideal for use in damp and demanding kitchen environments.
- Glare-free lighting directly at the workplace With its integrated 18-watt light and additional grease protection cover, the Hood provides uniform, eye-friendly illumination of the cooking area.
- Smart grease separation with collection channel Filter holders with an additional grease collection channel increase the efficiency of the filtration and facilitate cleaning – for permanently clean operation.
- Flexibly adjustable via external speed controller Air output and noise levels can be individually adjusted via an optional external controller – for optimum comfort in everyday kitchen use.
- Modular system for individual kitchen concepts Can be expanded with additional wall or ceiling hoods from the Series – ideal for tailor-made ventilation solutions in restaurants and catering.
Technical specifications
- Motor output: 184 W
- Cut-out for the motor: 232 x 208 mm
- Protection class: IP44
- Fan regulation: Via an external controller
- Lamps (number + watt): 1 x 18 W
- Power: 0.202 kW
- Number of fan motors/exhaust air outputs: 1
- Lighting: yes
- Voltage: 230 V
- With motor: Yes
- Operating mode: Exhaust air
- Assembly type: Wall
- Frequency: 50-60 Hz
- Max. air throughput: 1200 m³/h
- Available on request: Ceiling hood, Other sizes, Wall hood series 1100
- Number of filters: 2
- Properties: Blare-free light installed with grease protection cover, Filter carrier with additional grease collection channel
- Material filter: CNS 18/10
- Material: CNS 18/10
- Flame protection filter: Type A
Product facts
- Article number: 257130
- EAN: 4015613600918
- Supplier: Bartscher
- Category: Wall hoods
- Dimensions (W × D × H): 1300 × 700 × 450 mm
- Weight: 35 kg
