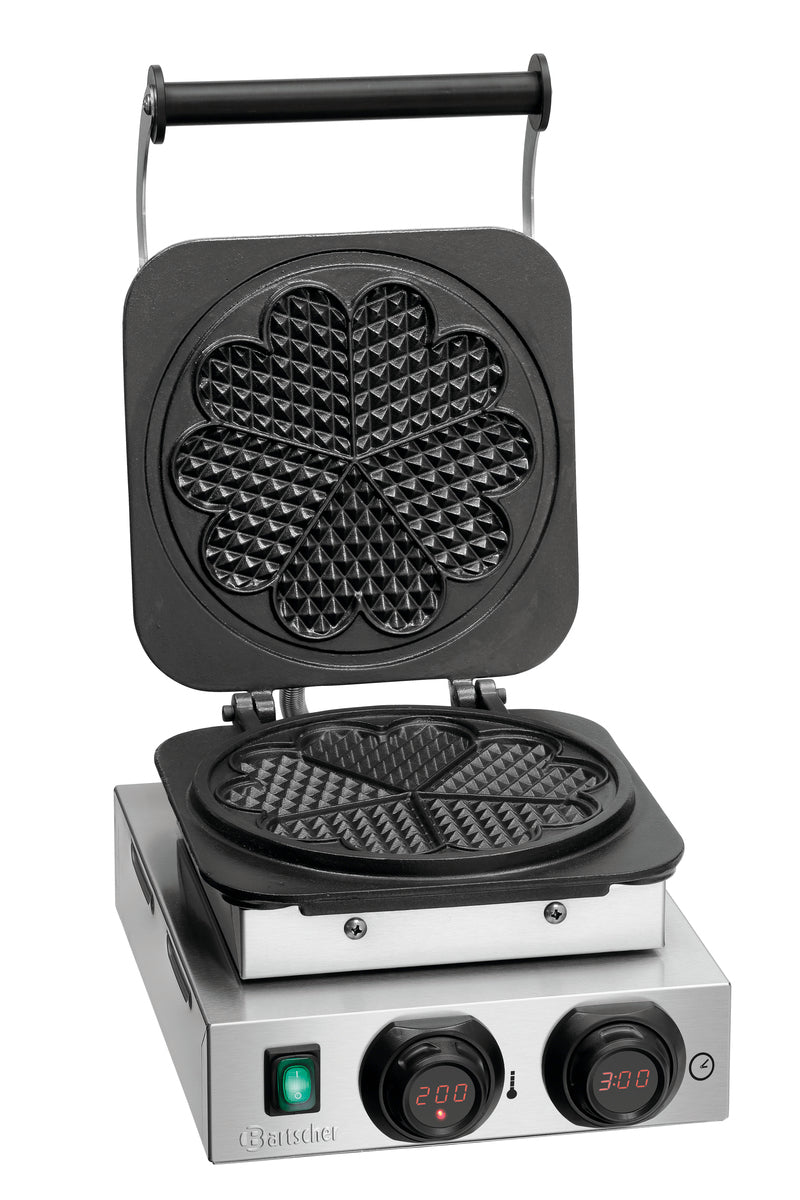

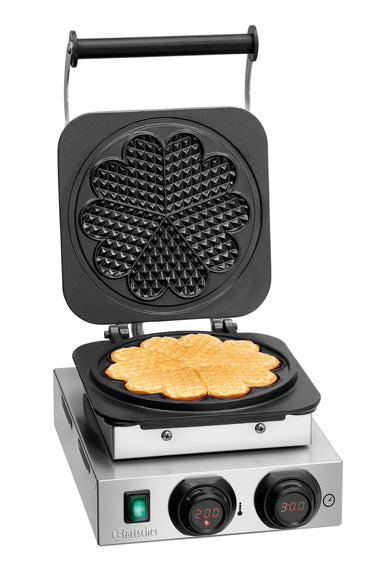

The ideal conditions for the perfect waffle: A robust design, high performance, and easy & intuitive knob control with a digital display, timer, and audible signal. In addition, the cast iron heart-shaped baking trays boast high thermal conductivity.

Product benefits

• Precise baking right to the heart: The electronic temperature control in 1°C increments allows precise adjustment to any dough mixture – for consistently perfect heart-shaped waffles.
• High heat, short waiting times: With a maximum temperature of up to 300°C and enamelled cast iron plates, the MDI 1HW211 impresses with its outstanding heat conductivity and short baking times – ideal for high cycle rates in professional use.

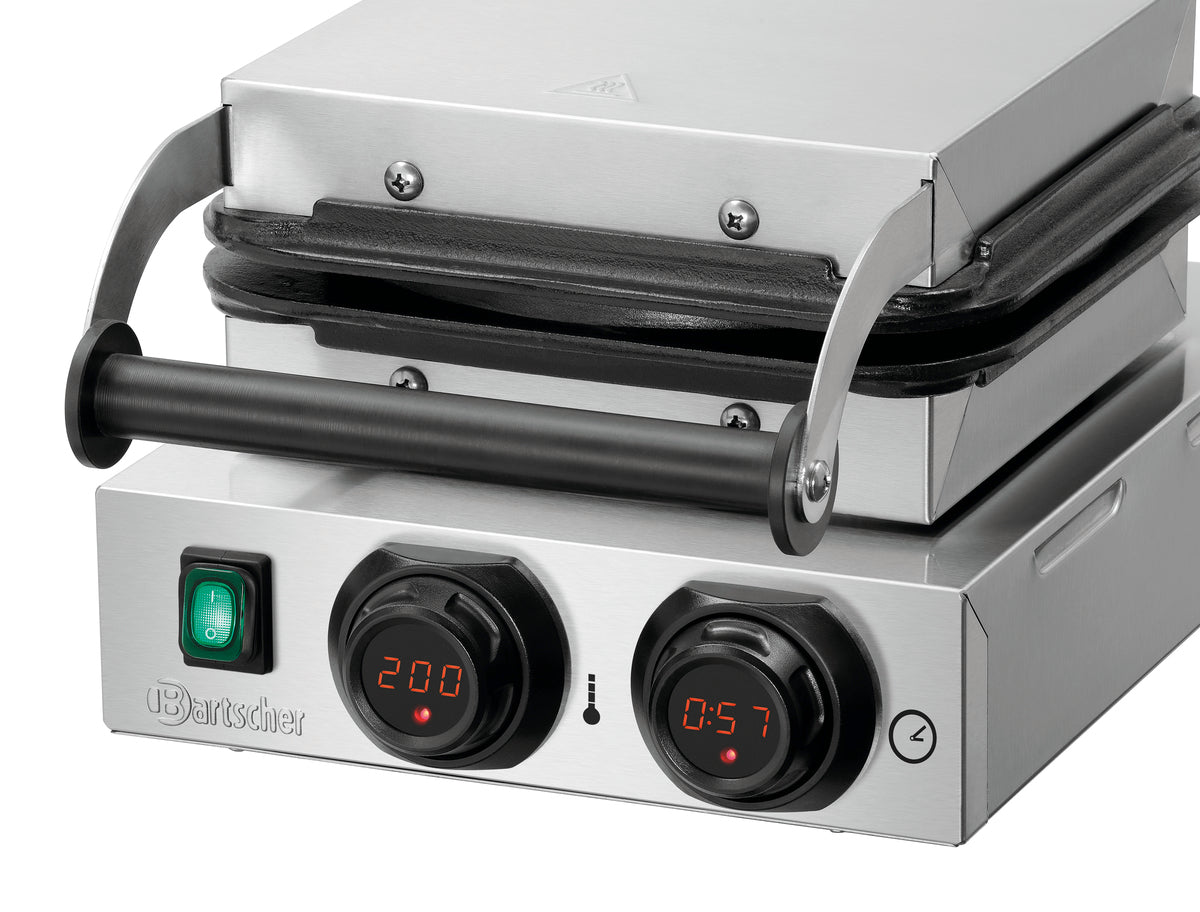

• Intuitive handling with system: Digital temperature and time control combined with an analogue toggle switch ensures ergonomic operation and precise control unit – even under time pressure.
• Acoustic signal for precise timing: An integrated signal tone reliably informs you when the baking time is up – for predictable cooking processes and consistent product quality, even when staff changes occur.
• Robust construction for continuous operation: Made of high-quality stainless steel and equipped with permanently mounted cast iron plates, the MDI 1HW211 confidently withstands the daily demands of commercial kitchens, bakeries and event catering.
• Saves your perfect settings: Thanks to the memory function, the ideally configured temperature-time combination is retained – for reproducible results with consistently high utilisation.

Technical data

• Width: 285 mm
• Depth: 470 mm
• Height: 225 mm
• Net weight: 17.3 kg
• Gross weight: 21.8 kg
• Volume: 0.08 MTQ
• Guarantee: VG
• Customs tariff number: 85166070
• Properties: Knob with digital display for temperature and time ,Memory function ,Audible signal when the time expires (0:10 - 9:30 minutes)
• Temperature control: Electronic ,In 1 °C steps
• Design baking tray(s): Permanently mounted
• Number of baking units: 1
• Timer: Yes
• ON/OFF switch: Yes
• Frequency: 50/60 Hz
• Temperature range to: 300 °C
• Waffle size: Ø 210 mm, height 16 mm
• Control lamp: Heat up
• Protection class: IPX3
• Control unit: MDI knob
• Waffle form: Heart waffle
• Baking trays can be rotated: No
• Material: Stainless steel
• Colour: Silver grey
• Voltage: 230 V
• Material baking trays: Cast iron, enamelled
• Temperature range from: 50 °C
• Digital display: Yes
• Power: 2,2 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 370197
