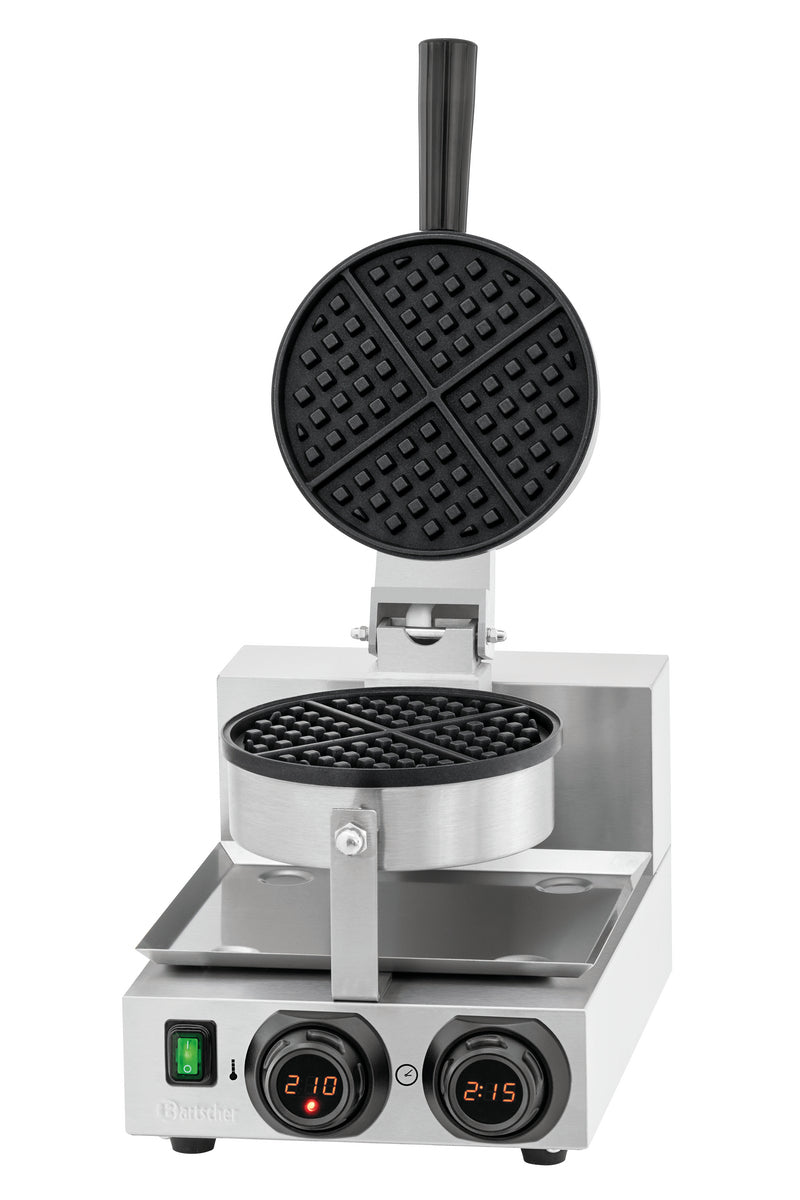

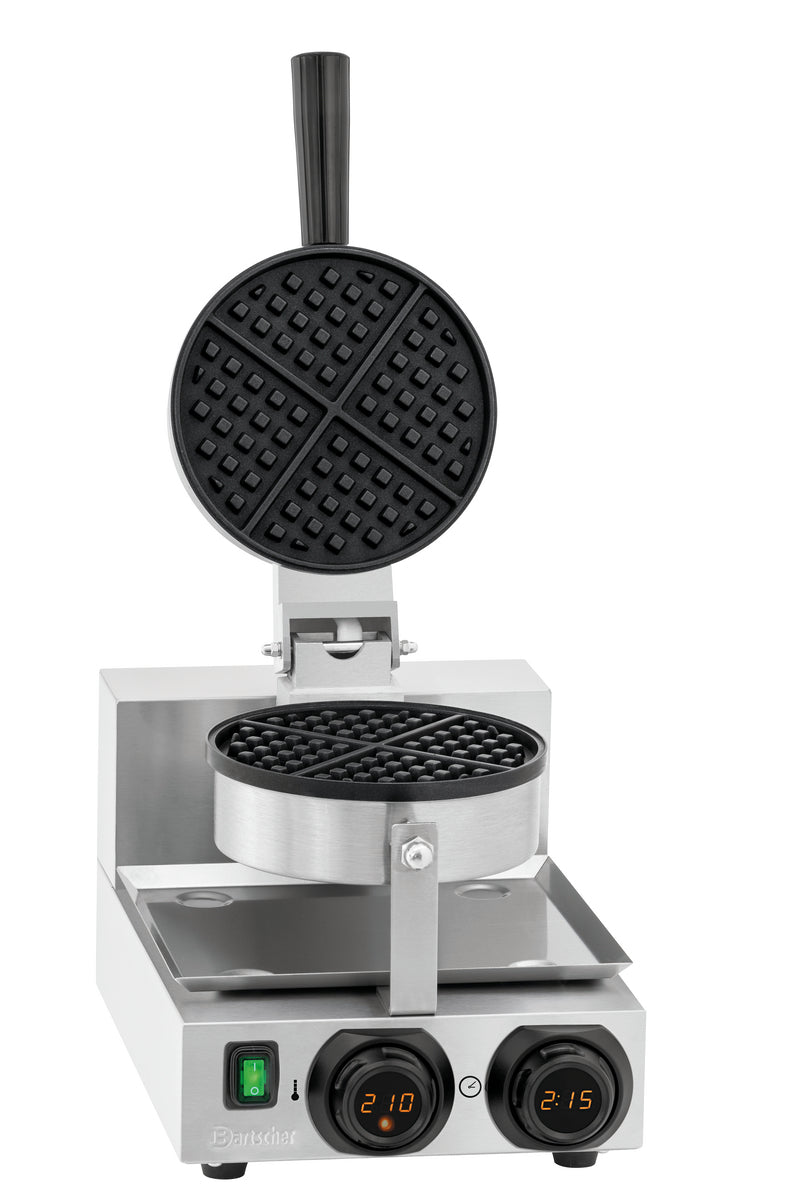

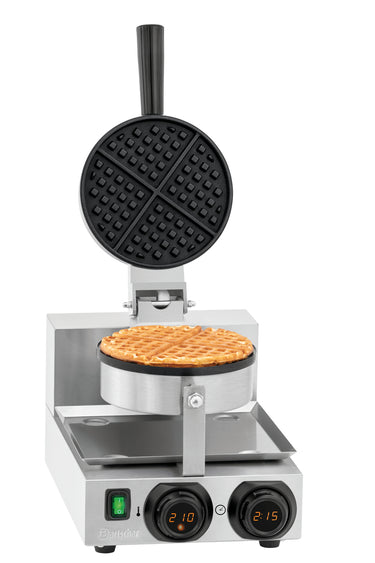

The waffle iron MDI 1BWR 1750 makes round Brussels waffles. This powerful waffle iron with its coated baking trays produces perfect waffles thanks to the Bartscher MDI control system. The intuitive knob control and digital display, timer and signal tone mean that speed can be maintained even at peak times without sacrificing quality.

Product benefits

• Perfect round Brussels waffles: Thanks to precise temperature control in 1 °C increments, the MDI 1BWR 1750 delivers waffles of consistent quality – ideal for demanding Continuous operation.

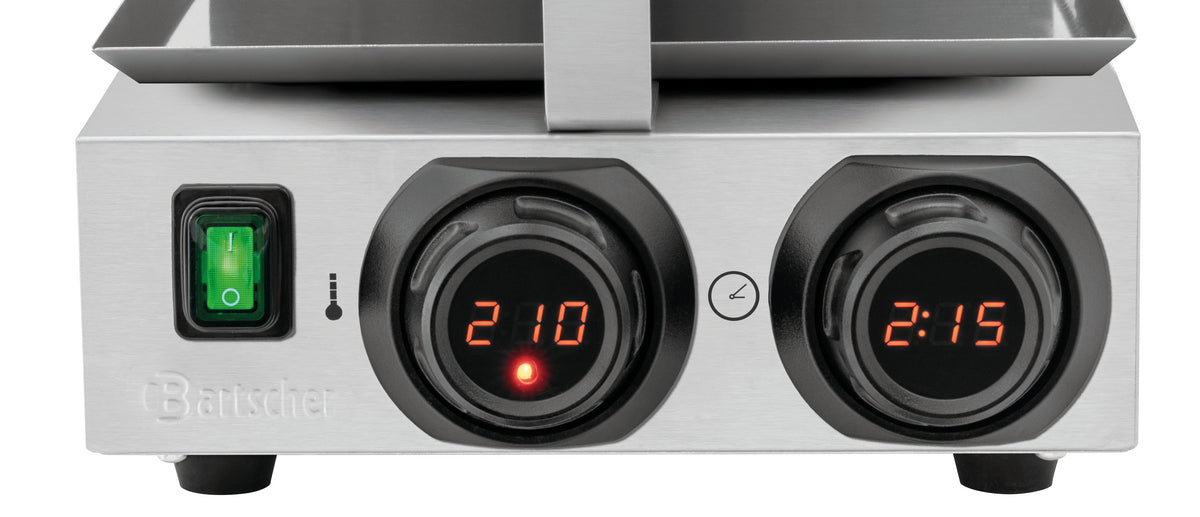

• Intuitive control unit for efficient processes: The toggle switch with Digital display, Timer and acoustic signal ensures process reliability – even at high utilisation.
• Consistent results – even during peak periods: The Bartscher MDI control unit guarantees controlled baking times and optimum heat distribution – for reproducible quality every time you serve.
• Robust design for professional requirements: The stainless steel housing with permanently installed, coated aluminium plates is designed for durability and meets hygiene requirements in commercial kitchens.
• Time-saving cleaning after each use: The separate, easily removable drip tray makes cleaning easier – for efficient work in everyday catering.
• Space-saving and powerful: With only one baking unit and 1 kW of power, the appliance fits even in cramped kitchens – without compromising on performance.
• Memory function for consistent quality: When changing between shifts, the last selected baking mode is retained – ideal for continuous operation without having to reset the settings.
• Impressive in every detail – for customers and staff: An audible signal, control lamps and precise Temperature control not only ensure smooth processes, but also evenly browned, visually appealing waffle results.

Technical data

• Width: 250 mm
• Depth: 470 mm
• Height: 280 mm
• Net weight: 6.7 kg
• Gross weight: 8.4250000000000007 kg
• Volume: 0.058 MTQ
• Guarantee: VG
• Customs tariff number: 85166070
• Properties: Knob with digital display for temperature and time ,Memory function ,Audible signal when the time expires (0:10 - 9:30 minutes) ,Separate, easy-to-clean collection tray
• Temperature control: Electronic ,In 1 °C steps
• Design baking tray(s): Permanently mounted
• Number of baking units: 1
• Timer: Yes
• ON/OFF switch: Yes
• Frequency: 50/60 Hz
• Temperature range to: 300 °C
• Waffle size: Ø 175 mm
• Control lamp: Heat up ,ON/OFF
• Protection class: IPX3
• Control unit: MDI knob
• Including: 1 collection tray
• Waffle form: Brussels waffle, round
• Baking trays can be rotated: No
• Material: Stainless steel
• Colour: Silver grey
• Voltage: 230 V
• Material baking trays: Aluminium, coated
• Temperature range from: 50 °C
• Digital display: Yes
• Power: 1 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 370280
