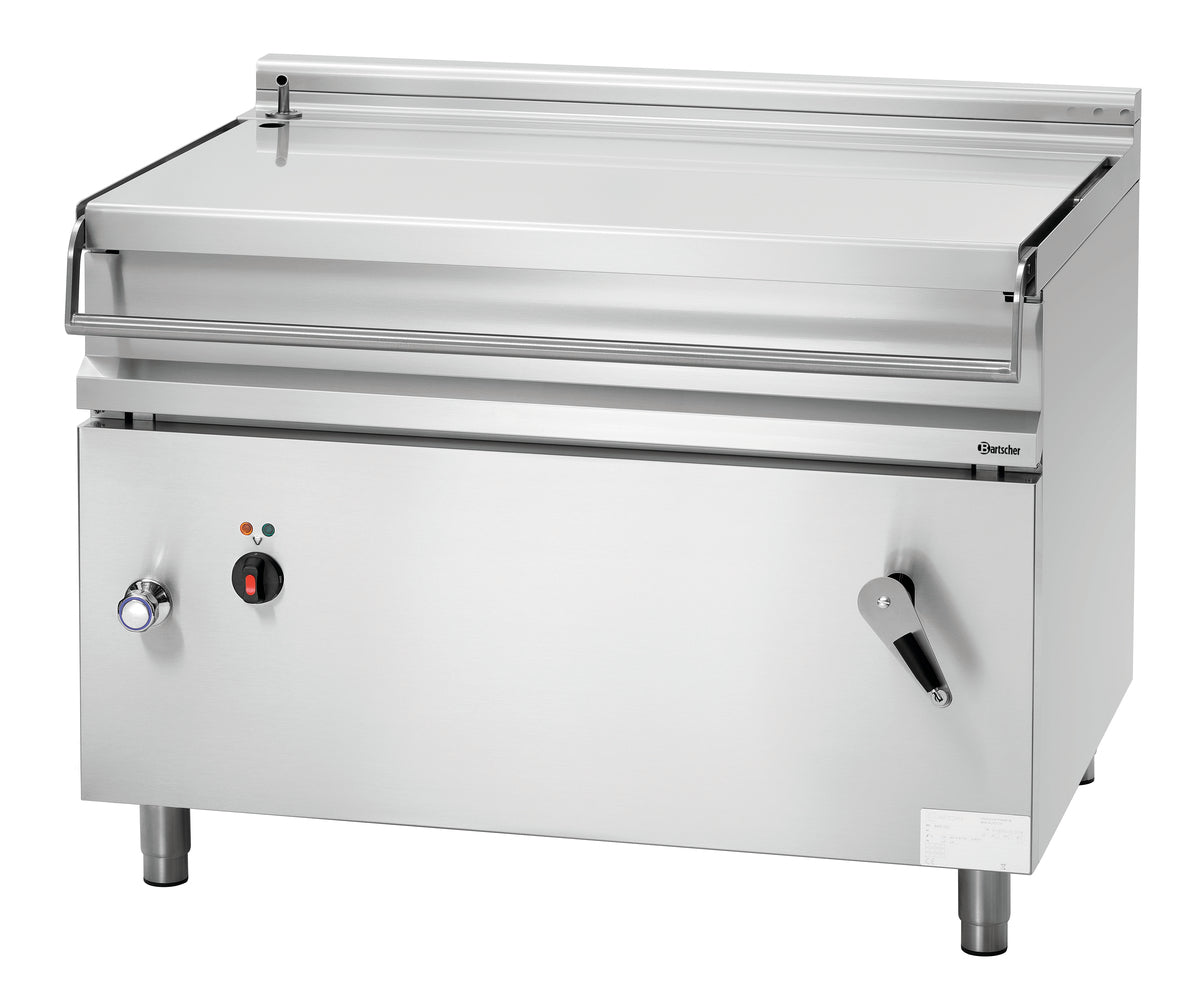

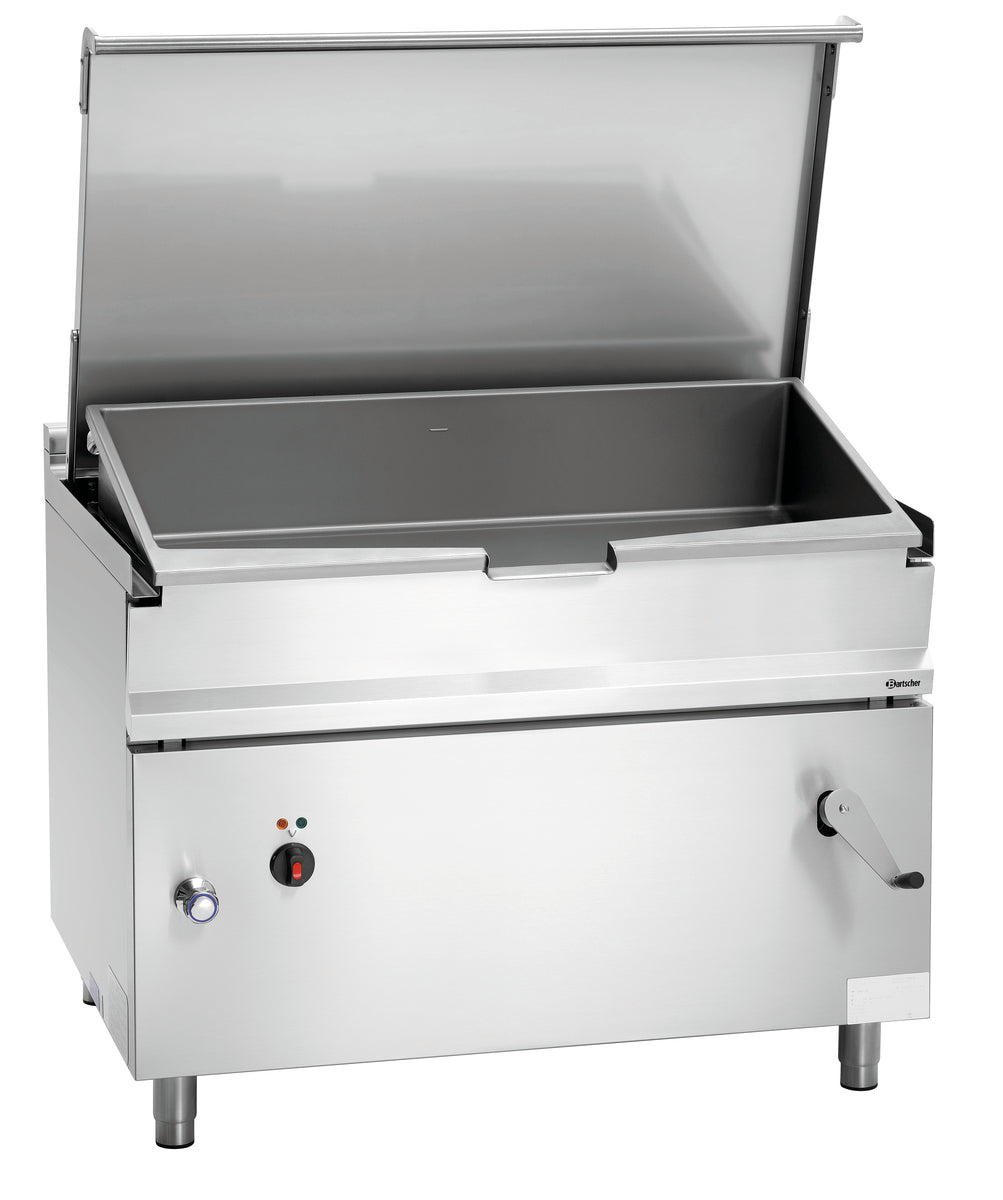

Electric tilting frying pan E120LHK, 100-litre capacity, 1090 mm pan width, 14.8 kW, Incoloy heating elements. Safety shut-off in case of fault, water connection, manual tilting mechanism, up to 300 °C. For commercial kitchens that fry, braise and blanch huge quantities daily.

Product benefits

• High capacity for maximum efficiency: With a useful content of 100 litres and a total volume of 120 litres, the E120LHK is ideal for commercial kitchens and professional catering facilities with high throughput.
• Precise temperature control up to 300 °C: The wide temperature range from 45 to 300 °C allows for precise searing, steaming and cooking – for optimal cooking results every time.
• Robust stainless steel – built for continuous use: The CNS 18/10 housing and a crucible made of high-quality chrome-nickel steel guarantee durability and resistance in everyday kitchen use.
• Manual tilting device with full control: The manual tilting function allows for controlled emptying even with large quantities – hygienic, safe and energy-saving to use.
• Intelligent safety shut-off in the event of a malfunction: In the event of any technical malfunction, the system automatically cuts off the power supply – for maximum operational safety in everyday kitchen use.
• Heating technology made of Incoloy 800 for precise heat output: The powerful heating elements made of Incoloy 800 ensure fast heat-up times and even heat distribution – energy-efficient and reliable.
• Ergonomically adjustable thanks to height-adjustable feet: The E120LHK can be adjusted to a working height of between 850 and 910 mm – for fatigue-free working regardless of body size.
• Integrated water supply tap for direct connection: Thanks to a 12 mm water connection with inlet tap, water can be added directly to the device – convenient and functional for daily workflows.

Technical data

• Width: 1200 mm
• Depth: 900 mm
• Height: 900 mm
• Net weight: 237 kg
• Gross weight: 257 kg
• Volume: 1.775 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Frequency: 50 Hz

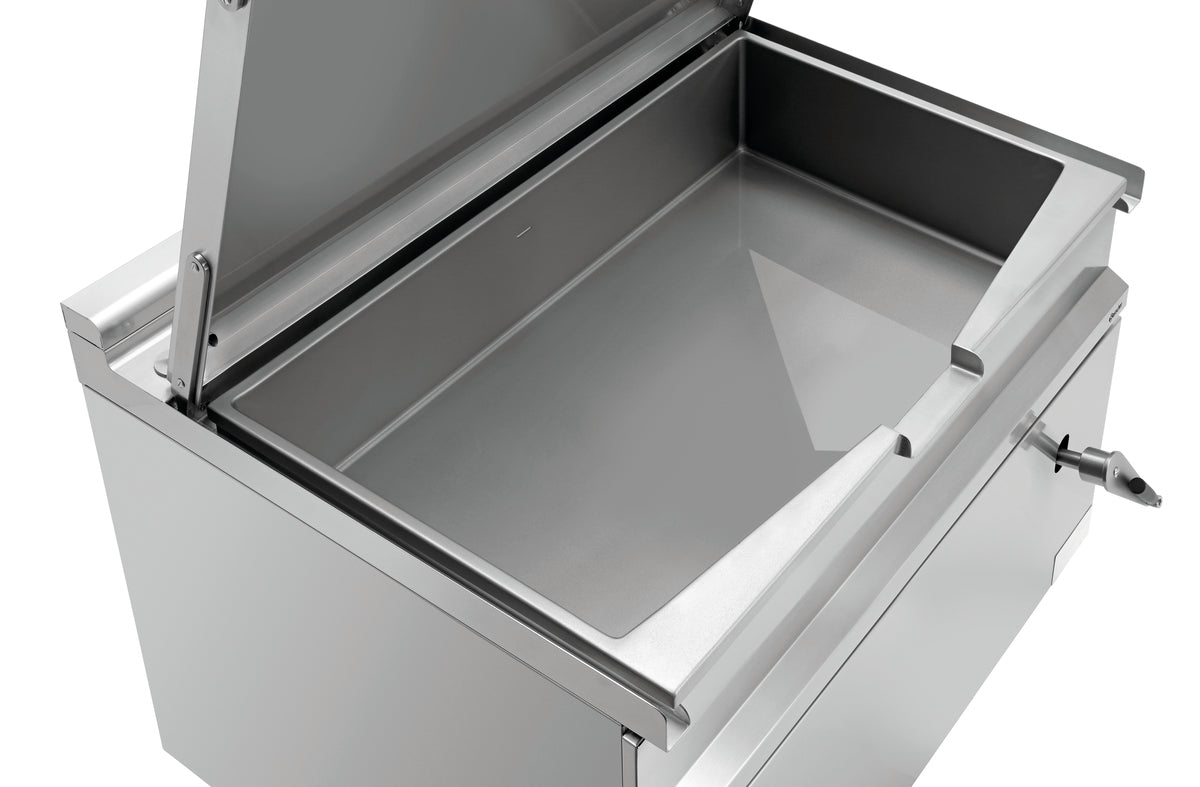

• Material crucible: Chrome-nickel steel
• Useful content: 100 litre(s)
• Height crucible: 225 mm
• Equipment connection: 3 NAC
• Water connection: 12 mm
• Content: 120 litre(s)
• Height-adjustable from: 850 mm
• Material: CNS 18/10
• Width crucible: 1090 mm
• Properties: Power supply interruption in case of malfunction ,Heating resistors from "Incoloy 800"
• Voltage: 400 V

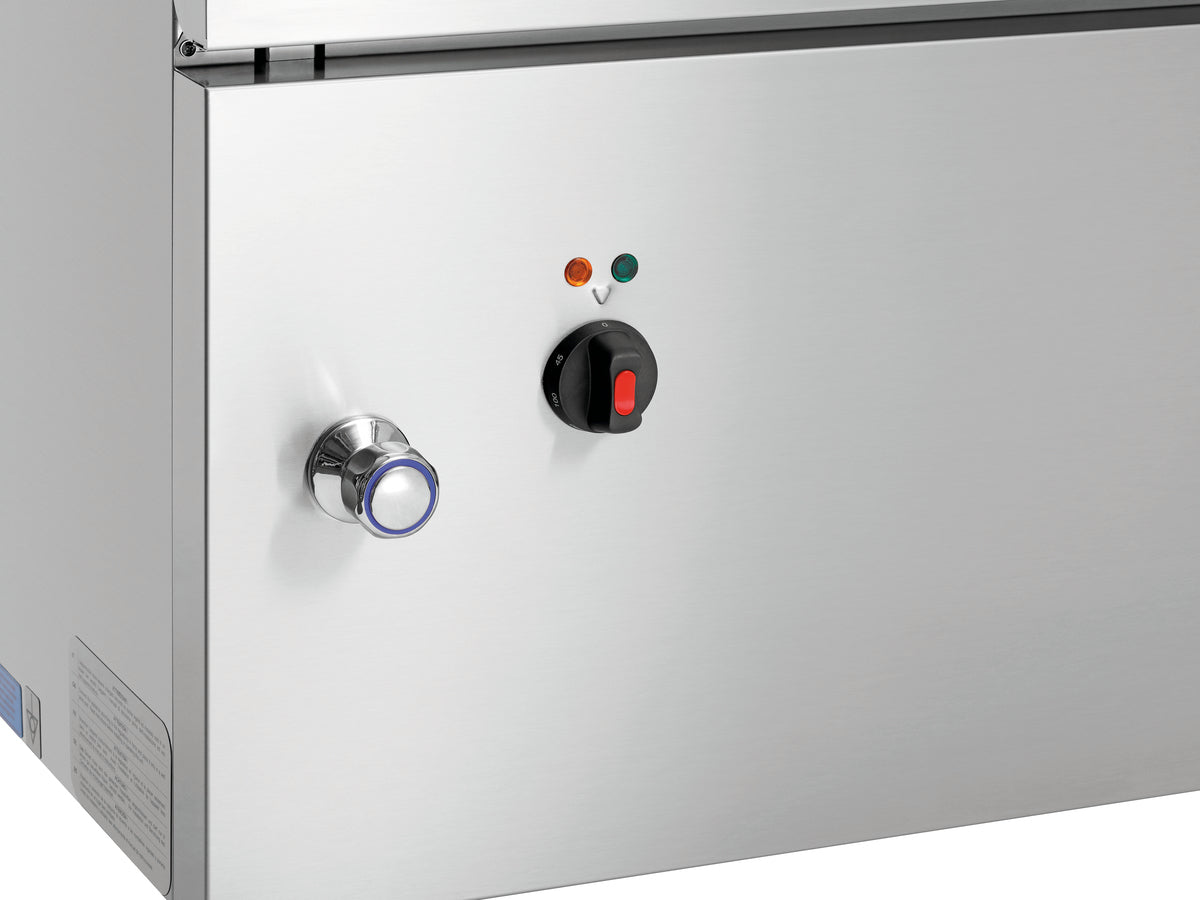

• Control lamp: yes
• Height-adjustable to: 910 mm
• Power: 14.8 kW
• Protection class: IPX4
• Tilting device: Manual
• Temperature range from: 45 °C
• Height-adjustable feet: Yes
• Depth crucible: 560 mm
• Water supply tap: Yes
• Operating mode: Electro
• Temperature range to: 300 °C

Documents

• Datasheet
• Exploded view
• Wiring diagram

Manufacturer item number: 193062
