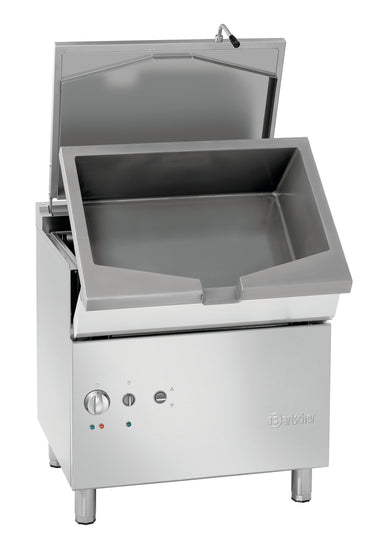

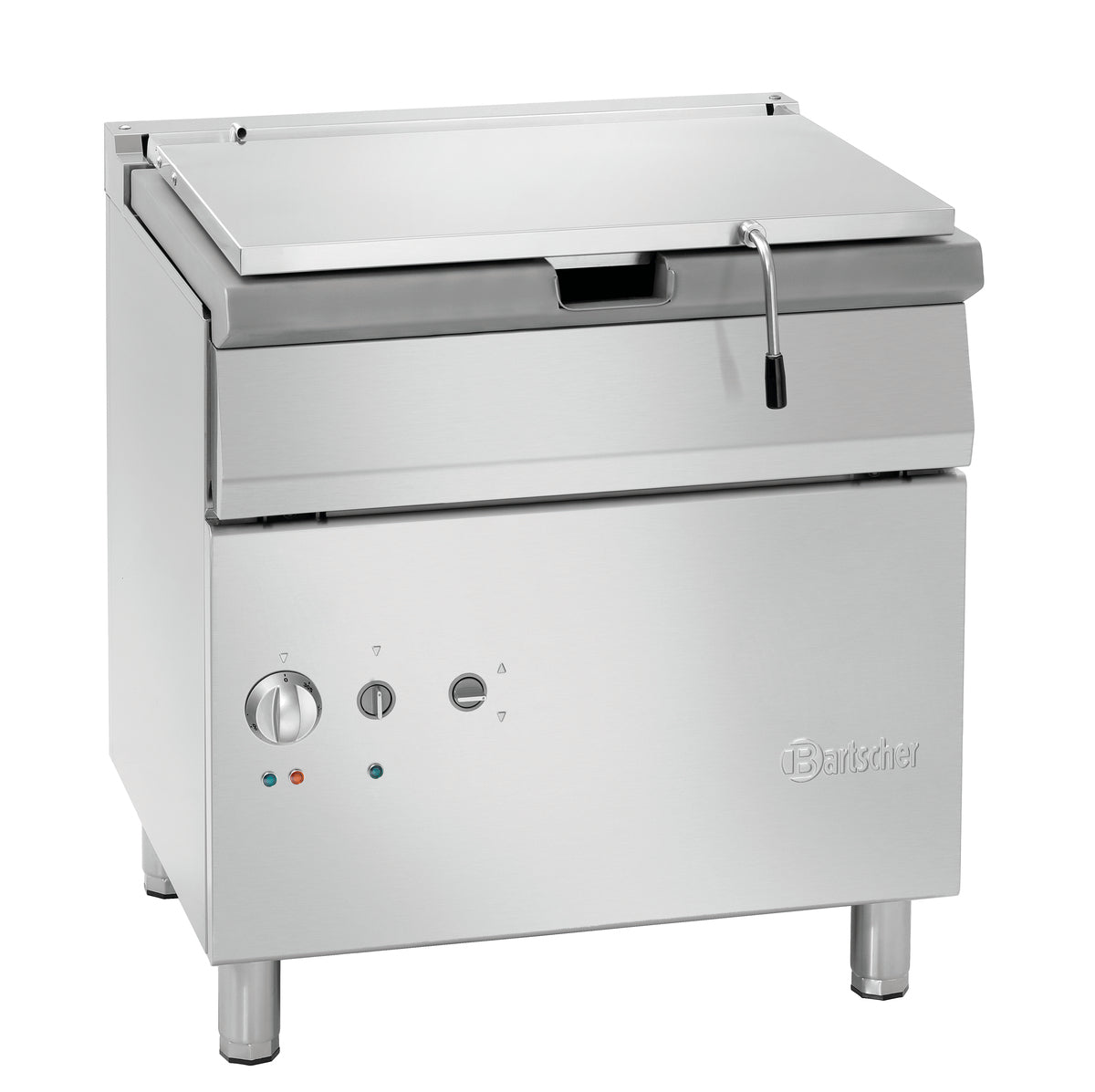

Electric tilting frying pan Series 700, 52-litre capacity, electric motorised tilting mechanism, 10.25 kW, duplex base. Hinged lid, water connection, up to 300 °C. Convenient for chefs who wish to avoid strenuous tilting movements on a daily basis and prefer a motorised drive.

Product benefits

• Precise performance for the highest demands: With a power of 10.25 kW, the tilting frying pan reaches high temperatures quickly and enables precise frying at a consistently high performance – ideal for professional continuous use.
• Maximum efficiency with 52 litres of usable volume: The generous stainless steel pan with a useful content of 52 litres and a width of 670 mm offers plenty of space for large quantities – perfect for use in commercial kitchens, canteens and catering.
• Electric motorised tilting – safe and energy-saving: Thanks to the electric motor-driven tilting device, emptying is ergonomic and controlled – a boon for efficiency and occupational safety in professional kitchens.
• Robust construction for continuous use: Made of CNS 18/10 with a durable duplex base, the appliance is particularly dimensionally stable, durable and resistant to aggressive cleaning agents and acids.
• Precise temperature control from 50 to 300 °C: The wide temperature range allows for versatile preparation of everything from delicate dishes to vigorous searing – with even heat distribution for optimal frying results.
• Height-adjustable for ergonomic working: Individually adjustable working height from 850 to 900 mm promotes back-friendly working and remains flexible even with different staff.

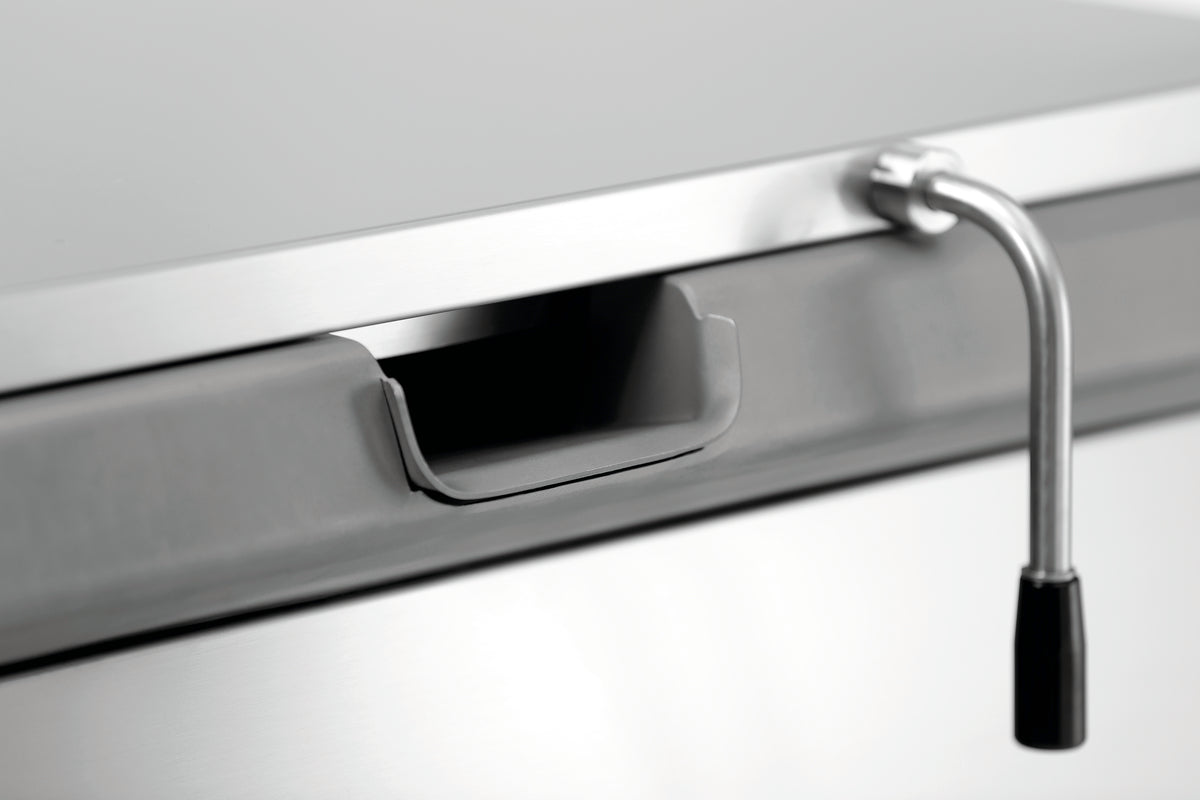

• Integrated water inlet for quick filling: The water supply tap attached directly to the appliance saves time and effort – ideal for smooth processes when preparing large quantities.

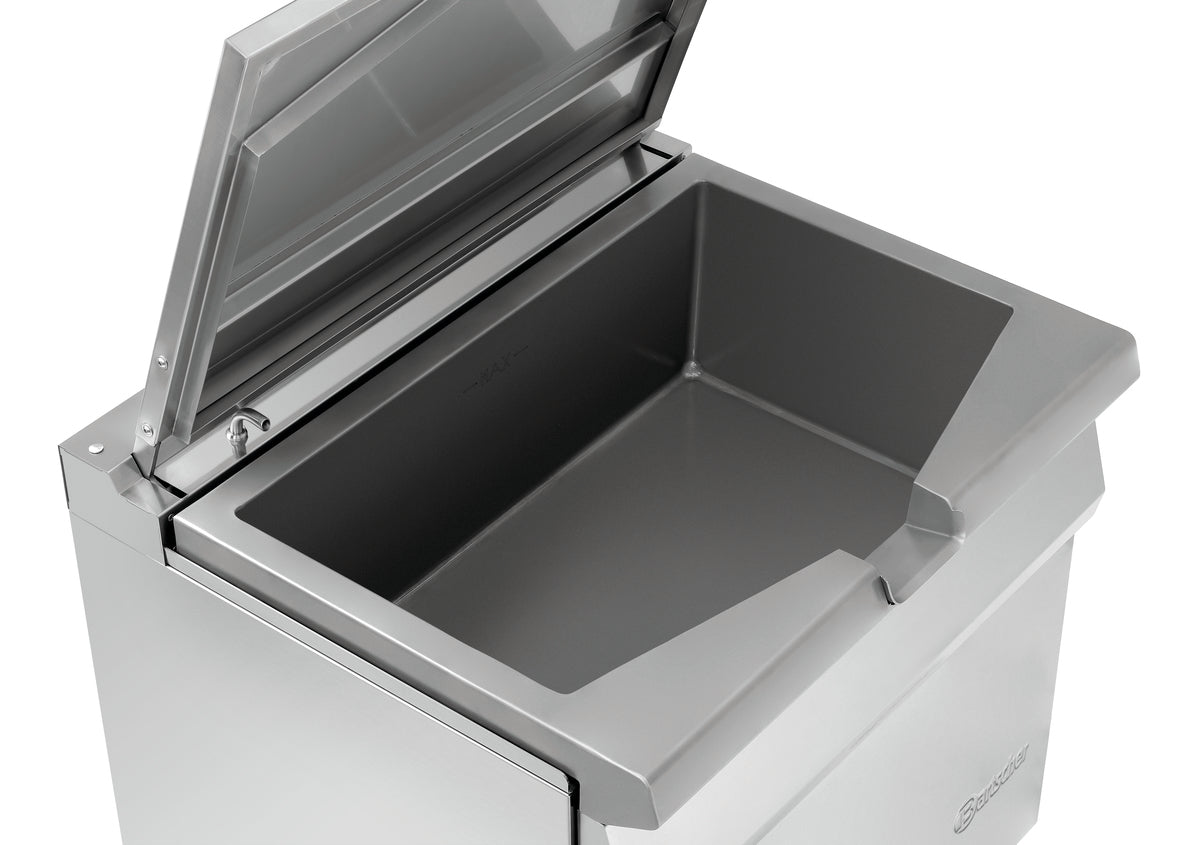

• Practical hinged lid for safe handling: The hinged lid is easy to open and close – keeping heat and energy in the cooking chamber while ensuring access to the pot at all times.

Technical data

• Width: 800 mm
• Depth: 700 mm
• Height: 850 mm
• Net weight: 107 kg
• Gross weight: 121.8 kg
• Volume: 0.785 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Frequency: 50 Hz
• Material crucible: Stainless steel ,Duplex base
• Useful content: 52 litre(s)
• Height crucible: 190 mm
• Equipment connection: 3 NAC
• Water connection: 3/4"
• Series: 700
• Content: 60 litre(s)
• Height-adjustable from: 850 mm
• Material: CNS 18/10
• Width crucible: 670 mm
• Properties: Hinged lid that can be opened upwards
• Voltage: 400 V

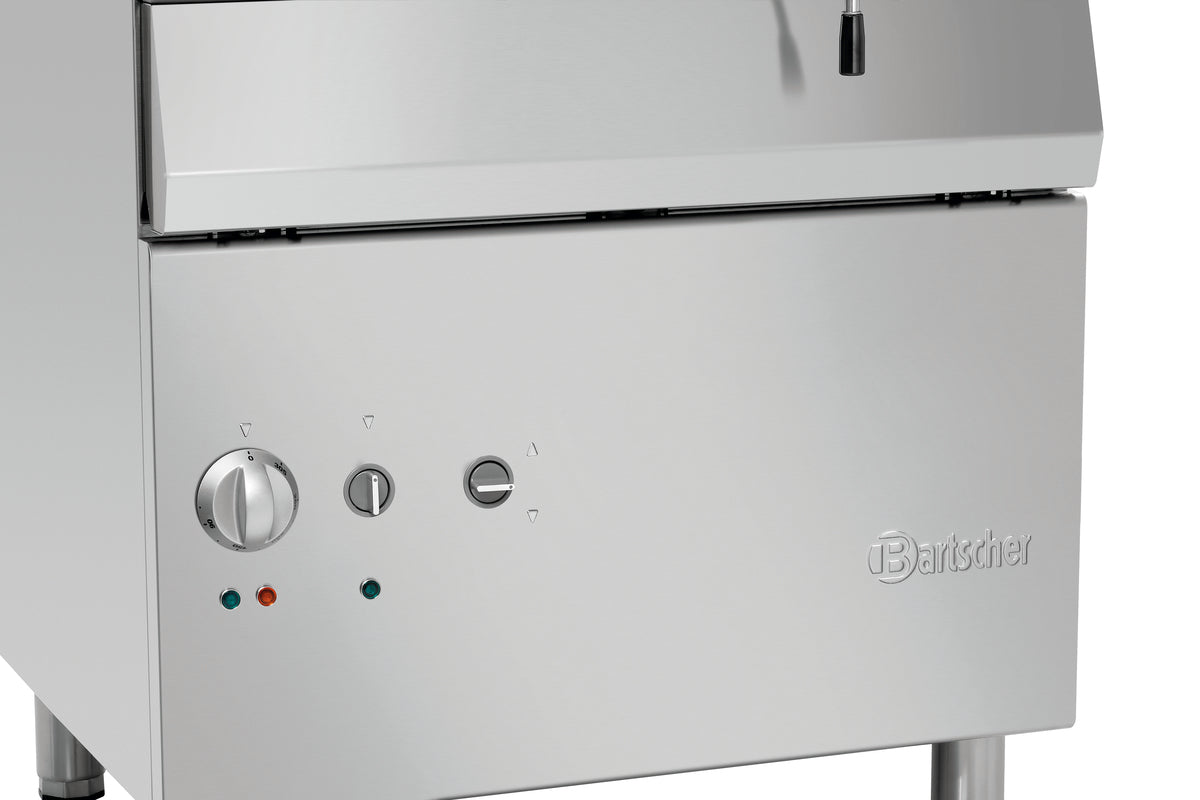

• Control lamp: Heat up ,ON/OFF
• Height-adjustable to: 900 mm
• Power: 10.25 kW
• Protection class: IPX4
• Tilting device: Electro-motor
• Temperature range from: 50 °C
• Height-adjustable feet: Yes
• Depth crucible: 400 mm
• Water supply tap: Yes
• Operating mode: Electro
• Temperature range to: 300 °C

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 286613
