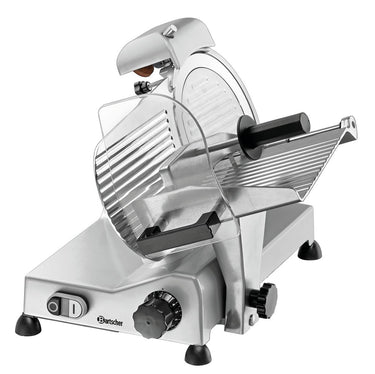

The design of the optimised slicing machine with its 220 mm blade stands out thanks to many technical features. The high-performance oblique slicer in 5 different sizes has a holder for remainders, a blade sharpener, a cutting guide and a two-fold blade guard as well as a solenoid switch to guarantee safety.

Product benefits

• Precise cuts for professional requirements: Thanks to an adjustable cutting thickness of 1 to 12 mm, the 220 Plus slicer delivers precise results – ideal for consistent quality in the kitchen and at the counter.

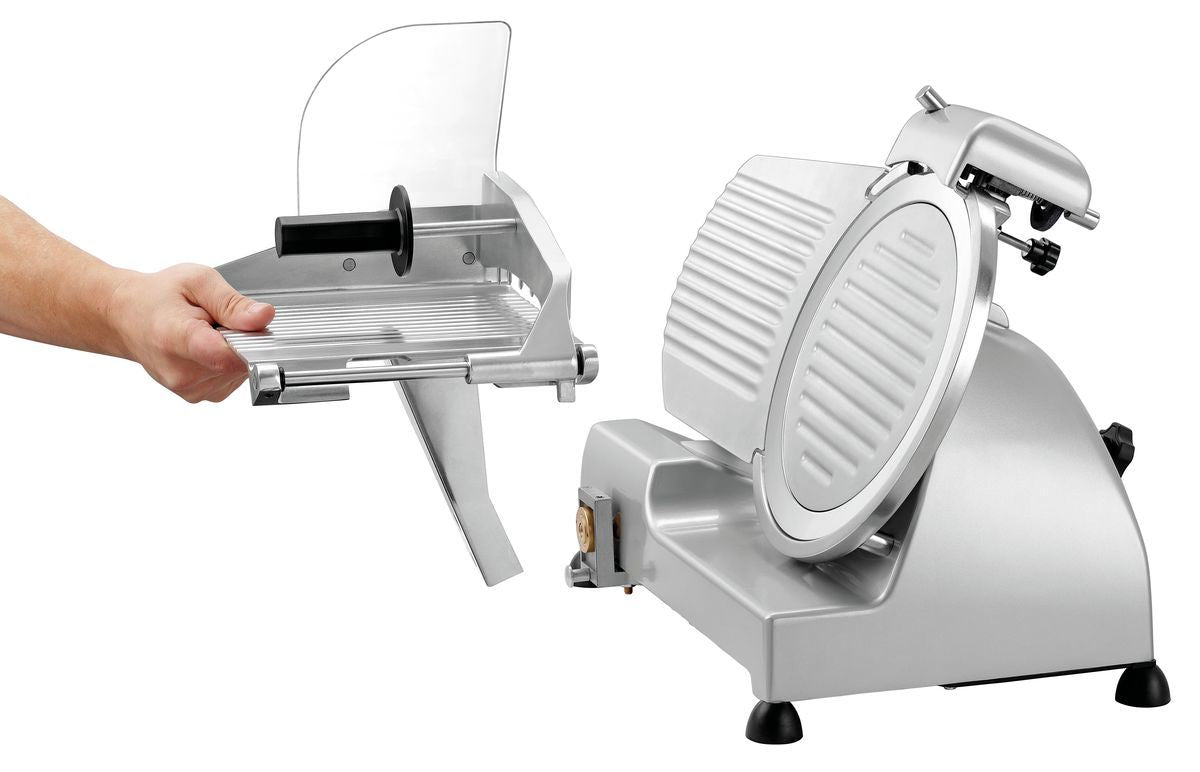

• Hygienic, well-thought-out design: A removable carriage and selected materials such as aluminium and plexiglass facilitate thorough cleaning – a clear advantage in everyday professional kitchen use.
• Work safely – double protection: With a double blade guard and an integrated Solenoid switch, the machine ensures maximum safety in daily use.
• Compact performance, big impact: Despite its low power consumption of only 0.13 kW, this powerful mitre saw impresses with its smooth running and high cutting efficiency – ideal for continuous use.

Technical data

• Width: 410 mm
• Depth: 475 mm
• Height: 360 mm
• Net weight: 14 kg
• Gross weight: 16.364999999999998 kg
• Volume: 0.114 MTQ
• Guarantee: VG
• Customs tariff number: 84385000
• Carriage design: Detachable ,2 handles
• Cutting length: 205 mm
• Protection class: IPX3
• Cutting height: 135 mm
• Design: Oblique cutter / gravity slice
• Including: 1 Knife 220 Basic
• Power: 0.13 kW
• Cutting thickness: 1 - 12 mm
• Holder for remainders: Yes

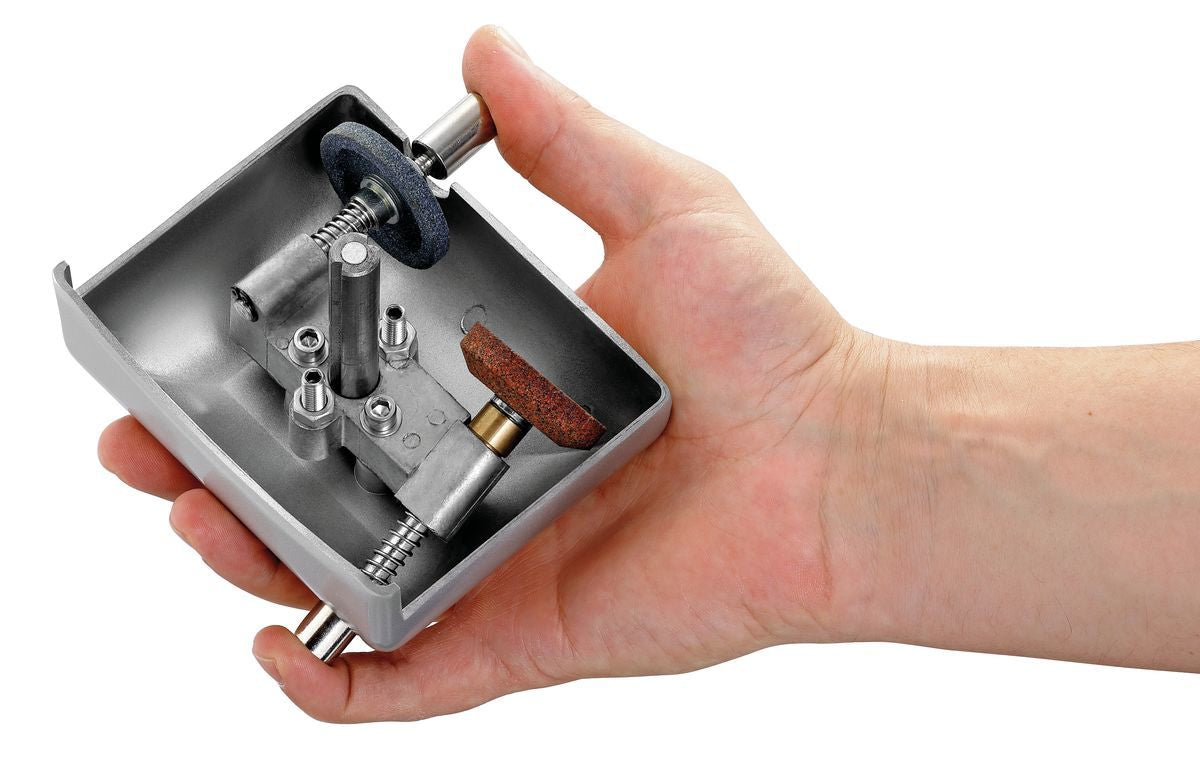

• With knife sharpener: Yes
• Material: Aluminium ,Plexiglas ,Plastic
• Diameter knife: 220 mm
• Voltage: 230 V
• Length cable: 1.4 m
• Rpm max.: 191 r. / min.
• Blade guard: 2-fold
• Control unit: Toggle
• Designed for: Sausage
• Control lamp: ON/OFF
• ON/OFF switch: Yes
• Cutting guide: Yes
• Colour: Silver
• Solenoid switch: Yes
• Frequency: 50 Hz

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 174221
