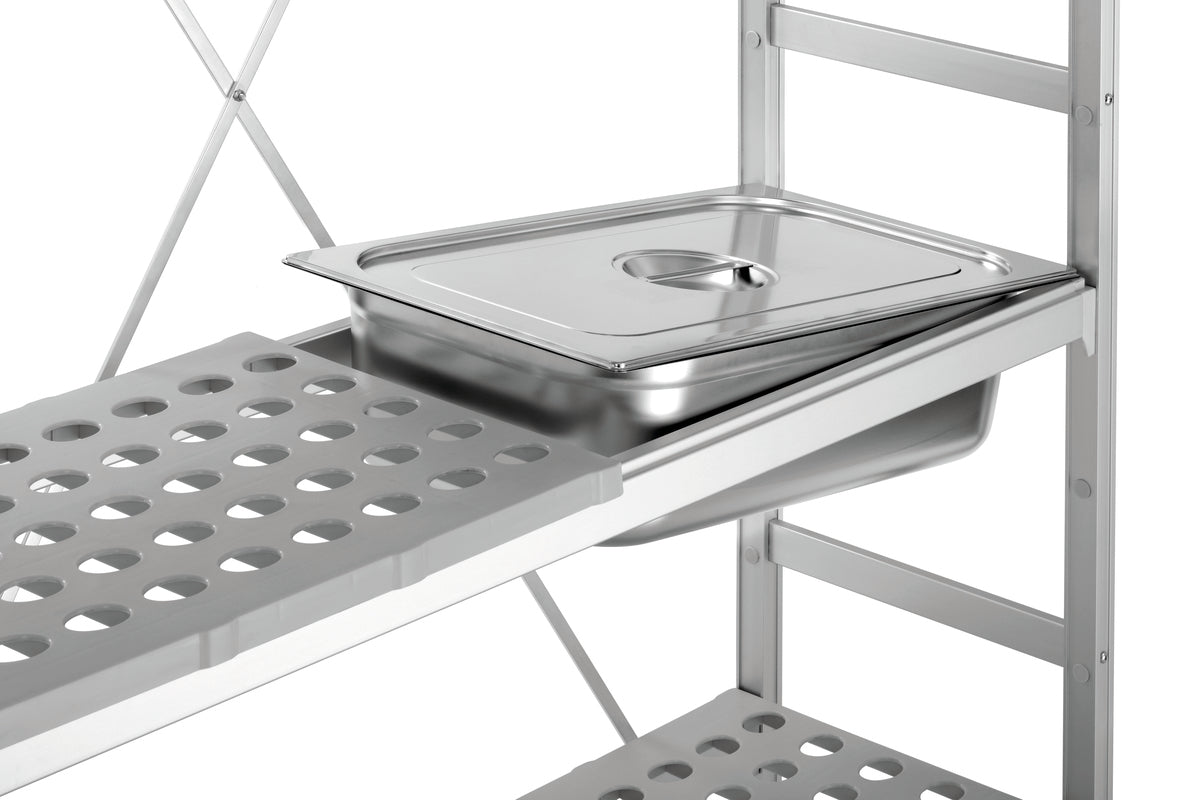

The shelf cannot just be used in all restaurant areas, it is also highly versatile: instead of shelves, GN containers can also be used instead.

Product benefits

• Greater flexibility through GN integration: The shelves can be replaced with GN containers – ideal for quick conversion depending on storage requirements or workflow.
• Ideally equipped for extreme conditions: Suitable for wet rooms, cold rooms and deep-freeze rooms – Kit 4, B1070 impresses with its reliable stability in demanding temperatures.
• Easy to assemble, ready for immediate use: Thanks to the plug-in system and all the assembly materials supplied, the shelf can be assembled quickly – even without tools.
• Strong performance at every level: With a load capacity of up to 50 kg per shelf, the system reliably supports heavy containers and supplies – with a total capacity of up to 150 kg.
• Optimal hygiene – without extra effort: The perforated plastic shelves are dishwasher-suitable – for easy cleaning and hygienic safety in everyday kitchen use.

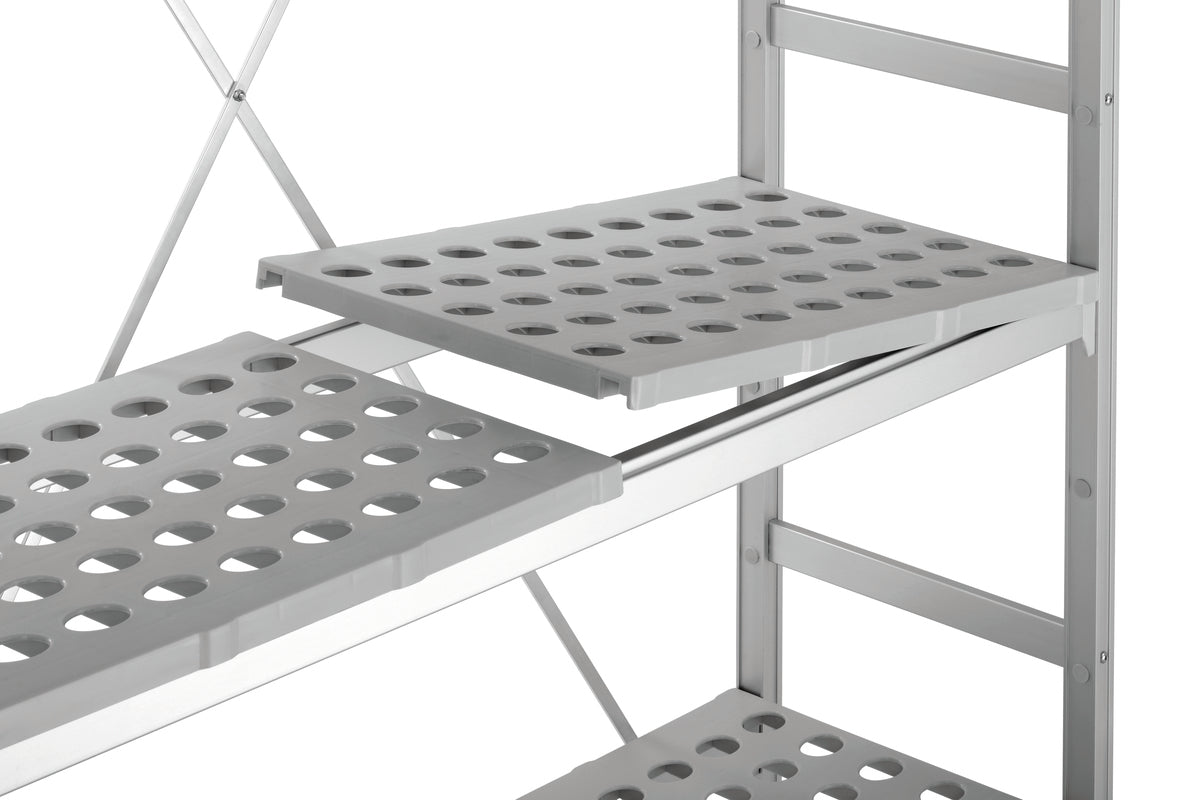

• Height-adjustable for maximum use of space: The shelves can be positioned individually – for perfect adaptation to stored goods, ergonomics and workflow.
• Lightweight, robust and corrosion-resistant: Aluminium and plastic ensure low weight while providing resistance to moisture and cold.
• Well thought-out for professionals – versatile in use: Whether in commercial kitchens, cold stores or catering, the Kit 4 impresses with its multifunctional applications in the professional sector.

Technical data

• Width: 1140 mm
• Depth: 360 mm
• Height: 1790 mm
• Net weight: 14.7 kg
• Gross weight: 17.100000000000001 kg
• Volume: 0.156 MTQ
• Guarantee: VG
• Customs tariff number: 94032080
• Set comprises: 2 shelf stands ,8 insert shelves
• Height-adjustable shelves: Yes
• Assembly type: Connecting system
• Total load-bearing capacity, max.: 150 kg
• Gastronorm: 1/3 GN ,1/2 GN ,2/3 GN ,1/1 GN
• Including: Installation materials
• Properties: Practical second use by using GN containers instead of shelves ,Shelves dishwasher-suitable
• Load-bearing capacity per shelf, max.: 50 kg
• Delivery state: Building kit (simple assembly)
• Material: Aluminium ,Plastic
• GN-capable: Yes
• Number of shelves: 4
• Shelf type: Upright shelf
• Application area: Humid rooms ,Canteens ,Refrigerated rooms ,Refrigeration cell ,Freezer cell
• Width shelves: 1060 mm
• Design shelves: Perforated
• Depth shelves: 360 mm

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 603175
