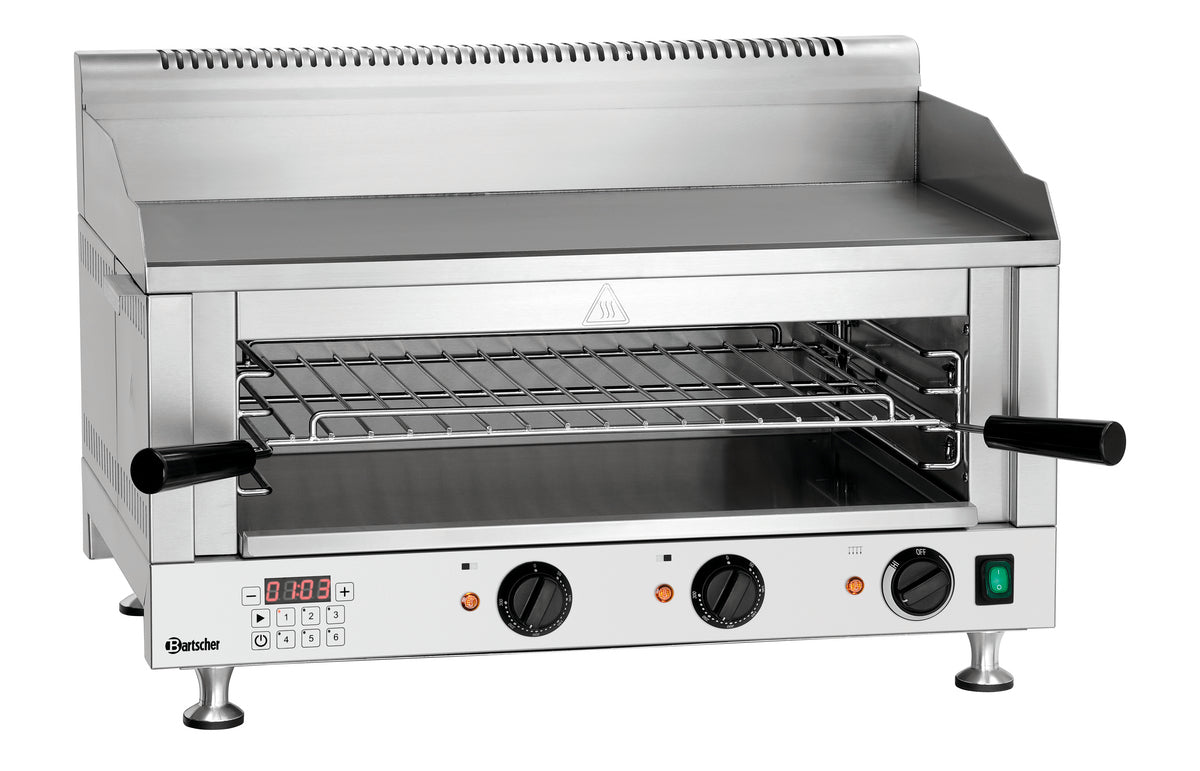

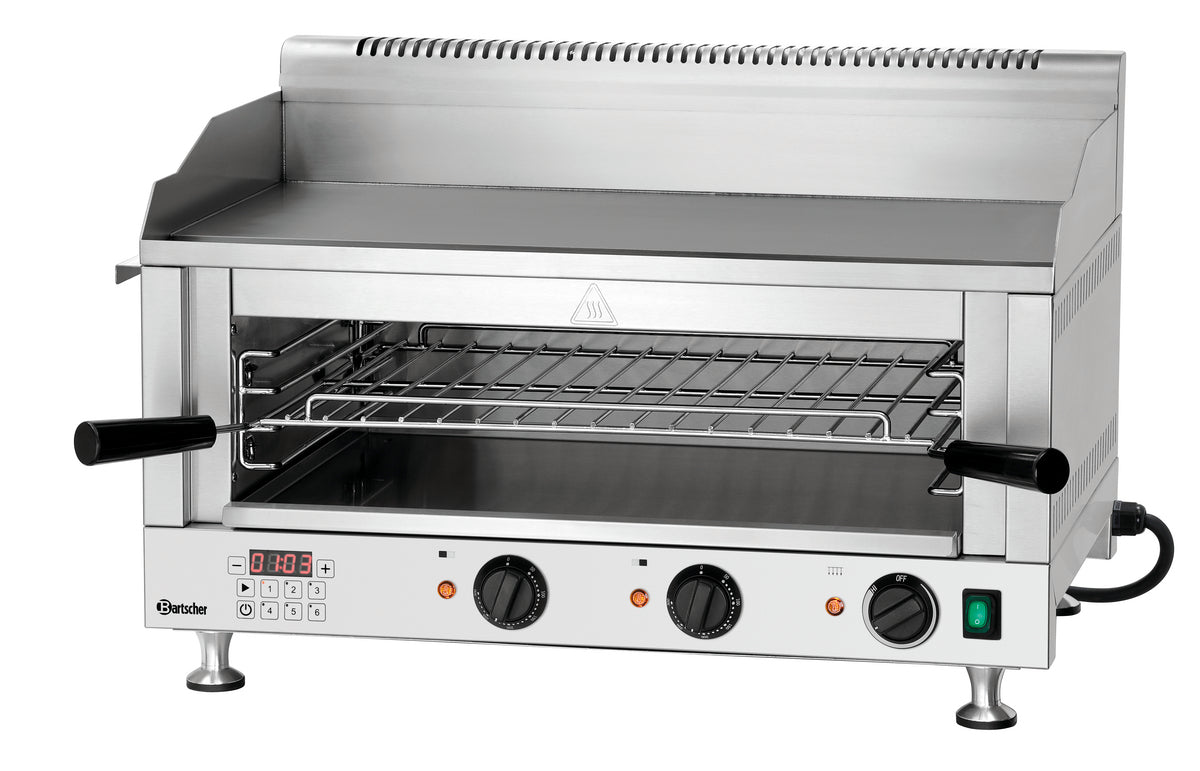

This space-saving grill/broiler combination has a powerful griddle plate with 2 heating zones that can be switched on and off separately. The salamander's heat supply can be regulated perfectly with the height-adjustable rack and stepless temperature control. Thanks to the digital timer, grilling and gratiné processes are always completely controlled – even during peak times.

Product benefits

• Two functions, one appliance: maximum kitchen efficiency: The combination of Griddle plate and salamander offers frying and gratinating in one – space-saving and efficient for professional use.
• Precision at the touch of a button: With continuously adjustable temperature and digital Timer, you always have full control over cooking time and heat supply, even during peak hours.
• Independent heating zones for greater flexibility: Two separately adjustable griddle heating zones allow different foods to be cooked at the same time – ideal for high production diversity.

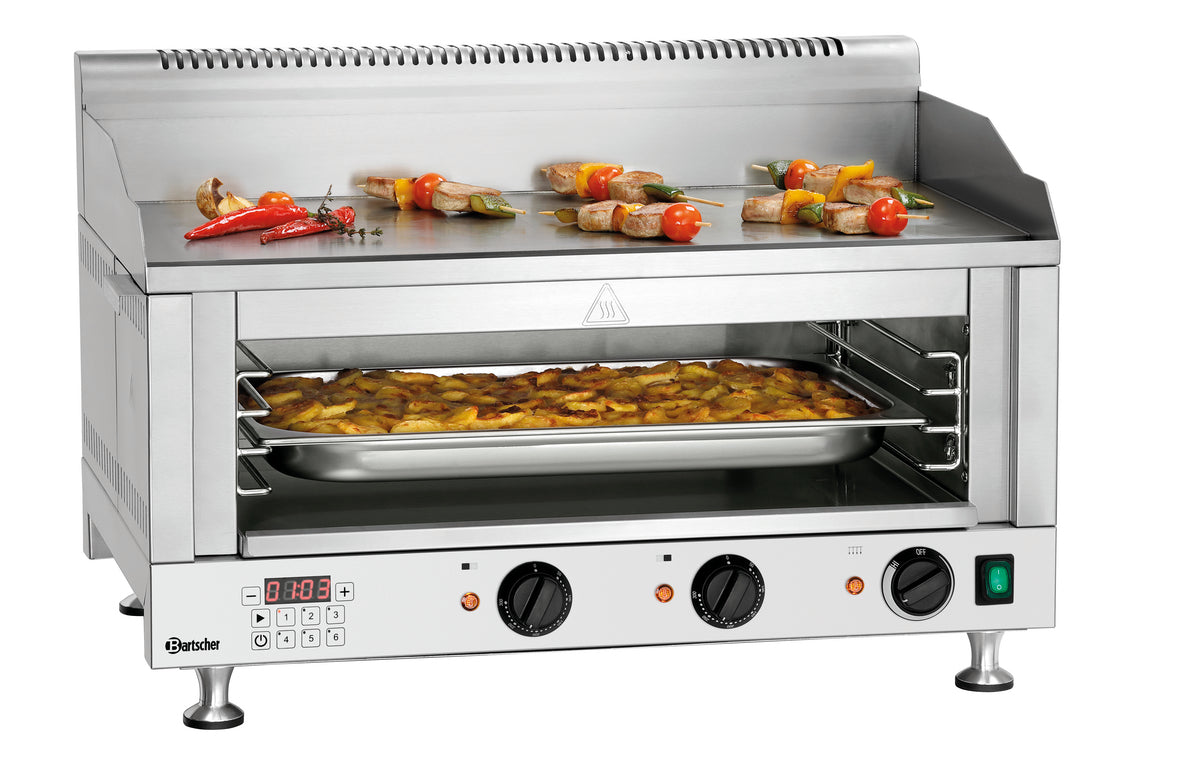

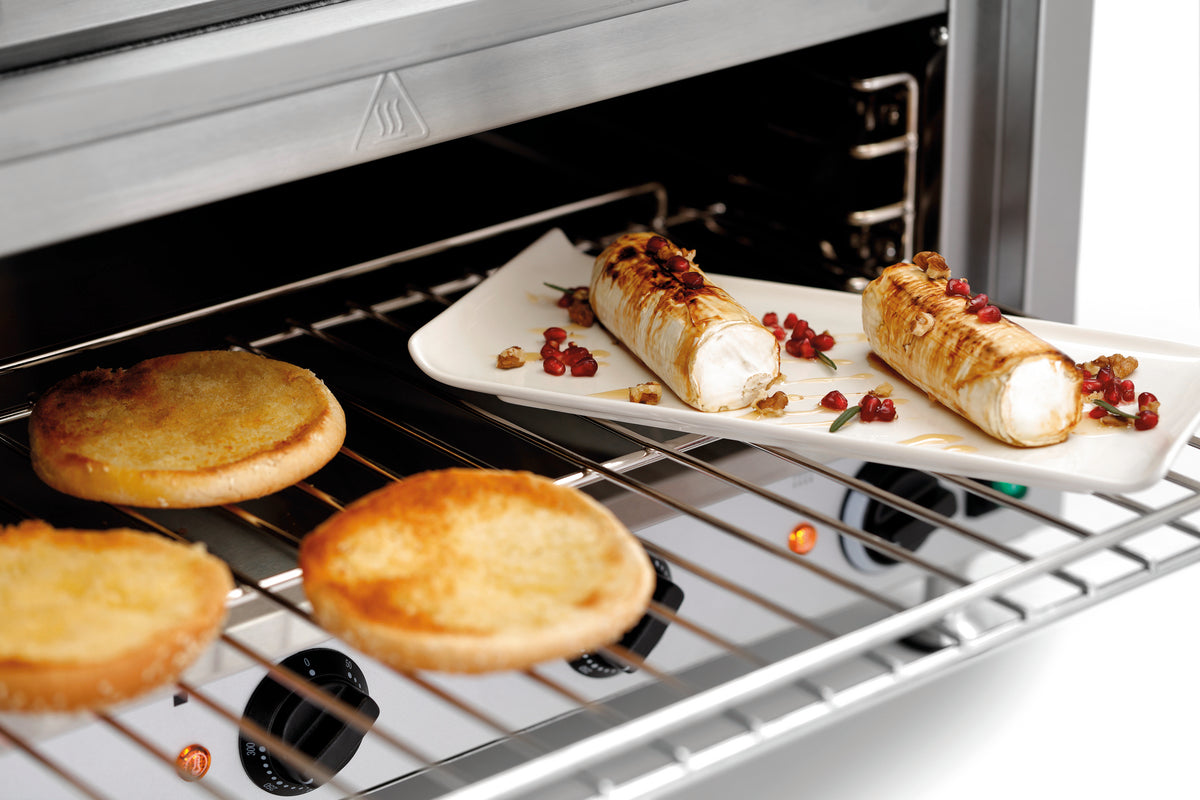

• GN-compatible for seamless processes: The height-adjustable grid in 1/1 GN format can be used directly with standard Gastronorm containers – for optimum process integration.
• Robust construction for continuous use: The housing and cooking surface are made of high-quality stainless steel and special steel, which can withstand heavy use and ensure long-term reliability.
• Digitally stored – consistently good: With up to six programmable cooking profiles, consistent quality can be ensured for recurring grilling and gratinating processes.

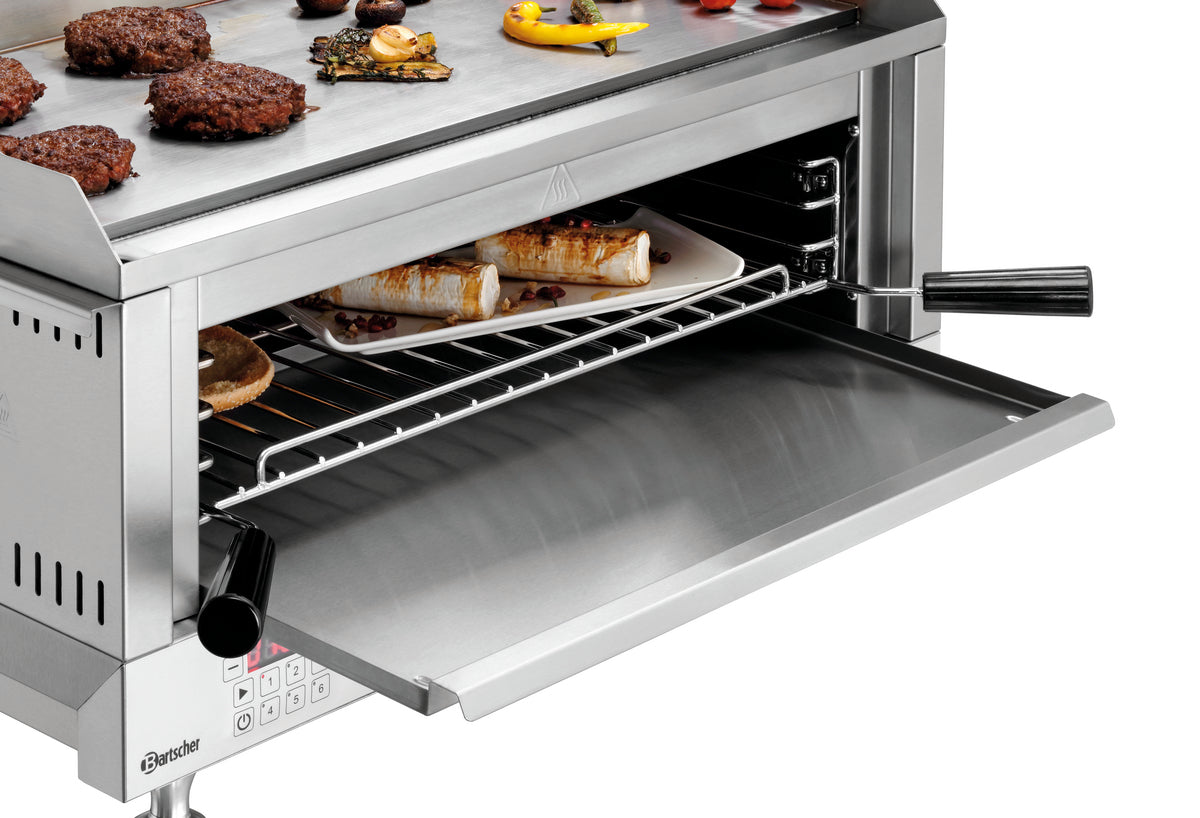

• Easy to clean – ready to use immediately: Grease collection systems for griddles and salamanders make cleaning easier and ensure hygienic conditions with minimal time expenditure.

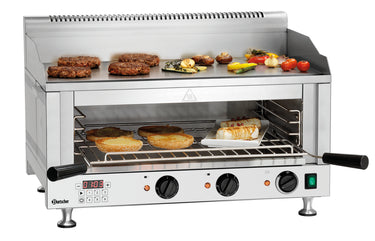

• Compact in Format – big on performance: Despite its space-saving design, the salamander griddle 6640 delivers a total output of 6.64 kW – ideal for cramped kitchens with high utilisation.

Technical data

• Width: 720 mm
• Depth: 560 mm
• Height: 460 mm
• Net weight: 49.8 kg
• Gross weight: 54 kg
• Volume: 0.213 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Equipment connection: 3 NAC
• Control lamp: Heat up ,ON/OFF
• Frequency: 50/60 Hz
• Power: 6.64 kW
• Voltage: 400 V
• Width roasting surface: 700 mm
• Number of salamander heating zones: 1

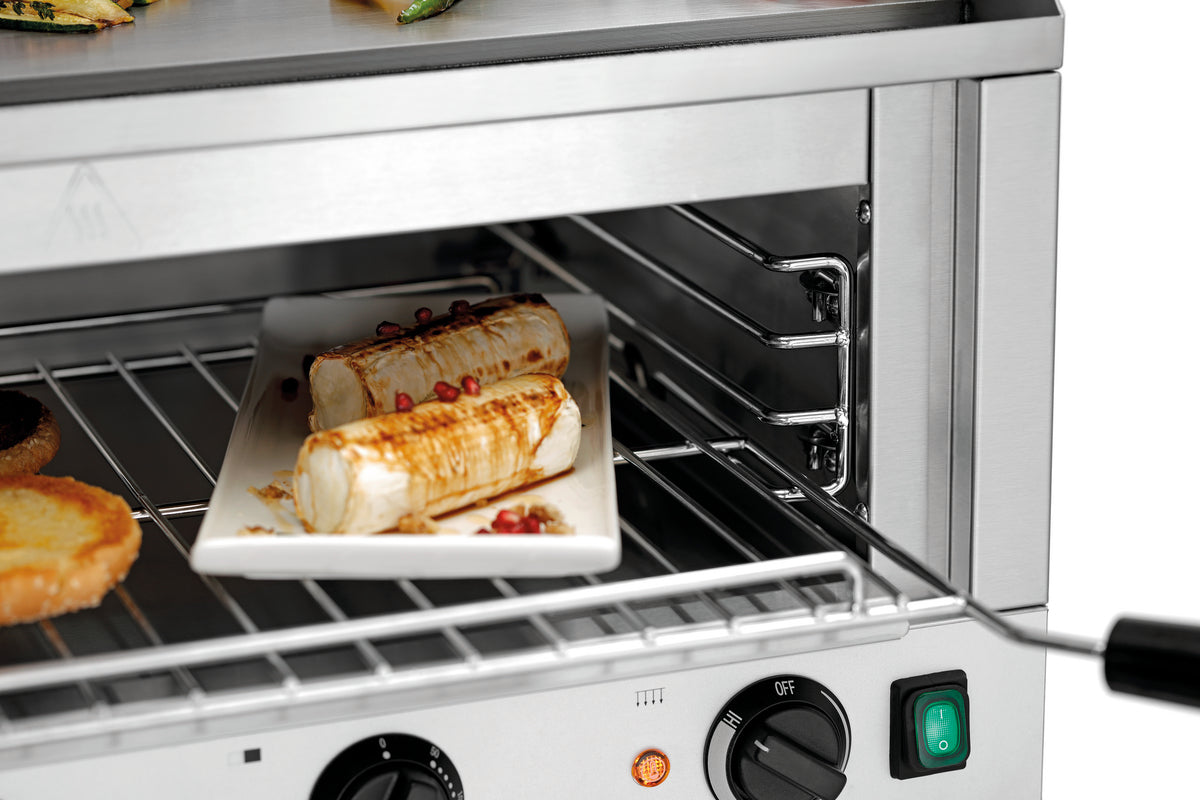

• Height-adjustable grid: Yes

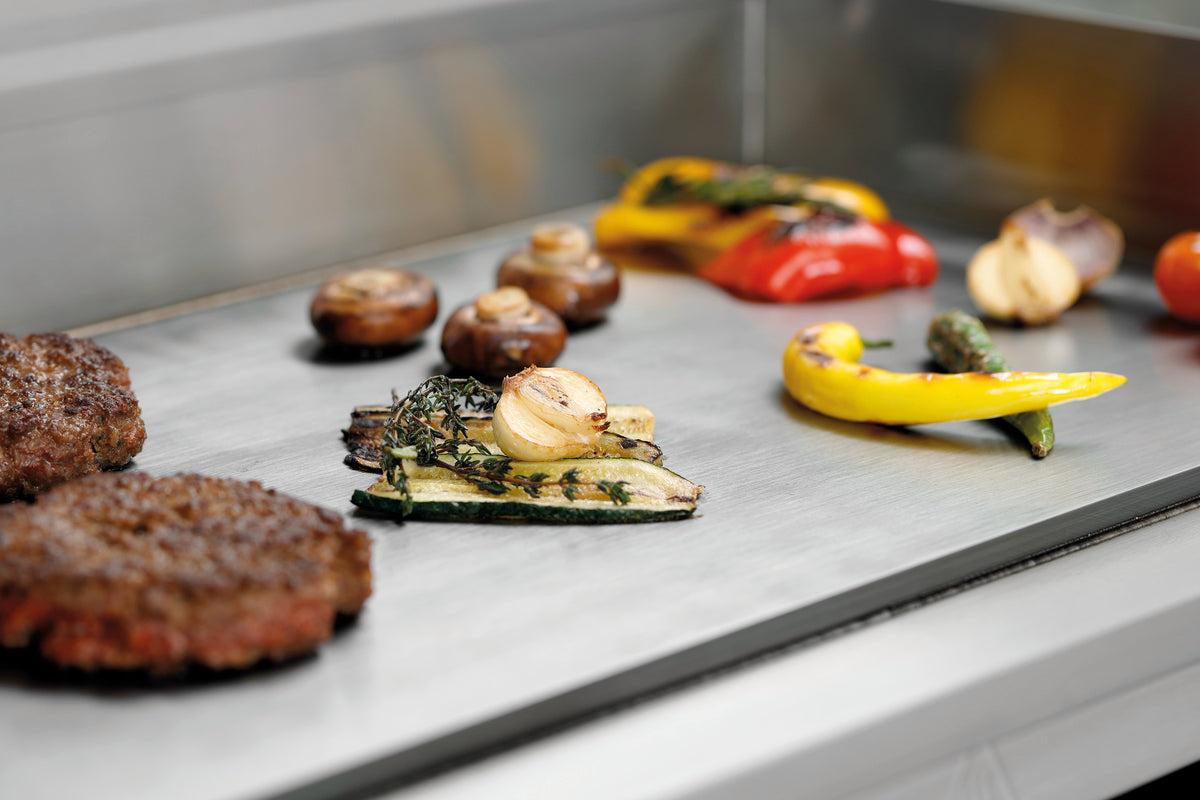

• Roasting surface design: Smooth
• Number of griddle plate heating zones: 2
• Control unit: Electronic ,Toggle
• Material: Stainless steel
• Griddle plate temperature range: 50 °C to 300 °C
• Including: 1 grid
• Depth roasting surface: 330 mm

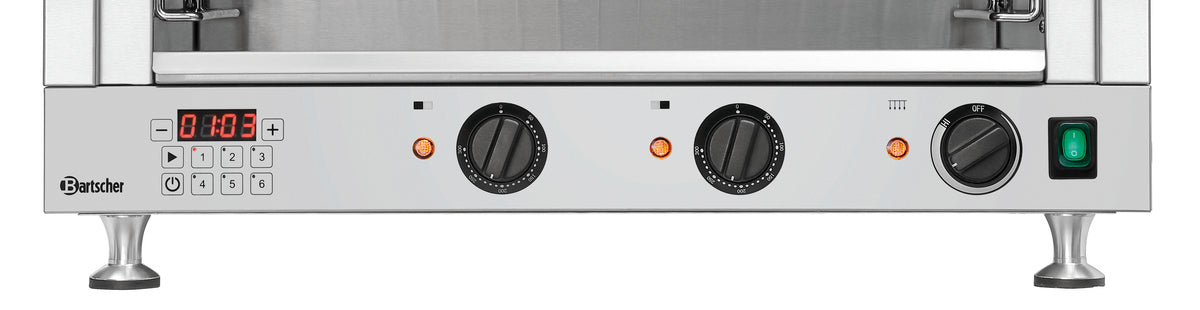

• Timer: 6 times can be saved ,30 seconds to 100 minutes
• Digital display: Yes
• Separate control of griddle plate heating zones: Yes
• Salamander temperature range: To 190 °C °C
• Safety thermostat: No
• Dimensions of cooking rack: W 560 x D 400 mm ,GN-compatible, 1/1 GN
• Output control: Stepless
• Material roasting surface: Special steel
• ON/OFF switch: Yes

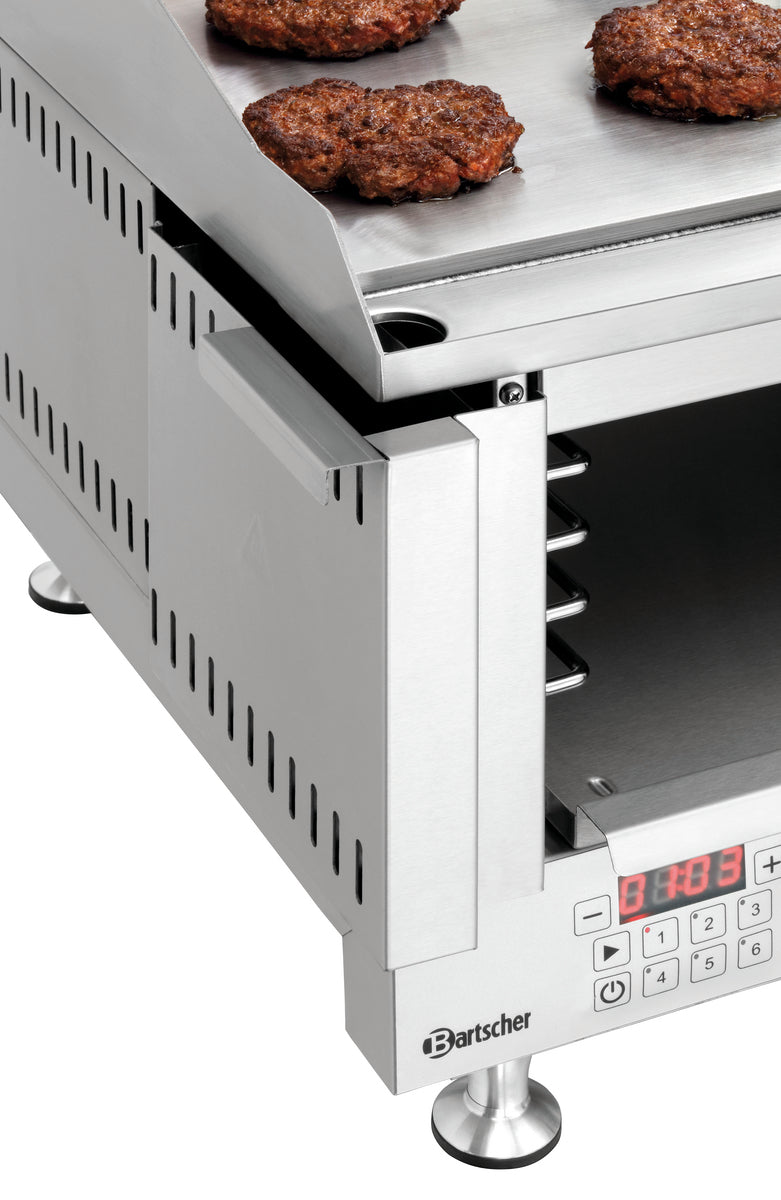

• Grease collection tank: For griddle plate ,For salamander
• Number of salamander heating elements: 1

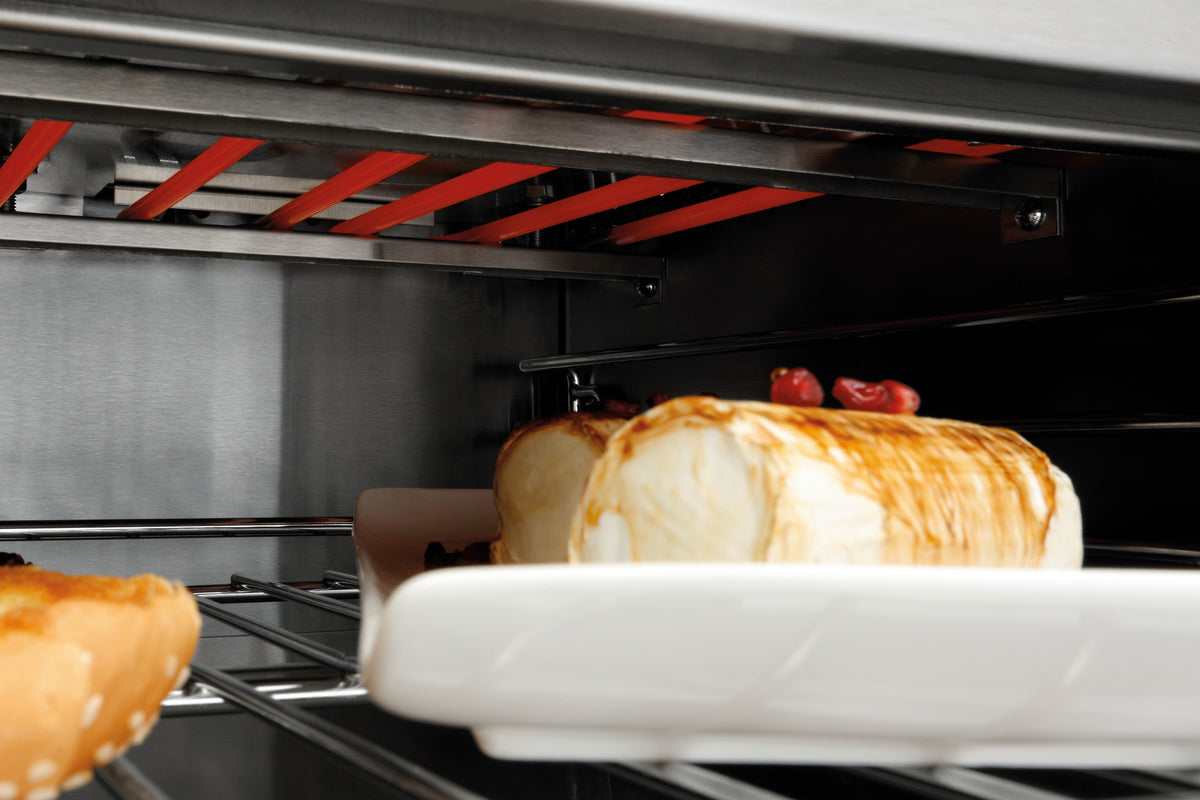

• Salamander heat source: Radiant heaters

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram
• Documentation

Manufacturer item number: 100533
