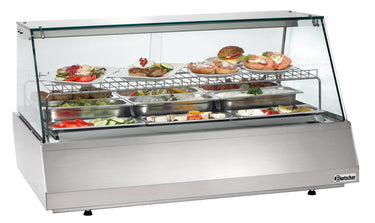

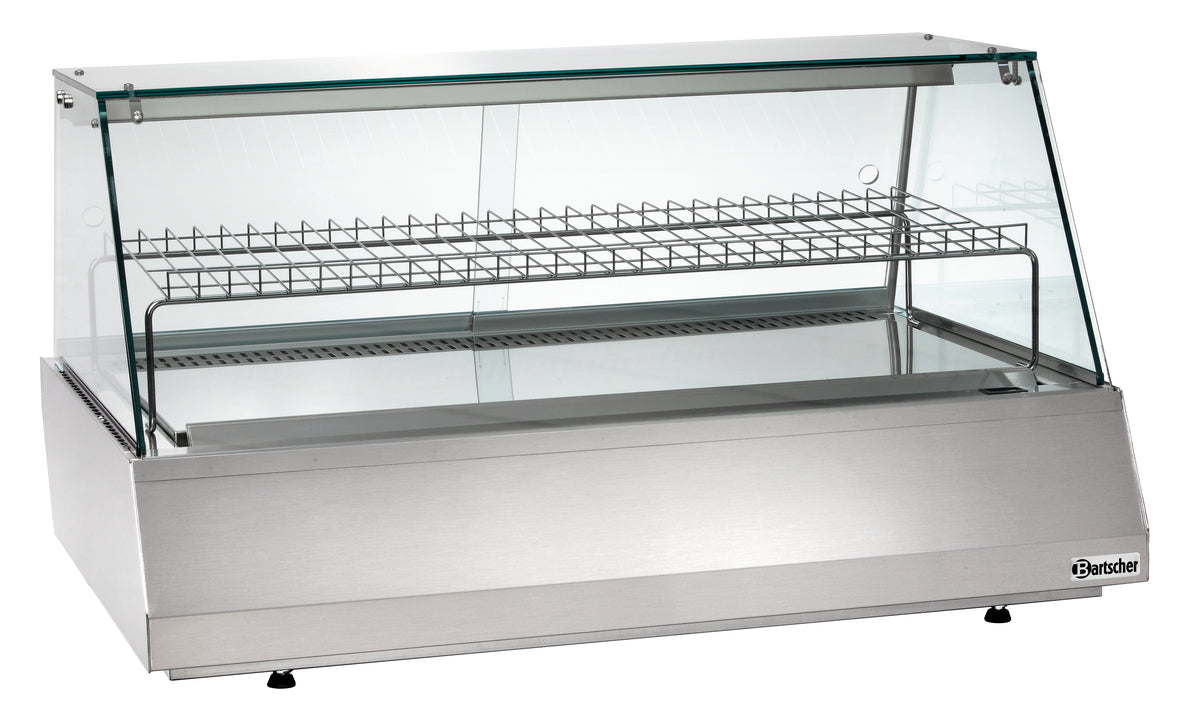

Refrigerated display counter 3 x 1/1 GN, 165 litres, forced air, 6–10 °C – all-round glazing, bevelled glass, halogen lighting switchable separately, sliding doors at the rear. Digital control, R290 refrigerant. For butchers, delicatessens and catering establishments.

Product benefits

• Maximum visibility for your fresh produce: The fully visible single glazing made of Safety glass with halogen lighting attractively showcases food and supports sales-boosting presentations at buffets or serving counters.
• Efficient cooling, hygienic presentation: Thanks to recirculating air cooling and digitally controlled Temperature control between 6–10 °C, sensitive foods remain reliably fresh – even with frequent access in hectic kitchen operations.
• Robust construction for continuous daily use: With interior fittings made of high-quality CNS 18/10 and resistant Safety glass, the counter is ideal for demanding locations in commercial kitchens, canteens or catering environments.
• Optimal use of space with high operating comfort: With a useful content of 165 litres, a generous intermediate shelf (990 x 410 mm) and a sliding door at the rear, the counter is ergonomically designed for efficiency and quick access – perfect for high-frequency periods.
• Intelligent automatic system for reduced maintenance: Automatic defrosting function and integrated drip water evaporation reduce cleaning and maintenance intervals – for trouble-free operation in everyday use.
• Energy efficiency meets modern technology: With a low power consumption of only 0.46 kW, the environmentally friendly refrigerant R290 and digitally controlled electronics, the counter impresses with its economical and sustainable operation.
• Compact cooling in GN standard: The refrigerated counter holds three 1/1 GN containers with a depth of up to 65 mm – ideal for standard-compliant work and flexible food presentation in catering and restaurant applications.
• All functions at a glance – technically sophisticated: With a digital Temperature display, Control lamp and separate Lighting control, you have full control over Cooling and presentation at all times.

Technical data

• Width: 1075 mm
• Depth: 775 mm
• Height: 590 mm
• Net weight: 97.4 kg
• Gross weight: 106.2 kg
• Volume: 0.802 MTQ
• Guarantee: VG
• Customs tariff number: 84185019
• Climate class: 4 ,This appliance is intended for use in ambient temperatures up to 30 °C.
• Width intermediate shelf: 990 mm
• Power: 0.46 kW
• Type of intermediate shelves: Grille, CNS 18/10
• Position of the door: Reverse
• Depth intermediate shelf: 410 mm
• Interior lighting: Yes
• Type of door: Sliding door(s)
• Temperature range to: 10 °C
• Frequency: 50 Hz
• Automatic defrosting function: Yes
• Cooling: Circulating air
• Drip water evaporation: Yes
• Digital display: Yes
• Lighting: Halogen ,Can be switched separately
• Material: CNS 18/10 ,Glass
• Control unit: Electronic ,Knob
• Voltage: 230 V
• Temperature range from: 6 °C
• Colour: Silver
• Number of intermediate shelves: 1
• Not included in delivery: GN containers
• Coolant: R290 / 0,100 kg
• Control lamp: yes
• Safety glass: Yes
• Height-adjustable intermediate shelves: No
• Depth GN container max.: 65 mm
• Front pane: Turned-down edges
• Temperature control: Digital
• Content: 165 litre(s)
• Gastronorm: 3 x 1/1 GN
• Type of glass: All-round glass ,Single glazing

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 406056
