The 1.2 m wide pre-cleaning with sink is designed for left-side attachment to the Bartscher feed-through dishwashers DS. A base shelf offers storage space for dishwasher baskets.

Product benefits

• Optimal integration for smooth processes: Specially designed for left-side installation on Bartscher DS pass-through dishwashers – for seamless handling throughout the entire washing process.
• Robust, hygienic, easy to clean: The all-stainless steel model guarantees high durability, easy cleaning and maximum hygiene – ideal for intensive use in professional kitchens.

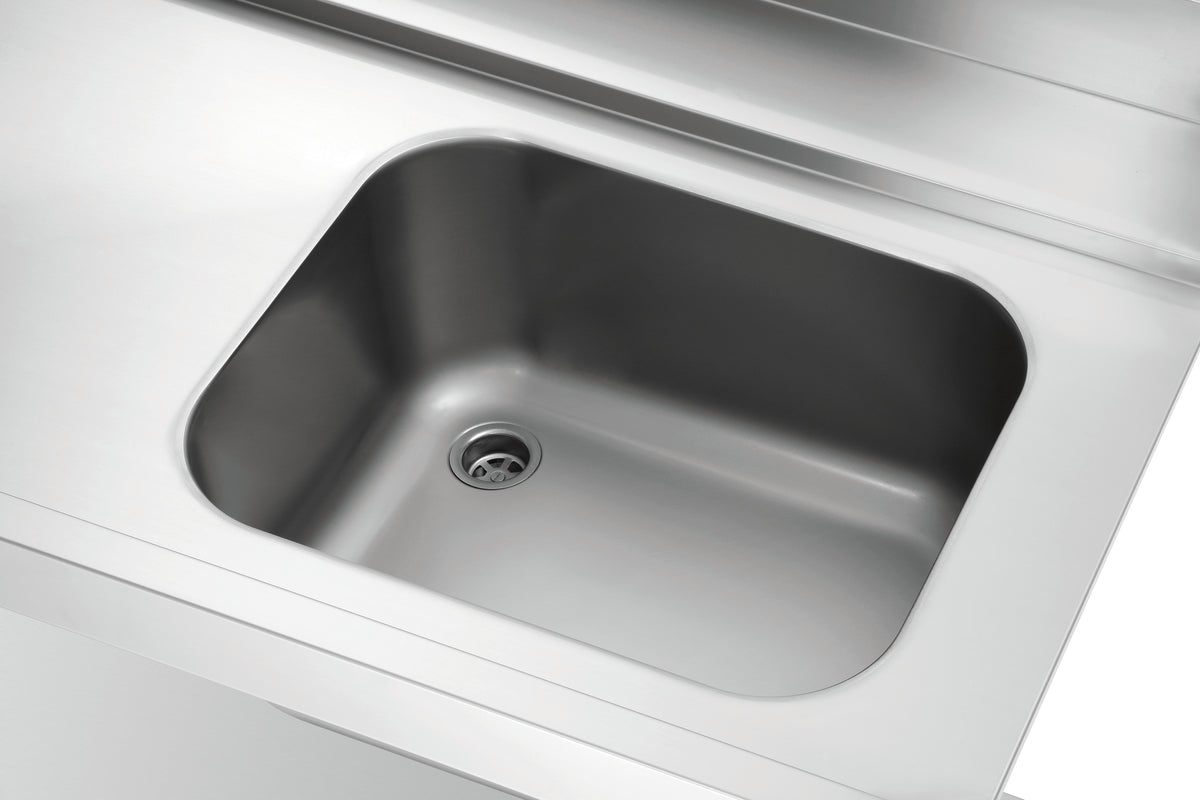

• 50 litre capacity for effective pre-cleaning: The generous sink volume allows for convenient soaking and pre-cleaning of dishes – particularly time-saving with high throughput.

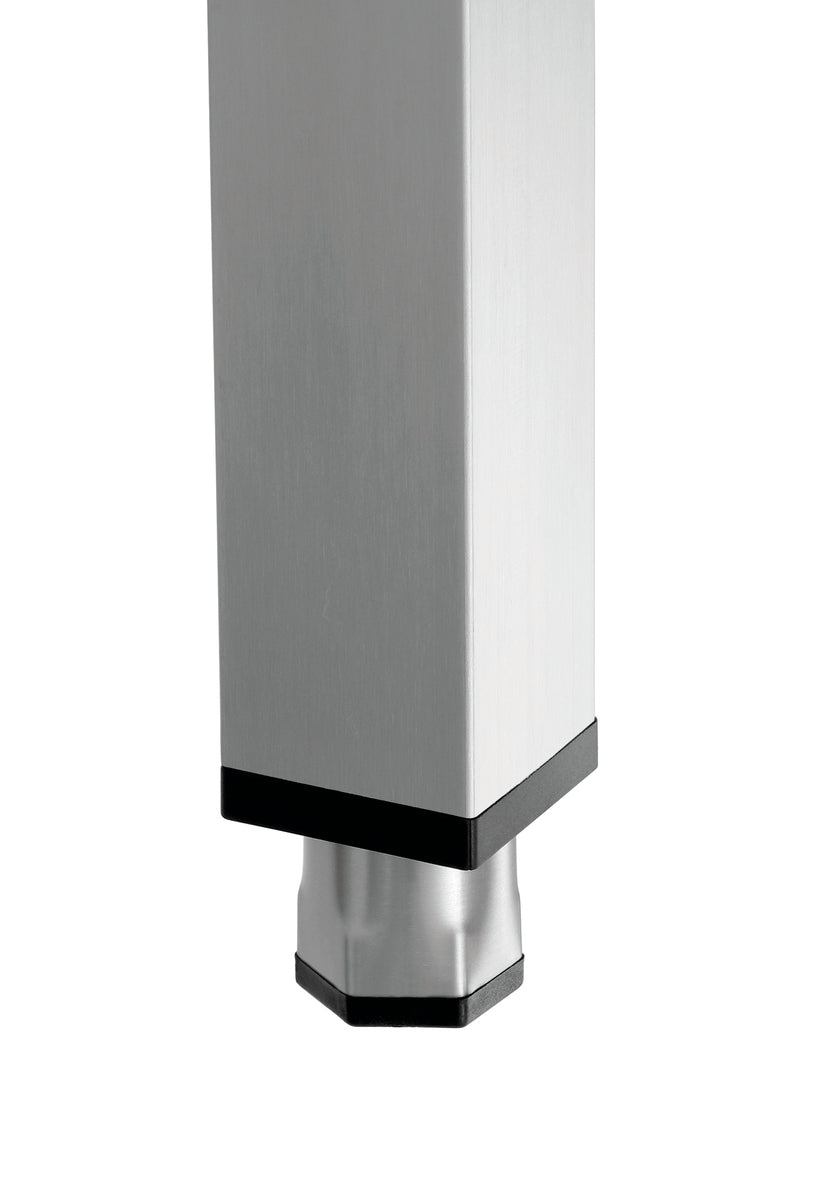

• Perfect ergonomics thanks to height adjustment: Working heights can be flexibly adjusted from 860 to 930 mm – for back-friendly working and optimal adaptation to existing kitchen systems.
• Well-designed work surface with Base shelf: The generous base shelf provides a stable and handy worktop surface for baskets and accessories – ideal for hectic everyday kitchen use.
• Effective splash guard for clean work areas: With a 110 mm high splash guard at the rear, the work area remains dry and hygienic – even with intensive use.

Technical data

• Width: 1200 mm
• Depth: 720 mm
• Height: 850 mm
• Net weight: 23.6 kg
• Gross weight: 29 kg
• Volume: 0.547 MTQ
• Guarantee: VG
• Customs tariff number: 94032080
• Beaker capacity: 50 litre(s)
• Properties: Base shelf dimensions: W 1.150 x D 500 mm
• Width tank: 500 mm
• Depth tank: 400 mm
• Height-adjustable: Yes
• Height tank: 250 mm
• Water outlet: 1 1/2"
• Height of splash protection: 110 mm
• With waste chute: No
• Height-adjustable to: 930 mm
• Position sink: Right
• Base shelf: Yes
• With sink: Yes
• Splash protection: yes
• Assembly side on dishwasher: Left
• Material: Stainless steel
• Height-adjustable from: 860 mm

Documents

• Datasheet

Manufacturer item number: 109740
