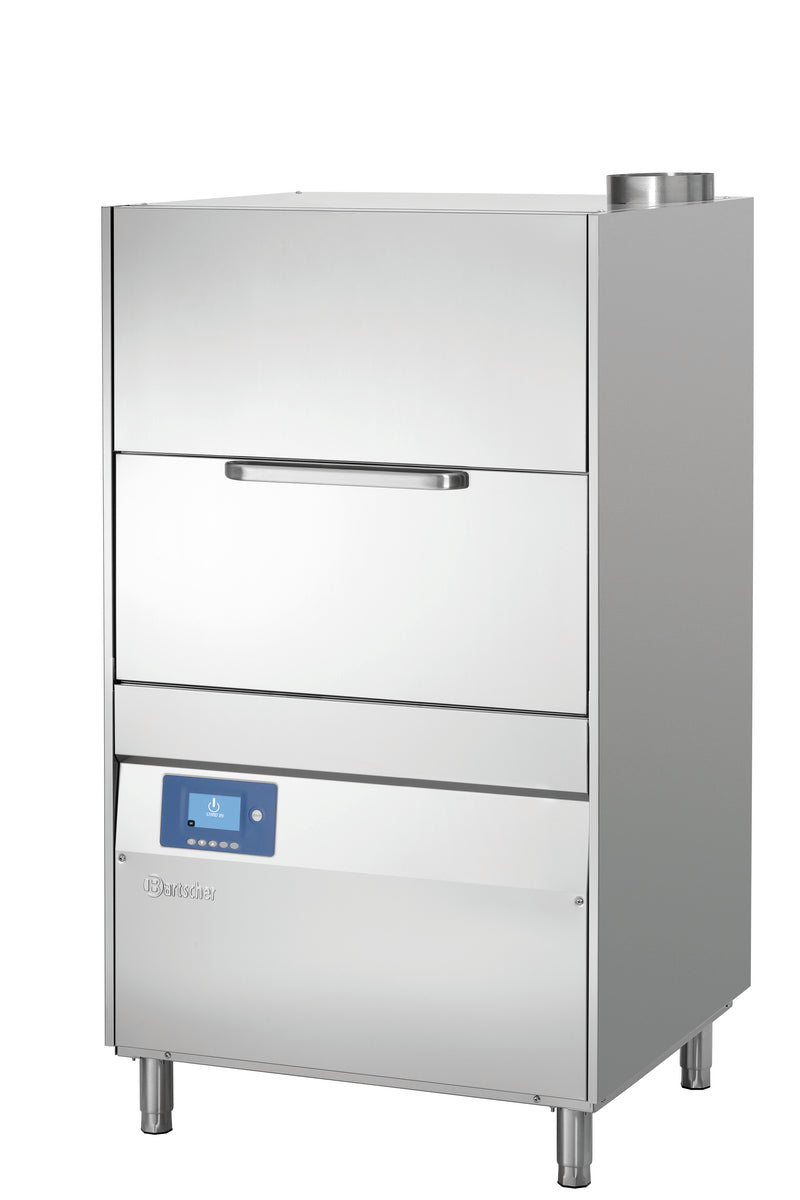

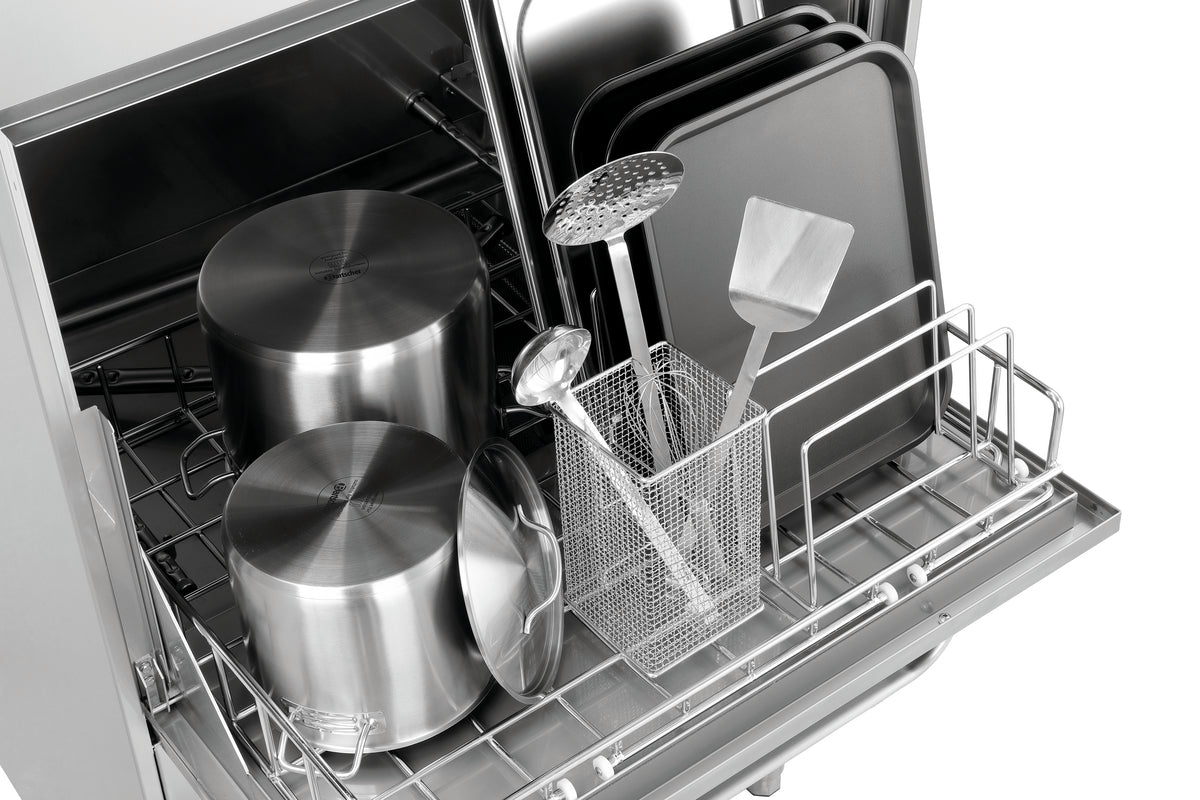

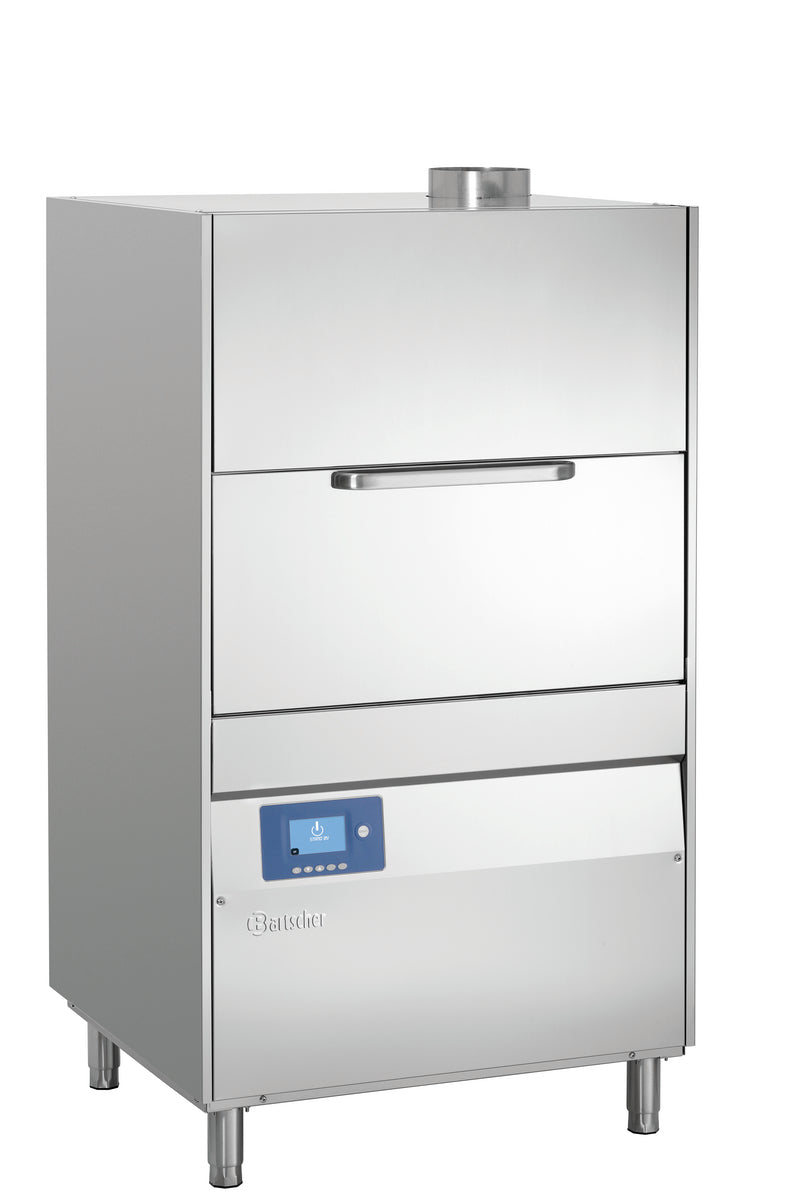

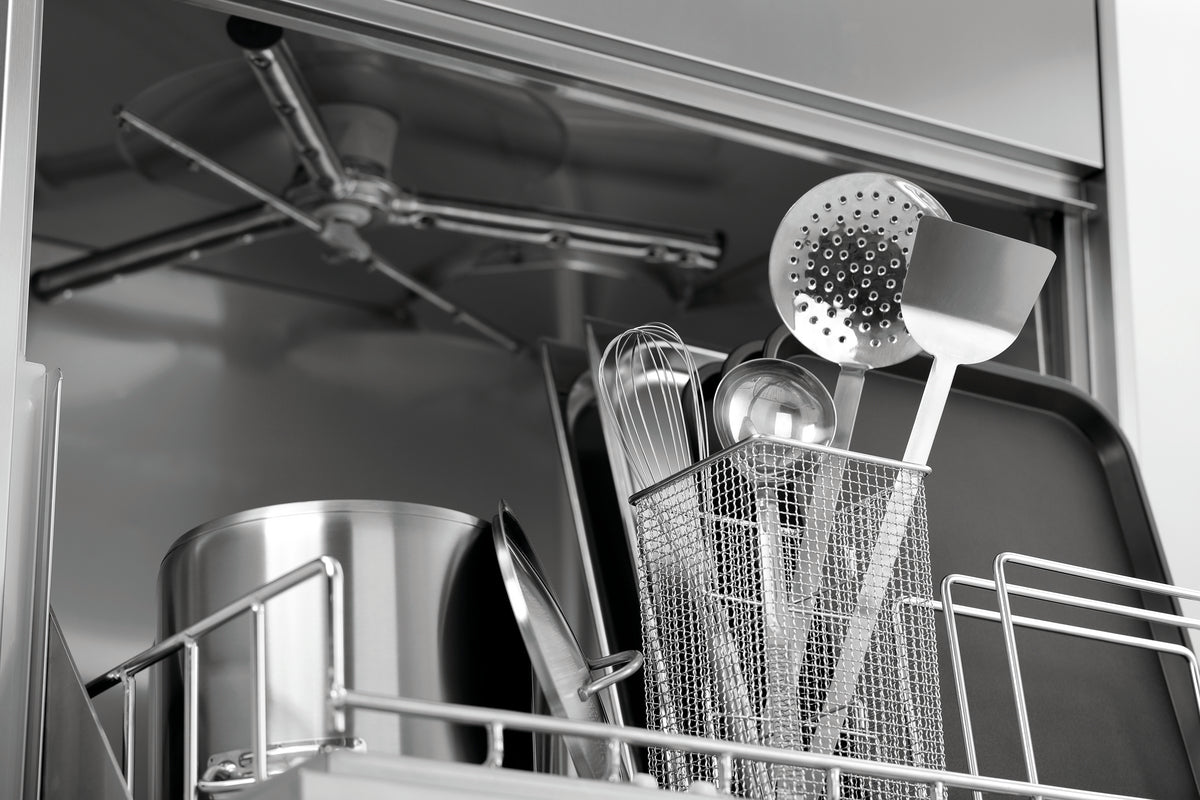

With its supplied universal basket and tray holder, the TS 850 R is ideal for cleaning bulky items. It achieves perfect results when washing pots, pans, trays, dishes and bowls.

Product benefits

• Two heating zones, double the precision: Independently controllable heating zones enable precise gratinating, baking or heating – ideal for parallel processes in hectic everyday kitchen life.
• Maximum control thanks to infinitely variable Temperature control: The Simmerstat controller allows you to fine-tune the radiant heat up to 250 °C – for consistent results with every application.
• Height-adjustable grid for maximum flexibility: Three shelf heights allow precise adjustment to the food being cooked – from golden brown toast to roasted gratin cheese.
• Robust. Easy to clean. Suitable for everyday use.: The durable stainless steel housing ensures high resilience and is easy to clean – ideal for professional application areas.
• Powerful in a compact space: With 4.4 kW and a 705 x 320 mm grilling surface, you can use the radiant power efficiently – even in kitchens with limited space.
• Quick to prepare – ready for continuous use: The indicator light-assisted heating function reliably displays the operating status. Ideal for kitchens with continuous operation.

Technical data

• Width: 990 mm
• Depth: 930 mm
• Height: 1790 mm
• Net weight: 119.8 kg
• Gross weight: 247.8 kg
• Volume: 1.837 MTQ
• Guarantee: VG
• Customs tariff number: 84221900

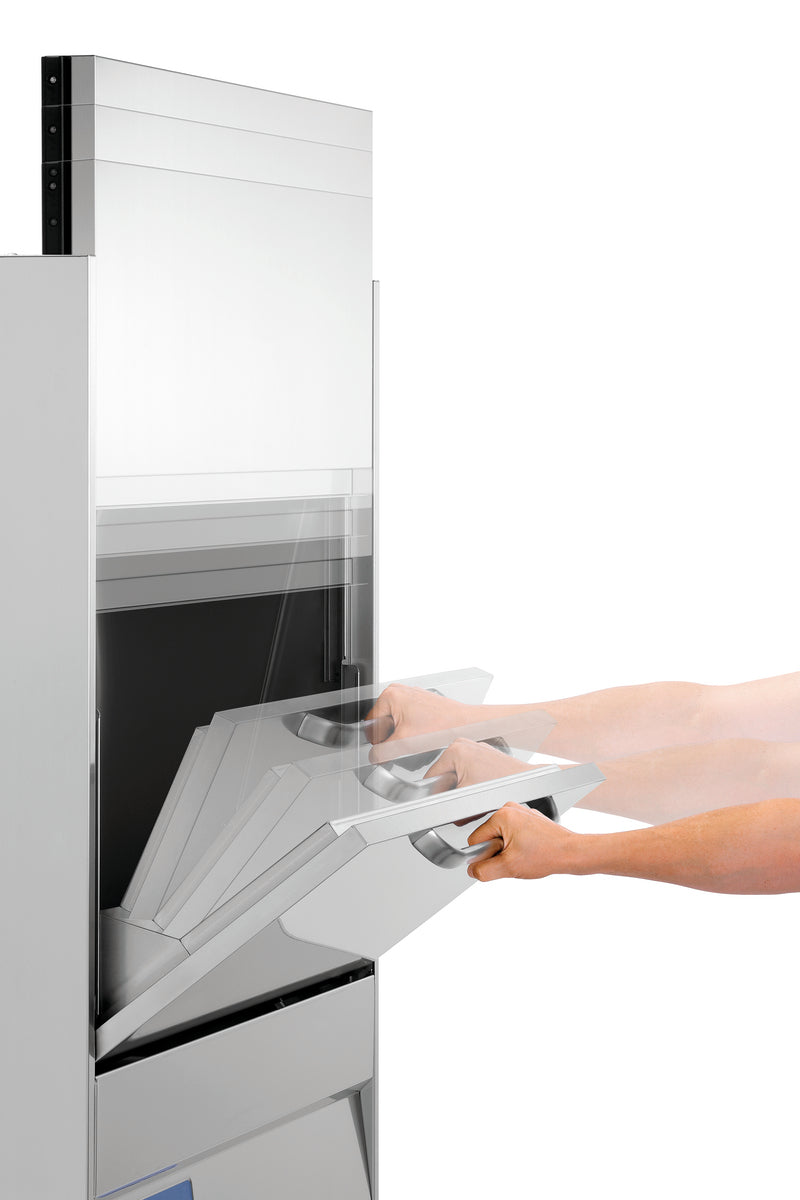

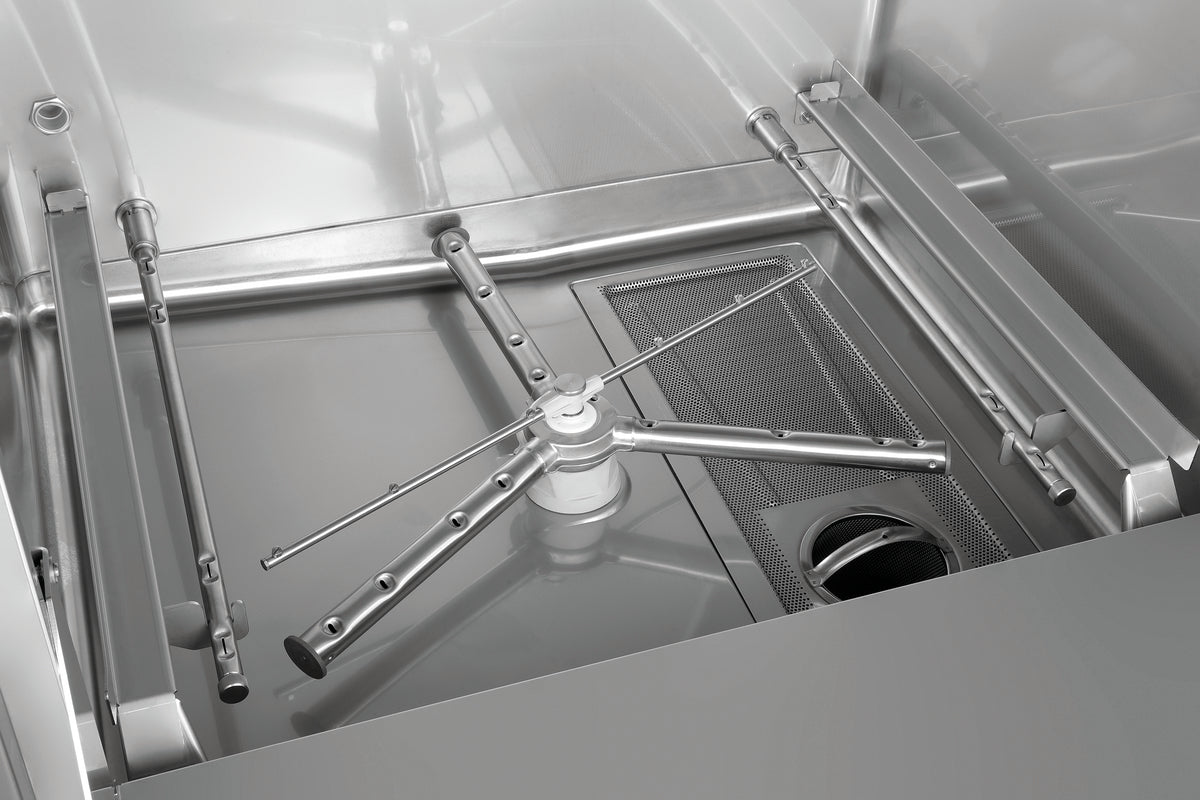

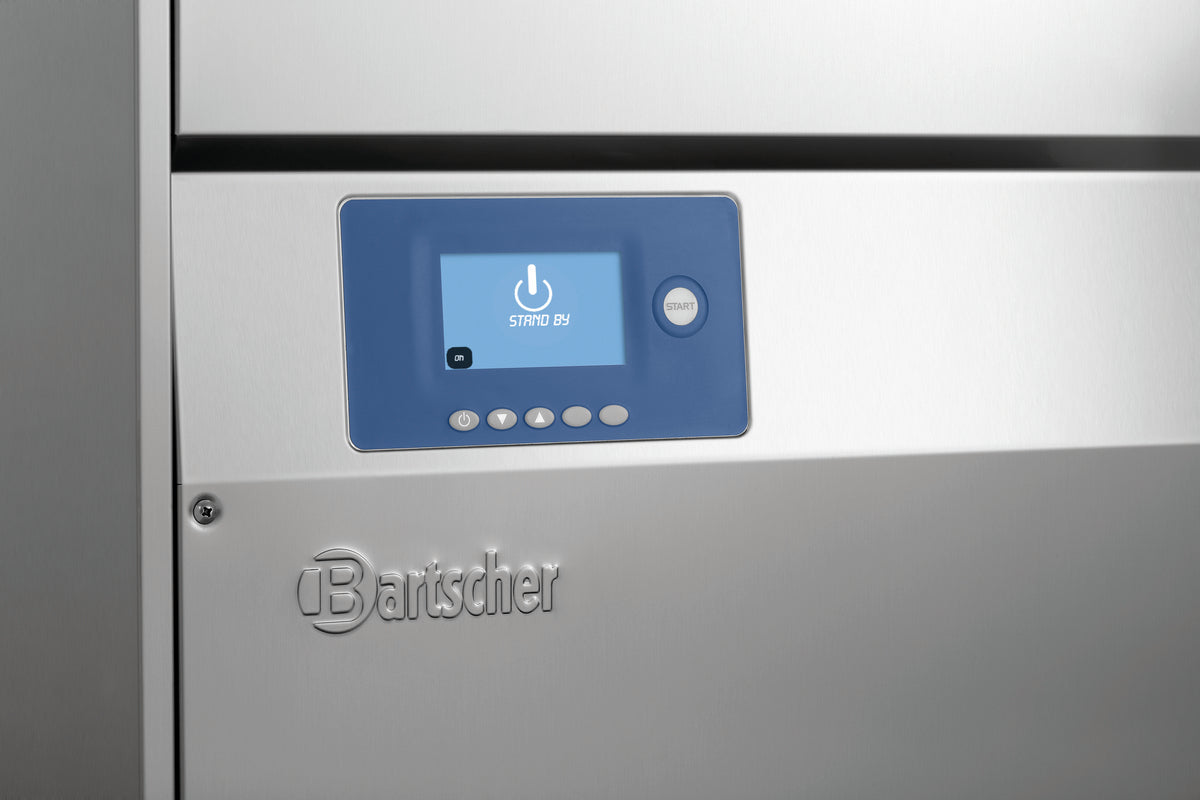

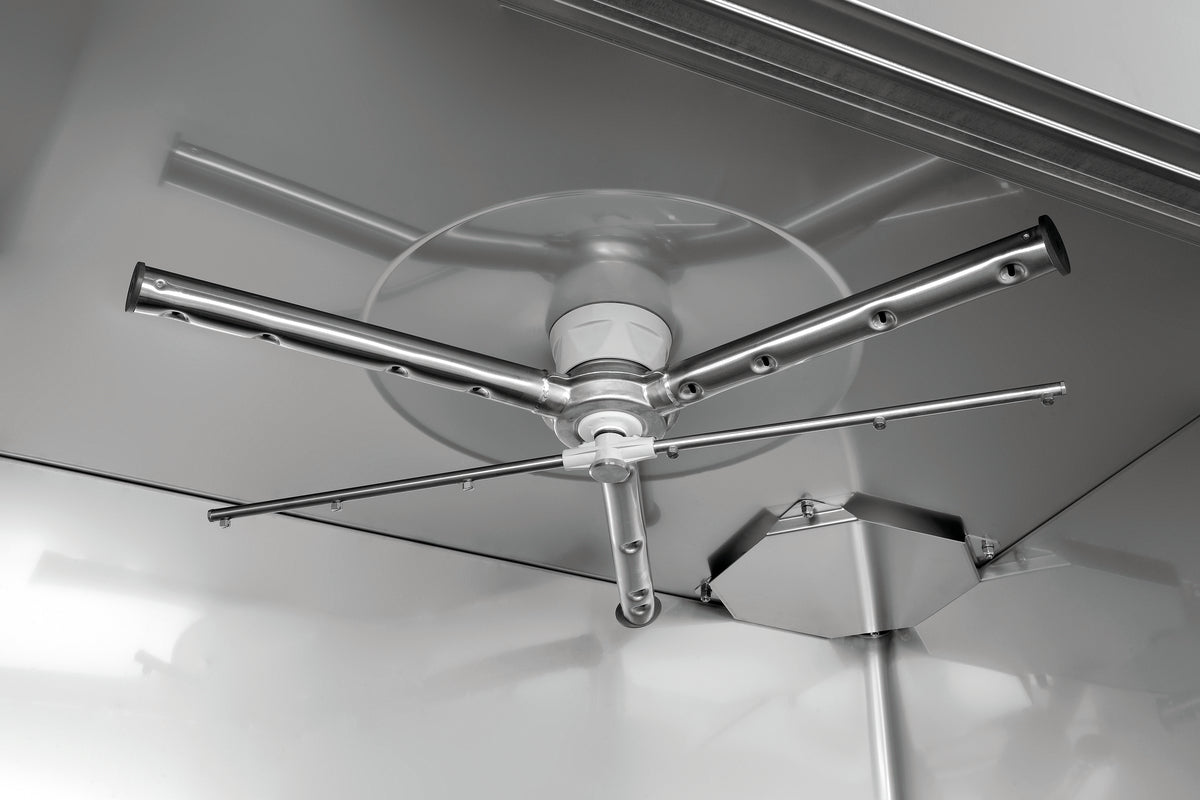

• Properties: Double-walled door can be used as work surface; depth with open flap 1275 mm ,Electronic thermo-stop ,Plus system (rinse pump, break tank, pressure-free boiler) ,2 rinsing arms, each with 1 rinsing pump ,Twin strainer (waste collector and pump strainer removable) ,Washing tub deep-drawn, with levels ,Easy removal of the filter ,Vertical, self-cleaning pump strainer ,Self-diagnosis system ,Multicoloured start button ,Multi-lingual control menu
• Height when door is open: 2050 - 2100 mm
• Boiler heater: 9 kW
• Water pressure: 2 - 4 bar
• Tank heater: 6 kW
• Water supply: G 3/4" M
• Output / hour max.: 20 baskets
• Can be fitted below the counter: No
• Number of wash programs: 4
• Cleaning agent dosing pump: Yes
• Lye pump: No
• ON/OFF switch: Yes
• Basket dimensions: 850 x 725 mm
• Clear rinsing dosing pump: Yes
• Tray size max.: 840 x 805 mm
• Run-time: 180 / 360 / 540 / 720 seconds
• Water consumption at 2 bar: 4,3 litres / wash cycle
• Water softener: No
• Tank volume: 82 litre(s)
• Material: Stainless steel
• Water intake temperature: 10 °C to 55 °C
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 universal basket ,1 tray basket ,1 cutlery holder ,1 water outlet hose ,1 water supply hose
• Frequency: 50 Hz
• Display: yes
• Safety thermostat: Yes
• Water outlet: Ø 32 mm
• Height-adjustable from: 1790 mm
• Self-cleaning: Yes
• Equipment connection: 3 NAC
• Voltage: 400 V
• Height-adjustable feet: Yes
• Control lamp: yes
• Cold rinsing: No
• Double-walled: Yes
• Tray size max.: 805 mm
• Power: 13.36 kW
• Door double-walled: Yes
• Height-adjustable to: 1840 mm

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 110677
