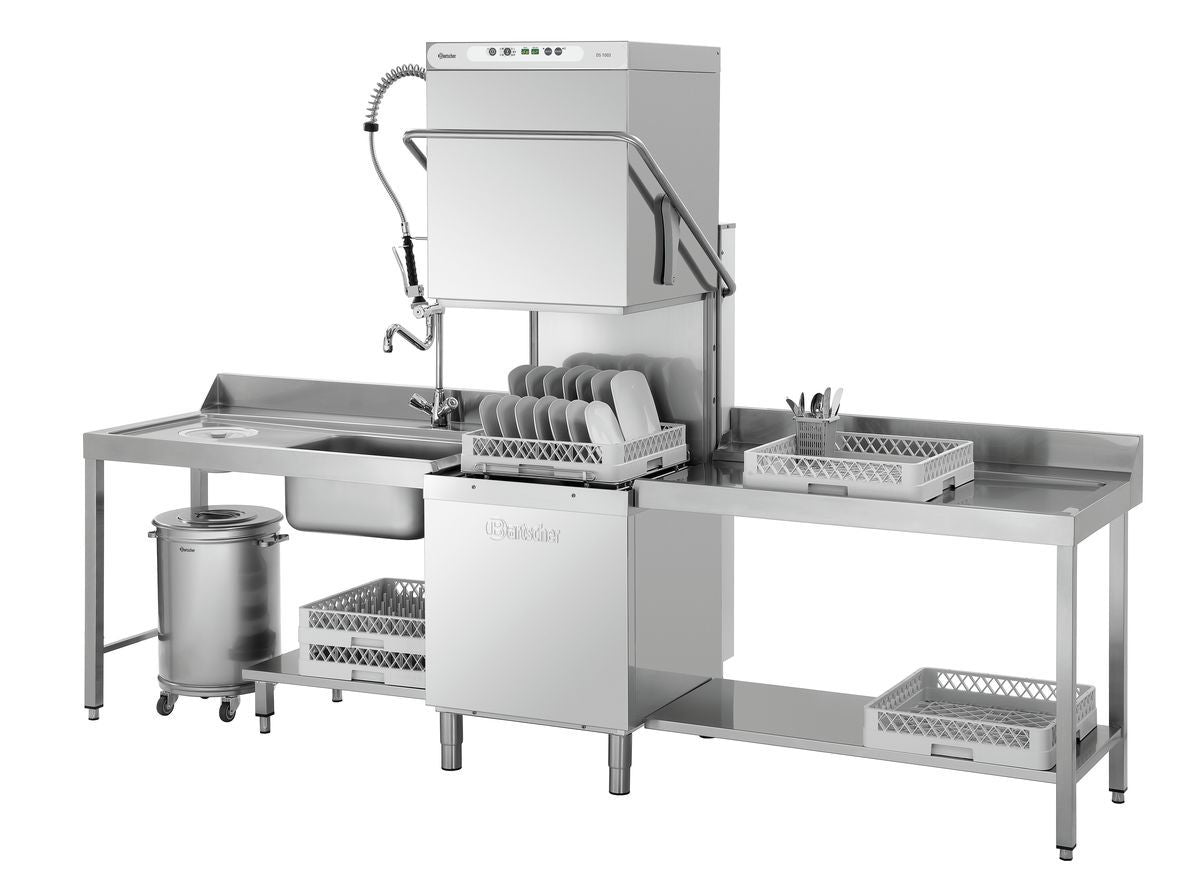

Product benefits

• Maximum washing power with minimum energy consumption: Thanks to the intelligent energy-saving system, the boiler is only activated when needed – ideal for energy-efficient kitchen processes with high throughput.
• Ergonomic washing without effort: The innovative ELS lift system makes it easy to open and close the Hood – saving your back and time in the hectic everyday kitchen environment.
• Well thought-out down to the smallest detail: With its DuoFlo pump and double-walled tank, the DS 500 SR effectively reduces pump losses and heat radiation – for optimised resource consumption and quiet operation.

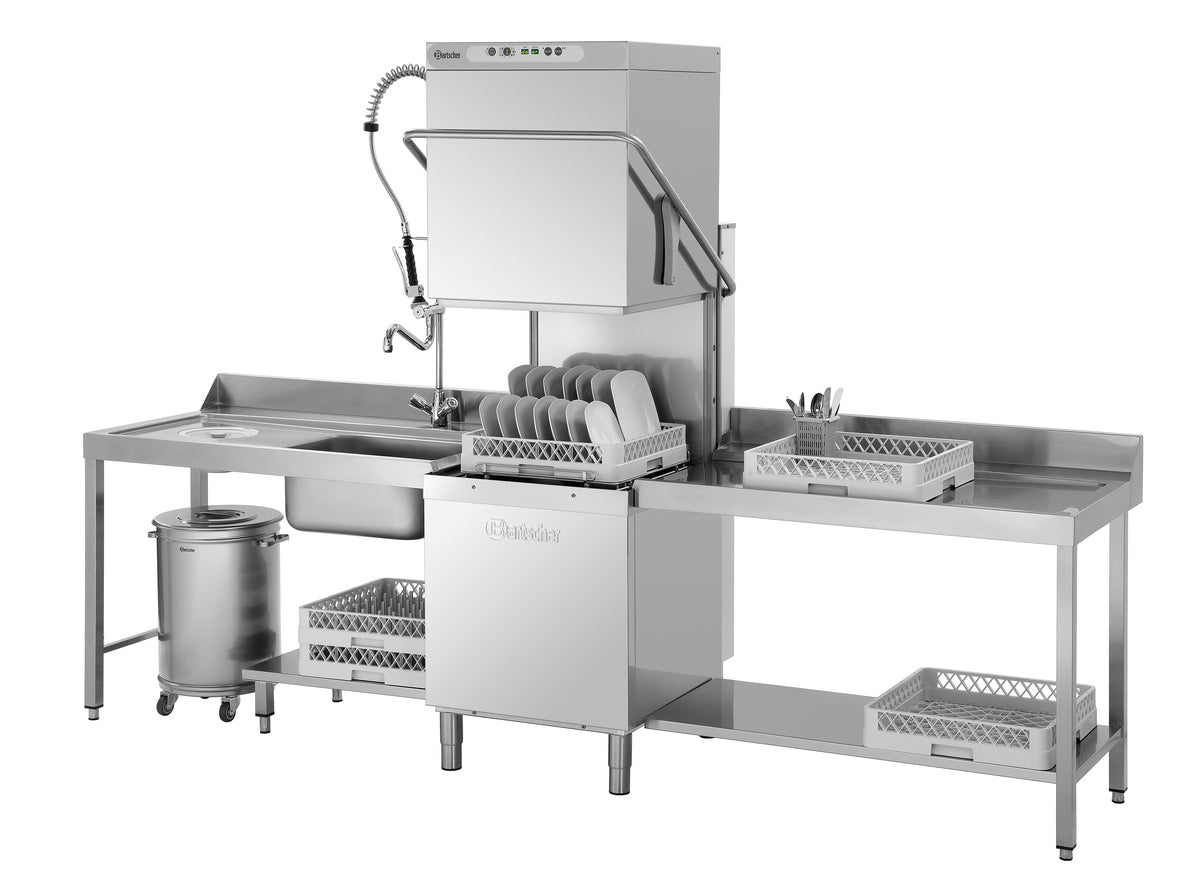

• Flexible integration – even in small spaces: Thanks to its corner mounting function and height-adjustable feet, the machine adapts to a wide variety of room concepts – ideal for modular kitchen layouts.
• Quick cleaning, clear processes: The EDS drainage system and self-cleaning function make daily maintenance easier – for hygienic safety with minimal effort.
• Efficiency in confined spaces: With a water consumption of only 2.4 litres per wash cycle at 2 bar and up to 60 baskets per hour, the DS 500 SR combines high throughput with resource conservation.
• Perfect for large formats: With a shelf height of up to 440 mm, the DS 500 SR can also handle large plates, trays and glasses – without compromising on washing quality.
• Clear operating concept with automatic start: The intuitive control unit with automatic hood and status LEDs enables reliable operation – even with changing staff.

Technical data

• Width: 725 mm
• Depth: 955 mm
• Height: 1535 mm
• Net weight: 98.5 kg
• Gross weight: 113.8 kg
• Volume: 1.018 MTQ
• Guarantee: VG
• Customs tariff number: 84221900

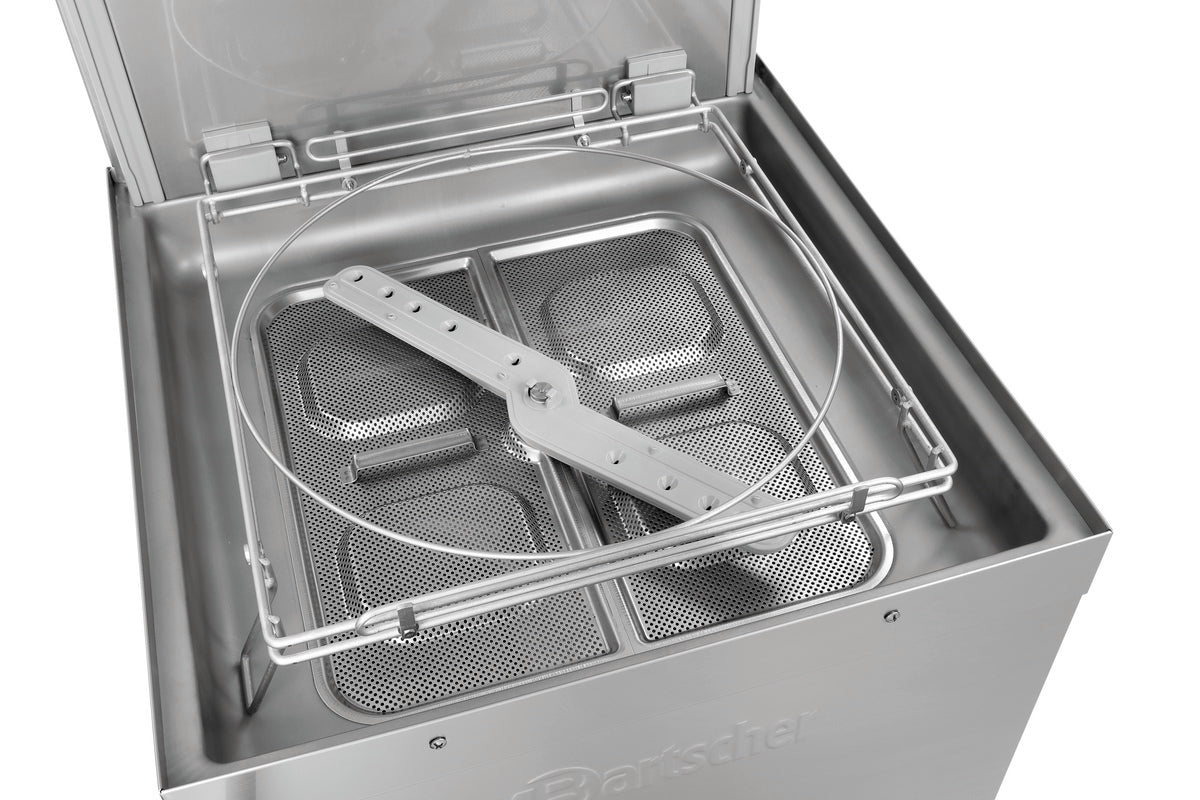

• Properties: Lift system ELS (maximum lifting system with little effort) ,DuoFlo pump (less pump loss) ,Energy-Saving-System (boiler is only active when necessary) ,EDS drain system ,Flat tank with large filter ,Inline or corner installation ,Double-walled tank
• Height when hood is open: 2055 - 2120 mm

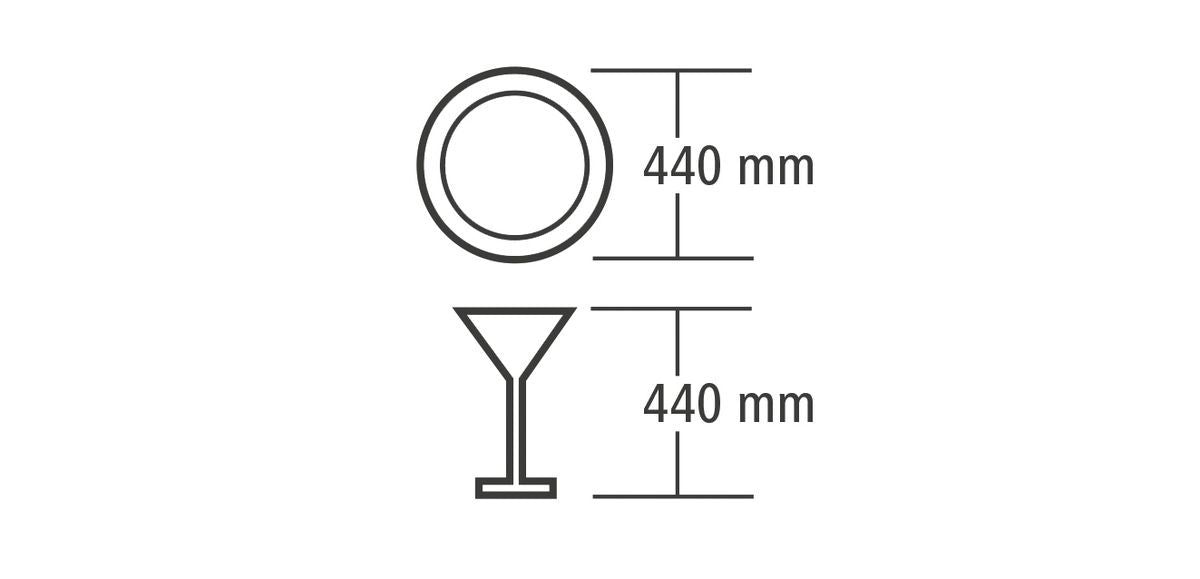

• Plate height max.: 440 mm
• Height-adjustable from: 1535 mm
• Boiler heater: 8 kW
• Water pressure: 2 - 4 bar
• Height-adjustable to: 1600 mm
• Tank heater: 2.5 kW
• Not included in delivery: Feed/removal table, pre-cleaning
• Water supply: G 3/4“
• Output / hour max.: 60 baskets
• Number of wash programs: 4
• Cleaning agent dosing pump: No
• Hood with automatic start function: Yes
• Lye pump: No
• Height-adjustable feet: Yes
• ON/OFF switch: Yes
• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 60 / 120 / 180 seconds
• Water consumption at 2 bar: 2.4 litres / wash cycle
• Water softener: No
• Tank volume: 22 litre(s)
• Material: CNS 18/10
• Water intake temperature: 55 °C
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 universal basket ,2 plate baskets ,1 cutlery holder ,Spare sealing ring supply hose ,1 water outlet hose ,1 water supply hose
• Frequency: 50 Hz
• Safety thermostat: Yes
• Water outlet: Ø 28 mm
• Self-cleaning: Yes
• Equipment connection: 3 NAC
• Voltage: 400 V

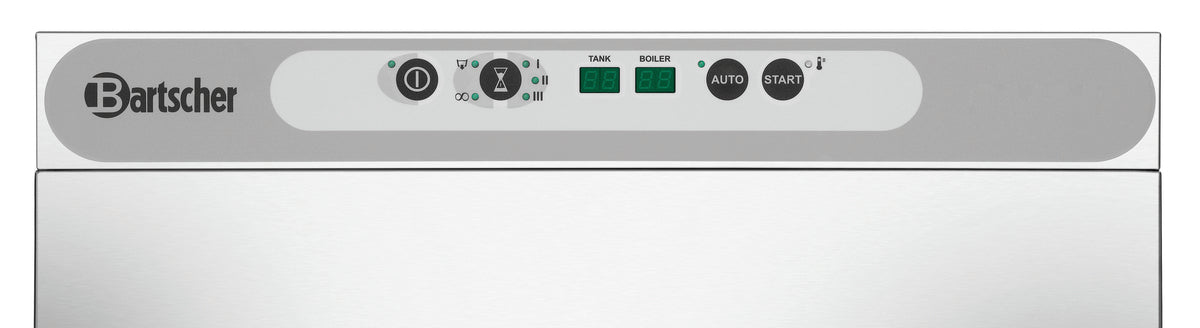

• Control lamp: ON/OFF ,Heat up ,Draining ,Programs I / II / III / continuous operation ,Automatic
• Glasses height max.: 440 mm
• Cold rinsing: No
• Double-walled: No
• Power: 8.7 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 109343
