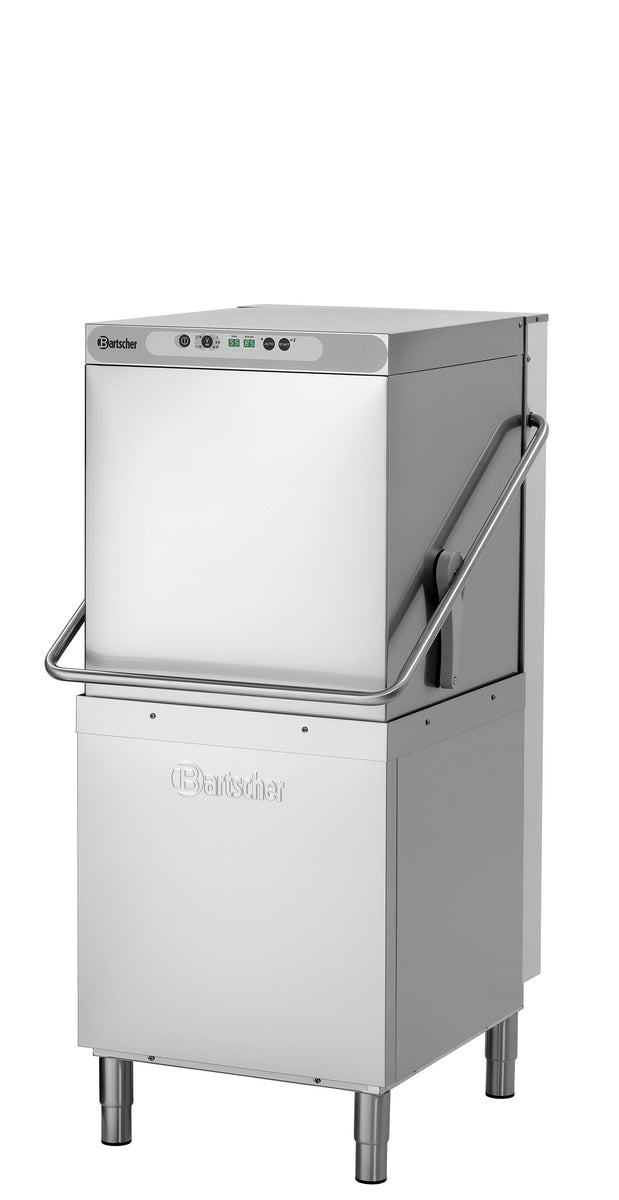

Hygienic and economic – the optimised feed-through dishwasher stands out thanks to its innovative drainage system, an energy-saving boiler system, efficient DuoFlo pump and smooth-running lift system.

Product benefits

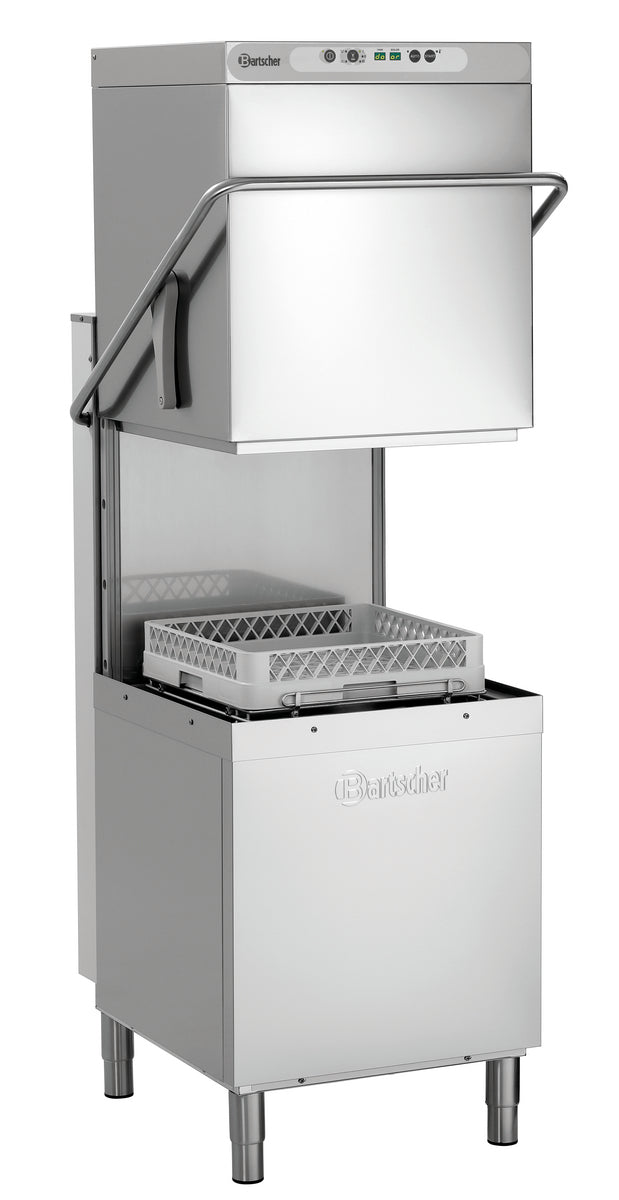

• Maximum ergonomics in the washing process: The innovative ELS lift system allows the Hood to be opened and closed effortlessly – ideal for high-speed professional kitchens.
• Saves energy when it counts: The energy-saving system only activates the boiler when needed – for noticeable savings during operation.
• Clean results with reduced water consumption: With only 2.4 litres per rinse cycle, the efficient EDS drainage system ensures top hygienic performance with minimal use of resources.

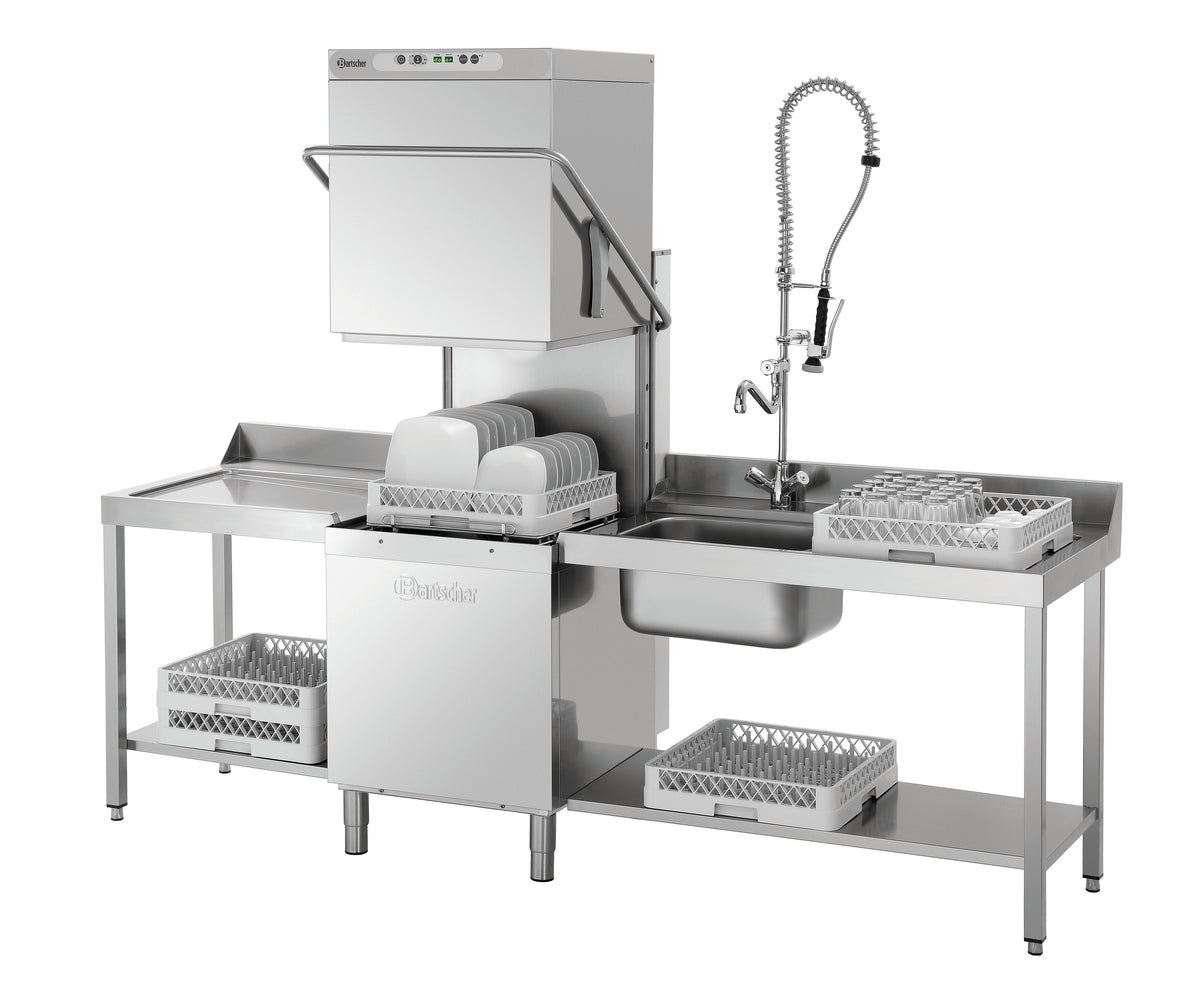

• Flexibly adapted to your kitchen layout: The DS 500 can be installed in a row or across a corner – for optimum use of space in any layout concept.

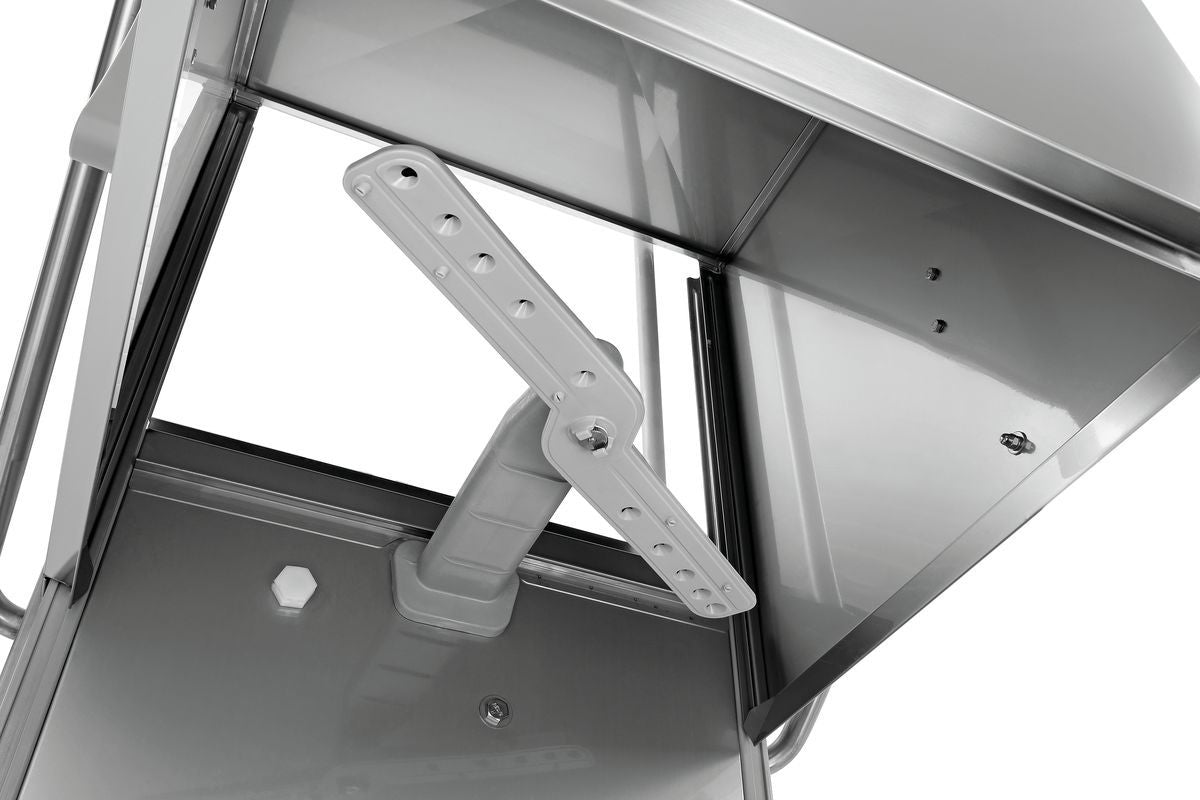

• Powerful rinsing performance – flowing efficiency: The DuoFlo pump reduces flow losses and ensures even water distribution – even at full capacity.
• Durable construction for everyday kitchen use: With double-walled tank and robust CNS 18/10 housing, designed for long-term use under high loads.
• Intelligent control unit at the touch of a button: Four selectable washing programmes and automatic start when the hood is opened make operation easier and optimise processes.
• Space for large items – without compromise: With a usable inlet height of up to 440 mm, it is also suitable for GN containers, large stacks of plates or tall glassware.

Technical data

• Width: 725 mm
• Depth: 955 mm
• Height: 1535 mm
• Net weight: 98.5 kg
• Gross weight: 105.4 kg
• Volume: 0.964 MTQ
• Guarantee: VG
• Customs tariff number: 84221900

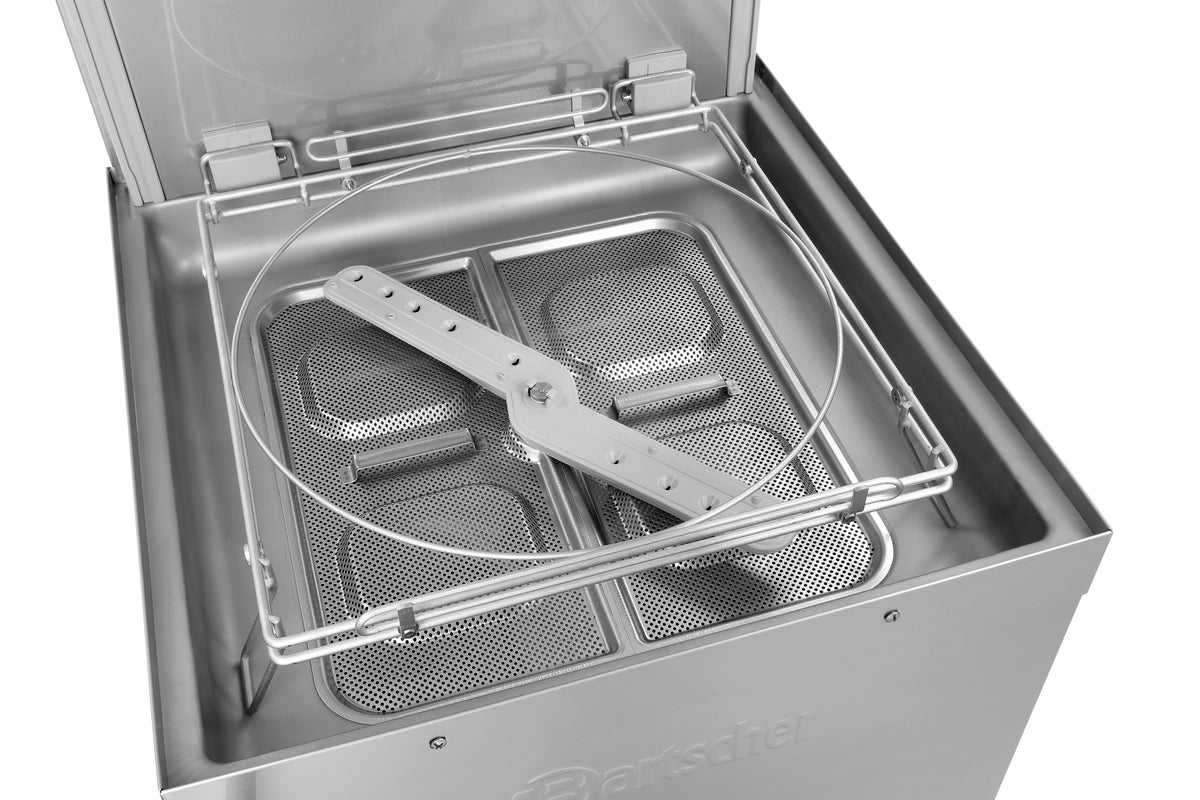

• Properties: Lift system ELS (maximum lifting system with little effort) ,DuoFlo pump (less pump loss) ,Energy-Saving-System (boiler is only active when necessary) ,EDS drain system ,Flat tank with large filter ,Inline or corner installation ,Double-walled tank

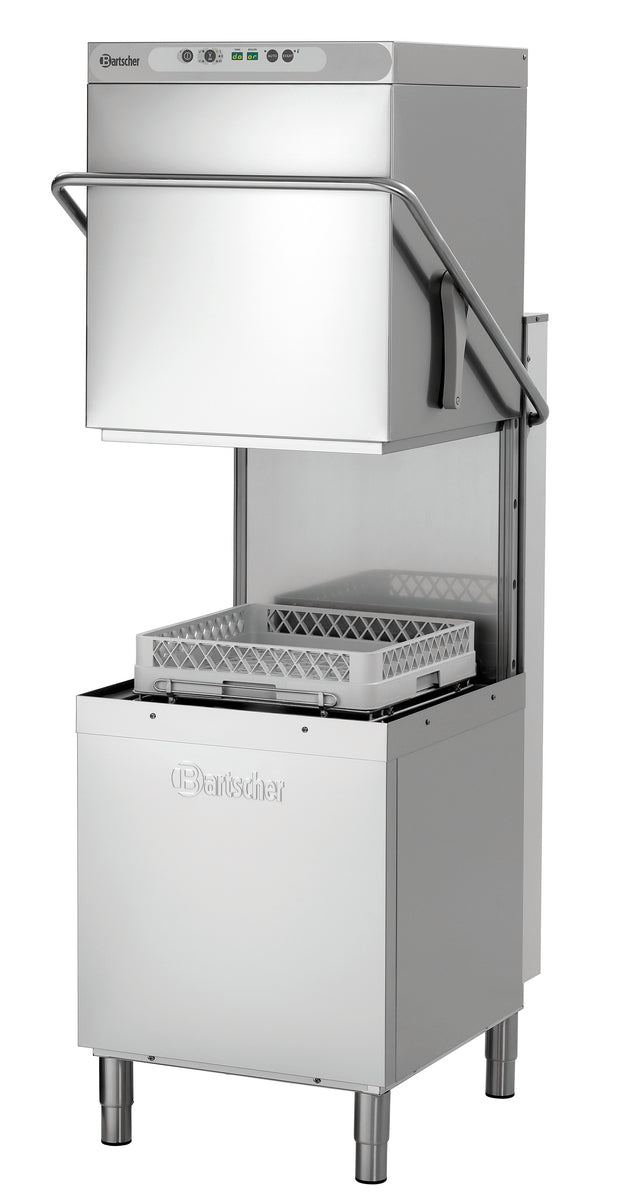

• Height when hood is open: 2055 - 2120 mm

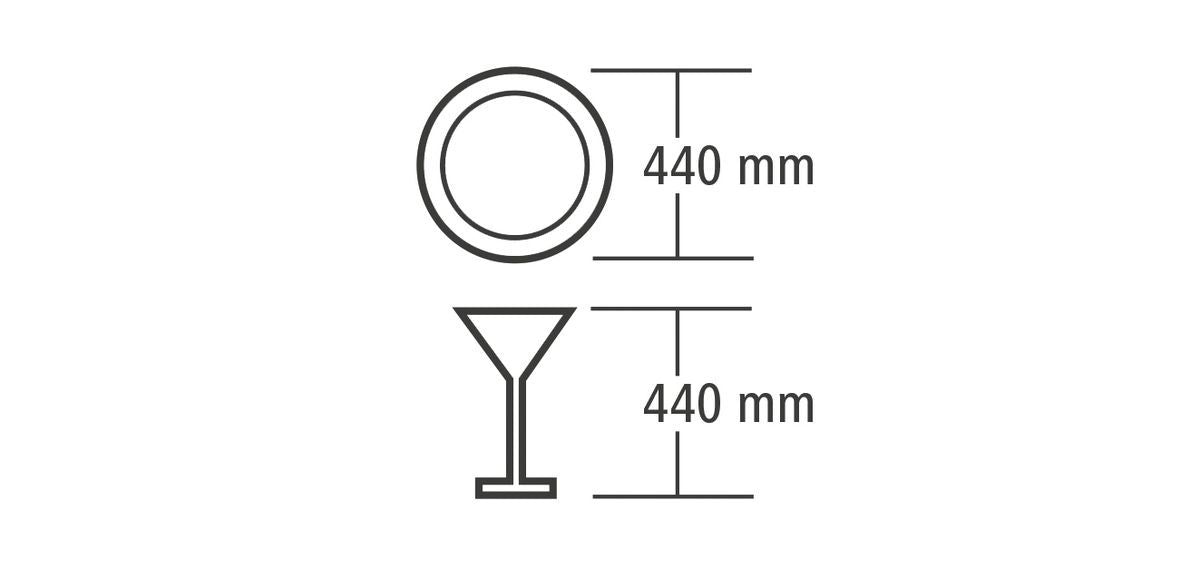

• Plate height max.: 440 mm
• Height-adjustable from: 1535 mm
• Boiler heater: 6 kW
• Water pressure: 2 - 4 bar
• Height-adjustable to: 1600 mm
• Tank heater: 2.5 kW
• Not included in delivery: Feed/removal table, pre-cleaning
• Water supply: G 3/4“
• Output / hour max.: 60 baskets
• Number of wash programs: 4
• Cleaning agent dosing pump: No
• Hood with automatic start function: Yes
• Lye pump: No
• Height-adjustable feet: Yes
• ON/OFF switch: Yes

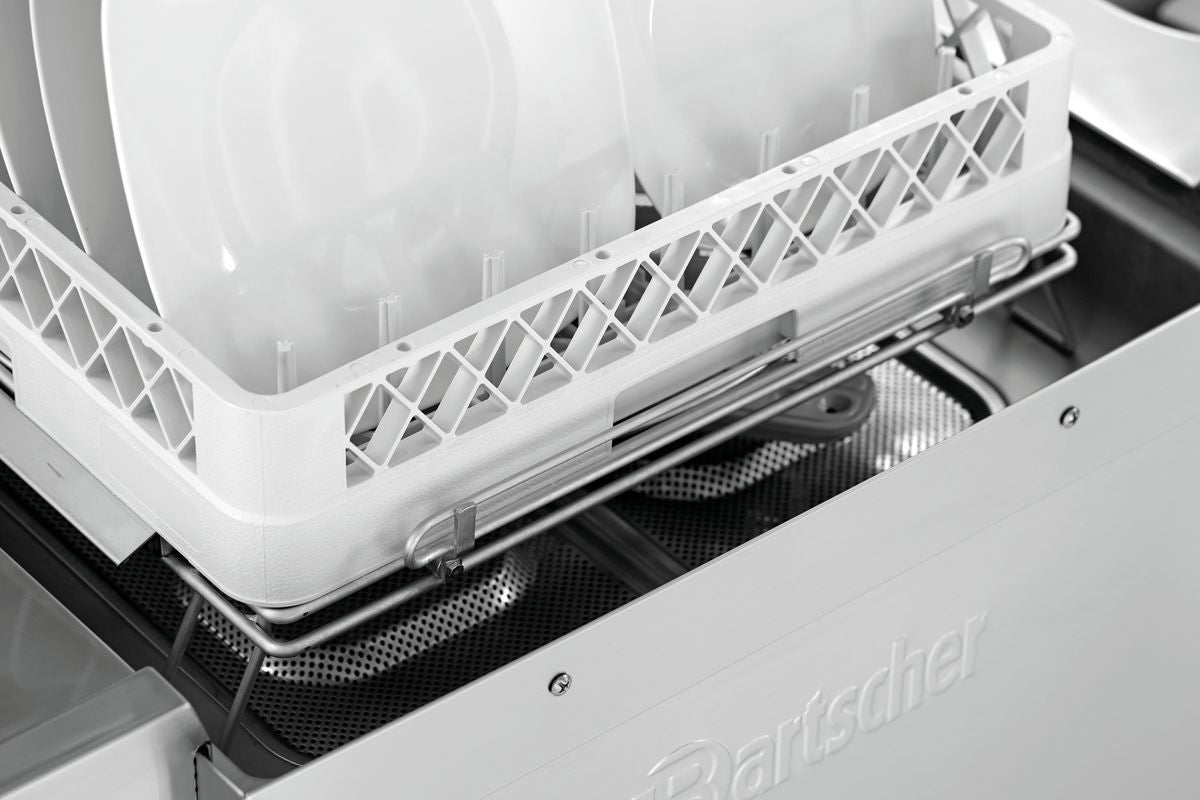

• Basket dimensions: 500 x 500 mm
• Clear rinsing dosing pump: Yes
• Run-time: 60 / 120 / 180 seconds
• Water consumption at 2 bar: 2.4 litres / wash cycle
• Water softener: No
• Tank volume: 22 litre(s)
• Material: CNS 18/10
• Water intake temperature: 55 °C
• Dry-run protection: Yes
• Door contact switch: Yes
• Including: 1 universal basket ,2 plate baskets ,1 cutlery holder ,Spare sealing ring supply hose ,1 water outlet hose ,1 water supply hose
• Frequency: 50 Hz
• Safety thermostat: Yes
• Water outlet: Ø 28 mm
• Self-cleaning: No
• Equipment connection: 3 NAC
• Voltage: 400 V

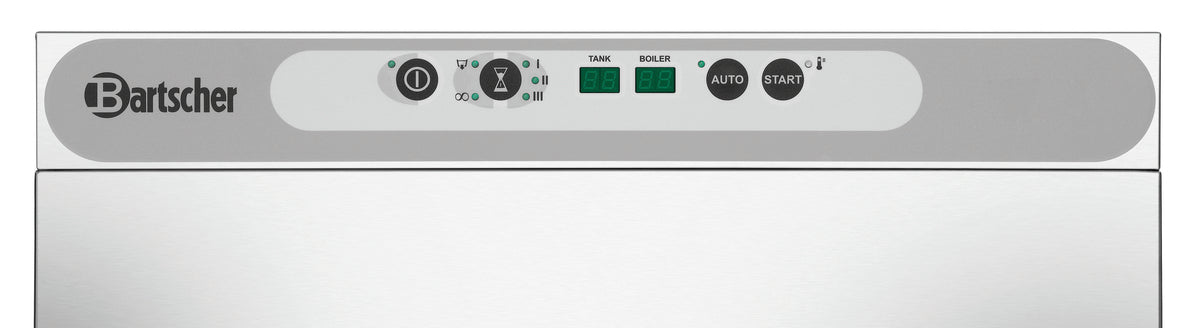

• Control lamp: ON/OFF ,Heat up ,Draining ,Programs I / II / III / continuous operation ,Automatic
• Glasses height max.: 440 mm
• Cold rinsing: No
• Double-walled: No
• Power: 6.7 kW

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 109342
