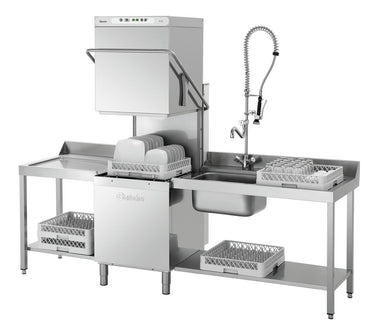

Pass-through dishwasher DS 500

Name: Pass-through dishwasher DS 500
Brand: Gast Industrie Küche
SKU: 109342
Price: 5649.00 EUR
Availability: InStock

€5.649,00

Hygienic and economic – the optimised feed-through dishwasher stands out thanks to its innovative drainage system, an energy-saving boiler system, efficient DuoFlo pump and smooth-running lift system.

Highlights

Maximum ergonomics in the washing process The innovative ELS lift system allows the Hood to be opened and closed effortlessly – ideal for high-speed professional kitchens.
Saves energy when it counts The energy-saving system only activates the boiler when needed – for noticeable savings during operation.
Clean results with reduced water consumption With only 2.4 litres per rinse cycle, the efficient EDS drainage system ensures top hygienic performance with minimal use of resources.
Flexibly adapted to your kitchen layout The DS 500 can be installed in a row or across a corner – for optimum use of space in any layout concept.
Powerful rinsing performance – flowing efficiency The DuoFlo pump reduces flow losses and ensures even water distribution – even at full capacity.
Durable construction for everyday kitchen use With double-walled tank and robust CNS 18/10 housing, designed for long-term use under high loads.
Intelligent control unit at the touch of a button Four selectable washing programmes and automatic start when the hood is opened make operation easier and optimise processes.
Space for large items – without compromise With a usable inlet height of up to 440 mm, it is also suitable for GN containers, large stacks of plates or tall glassware.

Technical specifications

Properties: Lift system ELS (maximum lifting system with little effort), DuoFlo pump (less pump loss), Energy-Saving-System (boiler is only active when necessary), EDS drain system, Flat tank with large filter, Inline or corner installation, Double-walled tank
Height when hood is open: 2055 - 2120 mm
Plate height max.: 440 mm
Height-adjustable from: 1535 mm
Boiler heater: 6 kW
Water pressure: 2 - 4 bar
Height-adjustable to: 1600 mm
Tank heater: 2.5 kW
Not included in delivery: Feed/removal table, pre-cleaning
Water supply: G 3/4“
Output / hour max.: 60 baskets
Number of wash programs: 4
Cleaning agent dosing pump: No
Hood with automatic start function: Yes
Lye pump: No
Height-adjustable feet: Yes
ON/OFF switch: Yes
Basket dimensions: 500 x 500 mm
Clear rinsing dosing pump: Yes
Run-time: 60 / 120 / 180 seconds
Water consumption at 2 bar: 2.4 litres / wash cycle
Water softener: No
Tank volume: 22 litre(s)
Material: CNS 18/10
Water intake temperature: 55 °C
Dry-run protection: Yes
Door contact switch: Yes
Including: 1 universal basket, 2 plate baskets, 1 cutlery holder, Spare sealing ring supply hose, 1 water outlet hose, 1 water supply hose
Frequency: 50 Hz
Safety thermostat: Yes
Water outlet: Ø 28 mm
Self-cleaning: No
Equipment connection: 3 NAC
Voltage: 400 V
Control lamp: ON/OFF, Heat up, Draining, Programs I / II / III / continuous operation, Automatic
Glasses height max.: 440 mm
Cold rinsing: No
Double-walled: No
Power: 6.7 kW
