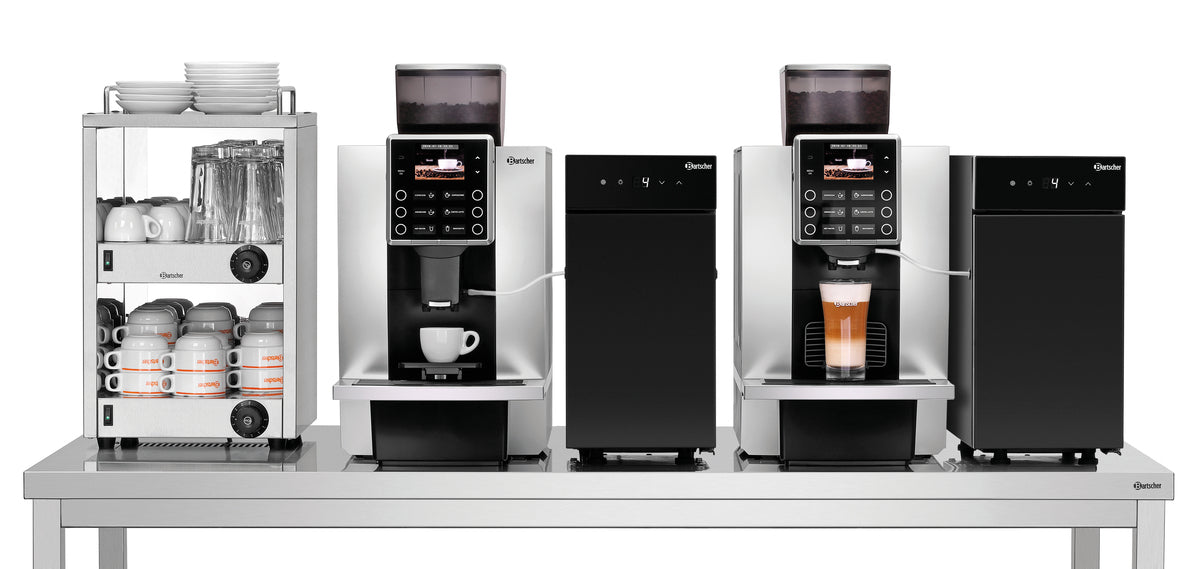

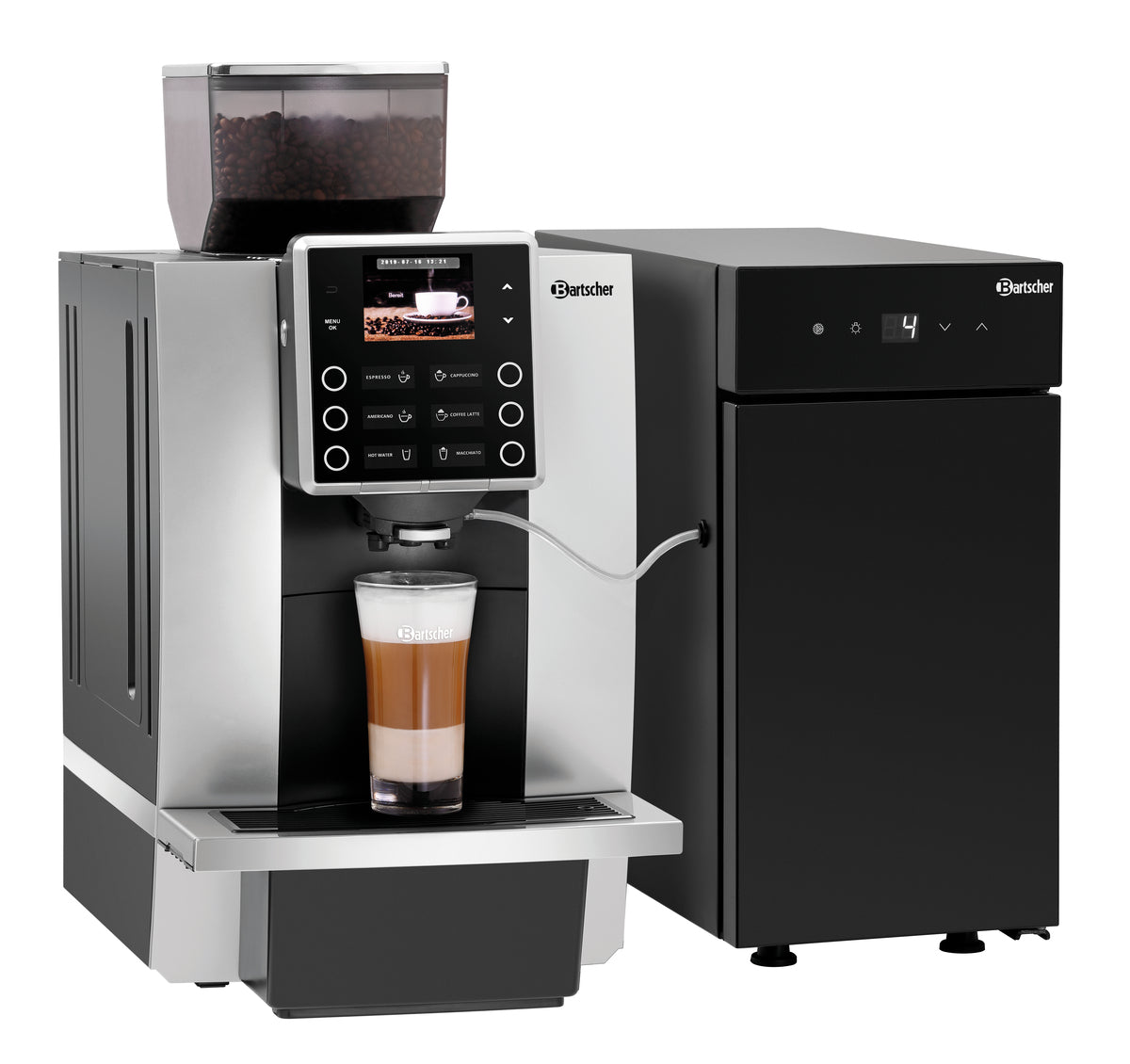

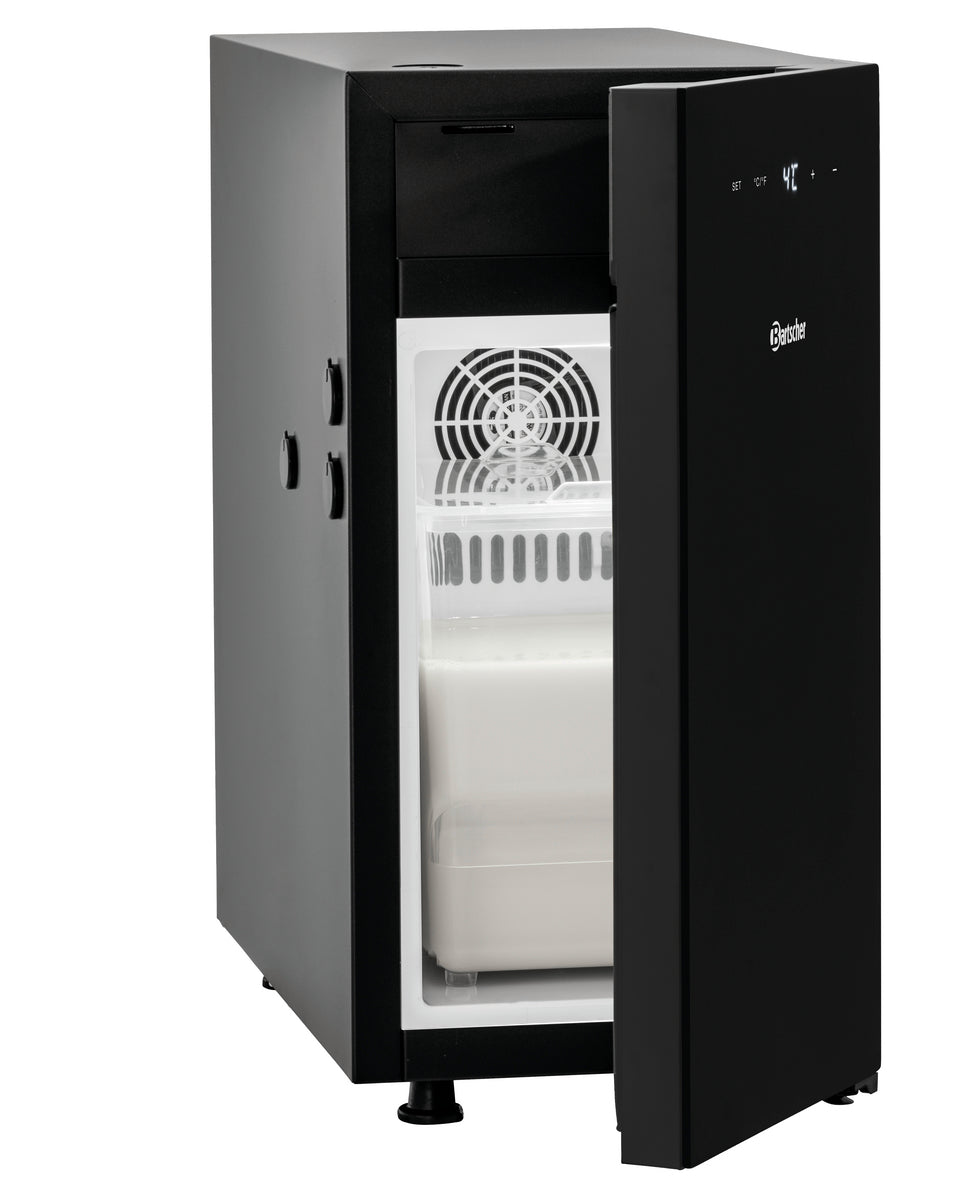

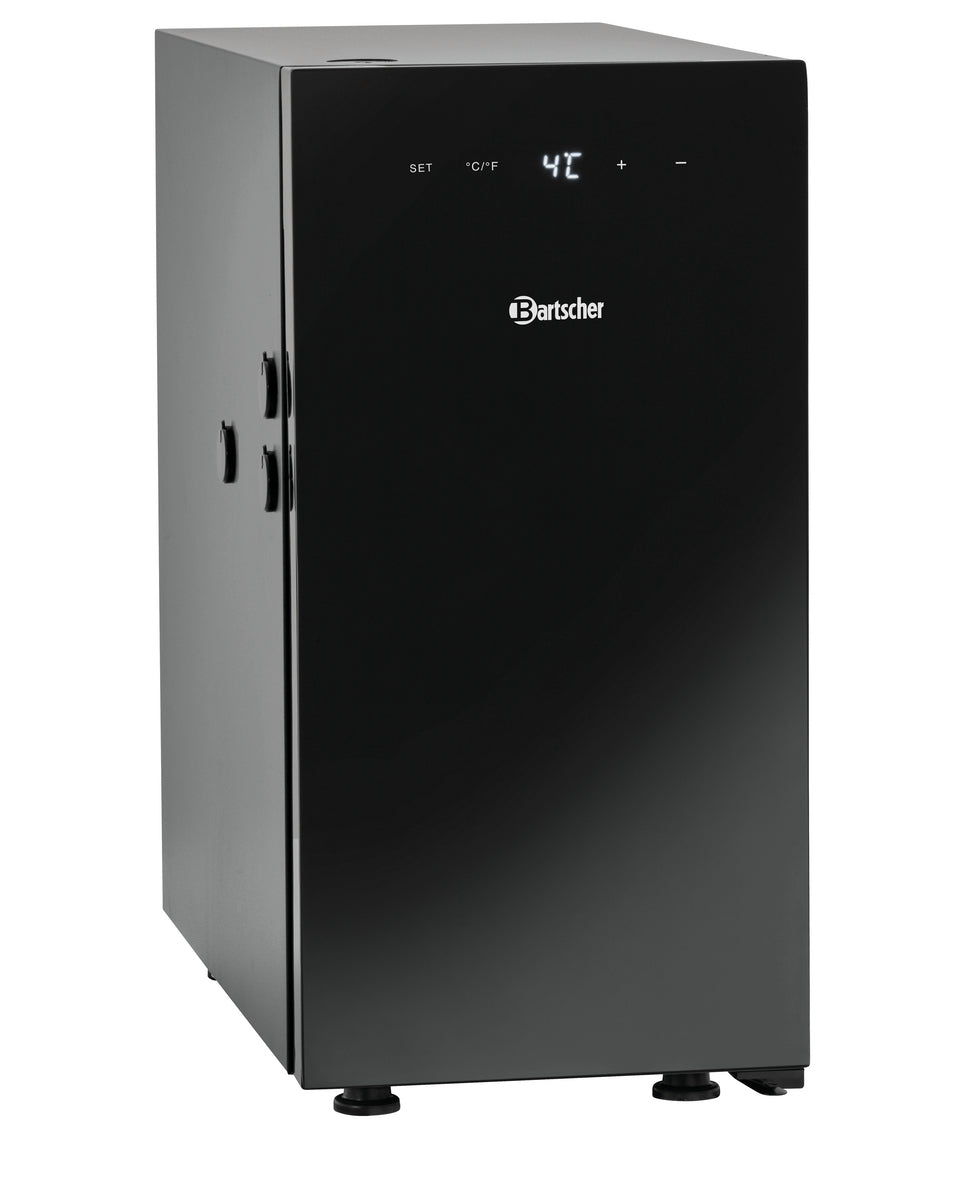

Whether for cappuccino, café au lait or latte macchiato - this practical milk refrigerator offers direct access to chilled milk with its side tube openings. The milk is kept cool hygienically and can be drawn out of the container when needed for coffee preparation via the milk tube of the coffee machine.

Product benefits

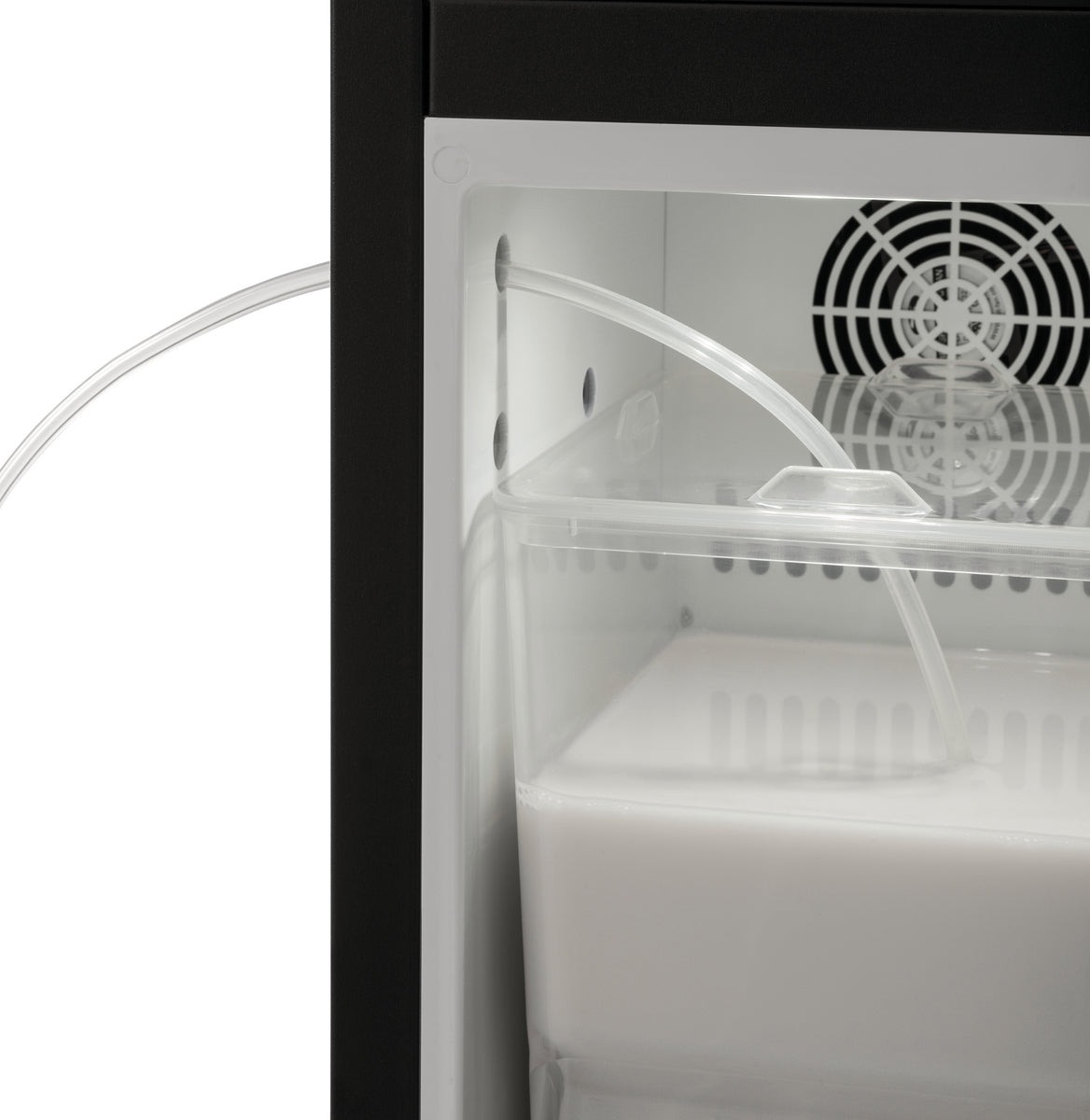

• Direct milk access – no detours: Five side hose openings allow for easy connection to the fully automatic machine – for constantly fresh milk without manual refilling.

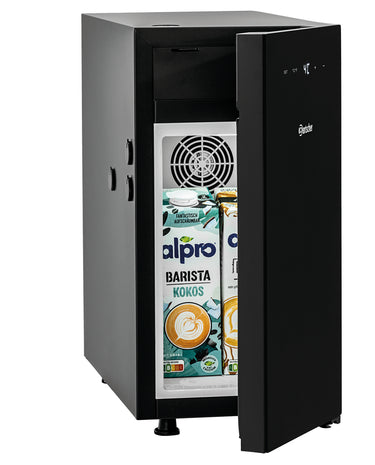

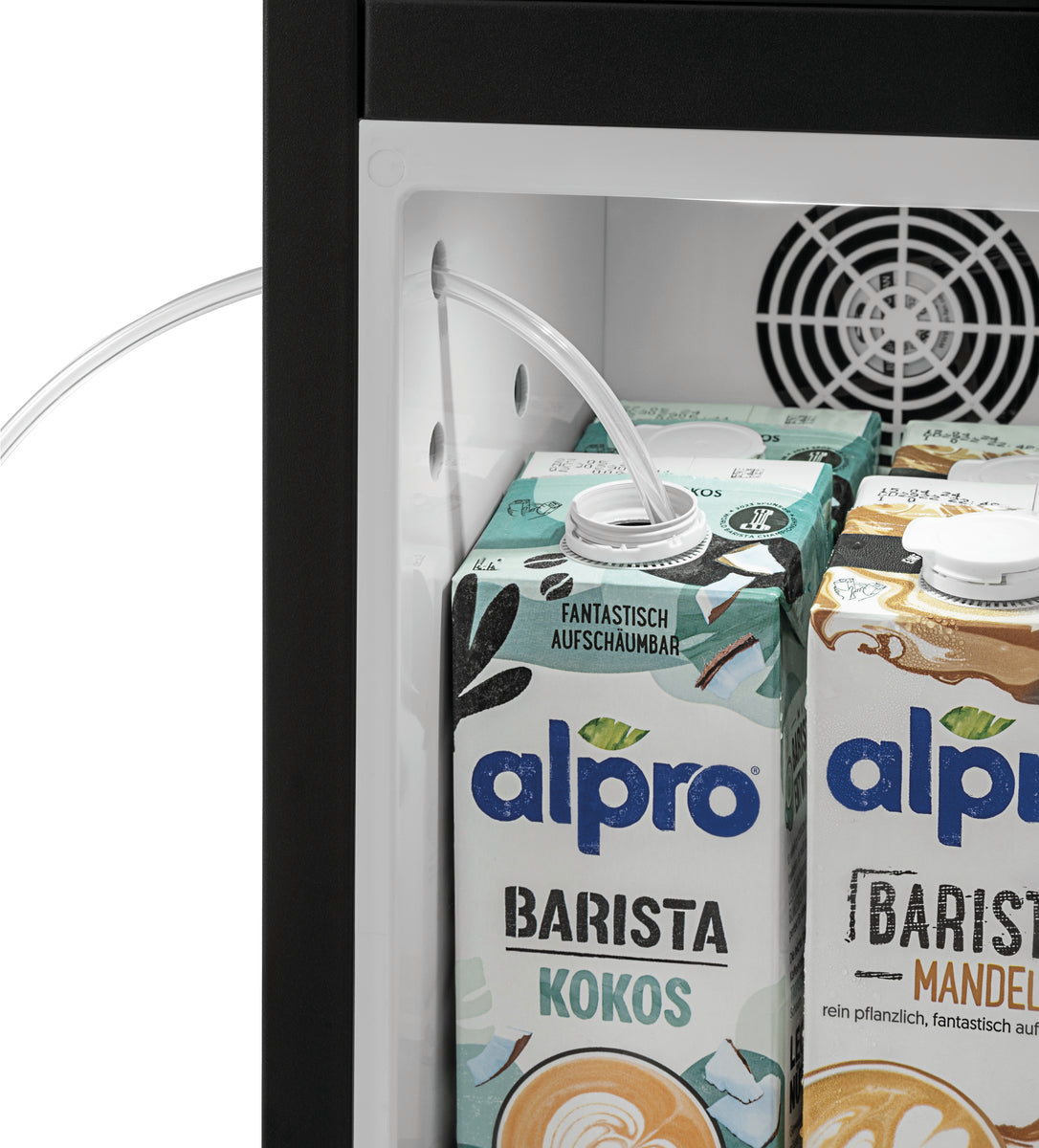

• Space-saving and powerful: With a volume of just 9 litres, the KV9L offers a cleverly dimensioned interior for three 1-litre Tetra Paks®, for example – ideal for counters, buffets or smaller spaces.

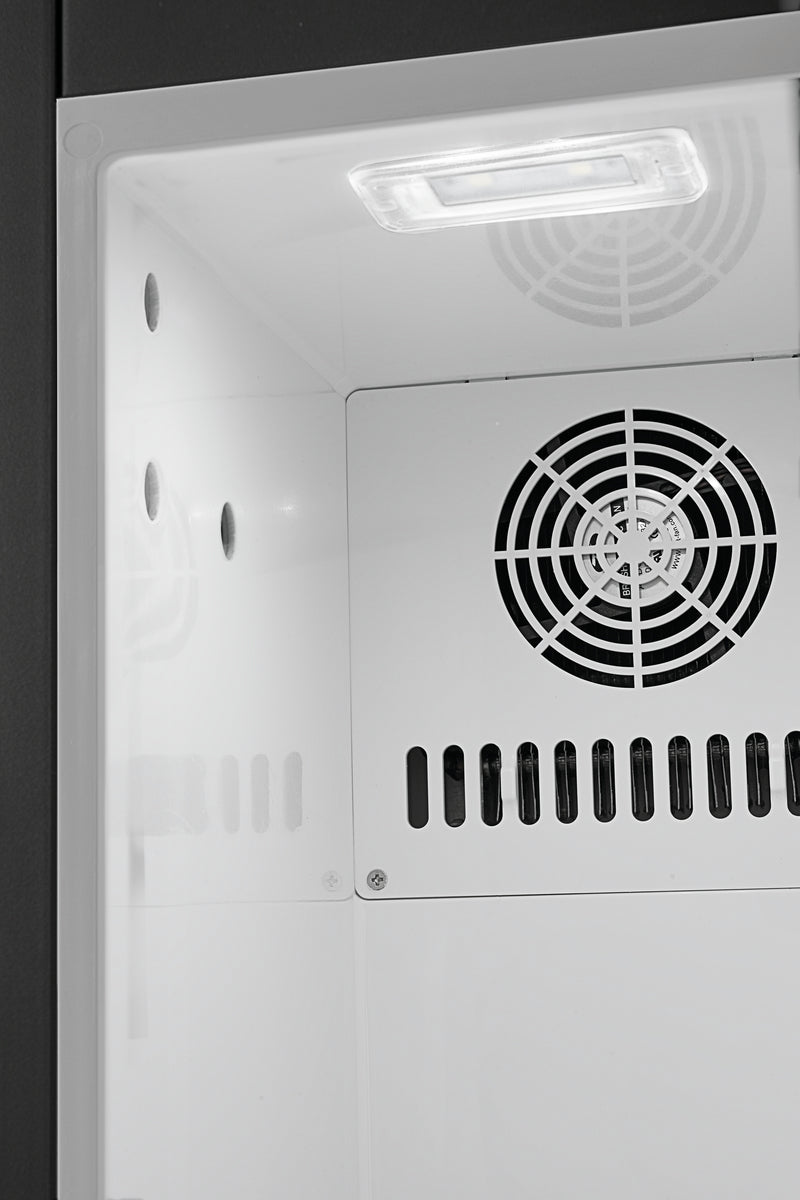

• Constant cooling with convection technology: The efficient recirculating air cooling system reliably keeps the milk between 0 and 8 °C – even with frequent opening or changing ambient temperatures.
• Function meets hygiene: The completely enclosed Cooling system and smooth plastic interior make cleaning easy and ensure hygienic storage – a must for professional use.

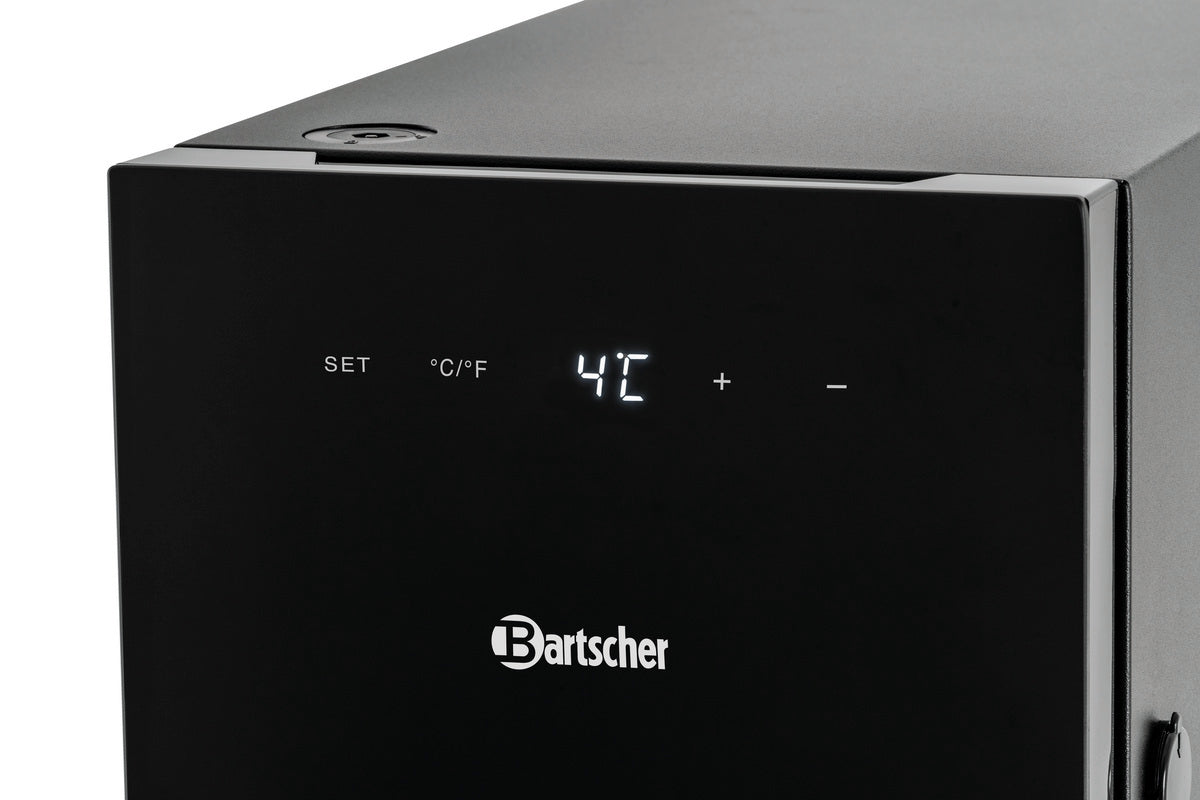

• Digital control in 1 °C increments: The temperature can be adjusted electronically with precision and monitored at any time via the LED display – for maximum product safety in day-to-day business.
• Lockable – milk under lock and key: The lockable door reliably protects the content from unauthorised access – particularly important in self-service areas or at events.

Technical data

• Width: 225 mm
• Depth: 450 mm
• Height: 455 mm
• Net weight: 13.2 kg
• Gross weight: 15.6 kg
• Volume: 0.057 MTQ
• Guarantee: VG
• Customs tariff number: 84185090
• Drip water evaporation: No

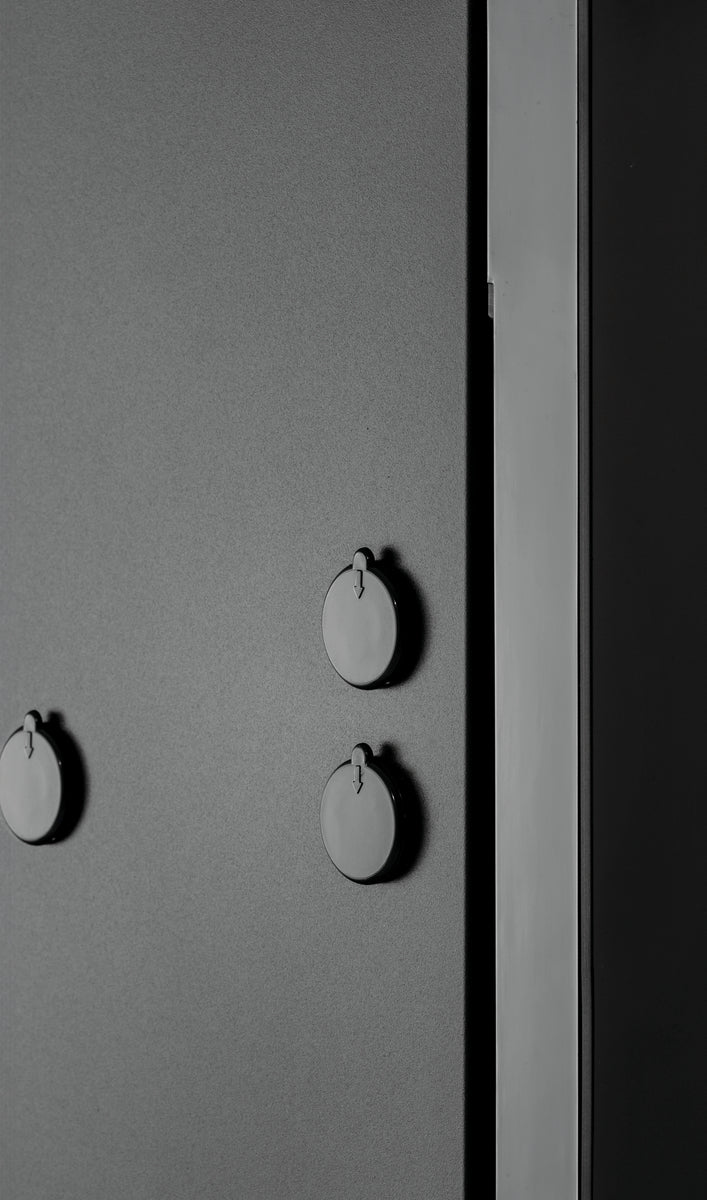

• Opening for milk hose: 3 openings on the left and 2 openings on the right of the appliance , 9.8 mm | 12.3 mm
• Door hinge side: Right
• Cooling: Circulating air
• Including: 5 covers for feed tube ,1 key ,5 tube feed covers 9.8 mm ,5 tube feed covers 12.3 mm
• Material inside: Plastic
• Power: 0.068 kW
• Temperature range to: 8 °C
• Digital display: Yes
• Climate class: N, T
• Interior lighting: Yes
• Temperature range from: 0 °C
• Temperature control: Electronic ,Touch ,In 1 °C steps
• Material: Steel plate ,Glass
• Frequency: 50/60 Hz
• Door hinge side can be changed: No
• Automatic defrosting function: Yes
• Width inside: 160 mm
• Height-adjustable feet: No
• Thermostat: Yes
• ON/OFF switch: No
• Depth inside: 190 mm
• Number of doors: 1
• Voltage: 230 V
• Coolant: R600a / 0,0108 kg
• Ambient temperature: to 32 °C
• Insulation: Cyclopentan
• Control unit: Touch
• Properties: Designed for 3 x 1 litre Tetra Pak®, for example ,Direct milk supply via side openings on the appliance ,LED lighting
• Type of door: Leaf door(s)
• Lockable: Yes
• Height inside: 280 mm
• Colour: Black
• Content: 9 litre(s)
• Important information: Tube feeds are closed upon delivery

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 190089
