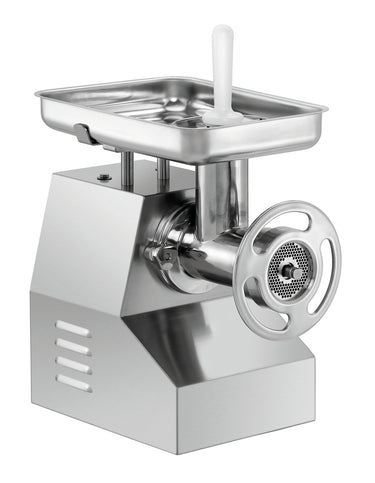

This meat grinder with extra large filling chute and ventilated motor produces up to 500 kg per hour. The removeable mincing unit enables HACCP-compliant storage in the refrigerator.

Product benefits

• Maximum output for the highest demands: Up to 500 kg of meat per hour – the FW500 delivers consistently high throughput for demanding kitchen operations.
• HACCP compliant hygiene made easy: Thanks to the removeable mincer, it can be easily cooled and cleaned – for maximum food safety in everyday use.
• Optimised for professional continuous operation: The ventilated motor with Overload protection ensures reliable and safe operation even during long periods of use in commercial kitchens.
• Efficient cleaning without extra effort: All attachments and the shredding unit are made of stainless steel and are dishwasher-suitable – for time-saving cleanliness.
• More control at every stage: With separate displays for forward, Reverse run and operating status, you always have an overview – even in hectic kitchen operations.
• Stability meets durability: The high-quality stainless steel gearbox and sturdy aluminium hopper guarantee robust performance for years to come.
• Generous opening for smooth workflow: The extra-large 76 mm filling shaft allows for quick filling – ideal for high cycle rates in butcher shops and commercial kitchens.
• Reverse run – when things get stuck: The integrated reverse run clears blockages without dismantling – for continuous operation without interruption.

Technical data

• Width: 305 mm
• Depth: 470 mm
• Height: 500 mm
• Net weight: 40.799999999999997 kg
• Gross weight: 46.4 kg
• Volume: 0.153 MTQ
• Guarantee: VG
• Customs tariff number: 84385000
• Reverse run: Yes
• Voltage: 400 V
• Material grinder funnel: Aluminium
• Unger system: No
• Removeable grinder: Yes
• Removeable grinder funnel: Yes
• Control lamp: ON/OFF ,Forwards run ,Reverse run
• Material gears: Stainless steel
• Ventilated motor: Yes
• Diameter filling shaft: 76 mm
• Equipment connection: 3 NAC ,Pluggable
• Removeable mincer: yes ,Enables HACCP-compliant storage in the refrigerator
• Colour: Silver
• Power: 2.2 kW
• Frequency: 50 Hz
• Diameter disks: 100 mm
• Overload protection: Yes

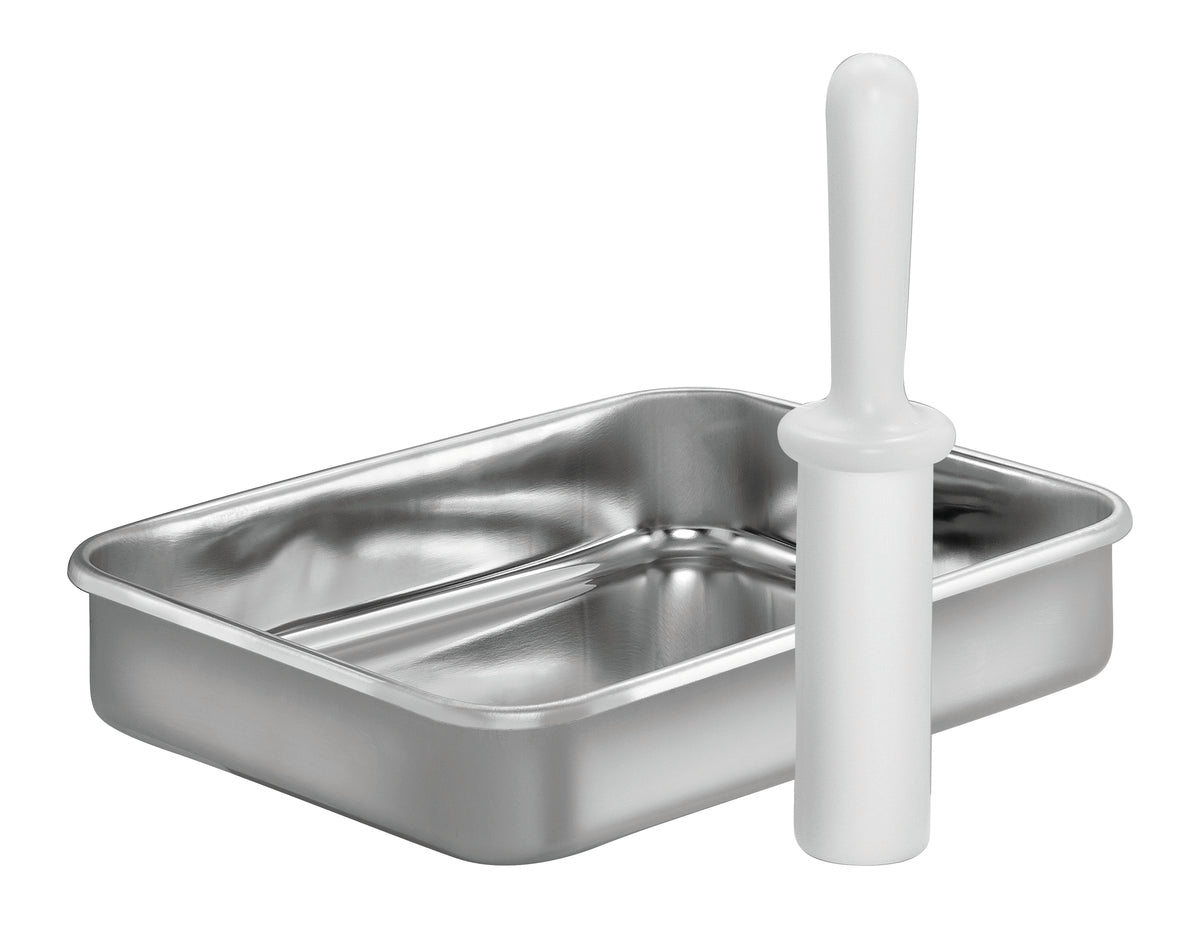

• Including: 1 perforated disk 6 mm ,1 stainless steel knife, 4-wing ,1 stamper
• Material: Stainless steel
• ON/OFF switch: Yes
• Output max.: 500 kg / hour
• Properties: All attached stainless steel parts and the mincer are dishwasher-safe ,Large filling chute

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 370238
