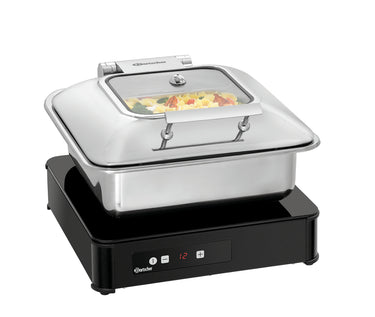

The design of this hot plate makes every buffet look more appealing. The practical solution of connecting and switching 4 appliances with the optionally available cable in one circuit also ensures a uniform, high-quality look when serving food.

Product benefits

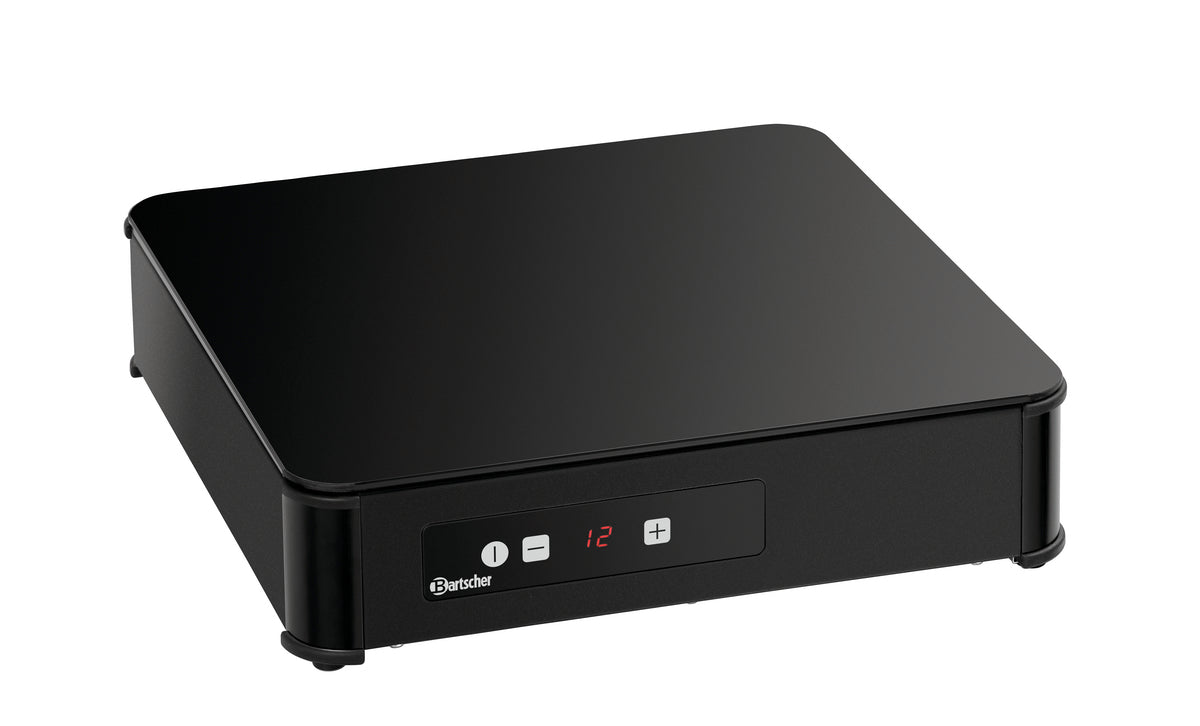

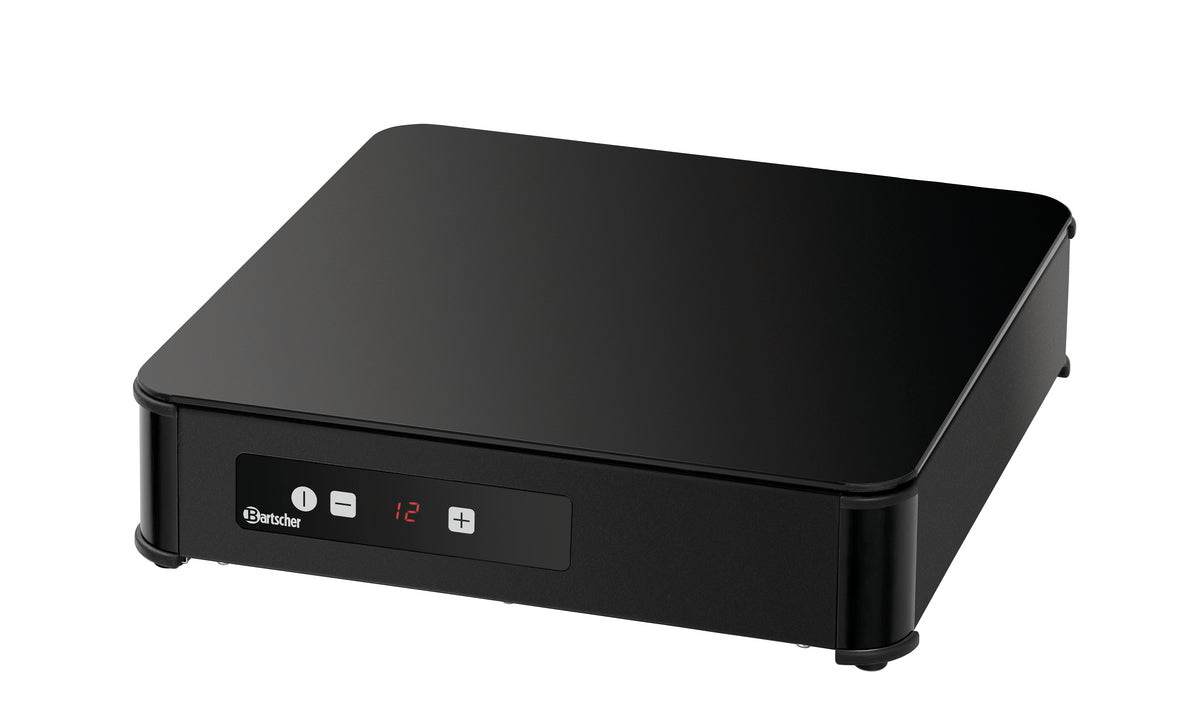

• Induction heating meets design: The elegant black glass surface gives every buffet a modern, professional appearance – both attractive and functional.

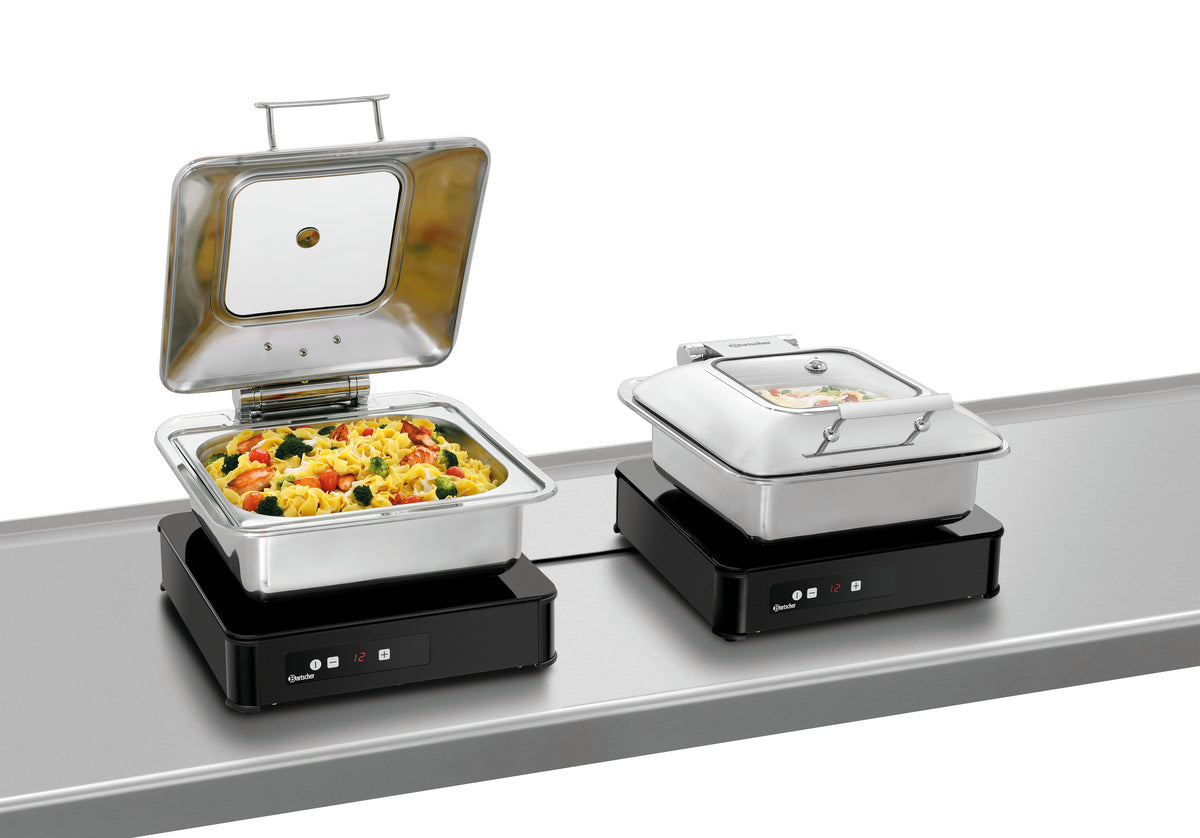

• Connectable for greater efficiency: Up to four IW3-SW units can be connected in series using an optional connection cable – ideal for structured food service with only one power connection.

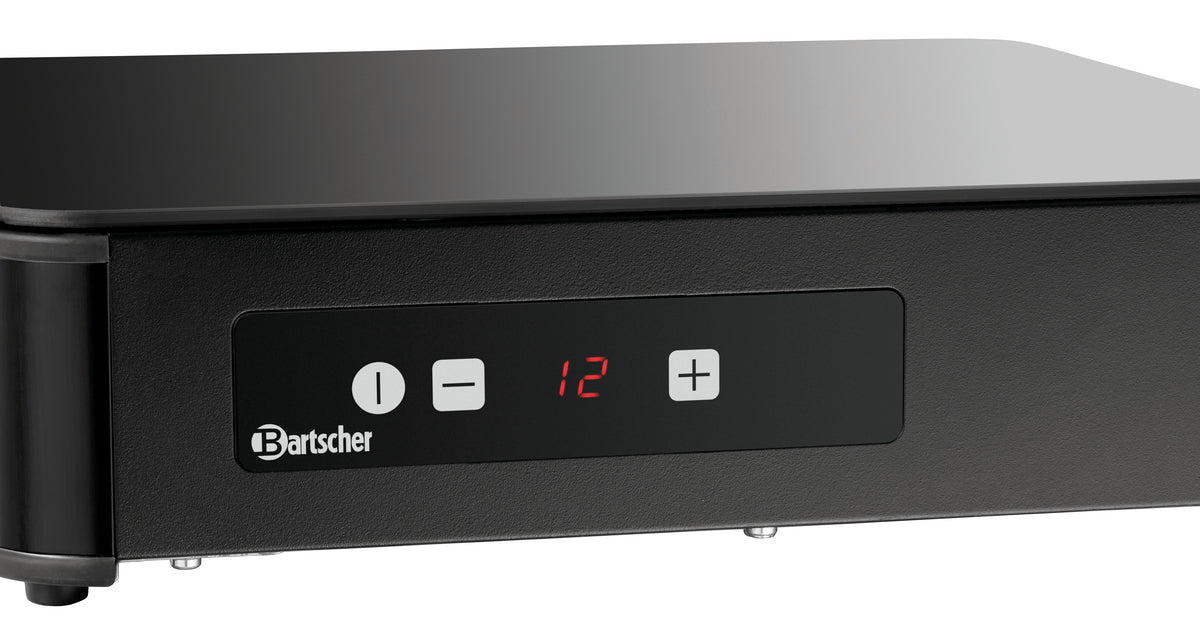

• Precise temperature control in 12 stages: With electronic touch control and finely adjustable 5 °C increments, you can maintain a constant optimum keeping warm temperature between 40 and 95 °C.
• Safe thanks to overheating protection: An integrated protection mechanism prevents overheating – for long-term reliable use even during long service periods of length.

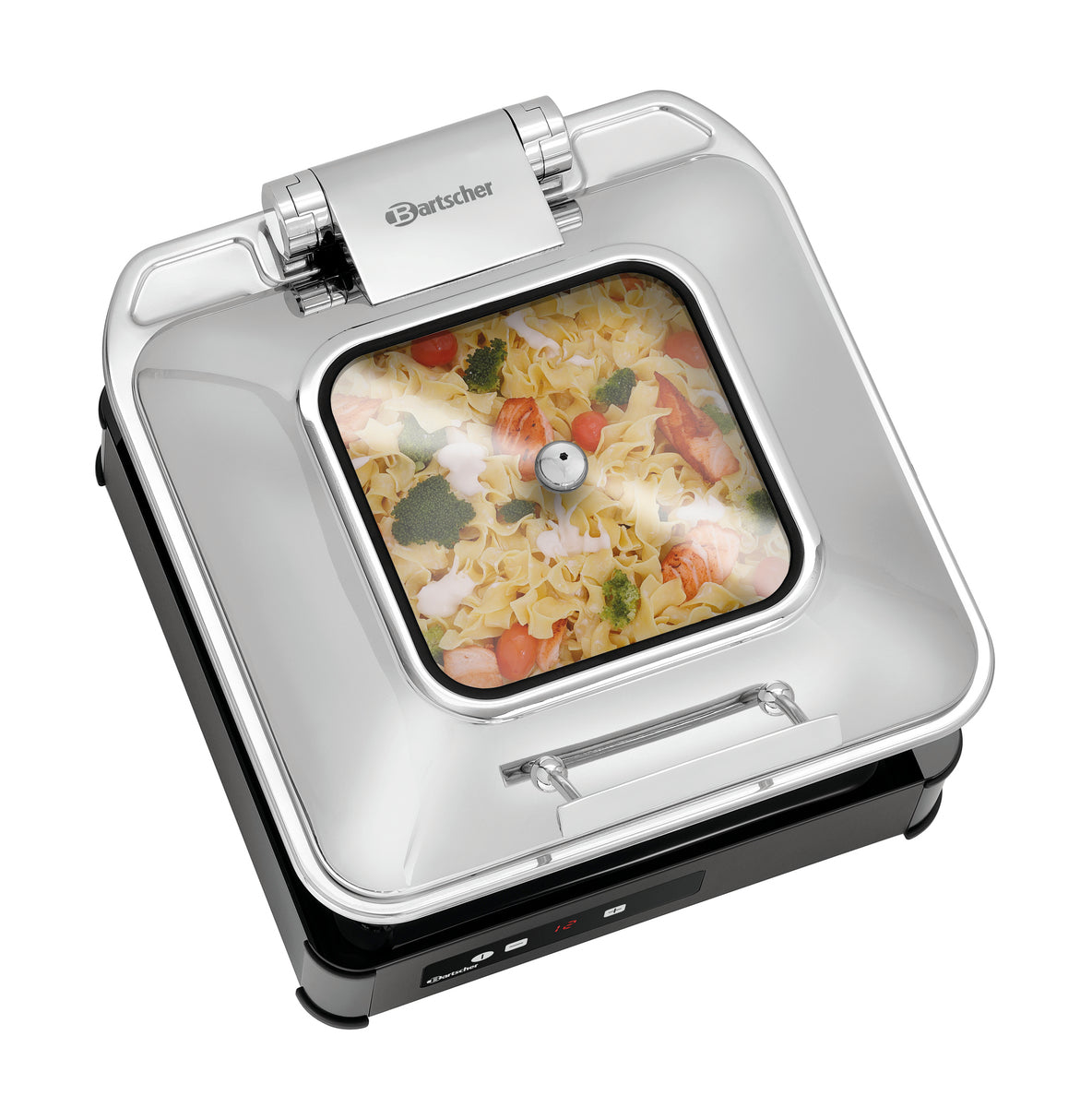

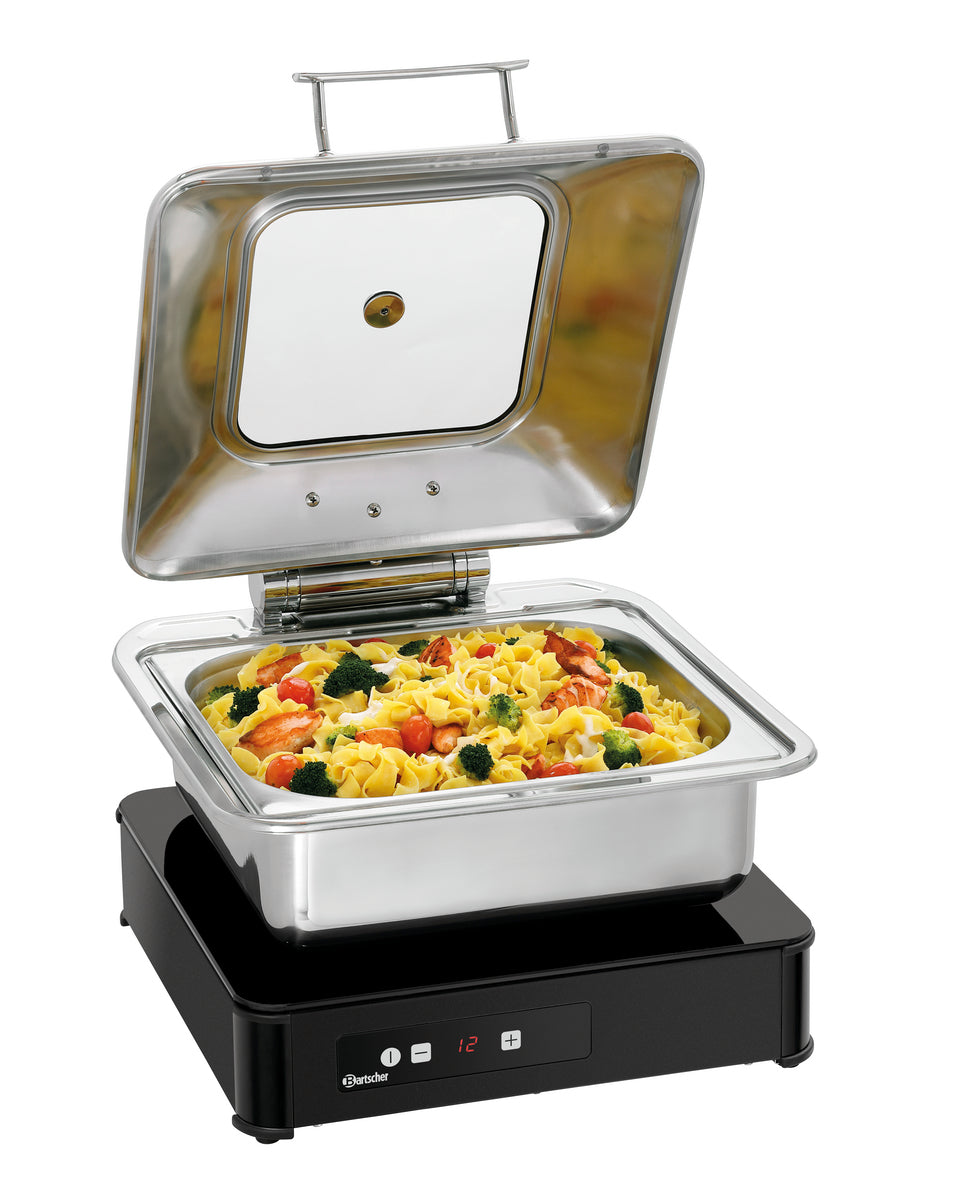

• Maximum flexibility for different containers: Whether small pots or large chafing dishes: the warming plate automatically detects cooking crockery with a diameter of 200 to 380 mm and adjusts the power accordingly.
• Easy operation, ready for immediate operation: Plug-and-play Installation and an intuitive touch control panel on the device enable immediate use without any prior technical knowledge.

Technical data

• Width: 390 mm
• Depth: 390 mm
• Height: 100 mm
• Net weight: 5.4 kg
• Gross weight: 6.6 kg
• Volume: 0.027 MTQ
• Guarantee: VG
• Customs tariff number: 84198180
• Colour: Black
• Pot recognition: Yes
• Combinability: 4 appliances can be switched in sequence in 1 power circuit
• Control panel: On the appliance
• Lock button (child protection): No
• Frequency: 50-60 Hz
• Control unit: Electronic ,Touch
• Can be installed: No
• Overheating protection: Yes
• Power: 0.3 kW
• Material: Steel
• Type of warming station(s): Induction
• Depth glass field: 390 mm
• Pot diameter max: 200 - 380 mm
• Material hob: Glass
• Temperature range to: 95 °C
• Timer: No
• Number of temperature levels: 12
• Intervals temperature setting: 5 °C
• Output max.: 300 W
• Digital display: Yes
• Temperature range from: 40 °C
• Voltage: 230 V
• Regulation of: Output
• Width glass field: 390 mm
• Number of warming stations: 1
• ON/OFF switch: Yes
• Equipment connection: Pluggable

Documents

• Datasheet
• Operating instructions
• Exploded view

Manufacturer item number: 105867
