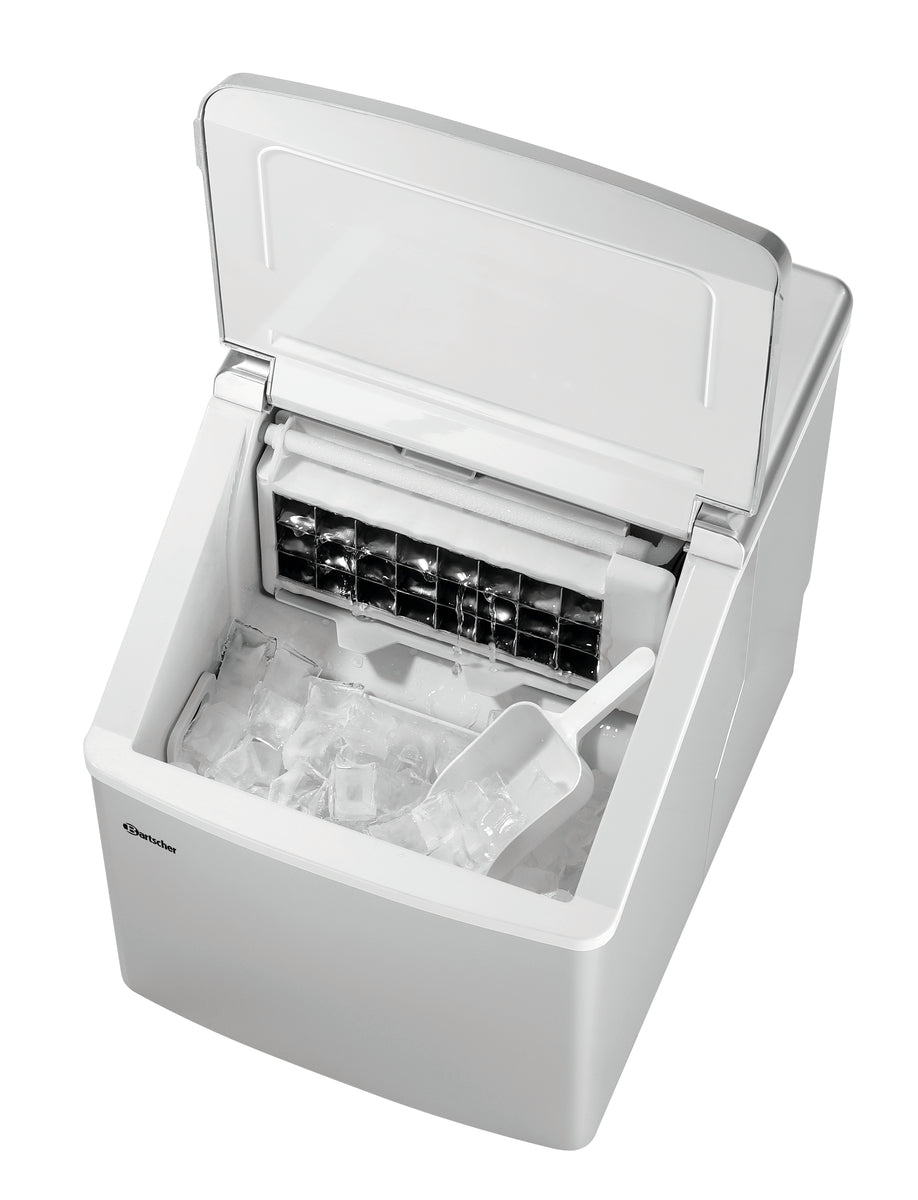

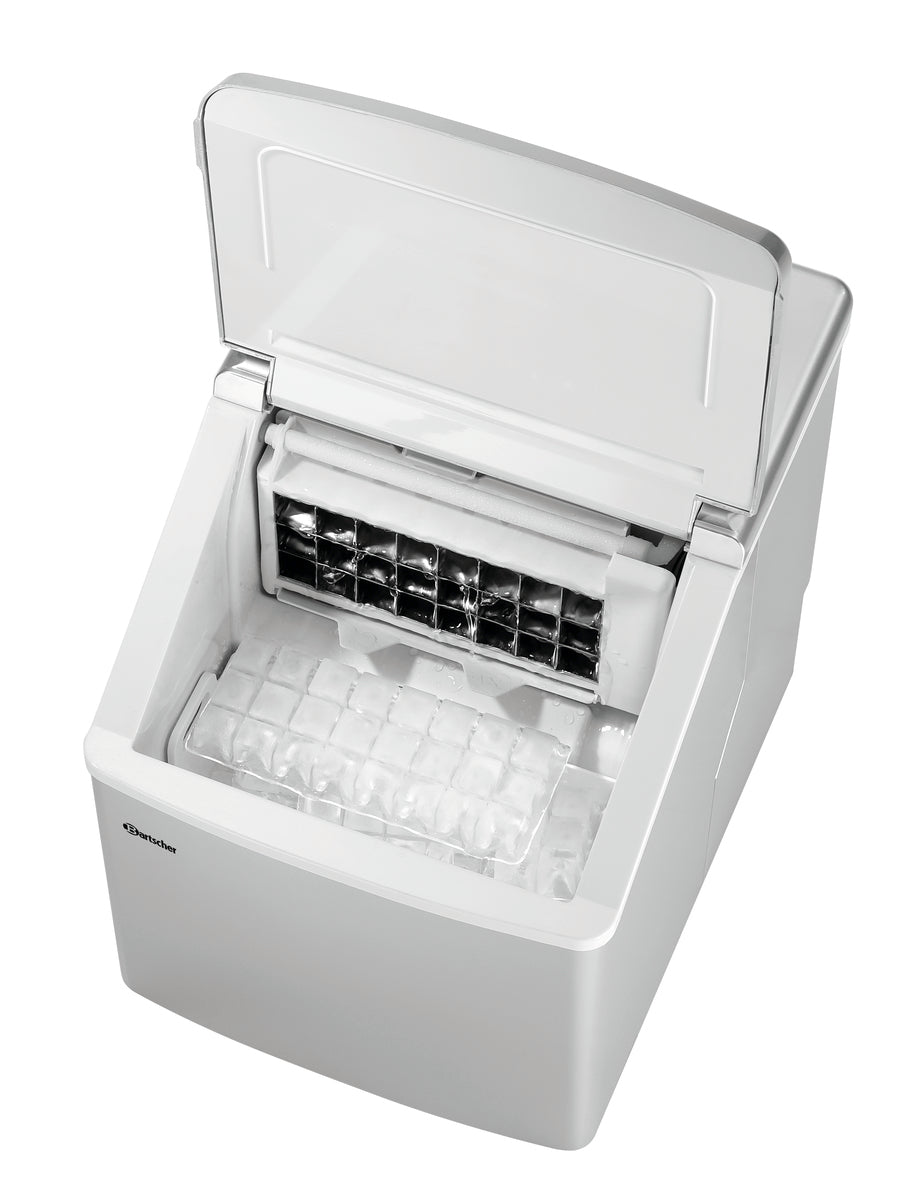

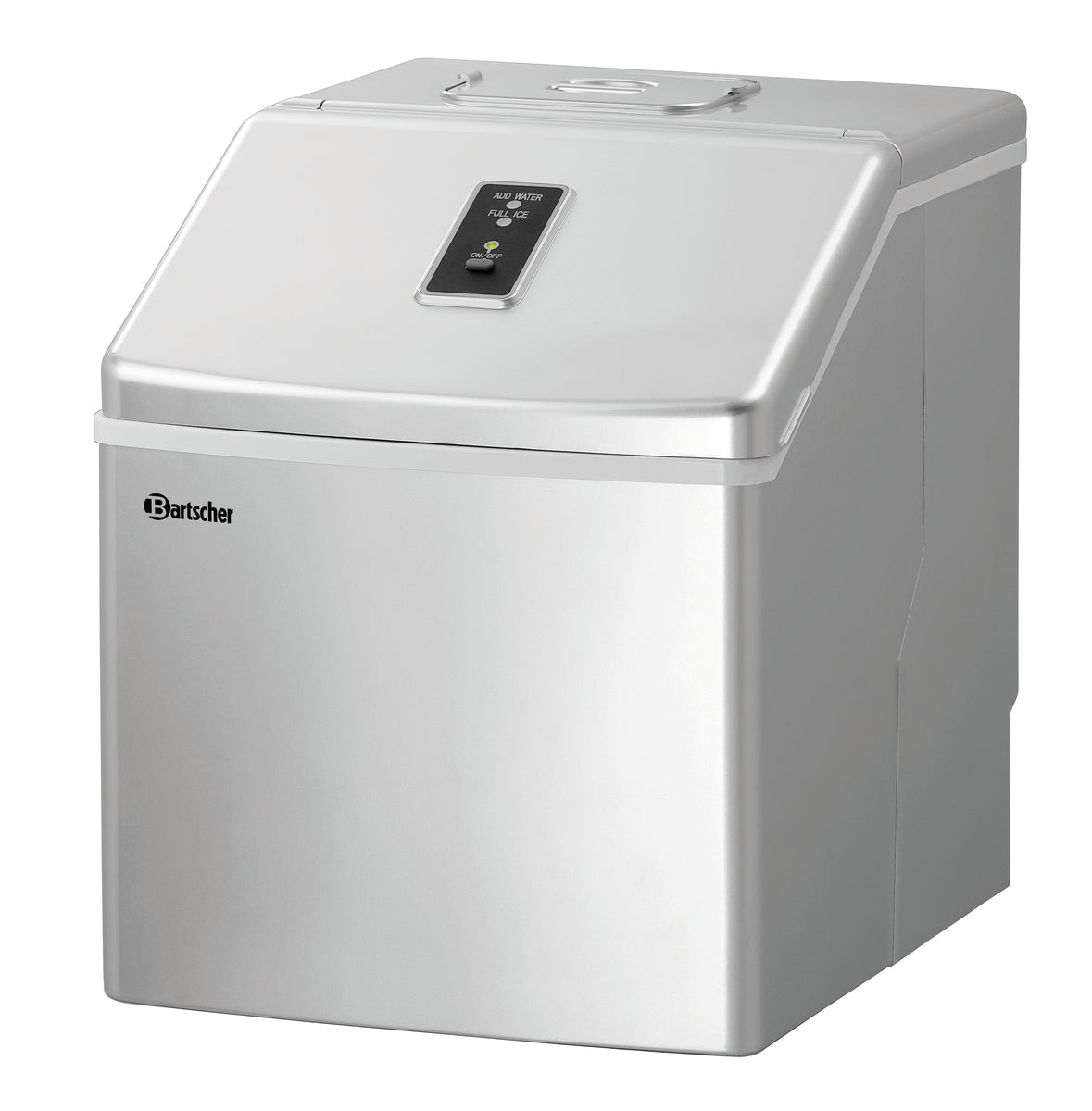

Compact device for production of clear ice cubes. Ideal for small gastronomy operations, e.g. counters and for private use.

Product benefits

• Compact performance for narrow counters: The W150 ice cube maker fits into even the smallest of spaces and reliably delivers up to 15 kg of clear ice cubes per day – ideal for bars with limited space.
• Crystal-clear ice cubes thanks to vertical evaporation: The vertical evaporator system ensures flawlessly transparent ice cubes – perfect for presenting high-quality drinks.
• Autonomous and efficient without a fixed water connection: Despite its high performance, the W150 does not require a Water connection – ideal for flexible use in restaurants and catering.

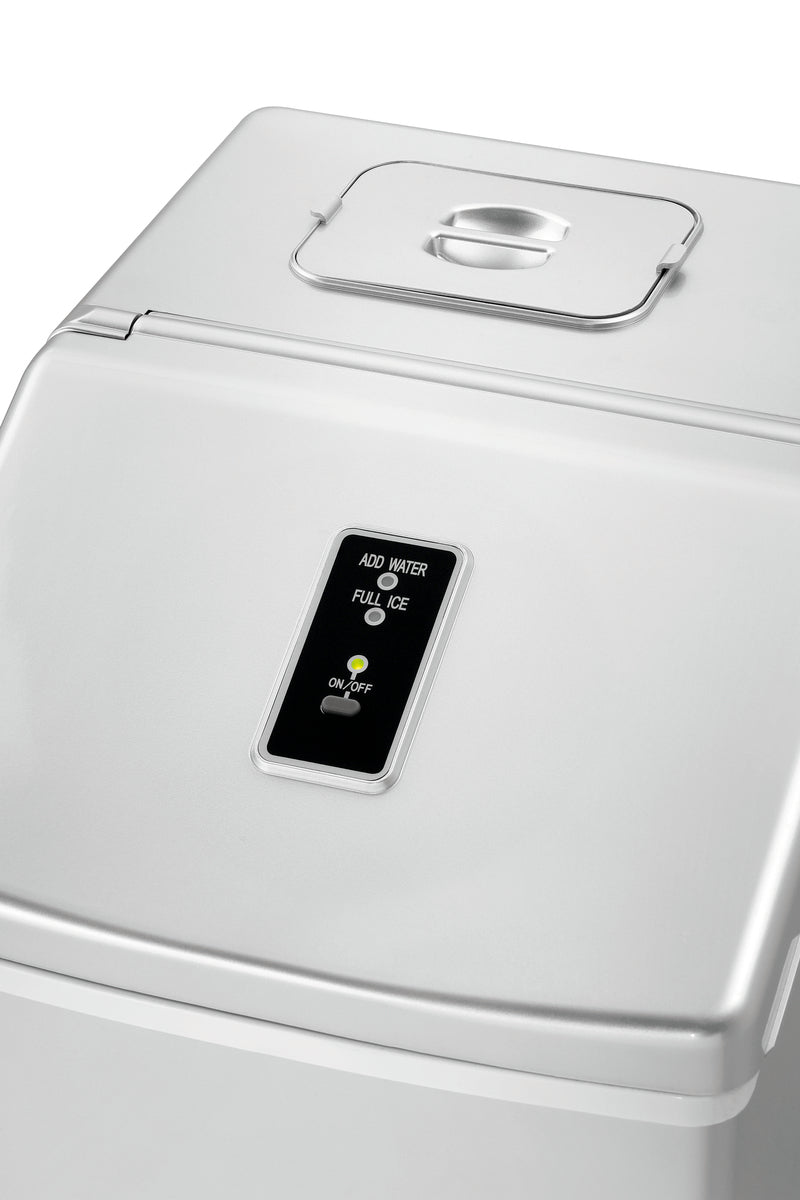

• Ready for immediate use with integrated sensor system: Practical control lamps show in good time when the ice container is full or water needs to be refilled – for continuous operation without surprises.
• Maximum yield with minimum water consumption: With a 2.3-litre tank, the W150 produces up to 360 ice cubes – particularly economical for high demand in confined spaces.
• Reliability thanks to durable compressor cooling: The robust cooling technology with the environmentally friendly refrigerant R600a guarantees constant ice production even at high utilisation rates.

Technical data

• Width: 290 mm
• Depth: 370 mm
• Height: 350 mm
• Net weight: 9.4 kg
• Gross weight: 10.7 kg
• Volume: 0.059 MTQ
• Guarantee: VG
• Customs tariff number: 84186900
• Filling level sensor: Yes
• Design ice cube: Cube form ,Clear
• Production by means of: Vertical evaporator system
• Water tank yield: Up to 360 ice cubes
• Coolant: R600a / 0.035 kg
• Production max.: 15 kg / 24 h
• Number of ice cube sizes: 1
• ON/OFF switch: Yes
• Power: 0.24 kW
• Voltage: 230 V
• Material: Plastic
• Can be fitted below the counter: No
• Storage container capacity: 1 kg
• Control lamp: ON/OFF ,Storage tank full ,Refill tank
• Colour: Steel grey
• Can be installed: No
• Water outlet: Back
• Production / work step: 24 Ice cubes
• Control unit: Knob
• Climate class: ST
• Tank volume: 2.3 litre(s)
• Frequency: 50 Hz
• Cooling: Compressor
• Including: 1 ice shovel

Documents

• Datasheet
• Operating instructions
• Exploded view
• Wiring diagram

Manufacturer item number: 100083
